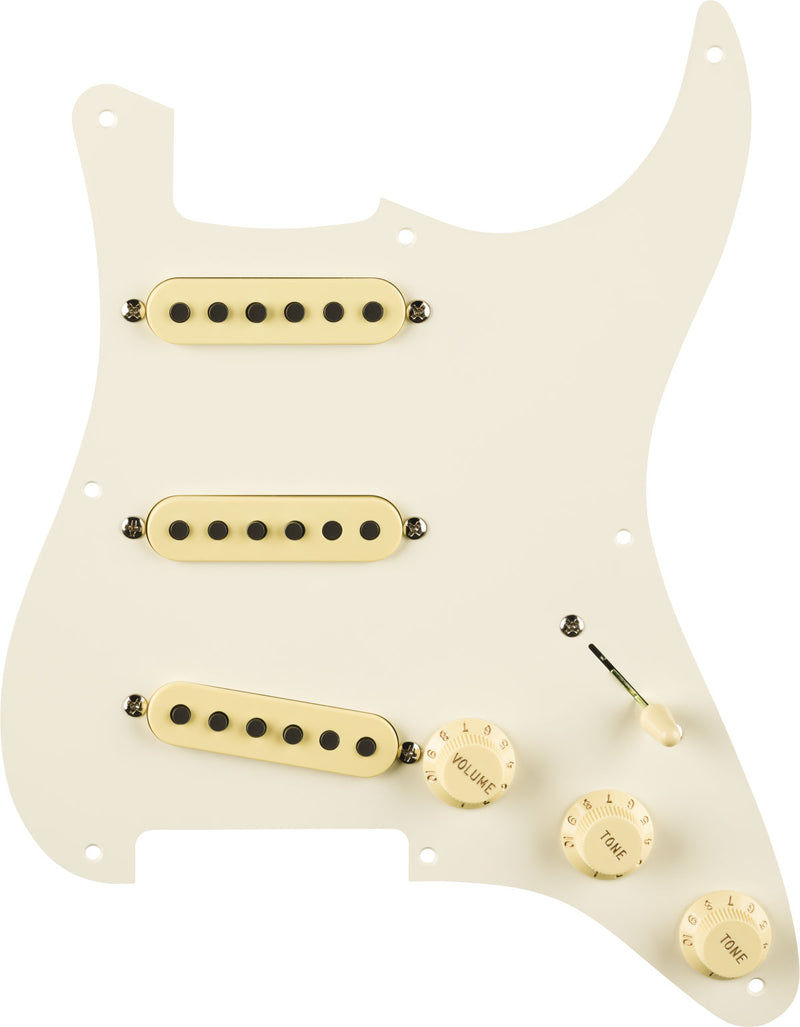

Fender PRE-WIRED STRAT PICKGUARD ERIC JOHNSON SIGNATURE PARCHMENT 8 HOLE PG
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Fender
https://www.fender.com
------------------------
Safety manager:
Fender (EDC) B.V.
Email: contactemea@fender.com
Address:
A Set Designed for the Strat: Vintage Spirit with More Response
This Fender Eric Johnson Signature pre-wired pickguard is designed for guitarists who want to keep the authentic Strat tone while gaining presence and expressiveness. The pickups offer a slightly warmer output than typical vintage models, with a very musical balance between attack, definition, and thickness, ideal for switching from precise rhythm playing to leads that stand out in the mix.
Simple Installation for True "Plug and Play" (Almost)
The electronics are already installed with quality components, such as CTS 250K potentiometers and cloth-covered wiring. For installation, simply remove your current pickguard, solder the output jack and ground wires, then screw on the new pickguard: you immediately benefit from a clean and reliable circuit, perfect for modernizing a Stratocaster hassle-free.
Three Complementary Pickups: Clarity, Balance, and a Beefier Bridge
The neck pickup is inspired by a 1954 Strat model with oversized Alnico 3 magnets for round and detailed tones. The middle pickup, based on a 1963 spirit, uses treated Alnico magnets and a reverse-wound, reverse-polarity (RWRP) coil to achieve quieter intermediate positions. The bridge pickup, with Alnico 5 magnets, is calibrated to be warmer without losing high-end sparkle, maintaining Fender brightness even with overdrive.
Technical specifications
| Electronics | Passive |
| Category | plate |
| Instrument | Strat |
| Magnet | Alnico |
| Winding | simple |
| Position | handle, bridge, middle |
| Color | Beige |
| Pickguard | 1-Ply Parchment |
| Pickguard ply | 1-Ply |
| Pickup covers | Aged White |
| Control knobs | Aged White |
| Pickup selector tip | Aged White |
| Hardware finish | Chrome |
| Bridge pickup | Custom Eric Johnson Signature Stratocaster Bridge Pickup |
| Middle pickup | Custom Eric Johnson Signature Stratocaster RWRP Middle Pickup |
| Neck pickup | Custom Eric Johnson Signature Stratocaster Neck Pickup |
| Pickup configuration | SSS |
| Connector wire | Cloth-covered |
| Magnet type | Neck and Middle: Alnico 3, Bridge: Alnico 5 |
| Coil wire | Formvar-coated |
| Pole pieces | Staggered |
| Coil material | Fiber |
| Controls | Master Volume, Tone 1 (Neck Pickup), Tone 2 (Bridge Pickup) |
| Output | Vintage |
| DC Resistance | Neck: 5.8-6k, Middle: 6.3-6.5k, Bridge: 6.7-6.9k |
| Inductance | Neck/Middle: 2.5-2.7 Henries, Bridge: 2.9-3.1 Henries |
| Potentiometers | CTS 250K |
Questions frequently asked
Is this pickguard compatible with a Stratocaster?
This plate is designed for a Strat equipped with an SSS configuration and an 8-hole pickguard. Exact compatibility depends on the screw placement and the guitar's electronic cavity.
Is soldering required to install the Fender Eric Johnson Signature pickguard?
The electronics come pre-assembled, with CTS 250K potentiometers and cloth-covered wiring. Only the output jack and ground wires need to be soldered before attaching the plate.
What sound does the Eric Johnson bridge pickup provide?
The bridge pickup uses Alnico 5 magnets and has a DC resistance ranging from 6.7 to 6.9 kΩ. Its output level is calibrated to deliver more warmth while retaining brightness in the highs.
Are the middle positions less prone to noise?
The middle pickup is wound RWRP, with a DC resistance between 6.3 and 6.5 kΩ. This design helps reduce noise interference in the middle positions.
What controls and finish are included?
The setup includes a master volume, a tone control for the neck pickup, and a tone control for the bridge pickup. The 1-ply pickguard is parchment-colored, with pickup covers, knobs, and selector tip in Aged White.
