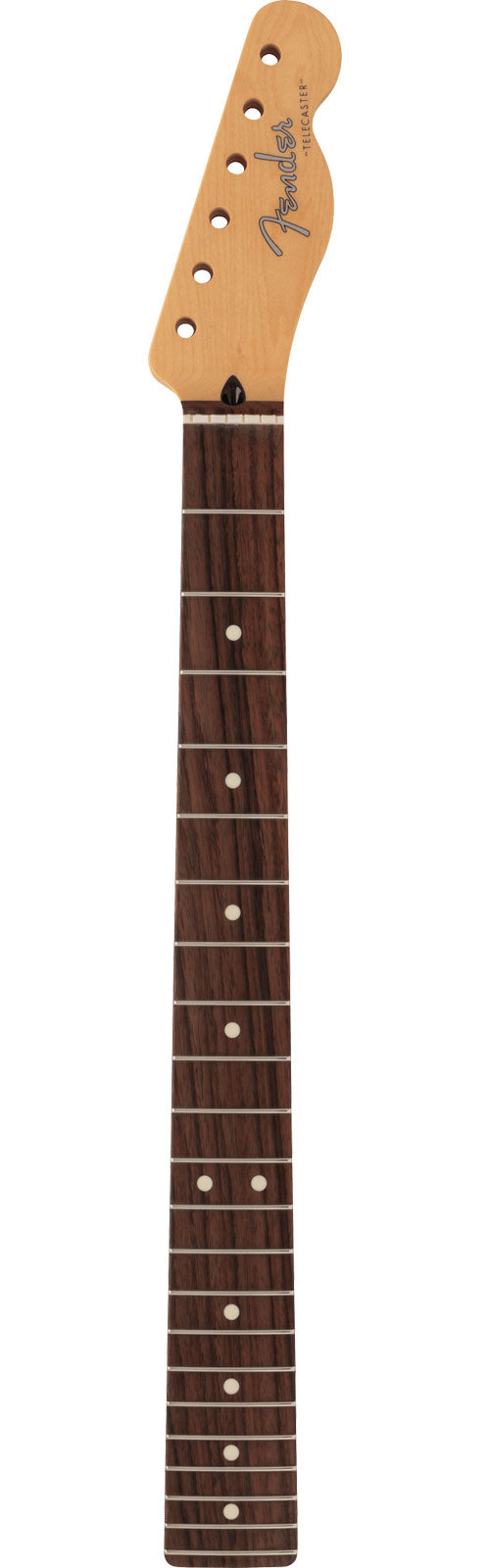

A Telecaster Upgrade Designed for Modern Playing Without Losing Fender's DNA
This Made in Japan Hybrid II Telecaster neck merges traditional Fender aesthetics with a comfort-oriented specification. Its Modern "C" profile and satin finish on the back provide a smooth feel, perfect for sharp rhythm parts as well as more expressive leads. The 9.5" radius offers an excellent balance between chords and solos, while the 22 Narrow Tall fret configuration enhances precision and control. Whether restoring a guitar or optimizing your instrument, this neck is a reliable and enjoyable foundation, featuring a rosewood fingerboard with a warm touch.
Technical specifications
| Category | spare part | Quantity | 1 |
| Instrument | electric | ||
| Neck Material | Maple with Walnut Stripe | Side Dots | White |
| Neck Finish | Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face | Number of Frets | 22 |
| Neck Shape | Modern "C" | Truss Rod | Standard |
| Neck Thickness | 1st Fret -.800" (20.4 mm), 12th Fret -.900" (23.4 mm) | Truss Rod Nut | 5 mm Hex |
| Neck Attachment | 4-Bolt | Nut | Bone |
| Fingerboard Radius | 9.5" (241 mm) | Nut Width | 1.615" (41.02 mm) |
| Fingerboard Material | Rosewood | Nut Material | Bone |
| Fingerboard Inlay | White Dot | ||
Questions frequently asked
Is the Fender Tele Japan Hybrid II neck compatible with a 4-bolt mounting?
The indicated mounting type is 4-Bolt, meaning four screws. Compatibility with a specific body also depends on its drilling and dimensions, which are not detailed. These elements must be checked before installation.
What is the profile and thickness of the neck?
The Modern “C” profile measures 20.4 mm at the 1st fret and 23.4 mm at the 12th fret. The back has a satin urethane finish, while the headstock face is coated with glossy urethane.
Does this Tele neck have 22 Narrow Tall frets?
The rosewood fingerboard is equipped with 22 Narrow Tall frets, a configuration designed to enhance precision and playability control.
What is the fingerboard radius of the Fender Tele Japan Hybrid II neck?
A radius of 9.5 inches, or 241 mm, is specified.
What type of nut is installed on this neck?
The nut is made of bone and its width is 41.02 mm. The truss rod adjustment is done with a 5 mm hex key.
