Fishman AGX-312 UNDERSADDLE PICKUP WIDE CLASSICAL AND 12 STRINGS

The Fishman AG "under saddle" solution: simple, reliable, stage-ready

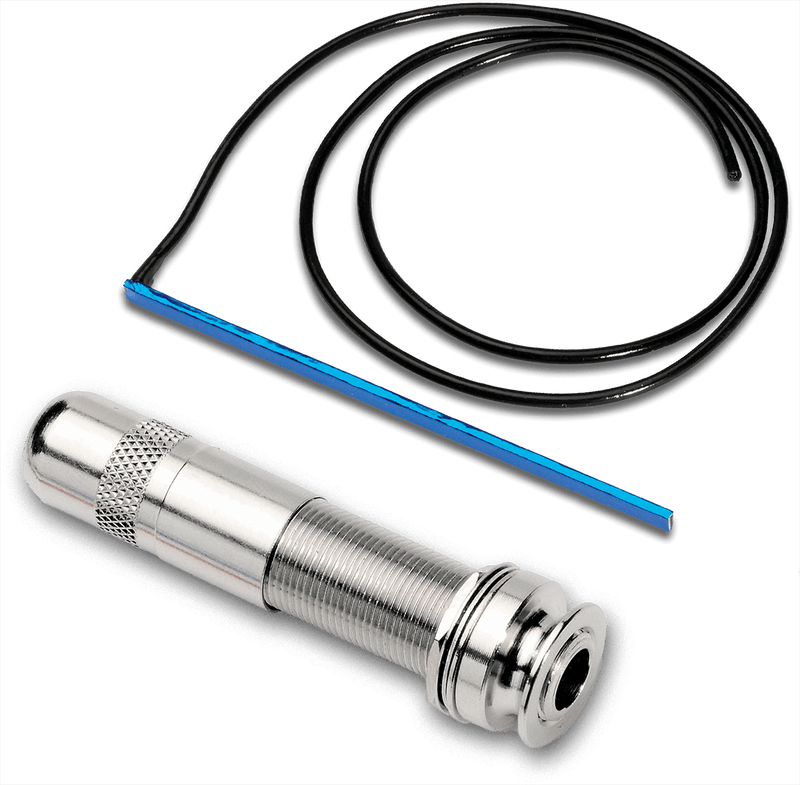

The Fishman AGX-312 is an under-bridge pickup designed for guitarists who want to preserve the look and feel of their instrument while gaining a genuine amplification option. Placed under the saddle, it directly captures the vibrations of the strings and soundboard through the bridge, delivering precise attack reproduction and excellent clarity when playing fingerstyle or with a pick.

Who is it for, and in what contexts?

Designed for classical and 12-string guitars, this pickup is particularly suited for stage musicians, home studio artists, or guitarists seeking a discreet system integrated into the instrument. Its passive nature makes it a relevant choice if you already use an external preamp, DI box, or amplification system with a suitable instrument input, allowing you to fully exploit the signal's dynamics and balance.

3.2 mm width: a key point for installation and playing comfort

The 3.2 mm width corresponds to a "wide" version: this is a decisive factor for a clean and stable installation. The pickup fits under the saddle in the bridge slot, and the proper dimension matching directly contributes to consistent volume across the strings. With a stated compatibility for a maximum string spacing of 59 mm, the AGX-312 is aimed at instruments whose bridge requires a wider spacing, typical of certain classical and 12-string guitars.

Technical specifications

EQ	No	Low battery indicator	No
Category	sensor	Professional installation	Yes
Type	piezo, ceramic piezo, passive microphone	Nut width	3.2 mm
Instrument	guitar, classical guitar	Saddle length	59 mm
Tuner	No	Brightness wheel	No
Notch filter	No	Color	Blue

Brand	Fishman	Compatibility	6- and 12-string guitars
Model / Reference	AGX-312 / PRO-AGX-312	Maximum compatible string spacing	59 mm
Width	3.2 mm
