A console rack designed for touring and production
The G-TOUR 10X16 PU is a pop-up console rack roadcase that secures your audio equipment while speeding up setup. The front and rear rails facilitate mounting heavy equipment, while reinforced hardware and ball corners provide effective protection during repeated loading. On stage or in mobile performance, the lift-up top panel optimizes cable management ergonomics and visibility without multiplying flight cases.
Technical specifications
| Wheels | Yes |
| Category | Flight case |
| Use | Rackmount equipment |
| Color | Black |
| Inner height | 711.2 mm |
| Inner width | 482.6 mm |
| Inner length | 412.8 mm |
| Dimensions (mm) | 654 x 539,8 x 1054,1 (Lxlxh) |
| Type | ATA Wood Flight Pop-Up Console Rack Case |
| Rack format | 19 inches |
| Capacity | 10U (top) + 16U (bottom) |
| Construction | 9 mm plywood with laminated exterior |
| Front and rear rack rails | 3.2 mm thickness |
| Closures | red recessed twist latches |
| Handles | recessed spring handles with rubber grip, 2 per side |
| Hardware | commercial-grade plated hardware, reinforced ball corners |
| Profiles | aluminum extrusion tongue and groove valance |
| Top system | pop-up ratchet with multi-angle adjustment |
| Casters | 4 industrial 4-inch casters, 2 with brakes |
| Internal dimensions (L x W x H) | 41.28 x 48.26 x 71.12 cm |
| External dimensions (L x W x H) | 65.41 x 53.98 x 105.41 cm |
| Weight | 55.79 kg |
| Shipping dimensions (L x W x H) | 71.12 x 60.96 x 111.76 cm |
| Shipping weight | 56.7 kg |
Questions frequently asked
What rack capacity does the Gator G-TOUR 10X16 PU offer?
The capacity is 10U in the upper section and 16U in the lower section, with a 19-inch rack format.
Is the top shelf tiltable for a console?

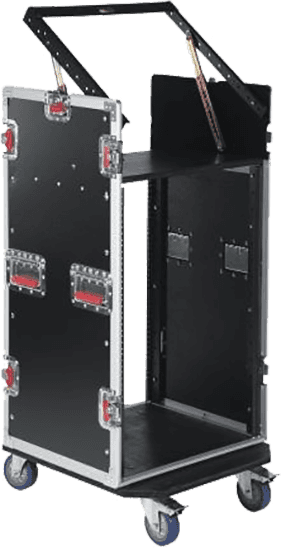

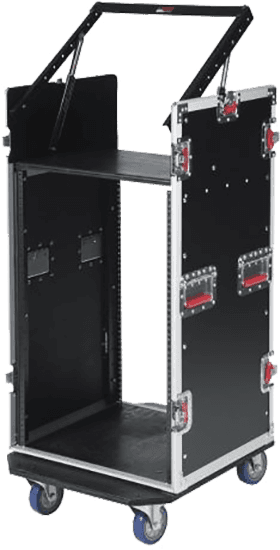

The pop-up ratchet system allows the top to be raised at several angles. This setup facilitates access to controls and cabling of equipment mounted in the upper section.
What are the dimensions and weight of this rack flight case?
The external dimensions are 65.41 x 53.98 x 105.41 cm (L x W x H). The weight is 55.79 kg. The internal dimensions are 41.28 x 48.26 x 71.12 cm.
Is this rack flight case equipped with wheels?
Wheels are integrated to facilitate moving this 55.79 kg flight case.
How is the protection of the Gator G-TOUR 10X16 PU constructed?
The case uses 9 mm plywood with a laminated exterior. Reinforced ball corners, interlocking aluminum profiles, and recessed red twist latches complete the protection.
