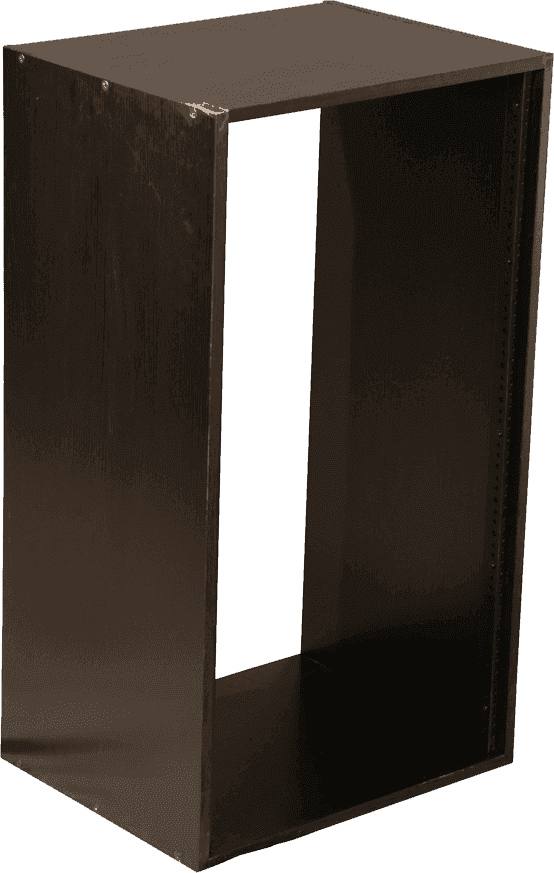

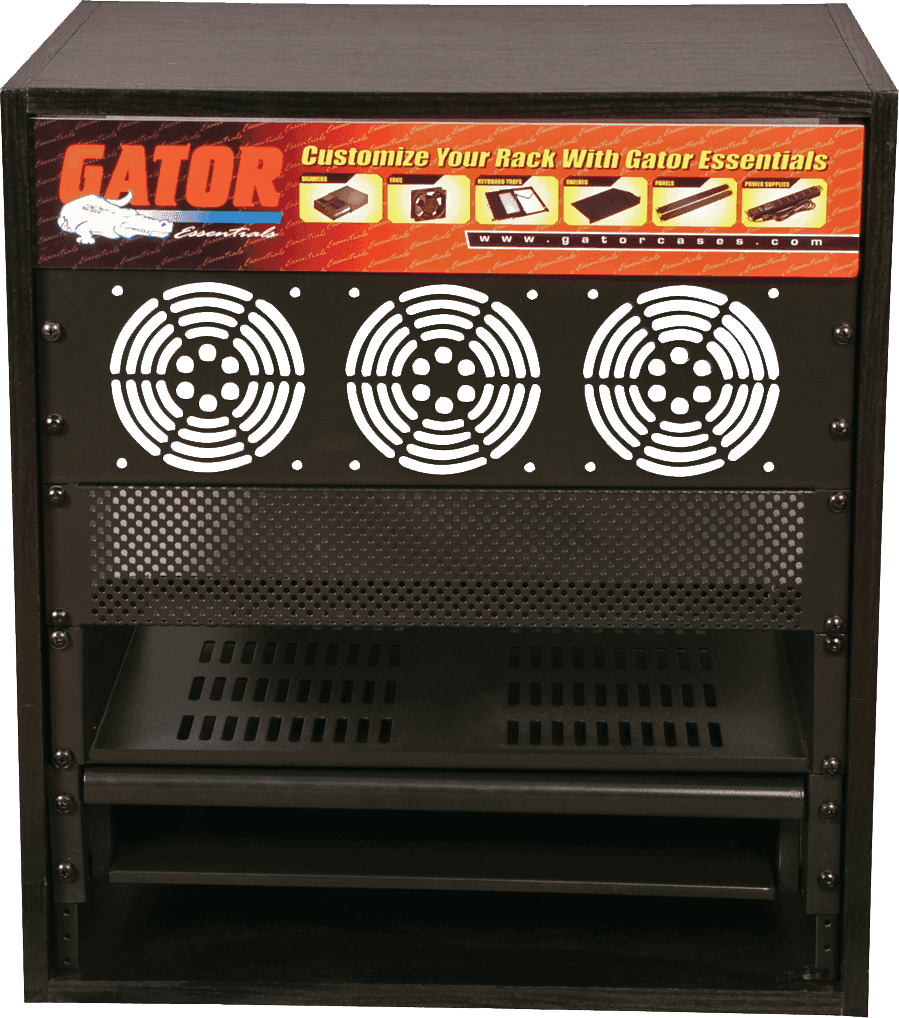

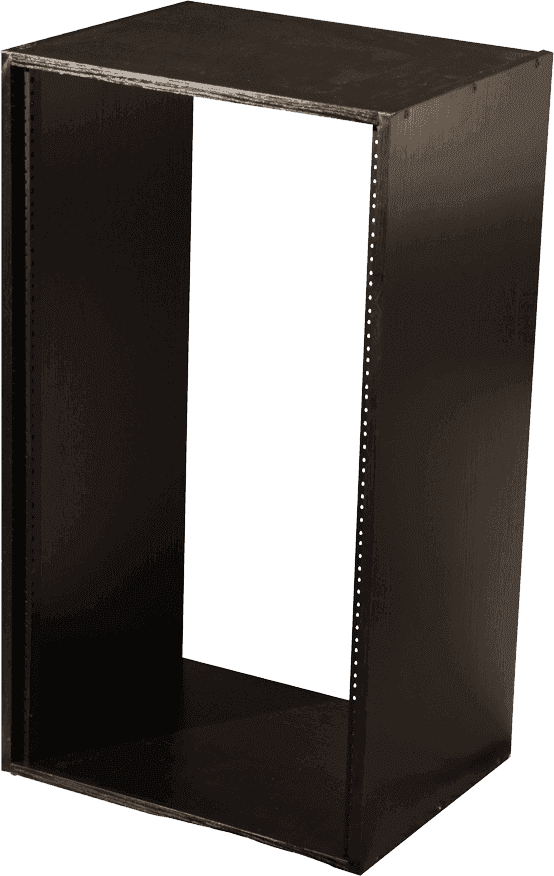

Gator GR-Studio-16U

A 16U Rack Cabinet: The "Just Right" Format for Organizing a Studio

In a modern audio environment, managing rack equipment is often the key to a reliable system: fewer cables lying around, clearer routing, and devices protected within a coherent setup. This rack cabinet adopts a 16-unit format, a relevant choice for those who want to gain order without switching to an overly large rack bay. It is suitable for recording studios, equipped rehearsal spaces, fixed control rooms, or AV and network installations using the 19-inch standard.

Its size is designed to offer a true usable volume inside while remaining manageable on a daily basis: you can group a complete chain (preamps, dynamics, conversion, headphone distribution, power supply, wireless systems) and maintain a clear layout, which facilitates maintenance and future upgrades.

Who Is This Rack Cabinet Ideal For, and What Are Its Use Cases?

This rack cabinet is perfect for users who want to stabilize an installation and secure their cabling: advanced home studios, project studios, institutions (schools, multipurpose rooms), sound technicians in fixed installations, or musicians seeking a dedicated space for 19-inch equipment. The cabinet format helps structure your setup: the audio interface and its preamps remain at the right height, processors (compressor, equalizer, multi-effects) are accessible, and the whole setup gains clarity during sessions.

It is also a good option if you use multiple sources and peripherals: a patchbay, headphone distribution, AD/DA converter, or wireless receivers naturally find their place in a 16U cabinet while maintaining a clean layout. In technical environments, the 19-inch standard internal width allows integration of patching and organizational equipment in the same format.

Design, Integration, and Best Installation Practices

Steel Chassis: Stability and Durability

With an external steel material, this rack focuses on solid construction, suitable for regular use. Steel provides good overall rigidity, useful when installing multiple devices (some of which can be heavy, such as multi-channel headphone amplifiers, power conditioners, or certain processors). The weight of the rack also contributes to the stability of the whole setup once in place.

Dimensions and Internal Volume: Anticipating Space Requirements

Before installation, it is essential to check the available space and cable routing. The external dimensions determine the footprint, while the internal dimensions guide compatibility with the 19-inch standard and usable height. With an internal height of 711.20 mm, you have a volume suited to the 16-unit format, ideal for organizing a complete chain without stacking equipment in a restrictive manner.

Device Mounting: Screws to Provide

An important point for a trouble-free setup: rack mounting screws are not included. Plan for screws compatible with your devices and nuts (if your setup uses them) to ensure a clean mount, without play or mechanical stress on the rack ears. Proper fixation also limits vibrations and protects rear connectors during plugging and unplugging.

Studio Optimization: Cabling, Accessibility, and Scalability

To get the most out of a rack cabinet, think "workflow": place frequently handled devices (interface, patchbay, control) at a comfortable height, and leave rarely touched elements (distribution, power supply, fixed modules) below. Neat and labeled cabling simplifies troubleshooting, improves reliability, and saves time during sessions. The 16-unit format also leaves room to evolve your configuration without needing to change the entire infrastructure.

Technical specifications

Rack unit	16	Finishing	Wood
Category	rack	Inner height	711.2 mm
Destination	Cabinet	Inner width	482.6 mm
Exterior materials	Steel	Weight	15.42 kg
Color	Black	Dimensions (mm)	419,1 x 520,7 x 711,2 (Lxlxh)

Purpose	cabinet	Internal width	482.60 mm
Rack units	16	External material	steel
Internal height	711.20 mm
