NOTCHED PRECISION STRAIGHTEDGE FOR GUITAR SCALE 24.75"/25.50"

GW NOTCHED PRECISION STRAIGHTEDGE FOR GUITAR SCALE 24.75"/25.50"

Name: NOTCHED PRECISION STRAIGHTEDGE FOR GUITAR SCALE 24.75"/25.50"
Brand: GW
SKU: 412689
Price: 60.00 EUR
Availability: InStock

60,00 €VAT incl.

0,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 412689

EAN : 0175259484724

Information

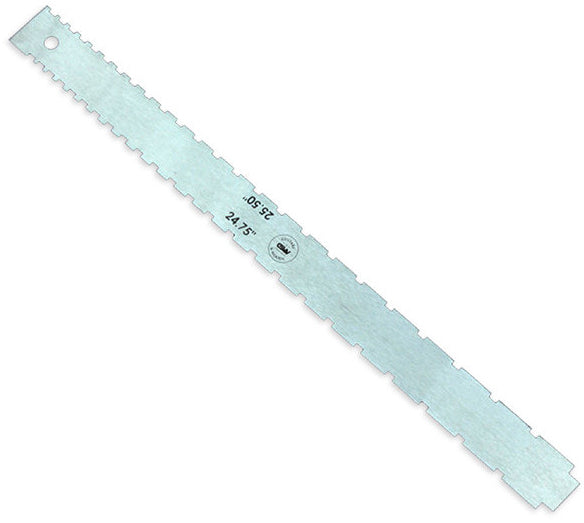

Essential Information About the G&W Flat Machined Dual Notched Guitar Neck Straight Edge 24.75"/25.50"

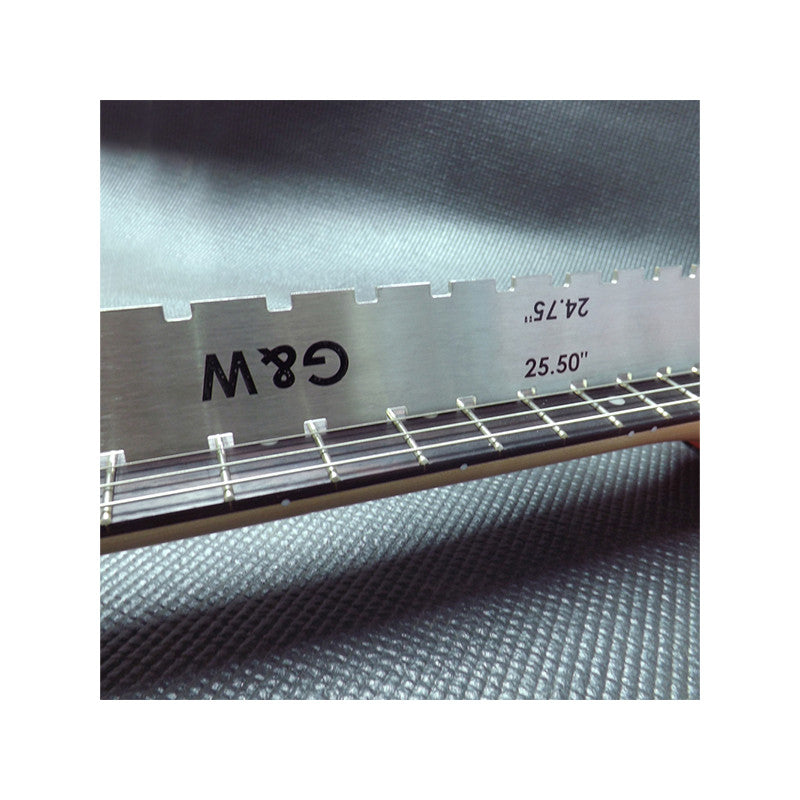

• Dual notch to check the fretboard flatness by bypassing the frets
• Compatible with the most common guitar scale lengths: 24.75" and 25.50"
• 2 mm stainless steel : stability, precision, and excellent long-term durability
• CNC laser cut for a clean straight edge, ideal for neck adjustments

NOTCHED PRECISION STRAIGHTEDGE FOR GUITAR SCALE 24.75"/25.50"

60,00 €VAT incl.

0,00 € Ecotax included

Reference price

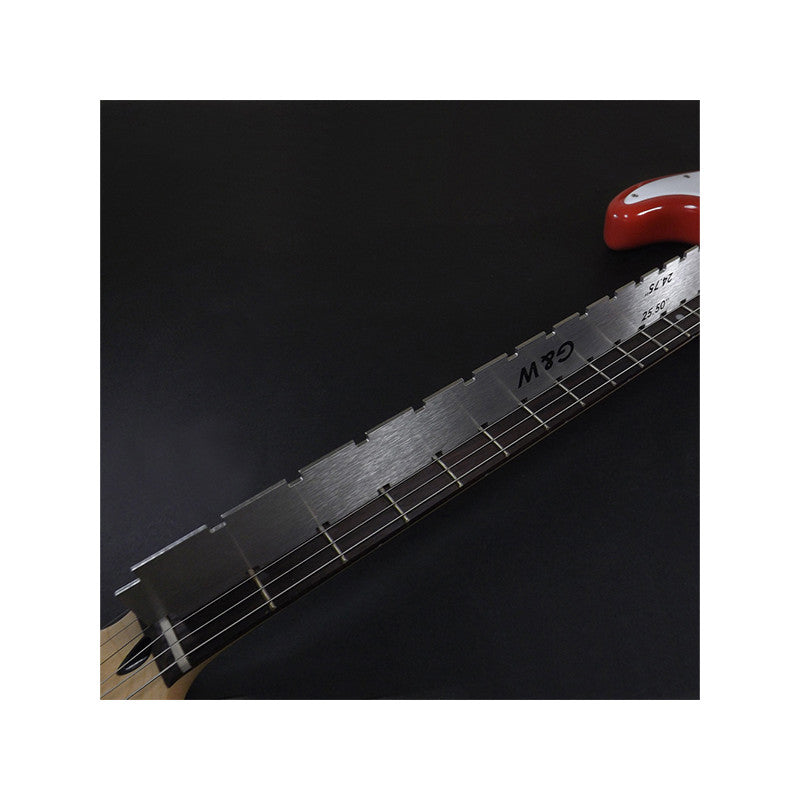

A precise tool for neck and truss rod adjustment

This G&W dual notched straight edge ruler is designed for adjustment and diagnostic operations on guitars: relief control, detection of hollow or bulging areas, and quick verification before lowering the action. Thanks to its notches, you measure the neck straightness at the fretboard level without being affected by the fret height, a real advantage for fine adjustments, regular maintenance, or luthier interventions.

Technical specifications

Category

Tools

Use

fretboard, guitar

Type	dual notched straight edge ruler for guitar neck	Cutting	CNC laser
Scale length compatibility	24.75" and 25.50"	Length	550 mm
Material	stainless steel	Width	40 mm
Thickness	2 mm

Questions frequently asked

Is this ruler compatible with a Gibson or Fender guitar?

Both notches correspond to scale lengths of 24.75 inches and 25.50 inches. Therefore, compatibility depends on the scale length of the guitar in question.

How to check the neck relief without considering the frets?

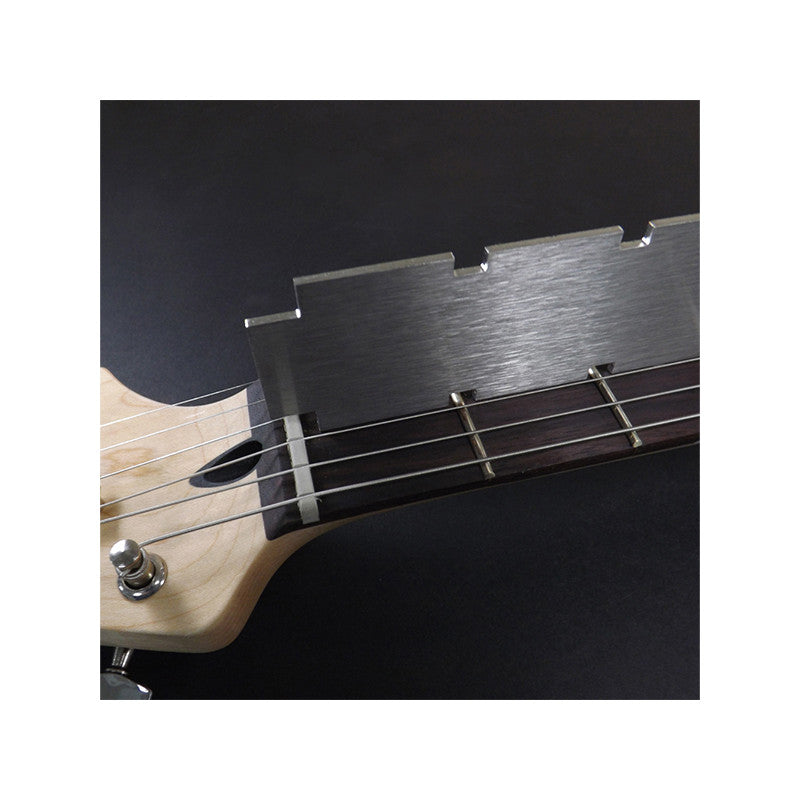

The notches allow the ruler to rest on the fingerboard without being affected by the fret height. This makes it possible to check the straightness of the neck before adjusting the truss rod.

What is the length of the G&W 24.75/25.50 notched ruler?

The ruler measures 550 mm in length and 40 mm in width.

What material is used for this luthier's ruler?

It is made of stainless steel, with a thickness of 2 mm. The cutting is done by CNC laser.

Can it help detect a hollow or bowed neck?

Using it on the fingerboard allows detection of hollow or bowed areas. This check is especially useful when diagnosing the neck or before attempting a lower action setup. The two supported scale lengths are 24.75 and 25.50 inches.
