Prod Hi5 Power Supply Module, incl cables

Essential Information About the Hi5 Power Supply Module for Pedalboard, Including Cables

• 5 isolated high-current outputs, designed to power even demanding pedals (digital, compact multi-effects, etc.) with minimal background noise.


• Selectable voltage per output (9V, 12V, 15V, or 18V) to tailor the power supply to each pedal without compromise.


• Mini-module Templeboard format: mounts in the modular side panel to preserve usable space on top and underneath the pedalboard.

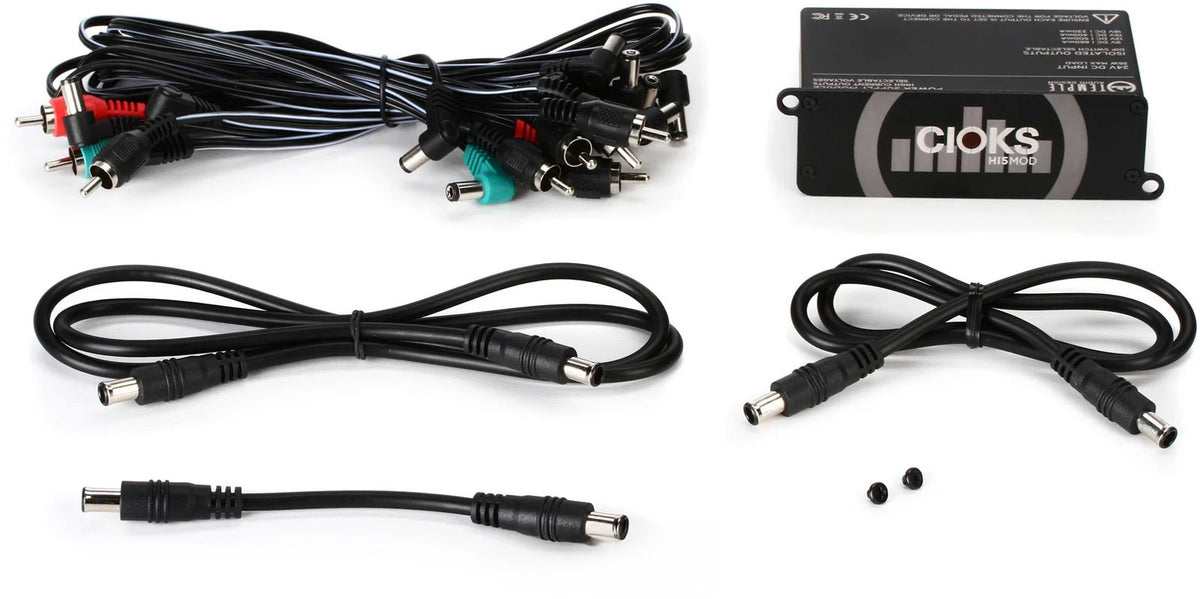

• Includes cables: auxiliary linking cables + 8 Flex cables to connect your pedals directly.

A "High Power" Extension Born from Collaboration with CIOKS

Developed in cooperation with CIOKS, a recognized specialist in pedalboard power supplies, the Hi5 (module version) follows a simple philosophy: to offer a comfortable current reserve, clean distribution, and seamless integration within the Templeboard ecosystem. While many power supplies sit on the pedalboard and take up space, this module aims instead for a clean and practical lateral integration without sacrificing performance.

This model is designed as an extension: it complements an existing compatible power supply by adding five additional isolated outputs, while maintaining clear wiring and stable power, ideal for modern and fully loaded setups.

Who It's For: Guitarists and Bassists Who Want a Clean, Quiet, and Scalable Pedalboard

The Hi5 Power Supply Module is aimed at those building a serious pedalboard: multiple pedals, varied voltage needs, and a strong demand for signal cleanliness. The isolated outputs help reduce hum and interactions between pedals, a key point when combining overdrives, modulations, delays, reverbs, or power-hungry digital pedals.

It is also particularly relevant if you want to optimize space on a Templeboard: the module mounts in the modular end panel, freeing up surface area for your pedals, cable management, and switch access.

Power, Per-Output Settings, and Templeboard Integration

5 Isolated High-Current Outputs: A Solid Foundation for a Modern Pedalboard

Each Hi5 output is isolated and designed to deliver high current to reliably power most DC pedals on the market. Practically, you can reserve the most generous outputs for digital pedals (often more sensitive to poor power supplies), while maintaining stable distribution for your analog pedals.

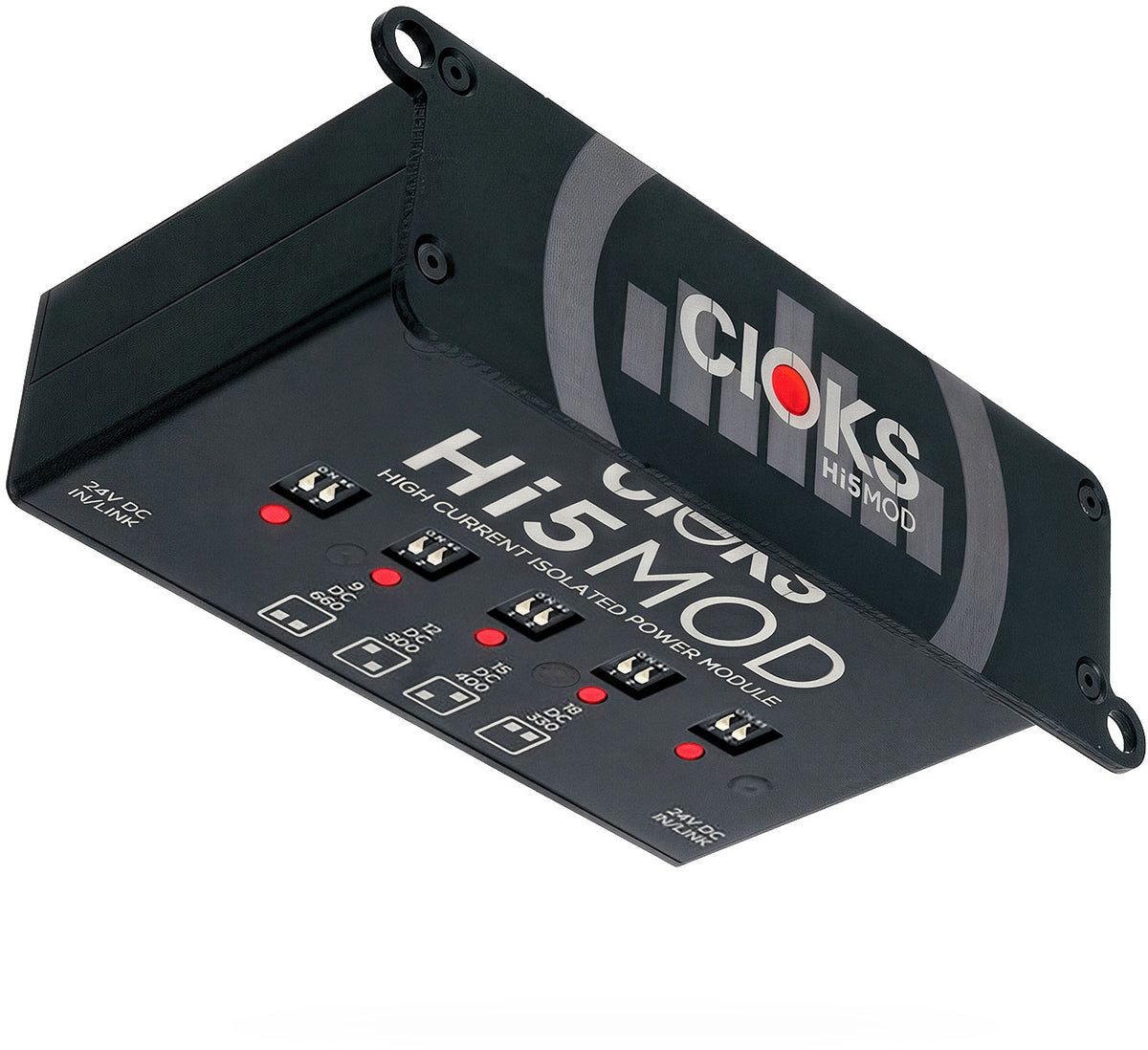

Configurable Voltage: 9V, 12V, 15V, or 18V per Pedal

The major advantage of this module is the individual configuration of each output. You adjust the voltage exactly to the pedal's requirements without multiplying adapters or makeshift solutions. The result: a cleaner, more reliable pedalboard and simplified wiring, especially if you use a mix of 9V and 18V pedals (or some pedals requiring 12V, 15V).

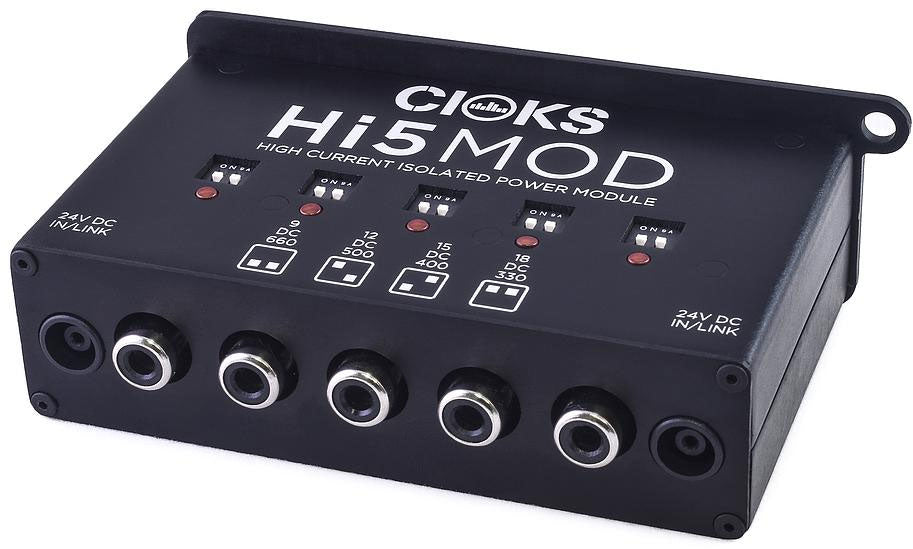

Each output is rated for: 9V at 660mA, 12V at 500mA, 15V at 400mA, or 18V at 330mA. This current logic that varies with voltage allows for a high-performance power supply while keeping a compact form factor.

A Module Designed to Integrate, Not to Clutter

The Hi5 mounts in the modular side panel of a Templeboard. This placement is ideal to preserve pedalboard space and maintain an open layout. It's also a real ergonomic plus: power cables stay better guided, and the entire pedalboard gains clarity, especially during quick changes on stage or in rehearsal.

What to Know Before Buying: Extension Module, Power Adapter Not Included

Important point: this module is designed to extend an existing Hi5 MOD or DC7 power supply via a 24V DC auxiliary output. It does not include a power adapter. If you are looking for a standalone power supply plugged directly into mains, plan for the compatible solution upstream, then use the Hi5 as a clean and powerful extension.

Technical specifications
