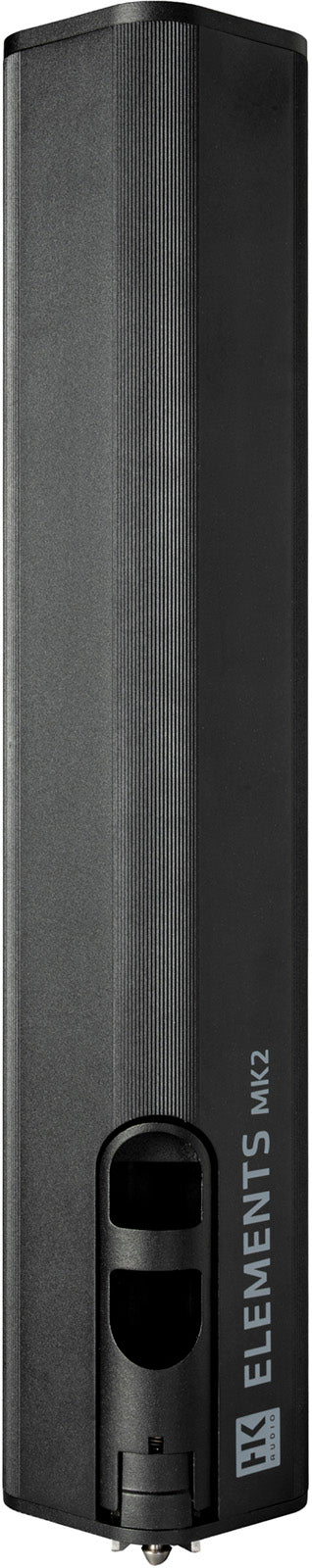

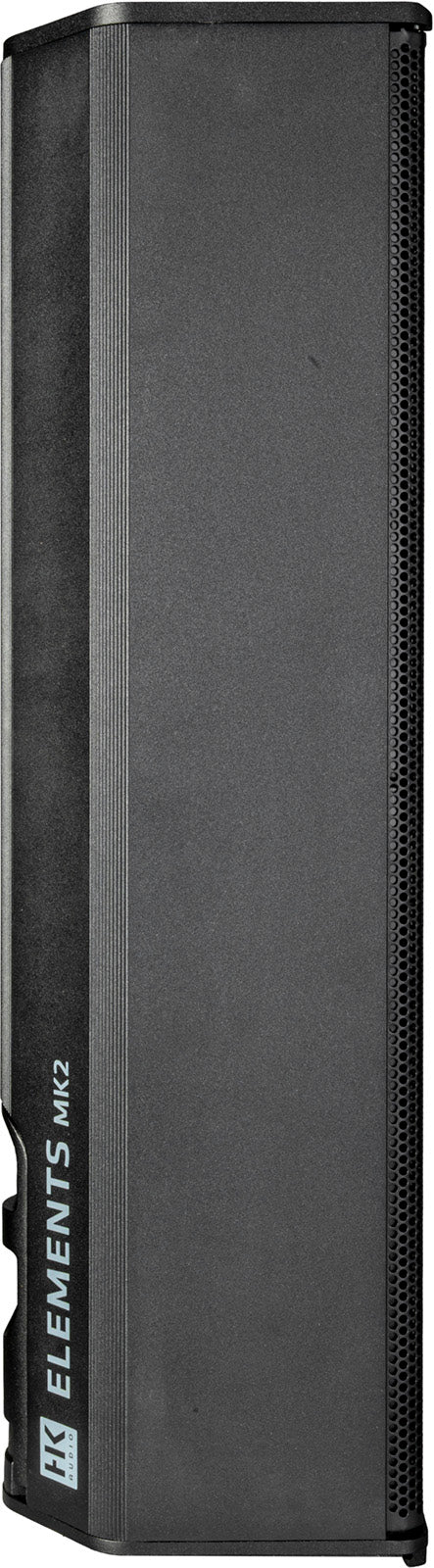

HK Audio ELEMENTS MK2 635

A Column Solution Designed for Demanding Applications

HK Audio ELEMENTS MK2 brings the principle of large line array systems into a particularly elegant and portable column format. This range has been designed to meet the needs of rental companies, event production firms and technicians looking for high headroom, a discreet installation and smooth deployment in the field.

Its fully modular architecture makes it possible to create a sound reinforcement system suited to intimate conferences as well as larger-scale musical events. By adding mid/high modules and subwoofers, the system mainly gains in throw while maintaining consistent reproduction, including for listeners positioned far from the stage.

For DJs, Live Bands, Corporate Events and Fixed Installations

HK Audio ELEMENTS MK2 is aimed at professional DJs, bands, sound engineers, places of worship, cultural venues and event organisers. Its slim profile naturally fits into weddings, corporate parties, presentations, cocktail receptions or live performances where the aesthetics of the installation matter as much as sound quality.

The ELEMENTS MK2 110 Sub A, equipped with a 10-inch loudspeaker, is particularly well suited to speeches, conferences, background music and corporate events. For DJ sets, cover bands and performances requiring greater low-end impact, the ELEMENTS MK2 115 Sub A with its 15-inch loudspeaker offers greater acoustic pressure headroom and extended bass response.

In SMART BASE configuration, the system combines two ELEMENTS MK2 635 columns, a spacer and a 110 Sub A subwoofer for audiences of up to 250 people, depending on the musical programme, venue acoustics and desired level. The BIG BASE configuration, with the 115 Sub A subwoofer, is designed for performances for up to 500 people under the same conditions.

SnapLock, Intelligent DSP and Milan-AVB Networking for Sound Reinforcement

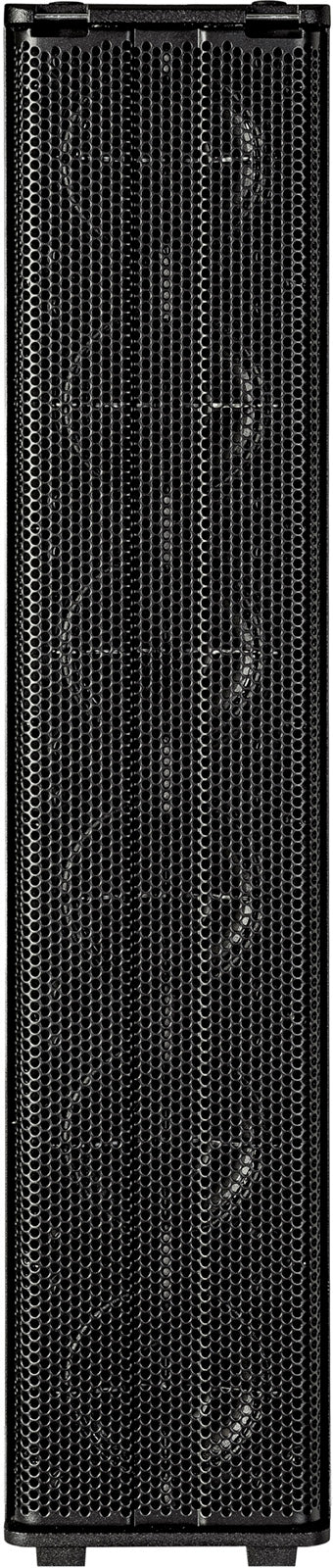

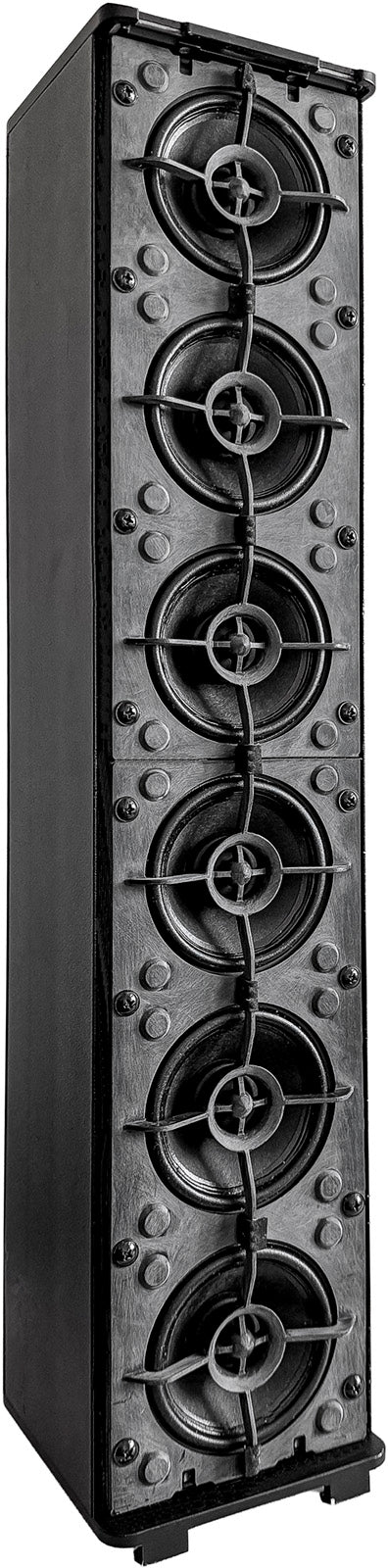

Each ELEMENTS MK2 635 column integrates six 3.25-inch loudspeakers combined with six phase plugs. This design provides 90-degree horizontal dispersion and controlled 5-degree vertical directivity. The result is a more consistent cover between the front row and the back of the room, with less level loss and improved speech intelligibility.

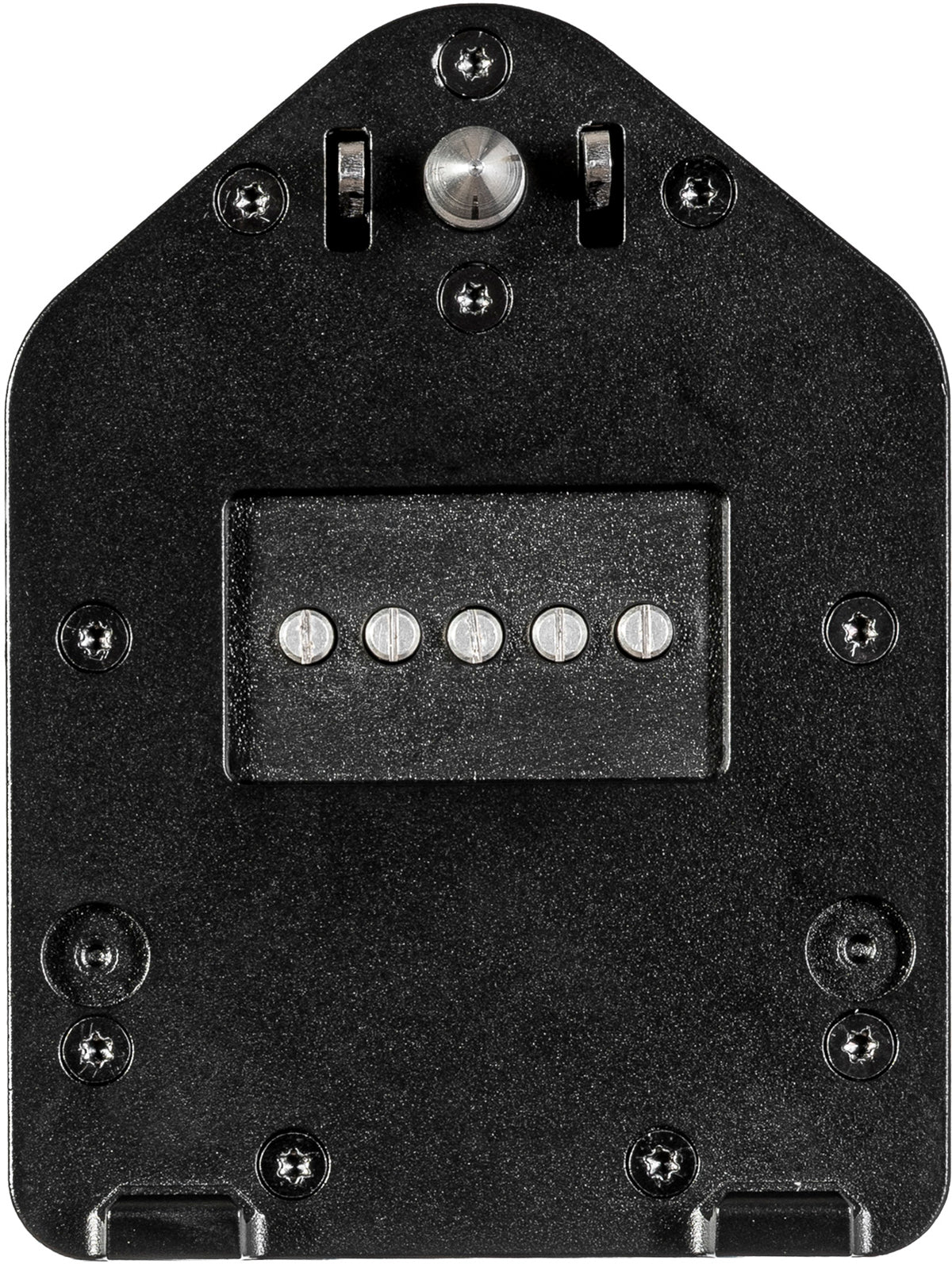

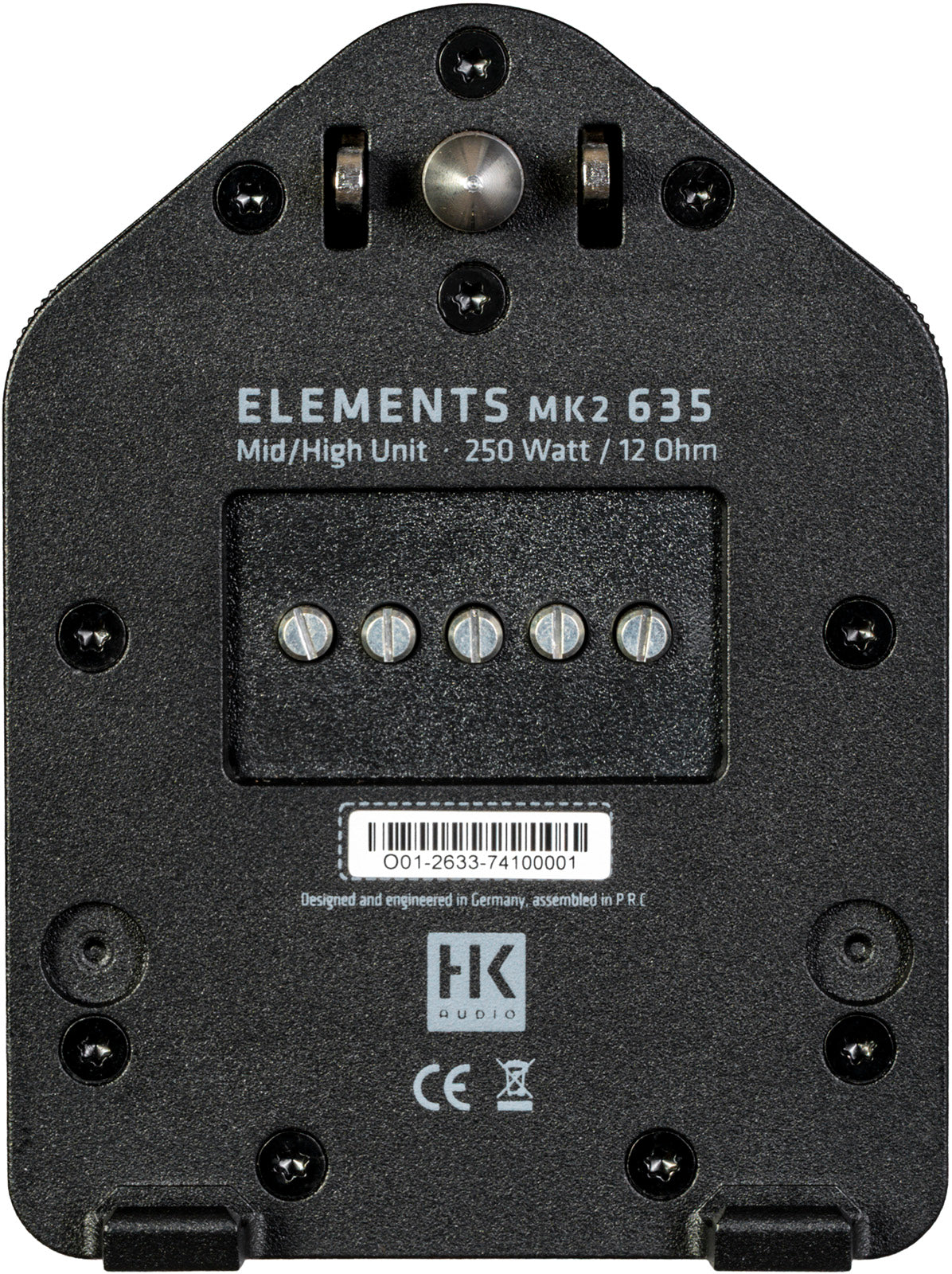

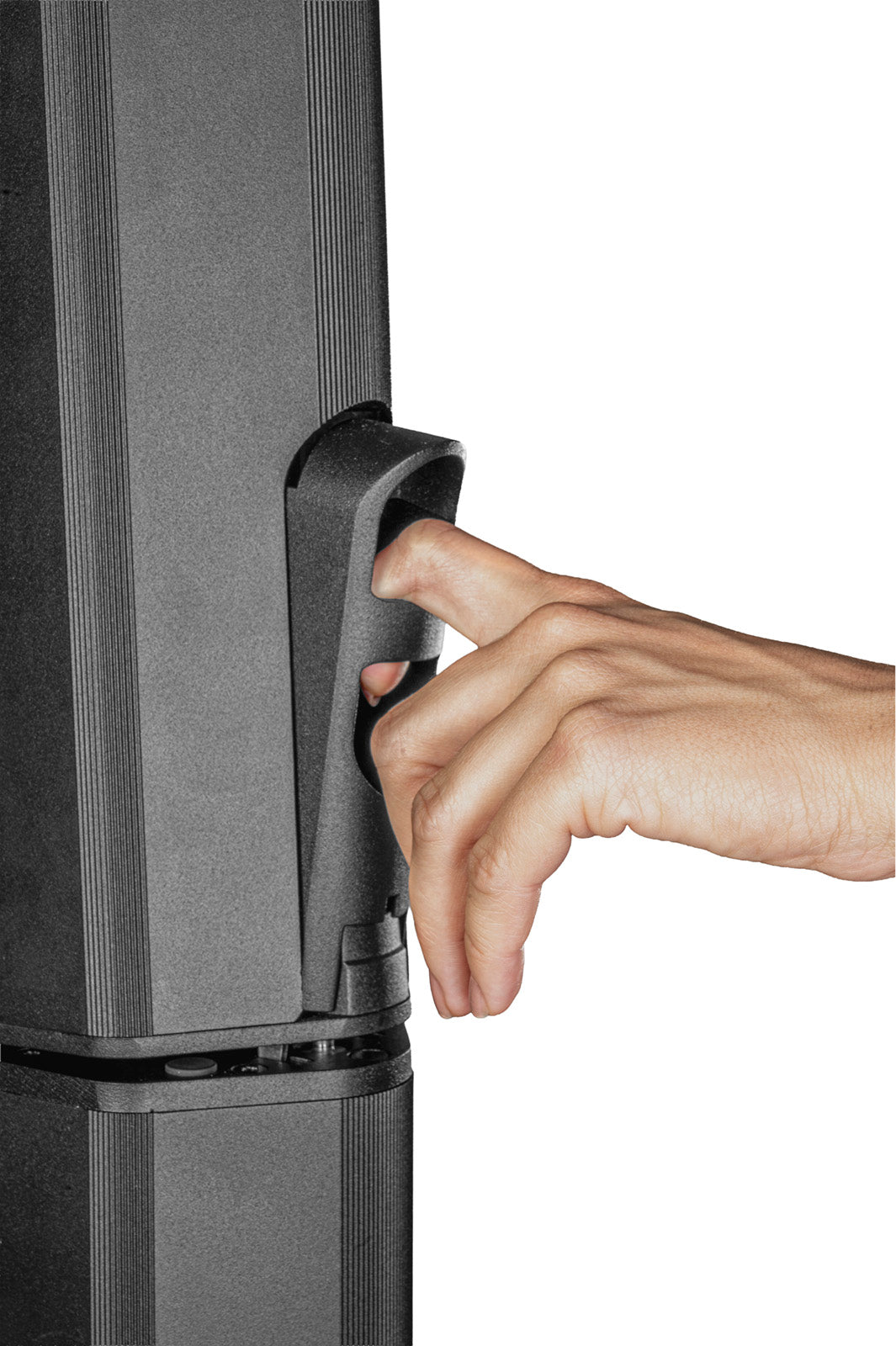

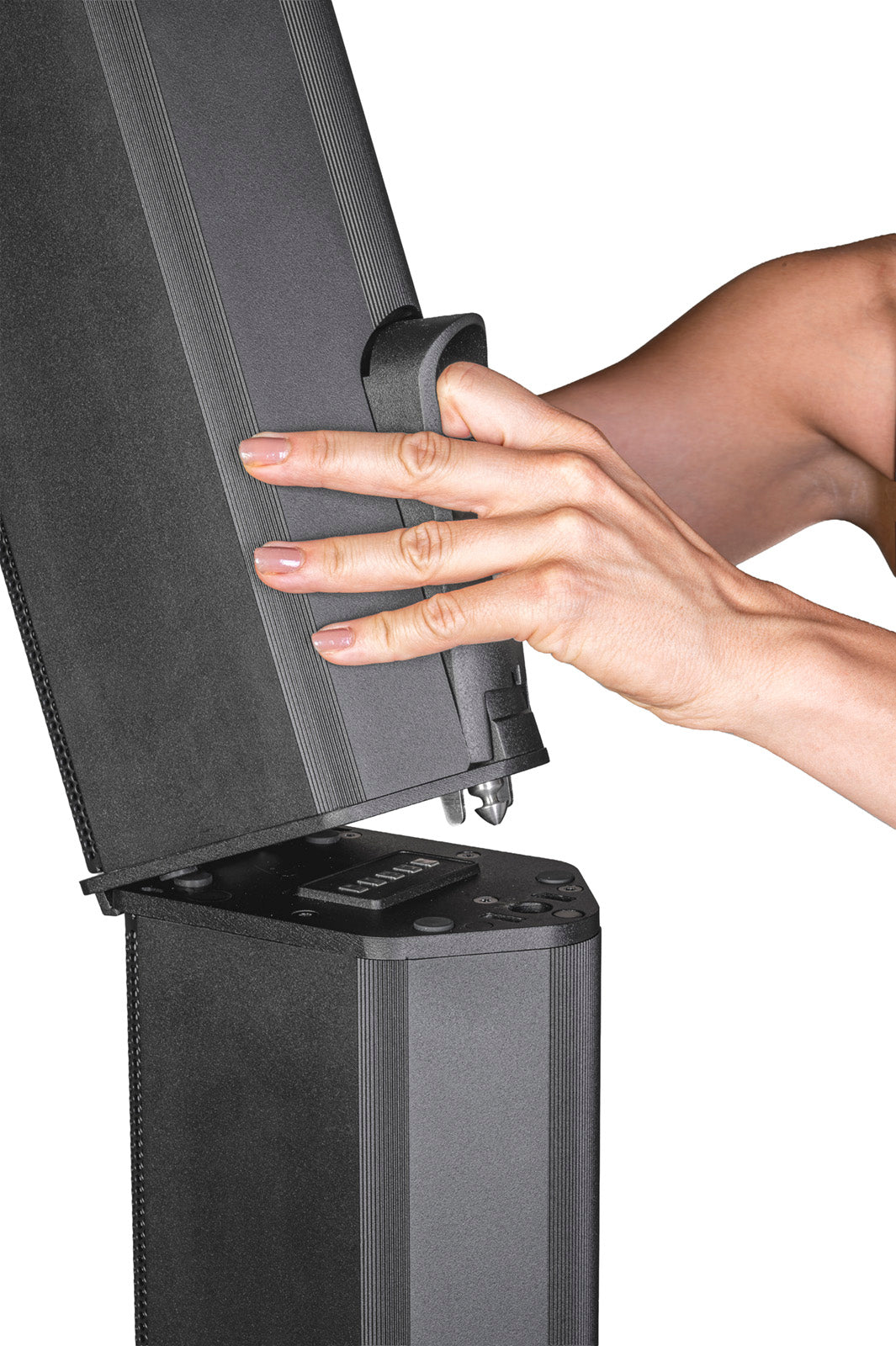

The SnapLock system mechanically connects the modules, spacer and subwoofer in a single motion, with no tools required. The robust contacts transmit the signal without visible cables between the elements, while ensuring a stable, play-free connection suited to the repeated demands of transport. The DSP automatically detects the number of connected columns and applies the appropriate midrange compensation.

The active subwoofers feature a complete DSP platform, accessible via the DSP Control software. The Flat, Contour, Voice and Remote presets make it easy to adapt the system to music playback, speech or a customised configuration. The 10-band parametric equaliser, high-pass and low-pass filters, polarity, limiter, mute and DSP Out Delay enable precise system adjustment.

Thanks to the Ethercon RJ45 connectors, ELEMENTS MK2 can be integrated into an Ethernet and Milan-AVB network. Control data and digital audio can travel over a single network cable. The DSP Out output on XLR can also send a processed signal to additional active speakers, monitors, frontfills, a Delay line or additional subwoofers, including units that are not network-compatible.

Technical specifications

Category	Installation and services	Impedance	12 Ω
Type	passive speaker	SPL Max / peak	132 dB
Peak power	250 W	Speaker structure	aluminium
Peak power, type	RMS	Color	Black
Application	Facade	Power output	150 W
Speaker diameter	3,5"	Power / type	RMS
Number of speakers	6	Weight	7.3 kg
Horizontal dispersion in degrees	90.0000	Dimensions (mm)	112 x 151 x 560
Vertical dispersion in degrees	5.0000

Sound projection principle	modular line array	Frequency response at -6 dB	170 Hz to 18 kHz
Scalability	up to 3 mid/high-frequency modules and 2 subwoofers depending on the configuration	Frequency response at -10 dB	145 Hz to 20 kHz
Enclosure principle	sealed enclosure	Dispersion at -9 dB	90 degrees horizontal x 5 degrees vertical
Mid/high-frequency loudspeakers	6 x 3.25 inches	Input	1 x E-Connect MK2
Waveguide	6 x phase plugs	Parallel output	1 x E-Connect MK2
Peak power handling	250 W	Cabinet	aluminium with black powder-coated finish
Nominal impedance	12 ohms	Grille	steel with anti-corrosion treatment
Maximum peak SPL	132 dB	Dimensions	11.2 x 56 x 15.1 cm
Crossover frequency	175 Hz	Input connection	1 x E-Connect
