Essential Information About the HK Audio LINEAR 3 Active Speakers
- 1200 W Class D amplification and a max SPL of 135 dB for a comfortable headroom, even on demanding stages.
- Advanced DSP with intelligent multiband limiters for tonal consistency and high vocal intelligibility at all volumes.
- 90 x 55 degrees rotatable directivity to focus useful energy and limit unwanted reflections.
- Comprehensive connectivity including XLR/6.35mm Jack, stereo RCA, XLR "Line Through" and "Mix Out" outputs, plus a 36 mm DuoTilt mount with 3 or 7-degree angles.
The LINEAR DNA, in a more compact and accessible version
Direct descendants of the popular LINEAR 5, the LINEAR 3 uphold HK Audio's German manufacturing standards combined with a versatile format for musicians and service providers. They offer a balanced sound reproduction, precise in the bass and detailed in the treble, while remaining easy to set up. For configurations requiring more sub-bass, they pair ideally with the LINEAR SUB L SUB 1500 A and L SUB 1800 A subwoofers.
Who and for what uses?
Designed for bands, singers, DJs, and rental companies, the LINEAR 3 excel as front-of-house speakers for small to medium venues, as side fills, for mobile sound reinforcement, or fixed installations. Their controlled directivity and headroom facilitate even coverage in concert bars, clubs, corporate events, and moderate-sized outdoor stages.
Technical specifications
| Battery | No | Cutaway | No |
| Category | Soundsystem | Frequency response | 58 Hz - 18 kHz, 65 Hz - 18 kHz |
| Type | active speaker | SPL max | 135 dB |
| Number of channels | 2 channels | Speaker structure | MDF |
| Amplification | Active amplified | Transport | 2 handles |
| Bluetooth | No | Inputs | Rca, 2 x Rca, 2 x combo XLR/jack |
| Connection | Combo, RCA, XLR | Outputs | link XLR, 2 x XLR line out |
| Speaker diameter | 12" | Color | Black |
| Number of speakers | 1 | Finishing | Wood |
| Tweeter | 1" | Power output | 1200 W |
| Horizontal dispersion in degrees | 90.0000 | Quantity | 1 |
| Vertical dispersion in degrees | 55.0000 | Mounting | On stand |
| EQ | No | Weight | 21.5 kg |
| Cut-off frequency | 2,3 kHz | Dimensions (mm) | 360 x 660 x 367 |
| Baseplate width | 35 mm | ||
Questions frequently asked
What is the power output and sound level of the HK Audio L3 112 Fa?
The class D amplifier delivers 1200 W and the maximum announced level reaches 135 dB SPL peak at 10% THD. The system combines a 31 cm speaker with a 1-inch tweeter.
Is this active speaker suitable for a band or a DJ?
This model is designed for front-of-house sound reinforcement in small to medium-sized setups, as well as for bands, vocalists, and DJs. Its 90 x 55° coverage is suitable for bars with live music, clubs, and corporate events. For enhanced low frequencies, pairing with the L SUB 1500 A or L SUB 1800 A subwoofers is intended.
What inputs are available?

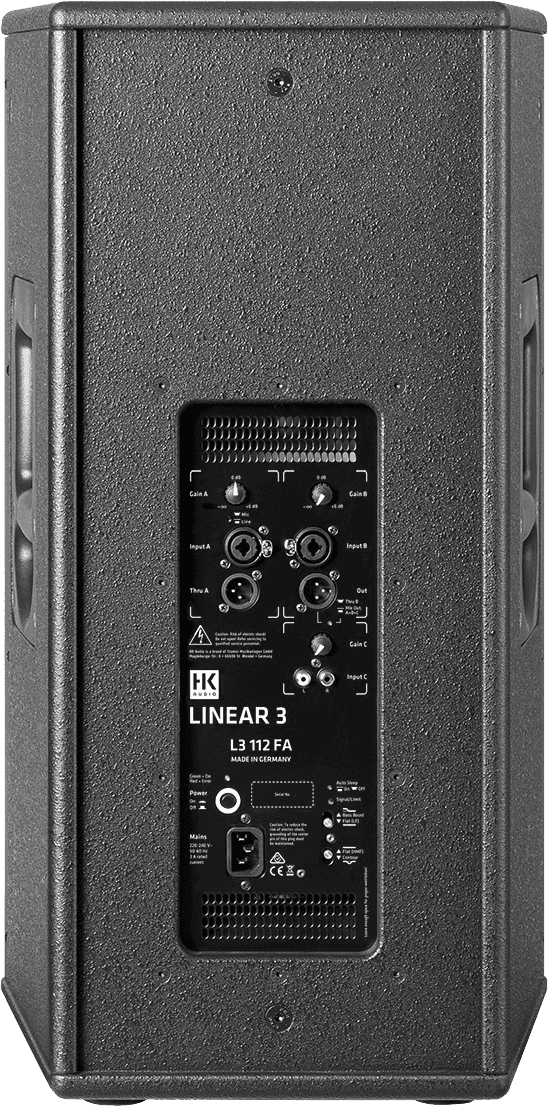

Two combo XLR/6.35 mm jack inputs and two stereo RCA inputs allow connection of different sources. An XLR Mix Out and an XLR Link output facilitate sending the signal to other PA components.
Can it be pole-mounted or flown?

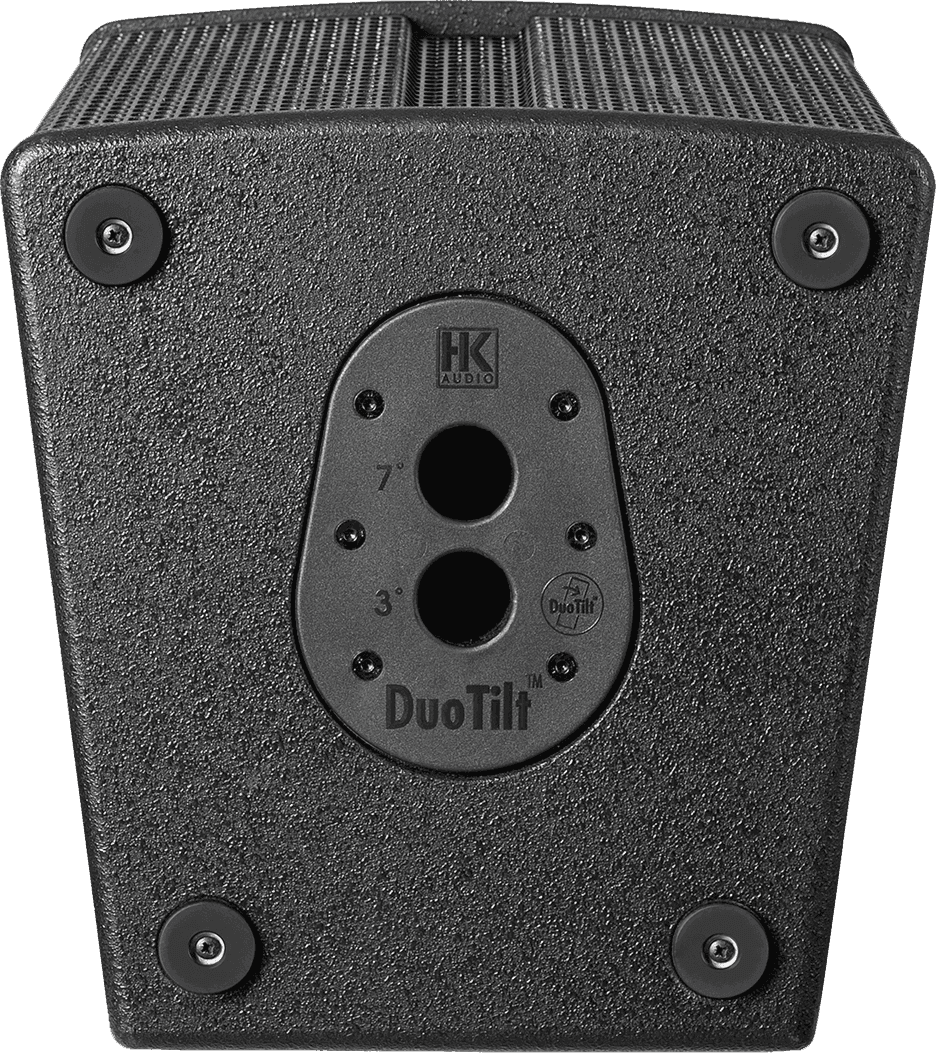

The 36 mm DuoTilt socket allows pole mounting with a 3° or 7° tilt. Four M8 inserts accept optional EB8 suspension rings.
What is the frequency response of this 12-inch speaker?
The specified bandwidth at ±3 dB ranges from 65 Hz to 18 kHz, and extends from 58 Hz to 18 kHz at -10 dB. The rotatable horn allows orientation of the 90 x 55° dispersion according to the setup.
