Essential Information About the Active Speaker HK Audio L5MKII-112FA
- Powerful DSP controllable remotely via Ethernet for precise network adjustment
- Lighter and more compact format than the previous generation, optimized handling
- Directivity 60deg x 40deg with rotatable horn for tailored coverage
- 600 W RMS / 1,200 W peak, up to 138 dB SPL, ideal for front of house
The "LINEAR 5 MKII" Line: The Evolution of a Best-Seller Made in Germany
Designed and manufactured in Germany, the "LINEAR 5 MKII" series revisits a professional sound reinforcement reference. It targets bands and providers seeking reliable, versatile, and economical tools for their tours and daily gigs. The L5MKII-112FA embodies this upgrade with advanced digital processing and field-oriented ergonomics.
Intended Uses and Audience
Designed for front of house, this 2-way speaker excels in mobile performance, clubs, events, and fixed installations. Its 35 mm pole mount and handles facilitate setup, while its headroom and controlled coverage ensure clean and intelligible sound, whether used alone or paired with dedicated subwoofers.
Technical specifications
| Battery | No | EQ | 10 channels |
| Category | Soundsystem | Baseplate width | 35 mm |
| Type | active speaker | Mixer | No |
| Insert type | M8 | Cutaway | No |
| Peak power | 1200 W | SPL Max / peak | 138 dB |
| Peak power, type | RMS | SPL max | 130 dB |
| Number of channels | 2 channels | Speaker structure | MDF |
| Amplification | Active amplified | Transport | 2 handles |
| Application | Facade | Inputs | combo XLR/jack, RJ45 |
| Bluetooth | No | Outputs | link XLR, XLR DSP |
| Connection | Combo, RJ45, XLR | Color | Black |
| Controls | limiter, high pass filter switch, polarity inversion, mute switch, low pass filter control, delay, equalization | Finishing | Wood |
| Speaker diameter | 15" | Power output | 600 W |
| Number of speakers | 1 | Power / type | RMS |
| Tweeter | 1,7" | Quantity | 1 |
| Horizontal dispersion in degrees | 60.0000 | Mounting | On 35 mm stand |
| Vertical dispersion in degrees | 40.0000 | Weight | 30.2 kg |
| DSP | Yes | Dimensions (mm) | 448 x 707 x 447 |
Questions frequently asked
What power and SPL level does the HK Audio L5MKII-115FA deliver?
The amplification provides 600 W RMS and 1,200 W peak. The maximum SPL reaches 130 dB, with a peak value of 138 dB.
Is this 15-inch speaker suitable for front-of-house concert use?
This model is designed for front-of-house use, especially for mobile performance, clubs, events, and fixed installations. The 15-inch woofer is paired with a 1.7-inch driver. The stated frequency response is 57 Hz to 12 kHz ±3 dB.
Can the L5MKII-115FA's DSP be controlled remotely?
The internal DSP is controlled via Ethernet and provides access to a 10-band equalizer, delay, high-pass and low-pass filters, polarity inversion, mute, and limiter.
What is the sound coverage of this HK Audio speaker?
The rotatable horn offers a dispersion of 60° horizontal and 40° vertical. This orientation allows adapting coverage according to the setup.
What connectivity and mounting options are available?

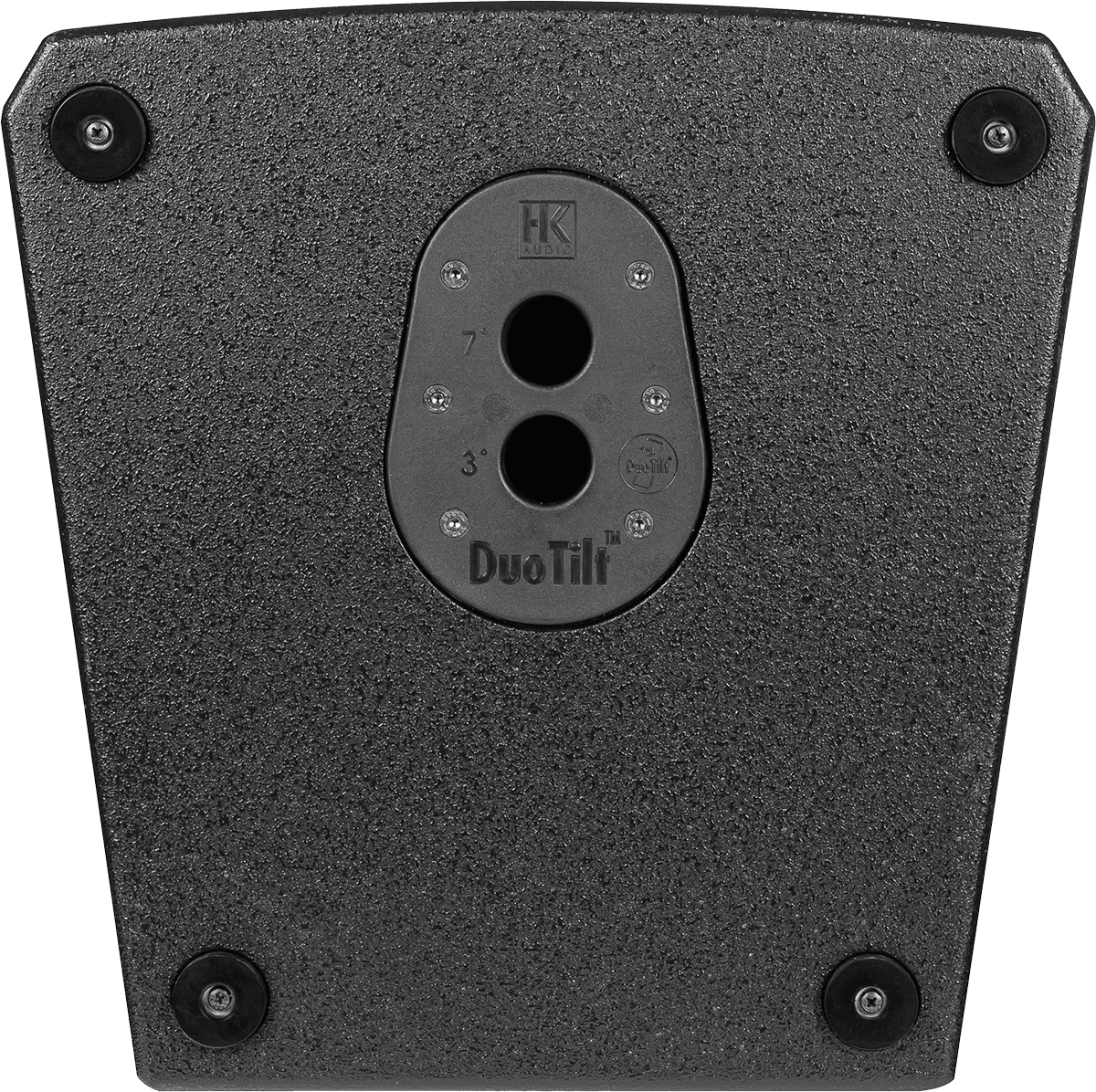

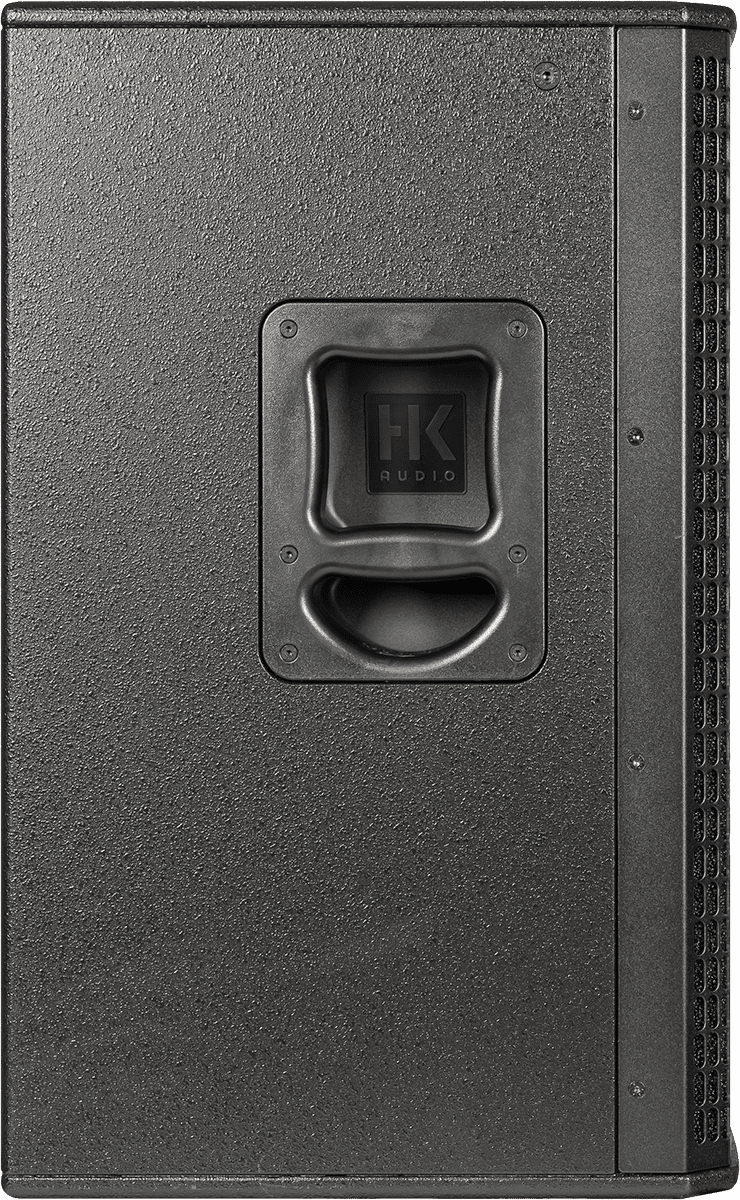

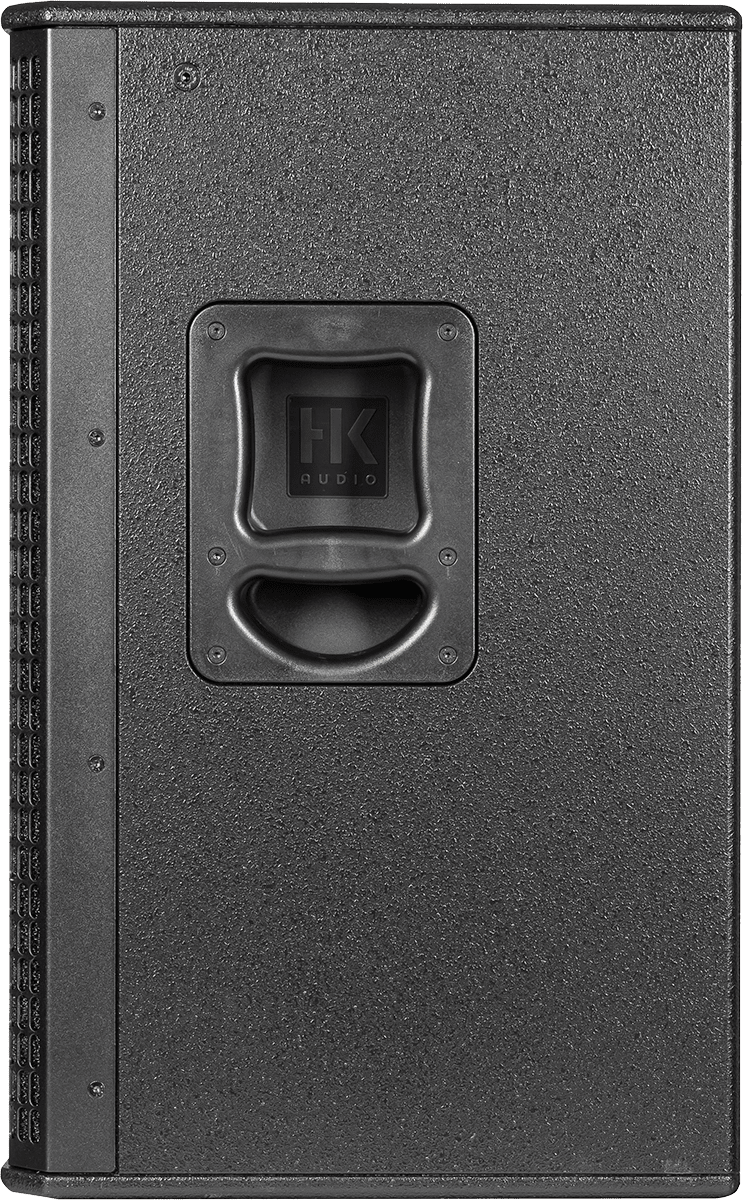

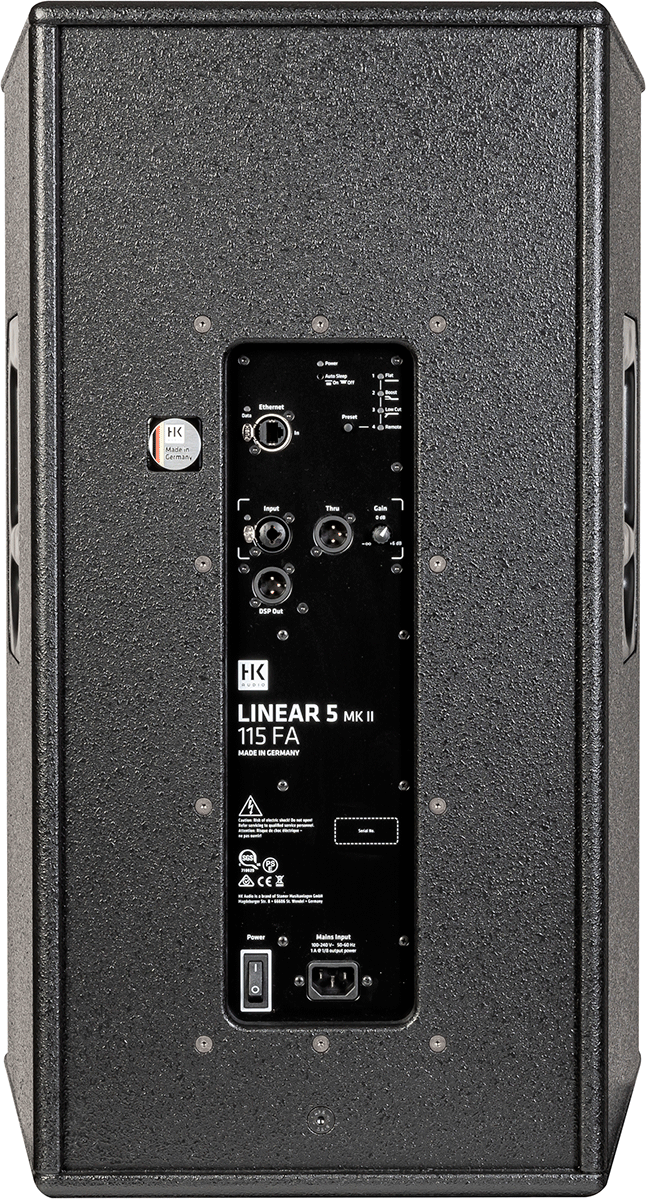

Connectivity includes a combo XLR/jack input, an RJ45 socket, an XLR Link output, and an XLR DSP output. The speaker is pole-mountable with a 35 mm socket and features M8 inserts. The black enclosure made of multi-ply birch and MDF includes two handles for transport.
