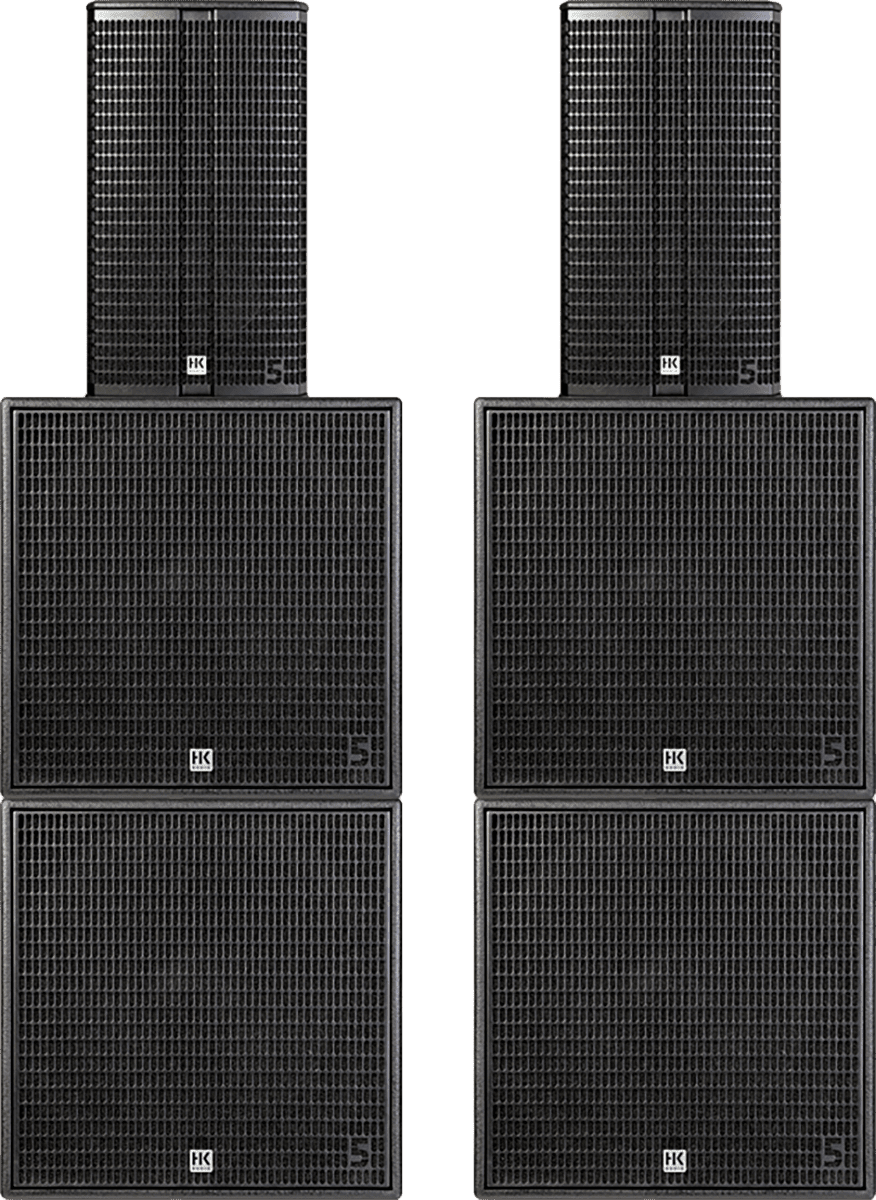

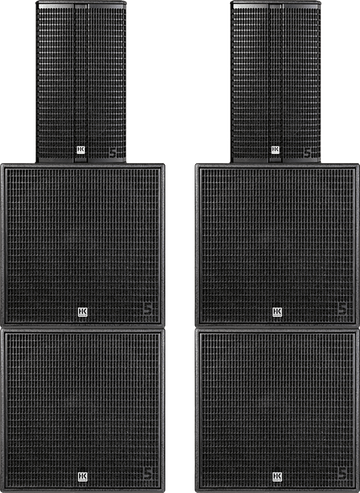

Essential Information on the Complete HK Audio LINEAR 5 MKII "Big Venue Pack" System
• High-power active system: 5,200 W RMS and 10,400 W peak for performances accommodating 350 to 500 people.

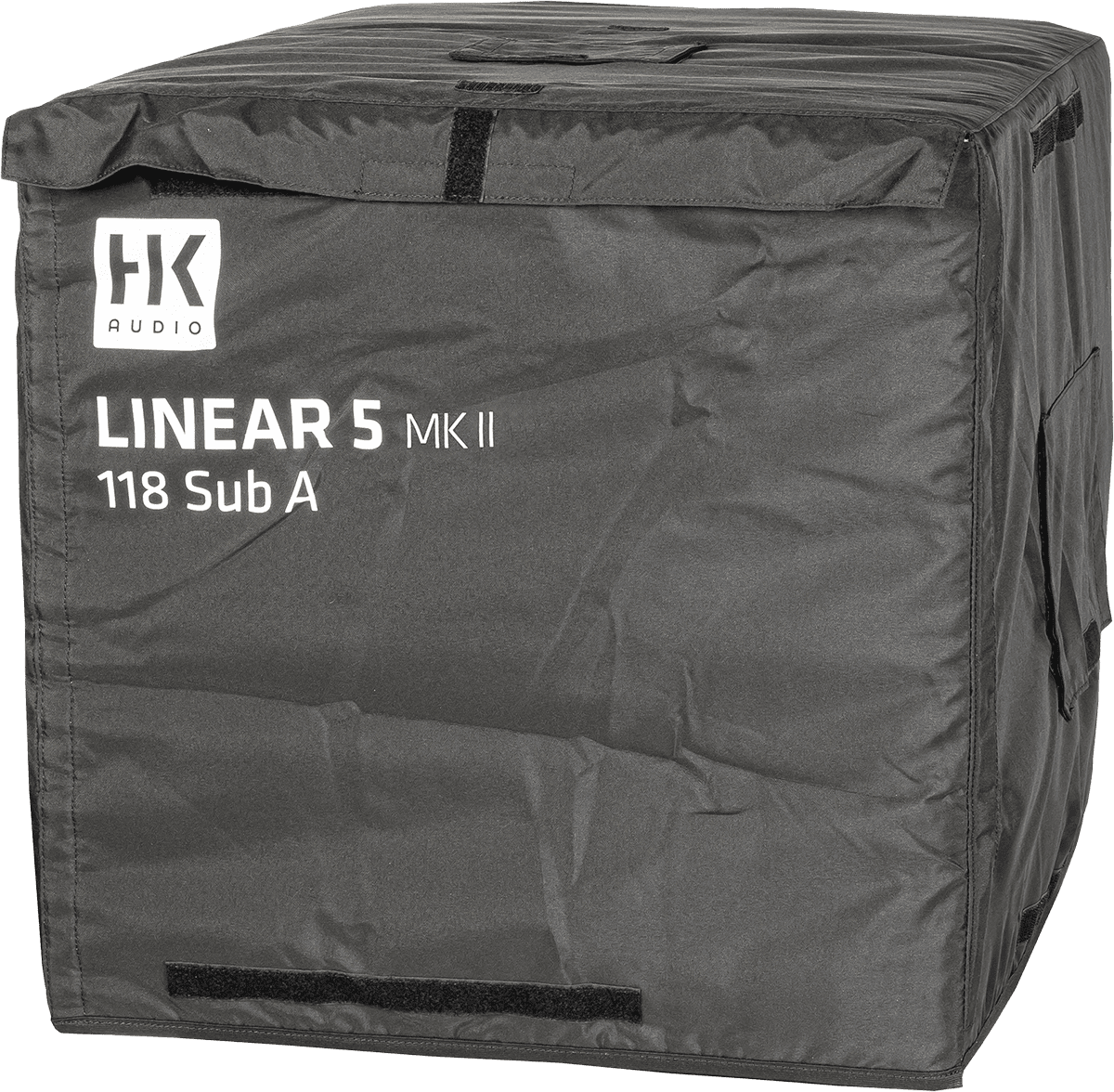

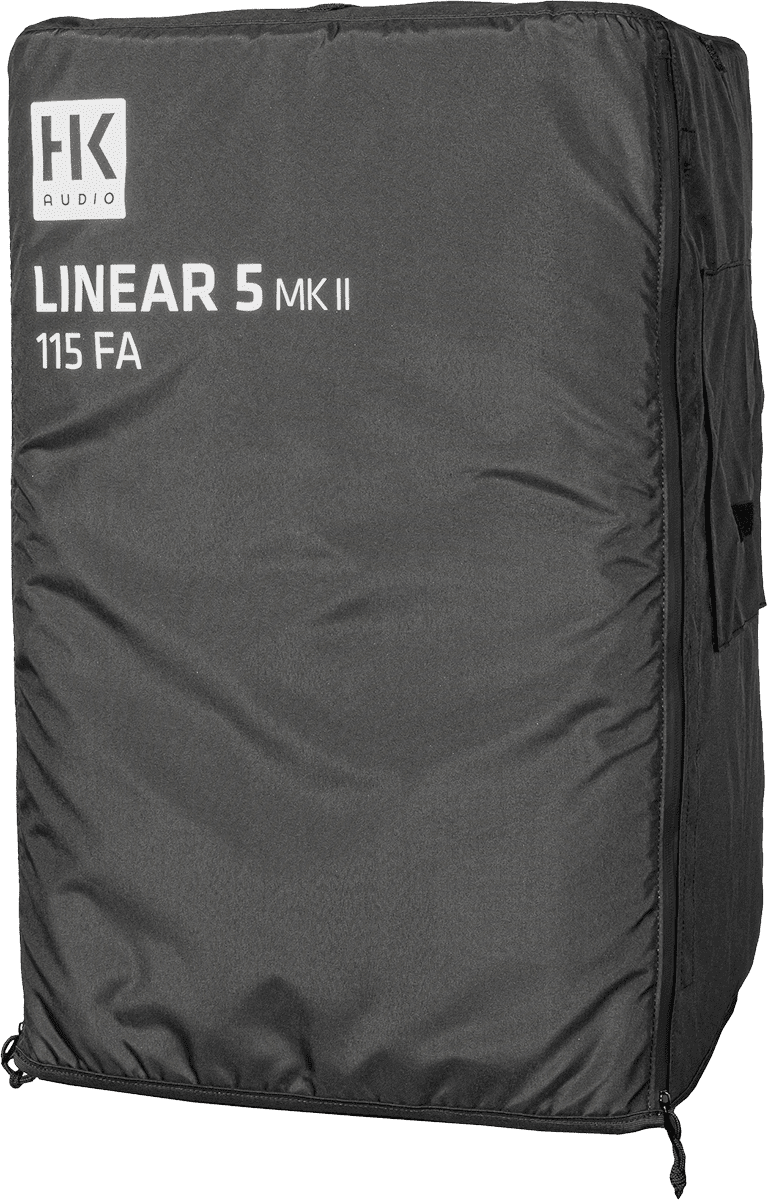

• Ready-to-use configuration: 2 L5 MKII 115 FA satellites + 4 L5 MKII 118 Sub A subs + 6 waterproof protective covers.
• Powerful DSP controllable remotely via Ethernet (dedicated software) and network management including speakers without DSP.
• Cardioid bass mode, 60 x 40 rotatable horn for precise coverage, German manufacturing.

L5MKIIPACK-bigven

10.250,00 €VAT incl.

3,00 € Ecotax included

Reference price

A Major Overhaul of the LINEAR 5 Series

The LINEAR 5 MKII series deeply modernizes HK Audio's historic reference. Lighter and more compact than the previous generation, it gains versatility thanks to a latest-generation DSP and an architecture designed for network operation. The new dedicated subwoofers feature cardioid presets to optimize bass directivity both on stage and in the venue.

For Whom and For What Uses?

Designed for professional bands, sound engineers, and service providers, the "Big Venue Pack" excels in live music, speeches, and versatile events in clubs, theaters, or municipal halls. Its headroom and network control make it a reliable solution for audiences of 350 to 500 people with quick and repeatable deployment.

Technical specifications

Peak power	10400 W	Sat - Weight	30.2 kg
Bluetooth	No	Sub - Speakers	18"
Tweeter	1,7"	Sub - SPL max	129 dB
Mixer	No	Sub - Dimensions (mm)	55 x 56 x 68,5 cm
Category	Complete system	Sub - Weight	41.6 kg
Total RMS power	5200 W	Inputs	XLR/jack, Ethercon
Type	Amplified	Output	Link XLR
Sat - Speakers	15"	Color	Black
Sat - max SPL	130 dB	Accessories included	Protective cover
Sat - Dispersion (H x V)	60 ° x 40 ° rotating bell	Weight	227 kg

Questions frequently asked

What configuration does the HK Audio L5MKIIPACK-bigven include?

The pack features two L5 MKII 115 FA satellites and four L5 MKII 118 Sub A subwoofers. Protective covers are included.

Is this HK Audio system suitable for a 500-person venue?

This setup is designed for audiences of 350 to 500 people. It is intended for live music, speeches, and events in clubs, theaters, or municipal halls.

Can the subwoofers be configured cardioid?

The four 18-inch subwoofers have cardioid presets. This setup reduces bass feedback on stage and improves mix clarity at front of house.

What network control and connectivity options are available?

The DSP is controlled via Ethernet using dedicated software. Connections include XLR/jack inputs and Ethercon, as well as an XLR Link output. Speakers without their own DSP can be integrated into the same control network.

What is the power and coverage of the satellites?

The total amplification reaches 5,200 W RMS, with 10,400 W peak. Each 30.2 kg satellite includes a 15-inch driver and a 1.7-inch tweeter, with a maximum SPL of 130 dB. Its rotatable horn covers 60° x 40°.
