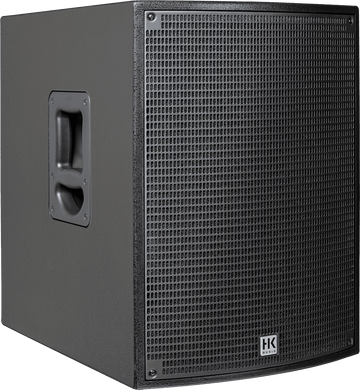

HK Audio Sonar 115 Sub D

The Compact and Powerful Subwoofer of the SONAR Series

Designed to fit at the core of the HK Audio SONAR range, the SONAR 115 Sub D combines a compact enclosure with an energy reserve comparable to 18-inch subwoofers. Its modern electronics maximize the 15-inch driver to deliver a clean and clear bass foundation, ideal for mobile applications and small to medium venues.

Who Is It For and What Are Its Uses?

The SONAR 115 Sub D is aimed at DJs, bands, service providers, and venues hosting audiences who seek a reliable plug & play solution. Whether in clubs, bars, multipurpose rooms, or outdoor events subject to neighborhood constraints, it provides the necessary low-end support while remaining easy to transport and set up.

Modern Control and Ready-to-Use Cardioid

Cardioid Mode Without Calculations

With two SONAR 115 Sub D units, switch to cardioid mode in seconds: place one subwoofer facing backward, select "Cardioid Rear" on it and "Cardioid Front" on the other. This achieves a strong bass reduction behind the stage, up to 34 dB, improving artist comfort and overall clarity.

2.1 Management and Intuitive DSP

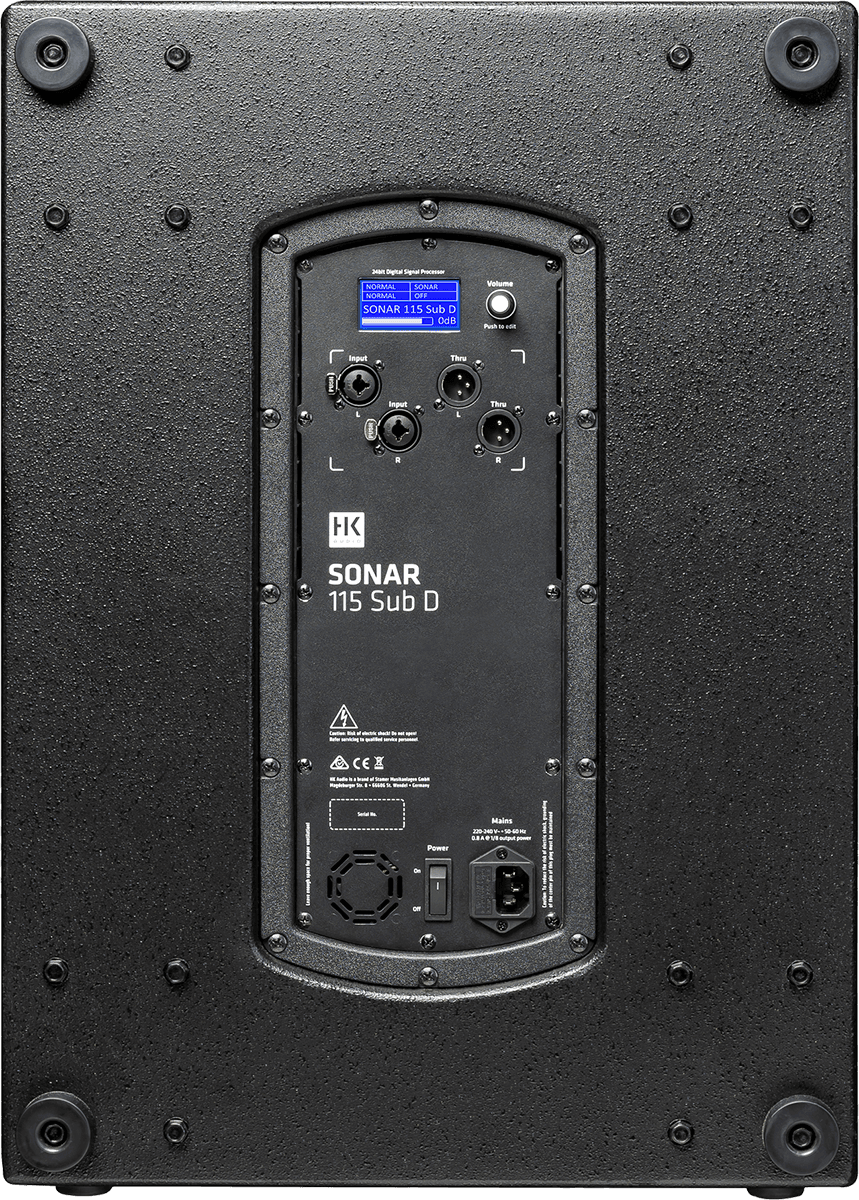

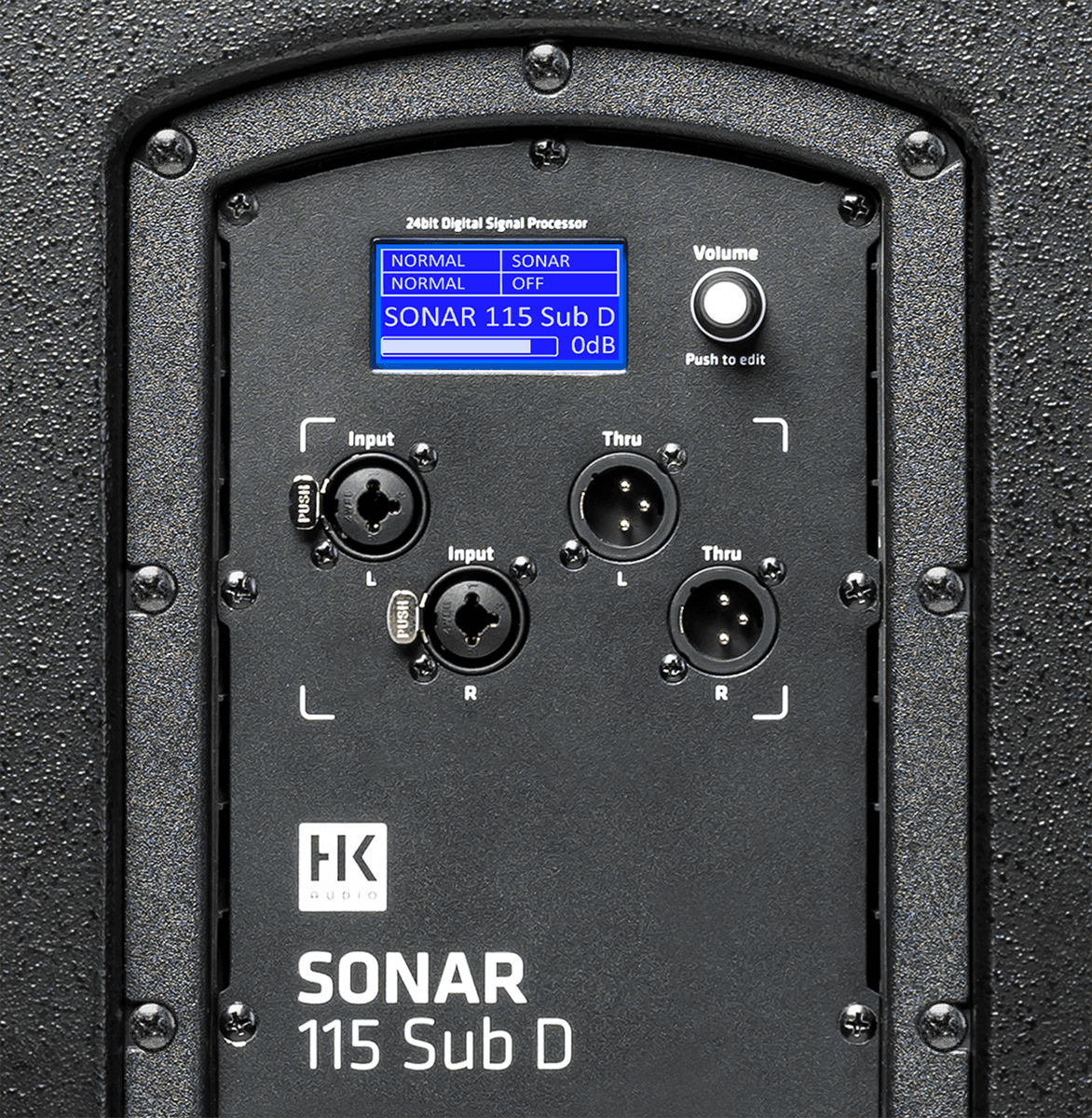

The stereo inputs/outputs simplify setting up a 2.1 system with satellites. The LCD screen provides access to the 24-bit DSP: Bass Boost, adjustable crossover frequency, polarity inversion, and delay (0-10 m) to align the subwoofer with the tops. You can instantly tailor the response to venues and musical styles.

Roadworthy Design

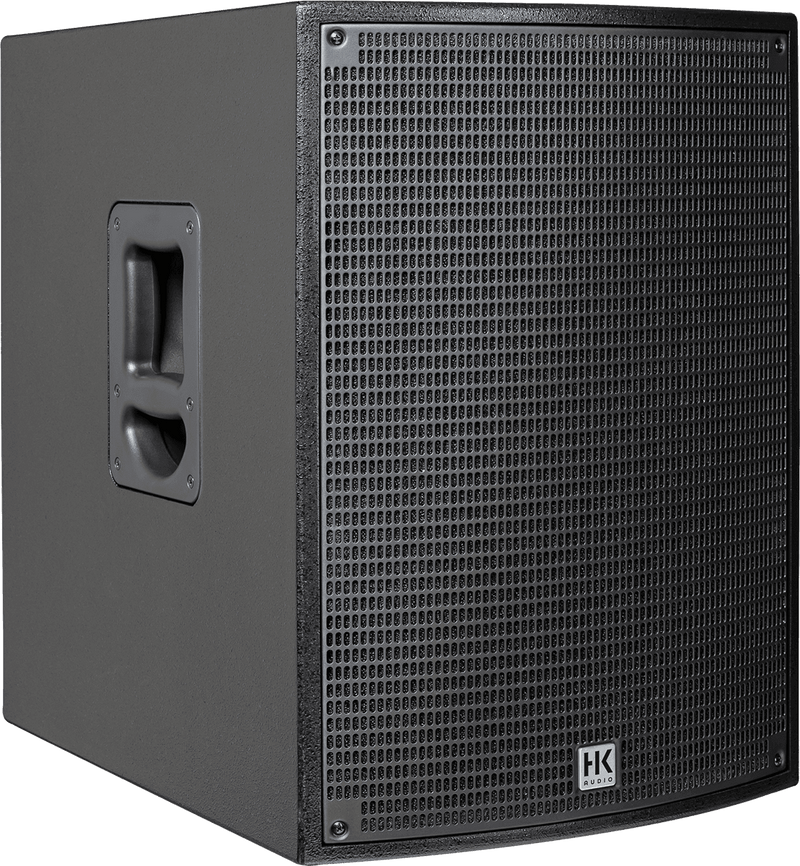

The wooden enclosure, metal grille front covered with black acoustic foam, and MultiGrip handles ensure durability and ergonomics. The M20 flange allows pole mounting, and the subwoofer is prepared for transport wheels.

Technical specifications

Battery	No	Baseplate width	20 mm
Category	Soundsystem	Cutaway	No
Type	active subwoofer	Frequency response	40 Hz - 100 Hz
Speaker protection type	Power limiter	SPL max	125 dB
Insert type	M20	Speaker structure	MDF
Peak power	1500 W	Transport	2 handles
Number of channels	1 channel	Inputs	2 x combo XLR/jack
Amplification	Active amplified	Outputs	2 x XLR
Application	Facade	Color	Black
Bluetooth	No	Finishing	Wood
Connection	Combo, XLR	Power output	1500 W
Controls	input gain, delay	Quantity	1
Speaker diameter	15"	Weight	26.4 kg
Number of speakers	1	Dimensions (mm)	430 x 612 x 616
EQ	No

Max SPL at 10% THD	125 dB (half-space)	Sensitivity switch	mic/line
Calculated max SPL	128 dB (half-space)	Audio inputs	2 x combo XLR/6.35 mm jack balanced
Woofer	1 x 15-inch, 3-inch voice coil	Audio outputs	2 x balanced XLR
Protection circuits	RMS and peak limiter	Enclosure	wood

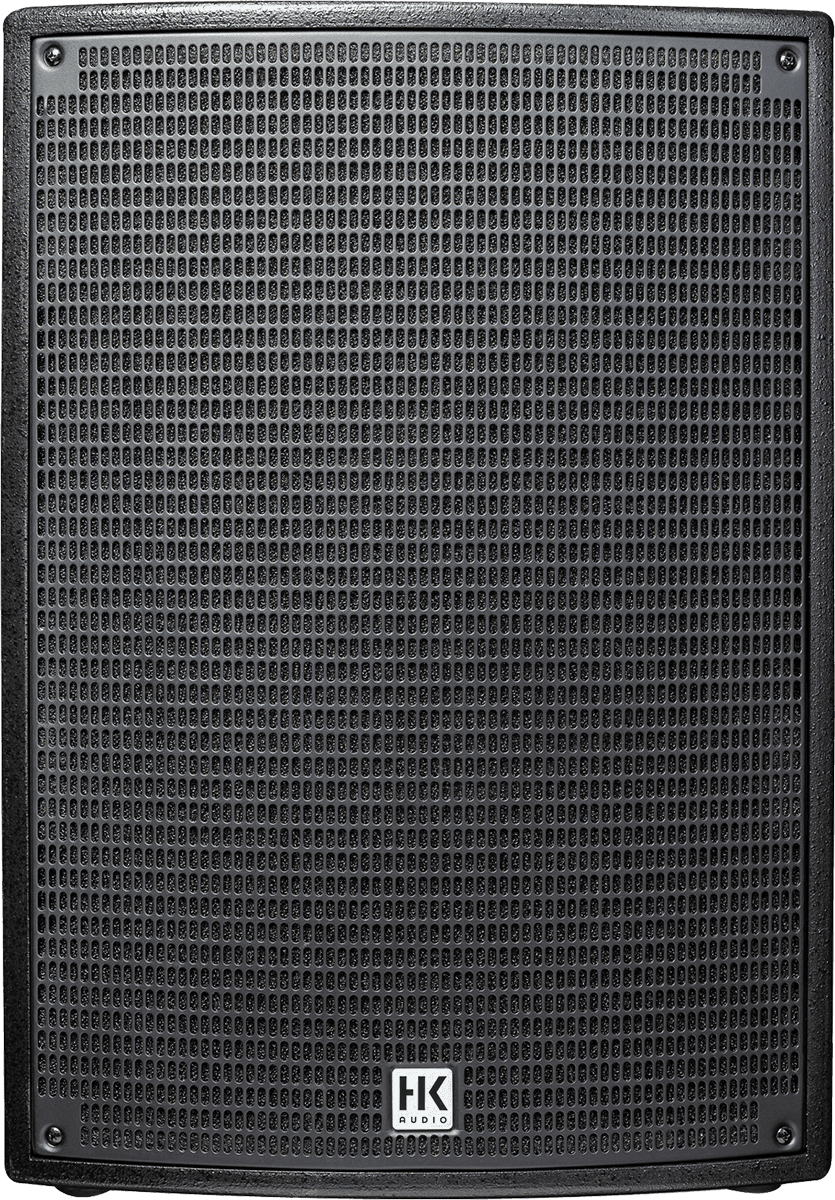

Display	LCD (with dimming function)	Front	metal grille with black acoustic foam
Parameters	Bass Boost, X-Over (crossover frequency), polarity, delay 0-10 m	Handles	2 x MultiGrip

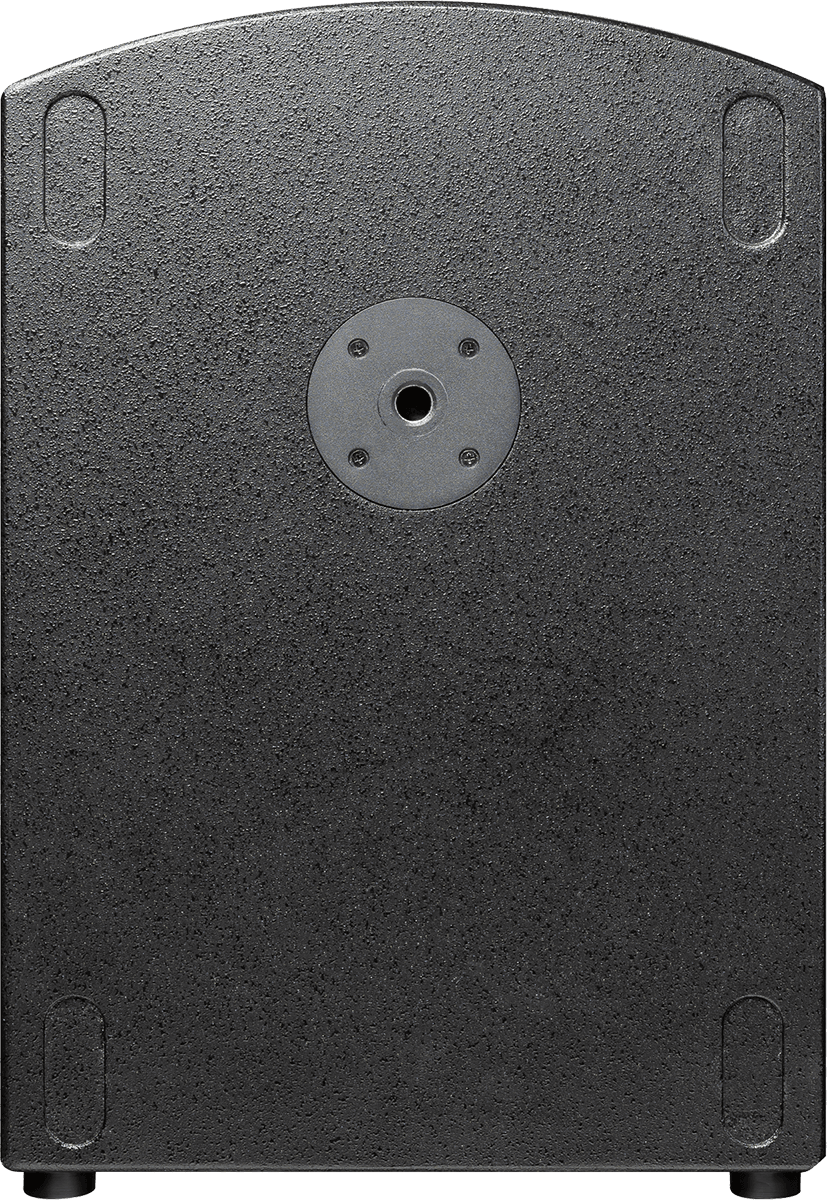

Audio modes	normal, Bass Boost	Mounting point	1 x M20 (pole mount)
Presets	SONAR, cardioid front, cardioid rear	Dimensions	43 x 61.2 x 61.6 cm
