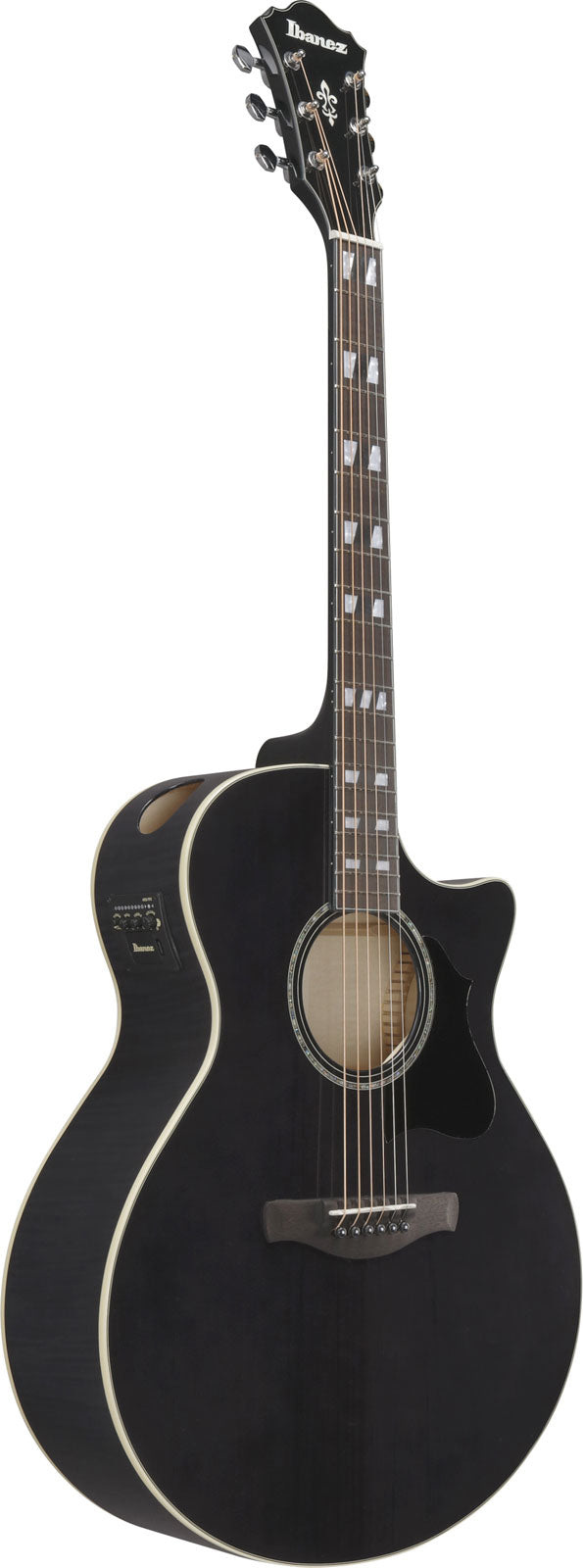

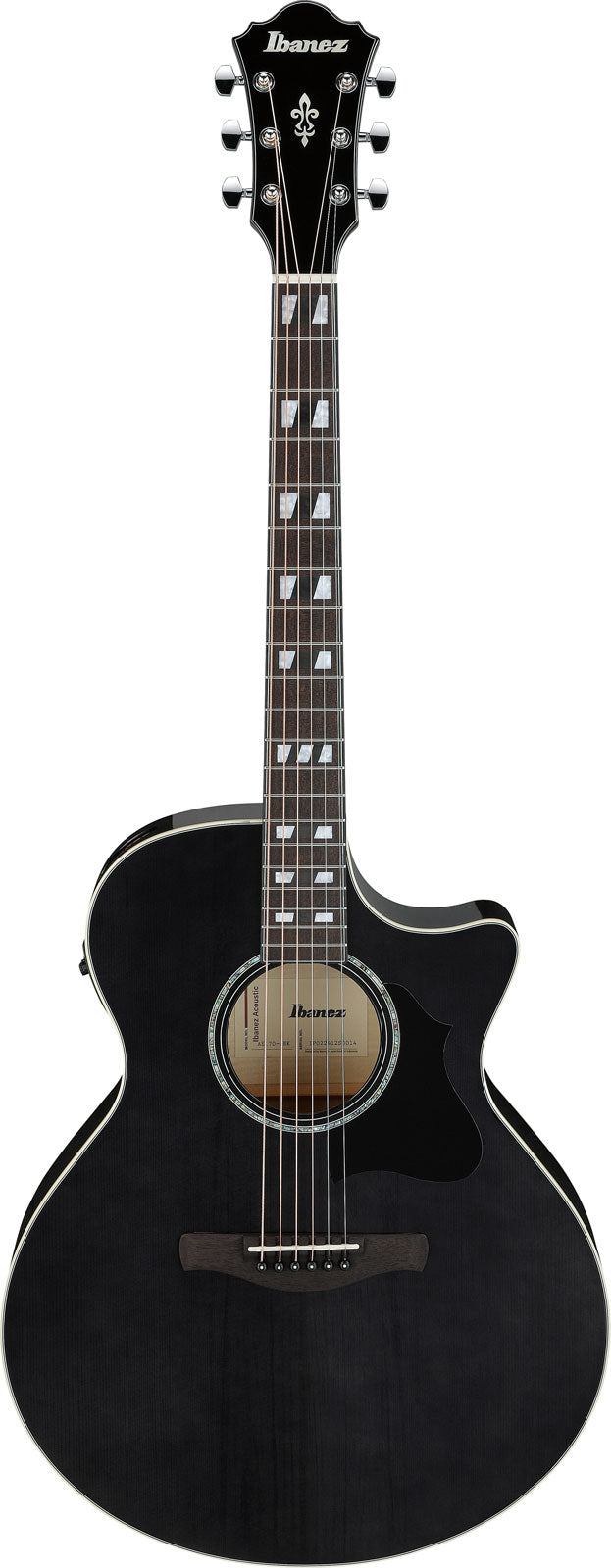

Ibanez AE170TBK Transparent Black
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ibanez
https://www.ibanez.com
------------------------
Safety manager:
Hoshino Europe
Email: info@hoshinoeurope.com
Address:
Essential Information About the Ibanez AE170 Guitar

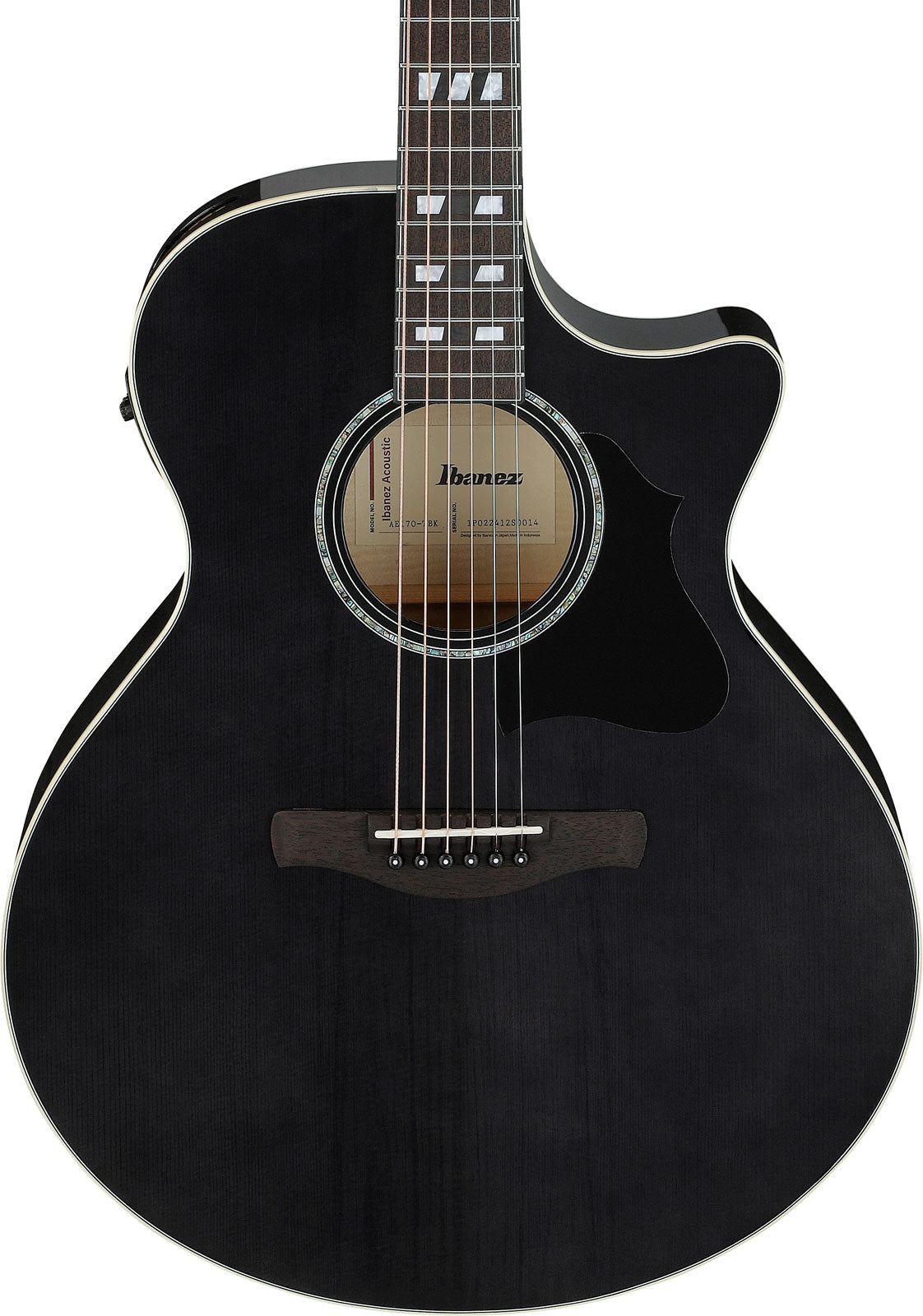

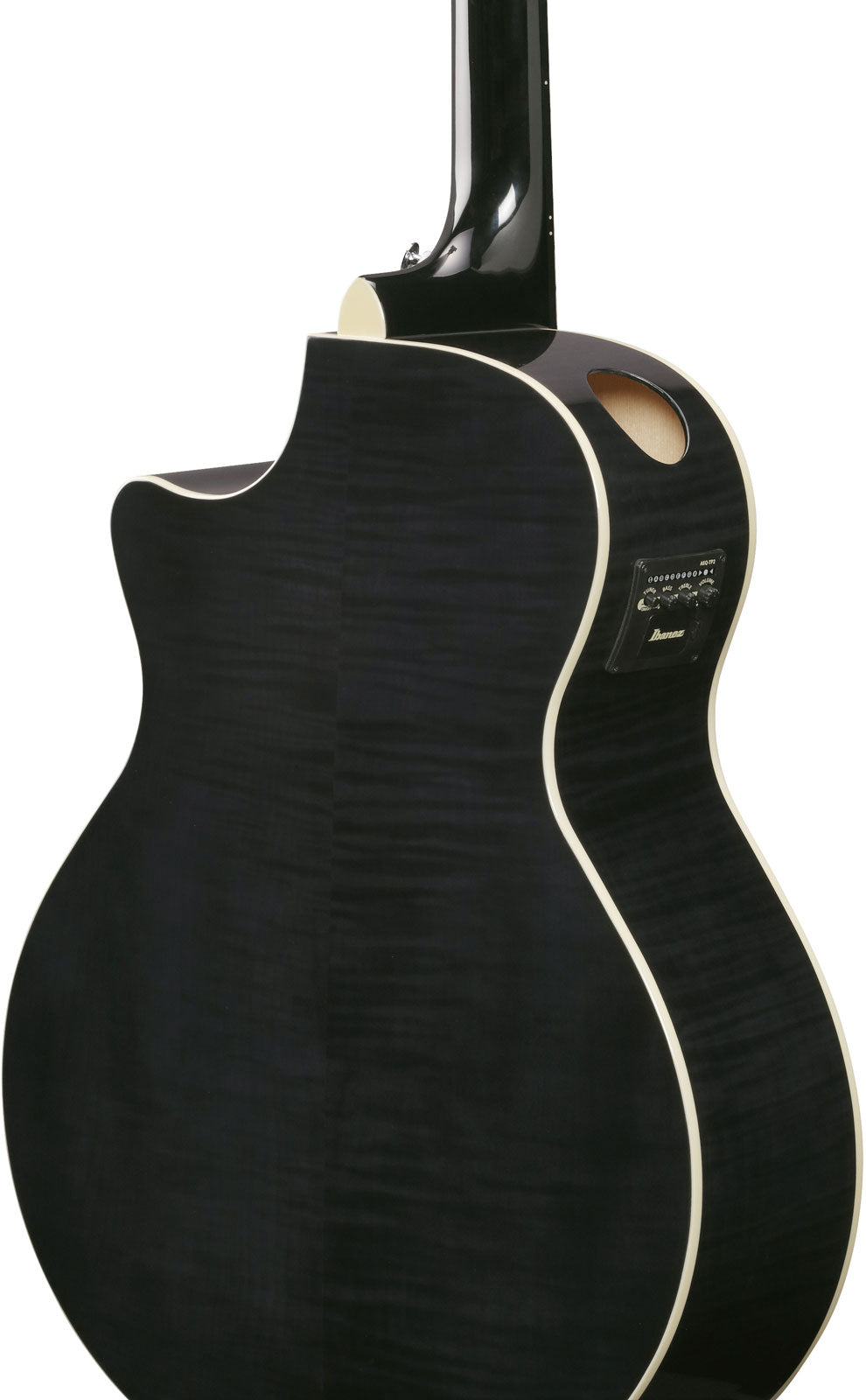

- Solid Sitka Spruce Top and Flamed Maple Back and Sides for clear projection, sparkling highs, and precise lows.
- X-M Bracing and A.I.R. port for dynamic response, improved sound dispersion, and direct monitoring on the player's side.

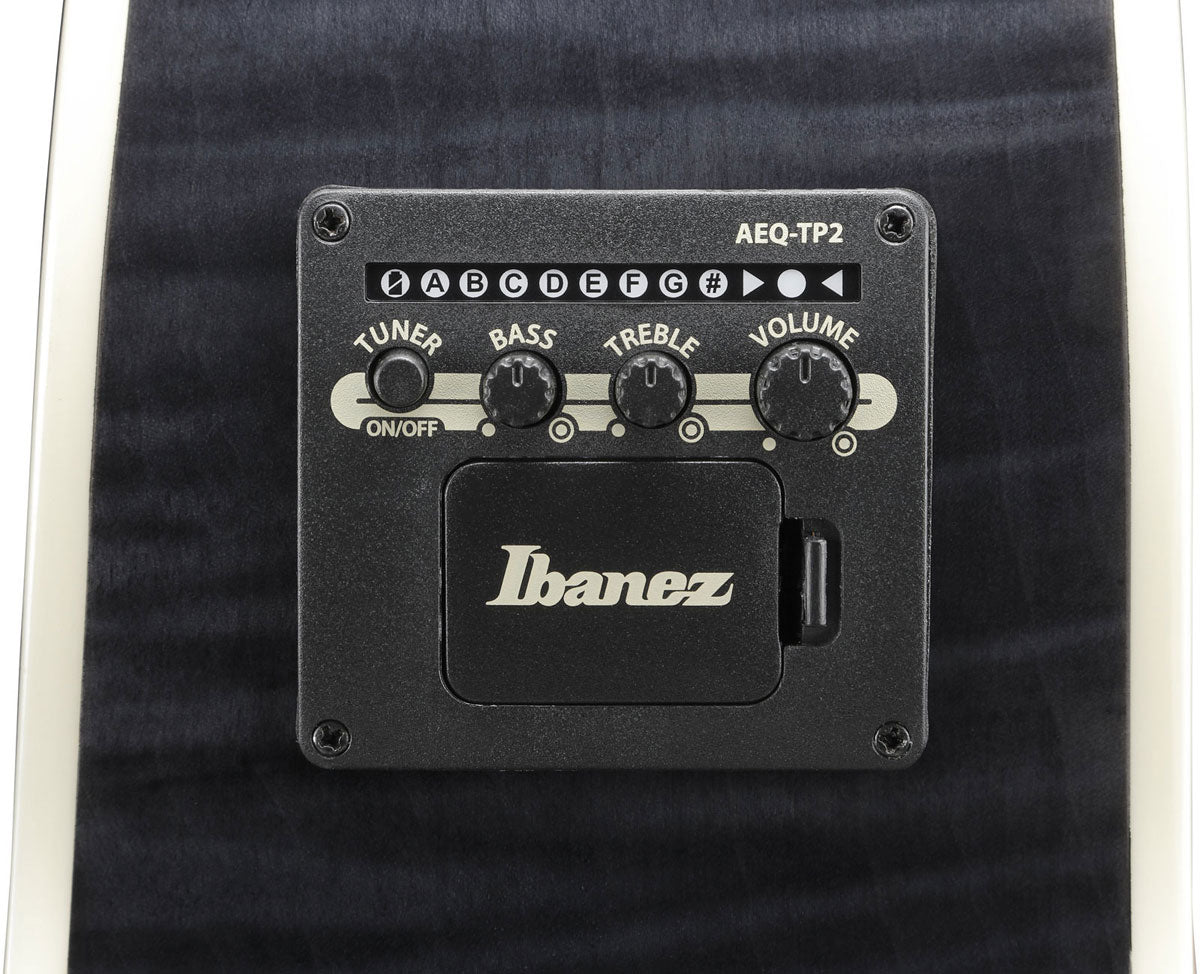

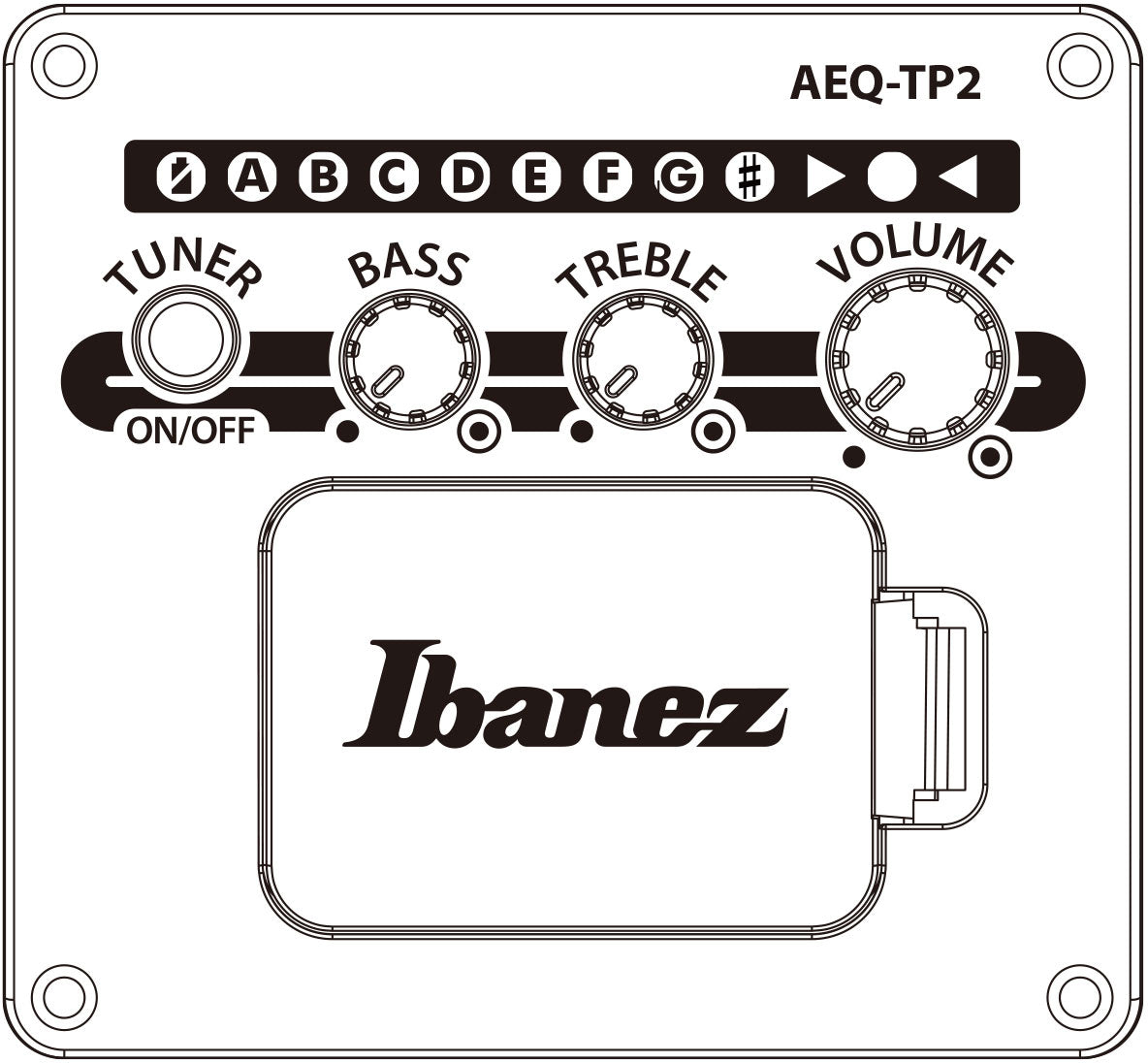

- Built-in Electronics Ibanez T-bar + AEQ-TP2 preamp with tuner, 2-band EQ, and XLR + 6.35 mm jack outputs.

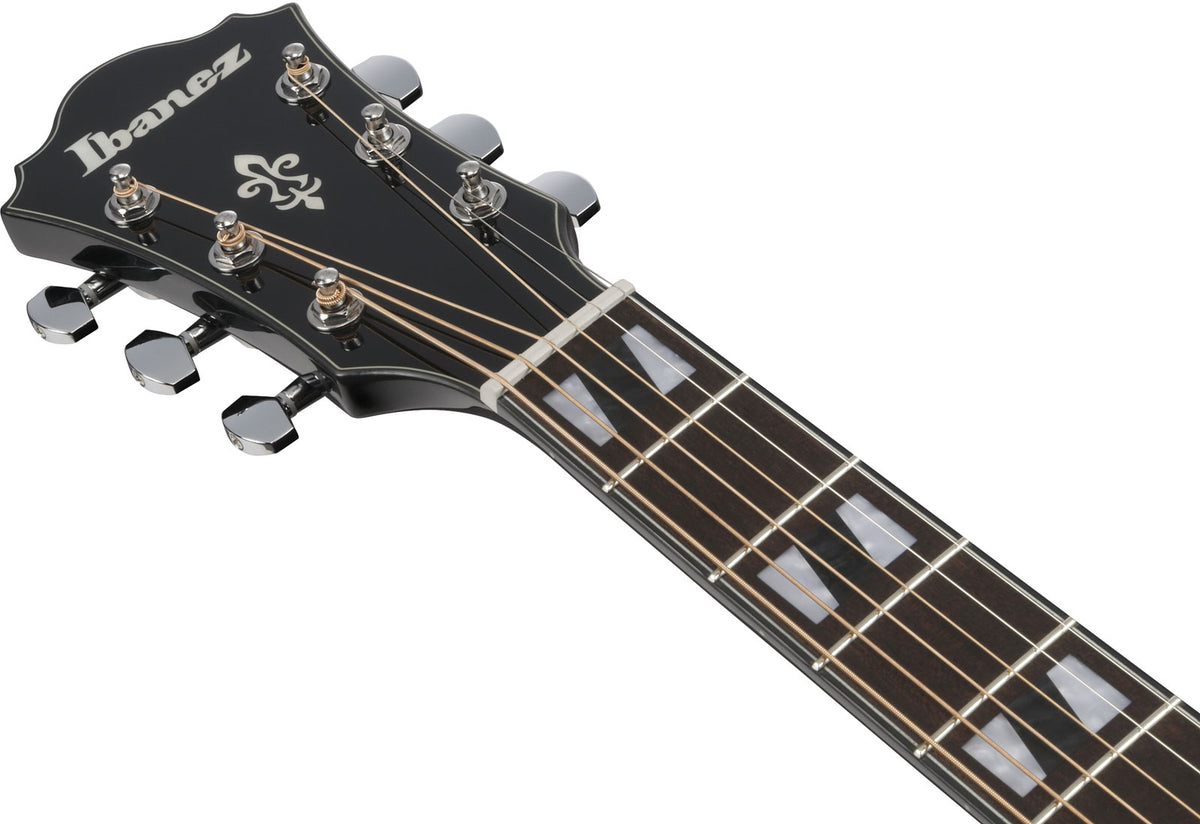

- Modern Playability thanks to the maple "Comfort Grip" neck, Thermo Aged ovangkol fingerboard, and cutaway.
The AE Series, Ibanez's Flagship Acoustic Line
Designed to blend tradition and innovation, Ibanez's AE series was created for the modern stage. The AE170 fits this lineage with a contemporary AE format featuring a shallow depth, refined craftsmanship, and comprehensive electronics-ideal for writing, recording, and performing with confidence.
For Which Musicians and Styles?
Versatile and accessible, the AE170 suits ambitious beginners as well as intermediate/advanced players seeking a high-performance electro-folk guitar. It excels in pop, folk, indie, worship, in fingerstyle thanks to its definition, and in strong strumming where its low-end clarity remains distinct.
Sound Characteristics

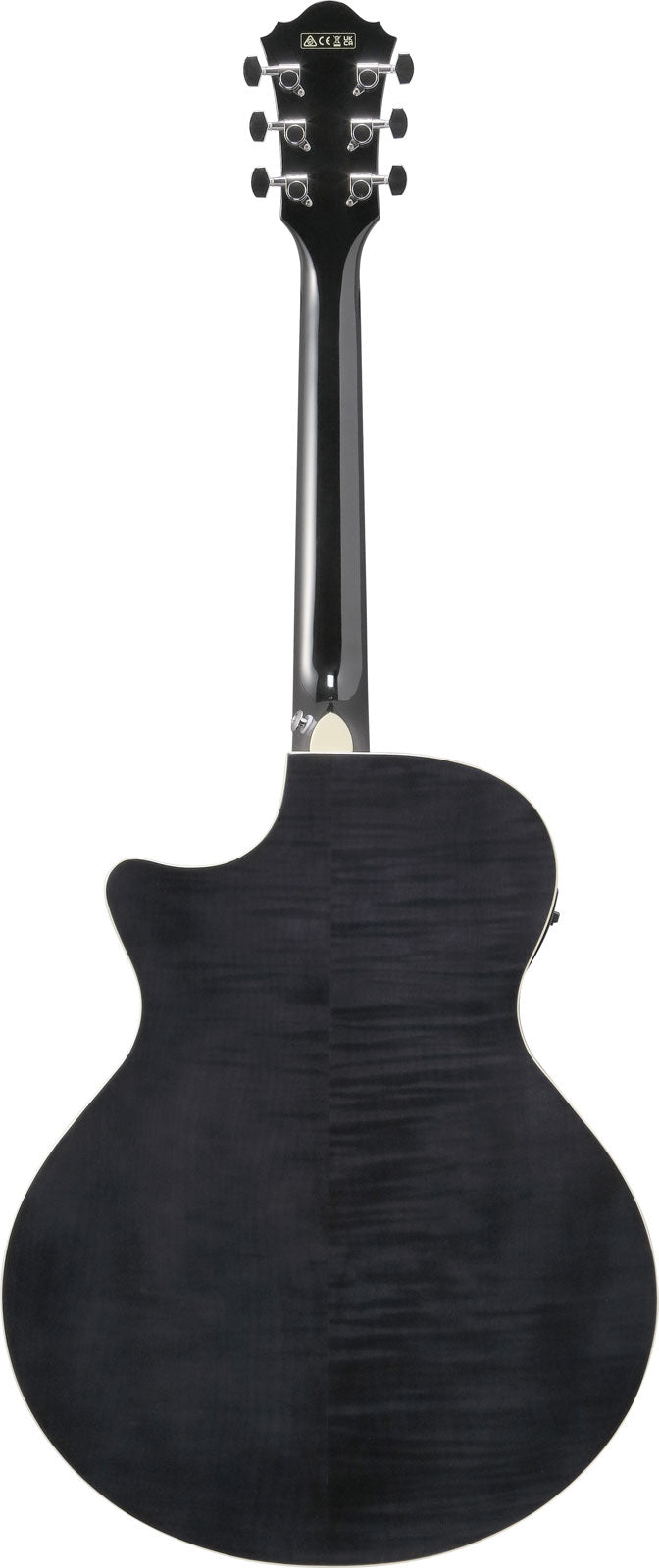

The solid Sitka spruce top provides breadth and wide frequency response, while the flamed maple back and sides add attack, precision, and tight mids. The X-M bracing optimizes vibration transmission for better dynamic balance, with strong projection and controlled sustain. The AE body promotes clarity and comfort, and the A.I.R. port directs part of the sound toward the player, useful on stage and in rehearsals. Plugged in, the T-bar undersaddle pickup and AEQ-TP2 preamp deliver a natural tone, easily shaped via the 2-band EQ, with XLR and jack outputs to suit any PA system.
Recommended Compatible Accessories
To preserve the original voice and tuning accuracy of the electro system, prioritize a phosphor bronze string set 12-53 (original D'Addario XTAPB1253 reference), a fresh 9V battery for the preamp, as well as a quality 6.35 mm jack cable and/or XLR cable for stage use.
Technical specifications
| Format | AE cutaway (Grand Auditorium) | Nut width | 43 mm / 1.69" |
| Top | solid Sitka spruce | Bridge | sculpted Thermo Aged ovangkol |
| Back & sides | flamed maple | Bridge pins | Ibanez Advantage |

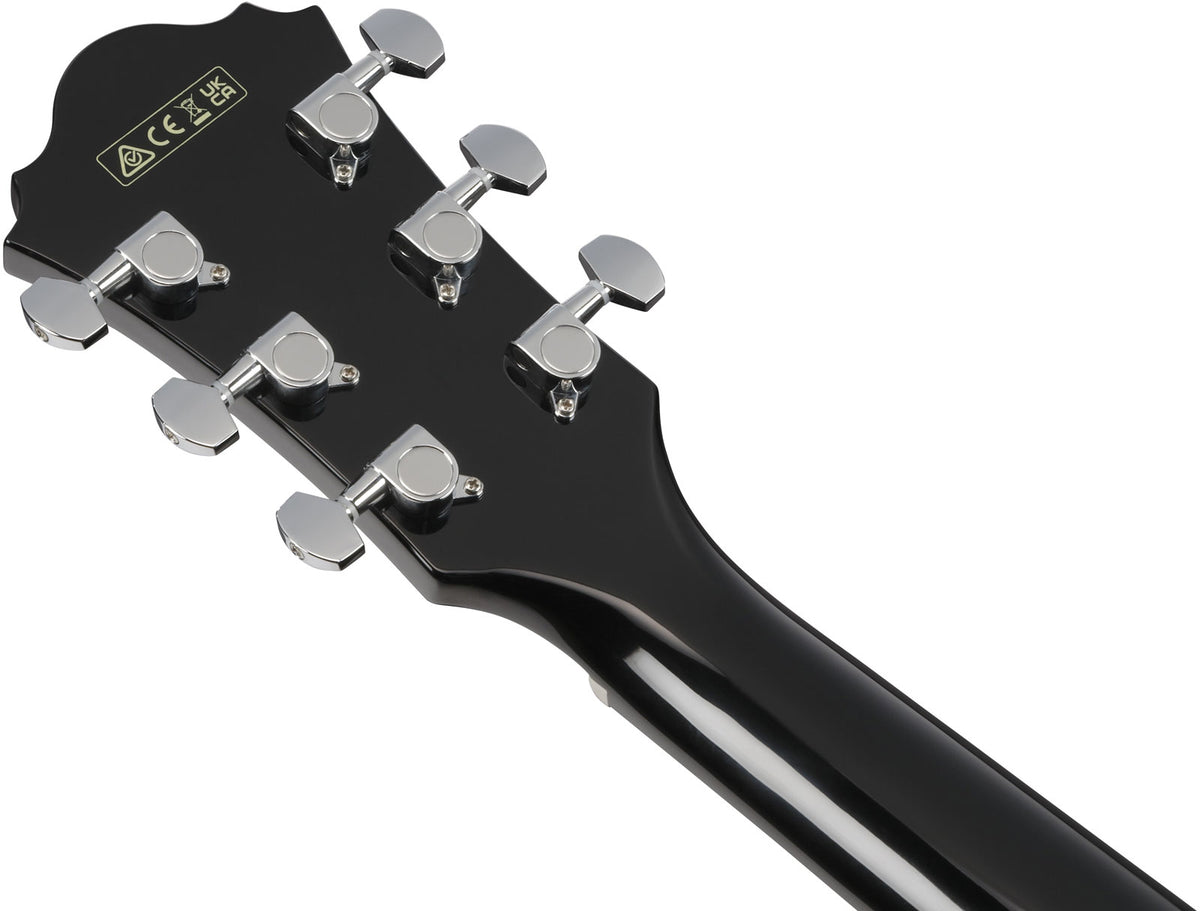

| Bracing | sculpted X-M | Tuners | chrome oil-bath, 18:1 ratio |
| Rosette | abalone | String spacing at bridge | 11 mm |
| Finish | "Natural High Gloss" top, "Transparent Red High Gloss" back and sides | Pickups | Ibanez T-bar Undersaddle |
| Neck | maple, Comfort Grip profile | Preamp | Ibanez AEQ-TP2 with tuner and 2-band EQ |
| Fingerboard | Thermo Aged ovangkol | Outputs | balanced XLR + 1/4" (6.35 mm) jack |
| Radius | 15.75" / 400 mm | Power supply | 9V battery |
| Frets | 20 | Original string set | D'Addario XTAPB1253 (.012/.016/.024/.032/.042/.053) |
| Inlays | acrylic blocks | Factory tuning | Standard E (1E-2B-3G-4D-5A-6E) |
| Scale length | 25" / 635 mm | ||
Questions frequently asked
Does the Ibanez AE170TBK suit fingerstyle and strumming?
The solid Sitka spruce top provides a wide frequency range, while the flamed maple back and sides enhance attack and precision. The sculpted X-M bracing promotes a dynamic balance suitable for both fingerstyle and strong pick strumming.
What outputs are available for stage performance?

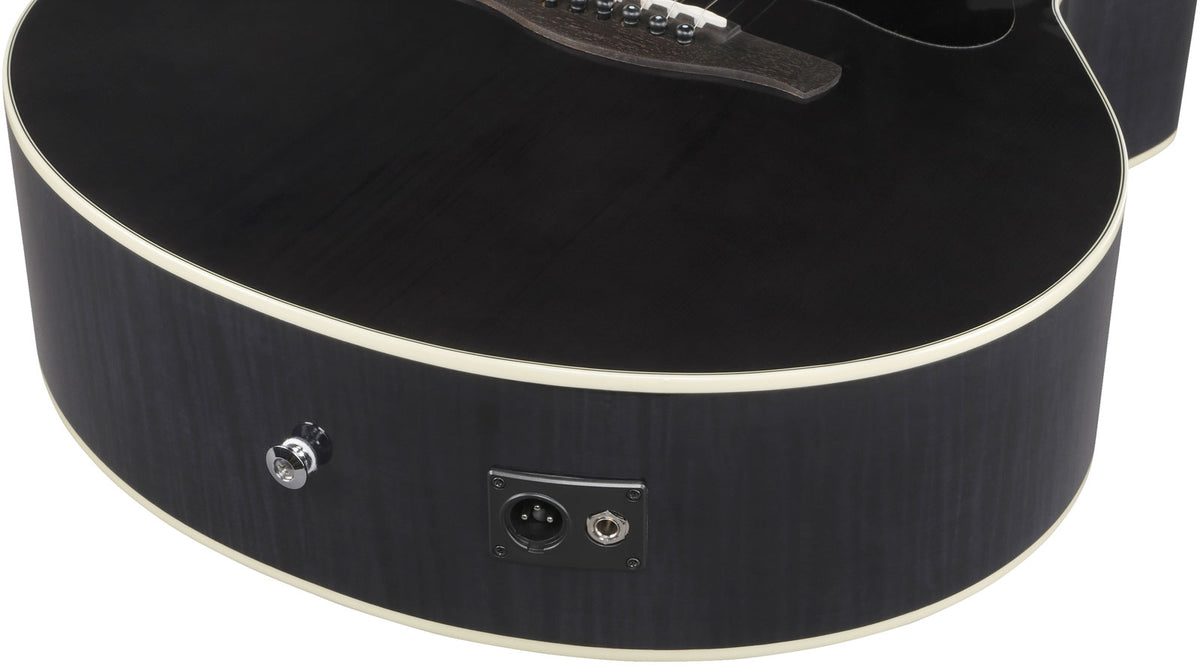

The Ibanez AEQ-TP2 electronics offer a balanced XLR output and a 6.35 mm jack output. The 2-band EQ and tuner are integrated into the preamp, powered by a 9 V battery.
What is the neck comfort level of this electro folk guitar?
The maple neck features a Comfort Grip profile, with a 635 mm scale length and a 43 mm nut width. The Thermo Aged ovangkol fingerboard has a 400 mm radius and is fitted with 20 frets.
What strings should be fitted on the AE170TBK?
The original setup uses D’Addario XTAPB1253 phosphor bronze strings, gauge .012/.016/.024/.032/.042/.053. A 12-53 set maintains the intended characteristics for this model.
Is the AE body shape equipped with a cutaway?
This instrument features an AE body of the Grand Auditorium type with a cutaway, facilitating access to the 20 frets. The A.I.R.port directs part of the sound towards the player during performance.
