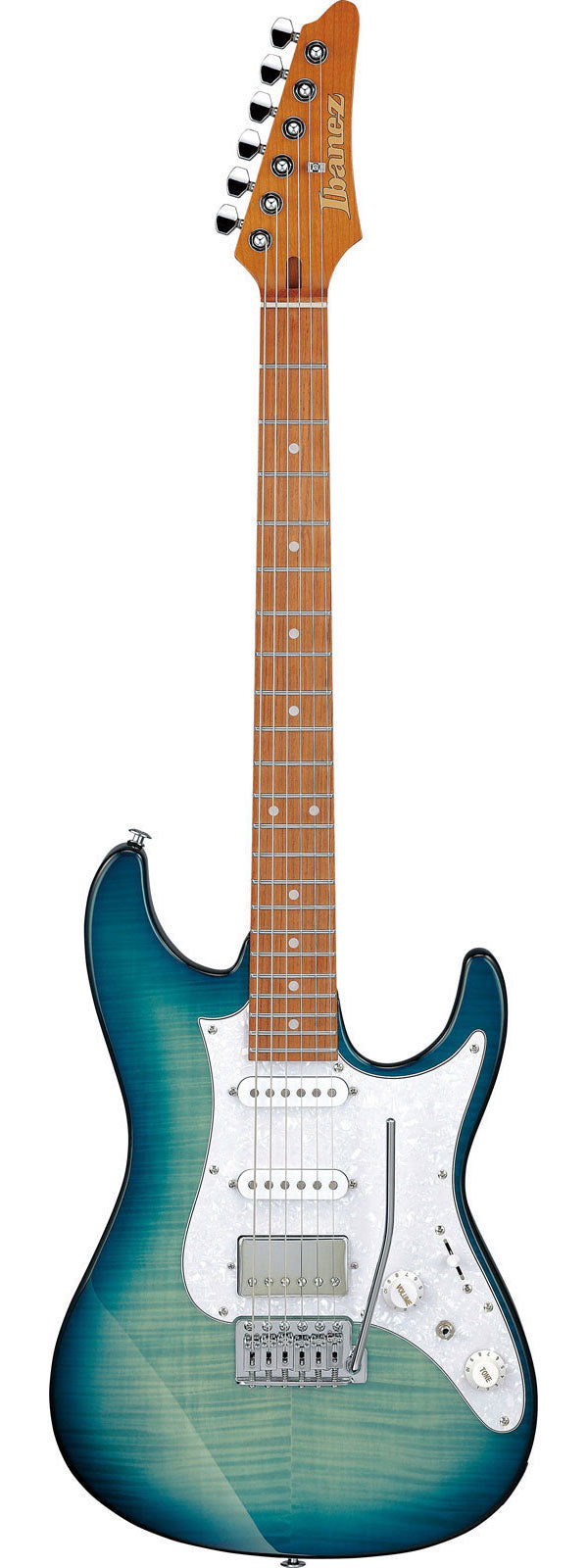

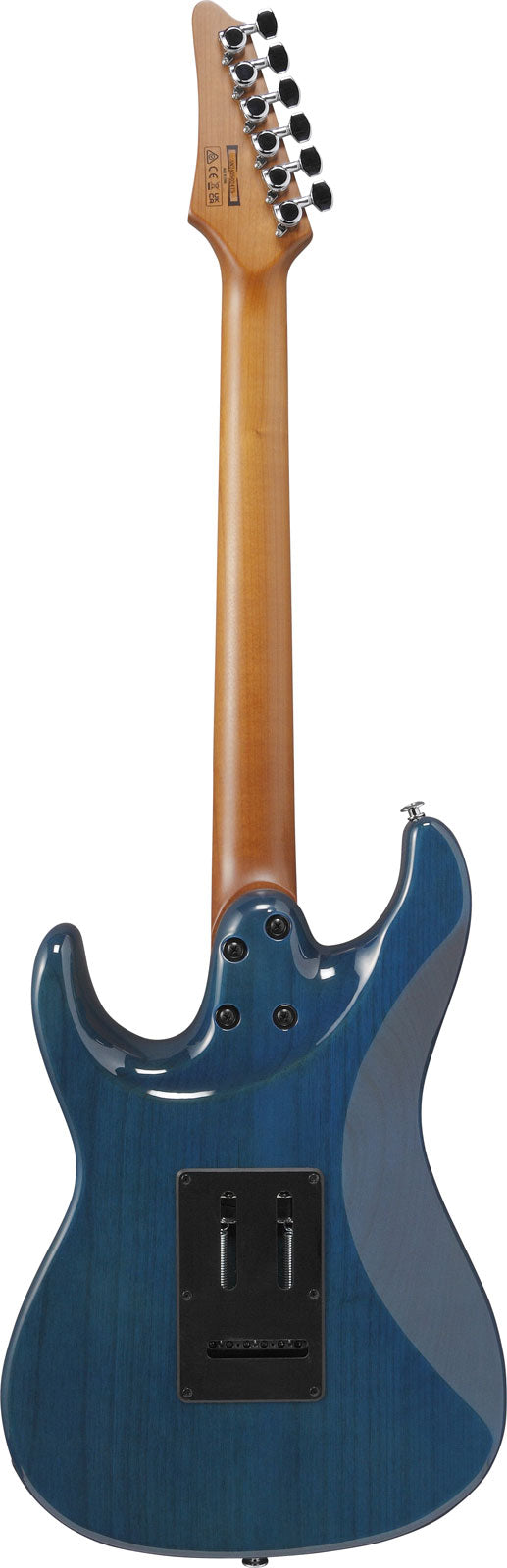

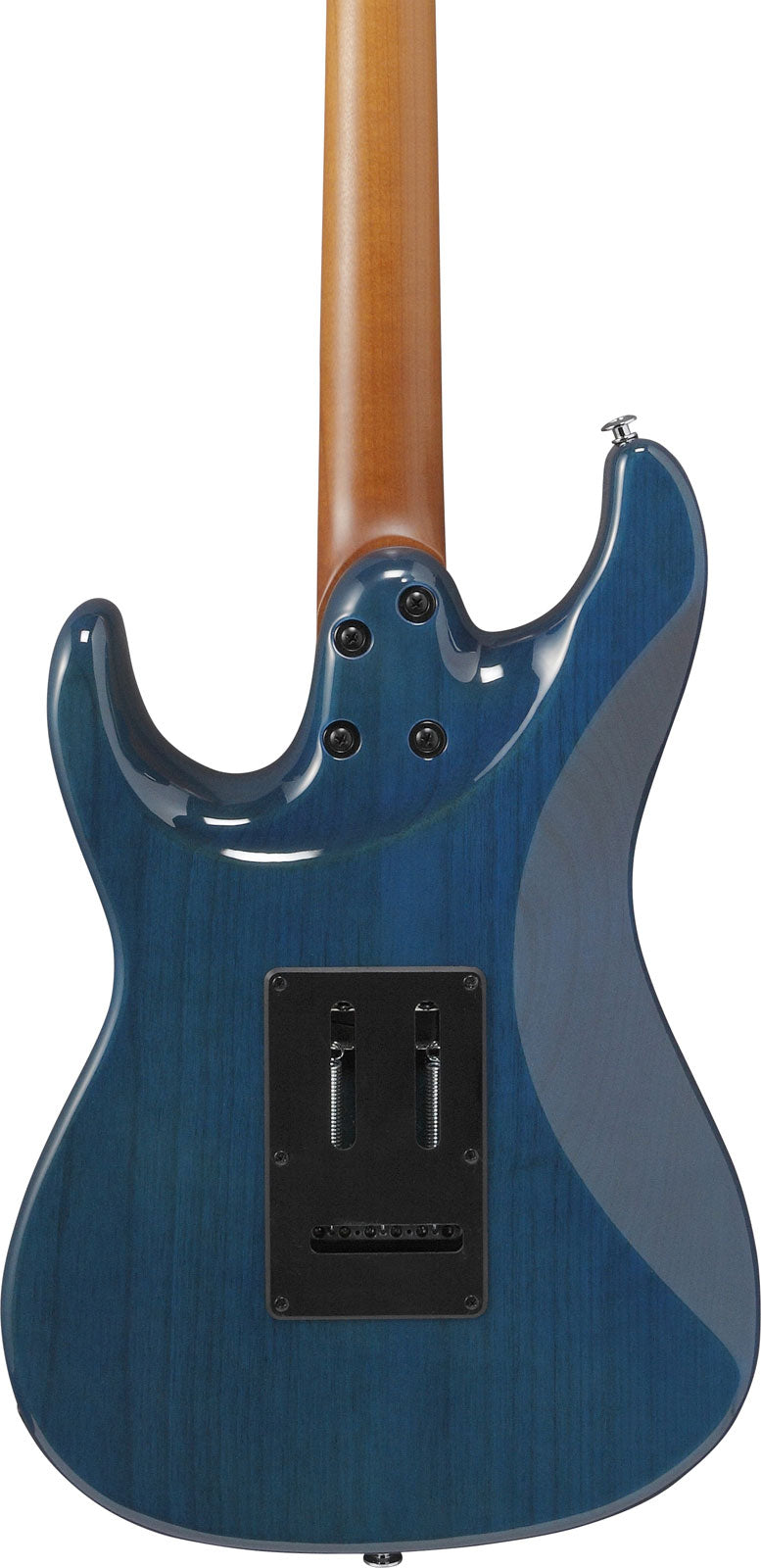

Ibanez AZ22S1F-TXB Standard Transparent Turquoise Burst

Essential Information About the Ibanez Standard AZ22S1F Guitar

• Immediate versatility thanks to the dyna-MIX9 system and the Alter Switch: 9 tonal variations, from crisp single coils to a beefier humbucker.

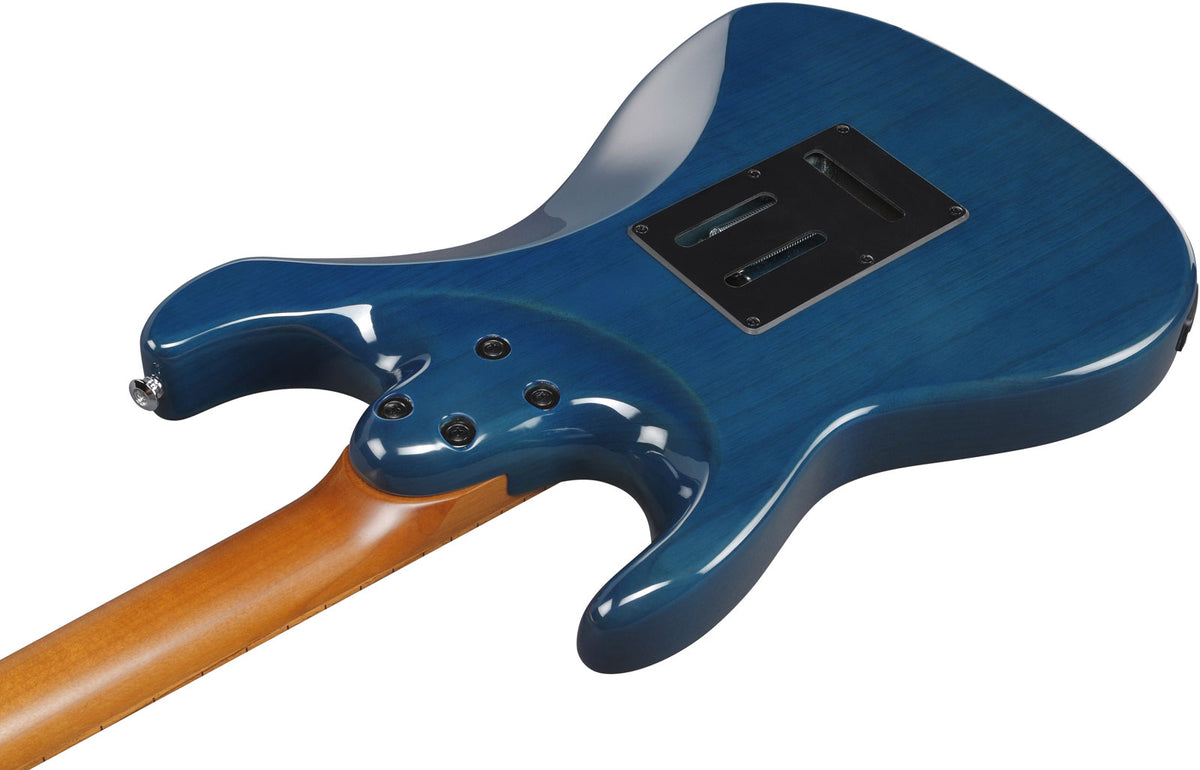

• Modern comfort: Super All Access Neck Joint for easy access to the upper frets, and 22 Jumbo stainless steel frets for a sharp attack.

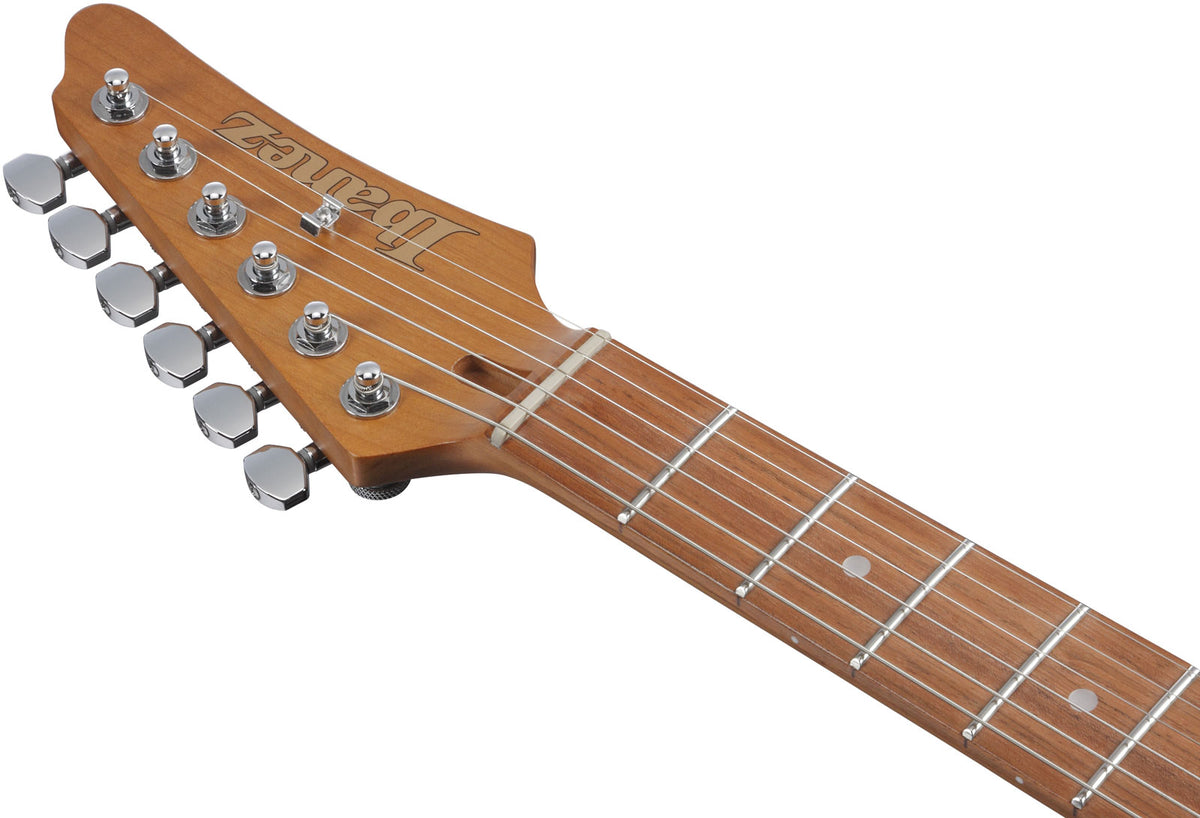

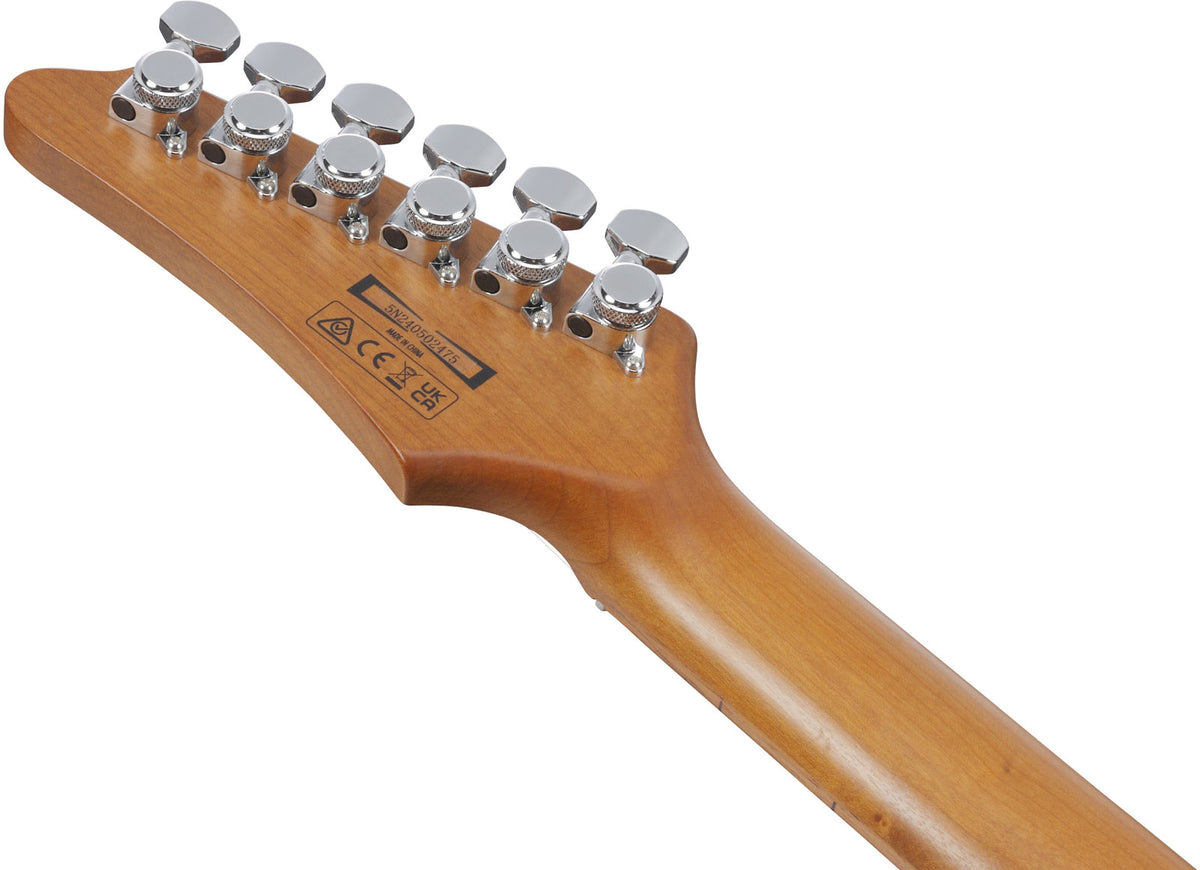

• Enhanced tuning stability with the torrefied maple neck and locking tuners.

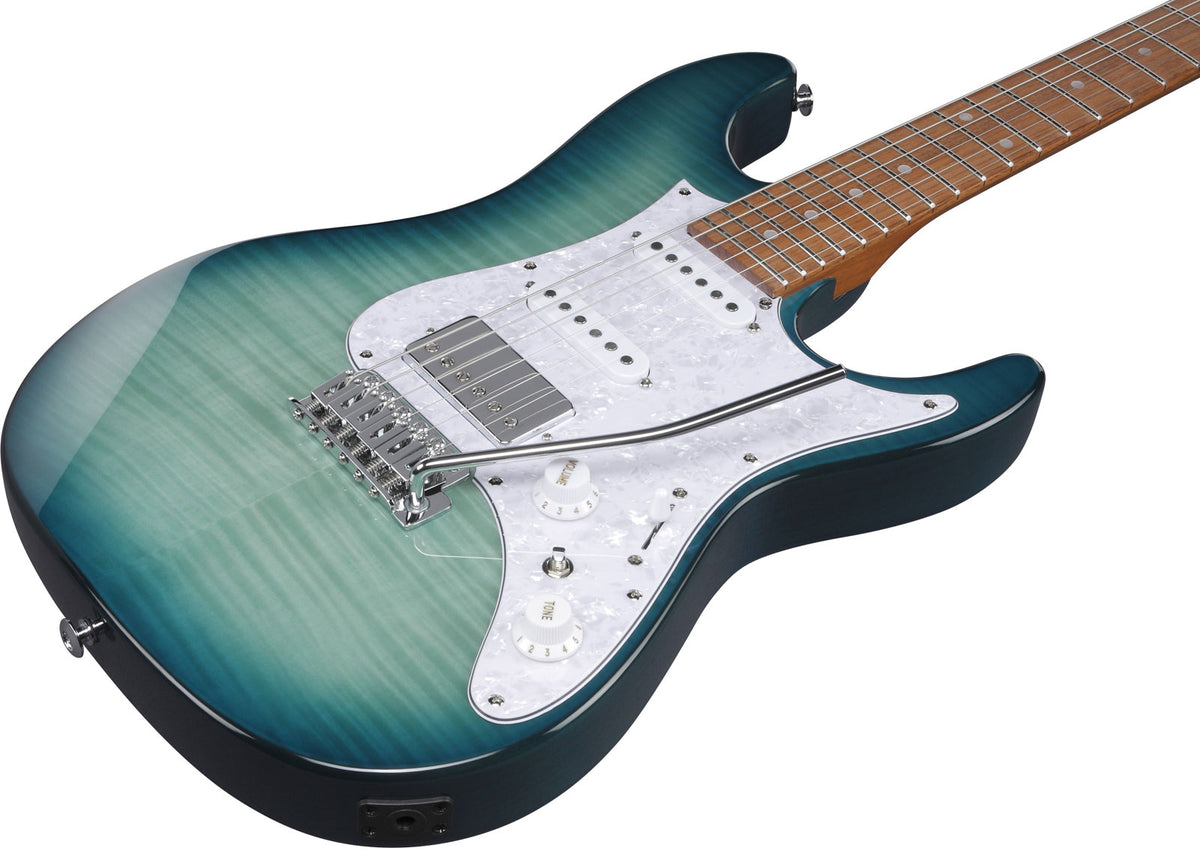

• Premium look and tonal balance: quilted maple top on an alder body, clear, balanced, and rich in sustain.

An AZ Standard Designed for Stage and Studio

The Standard AZ22S1F carries the "modern and versatile" DNA of the AZ series: ergonomics designed for long playing sessions, electronics focused on flexibility, and material choices made for stability. With its quilted maple top, torrefied neck, and sound palette driven by the dyna-MIX9, it positions itself as an electric guitar ready to cover many musical contexts without changing instruments.

For Whom, and For Which Styles?

This Ibanez is aimed at intermediate to advanced guitarists who want a "Swiss Army knife" guitar: precise rhythm, punchy funk, polished pop, modern rock, edgier blues, and even fusion genres thanks to the responsiveness of the Jumbo frets and the richness of pickup combinations. Motivated beginners will also find an excellent foundation here, with very contemporary playability and an HSS configuration capable of supporting rapid progress.

The Sound

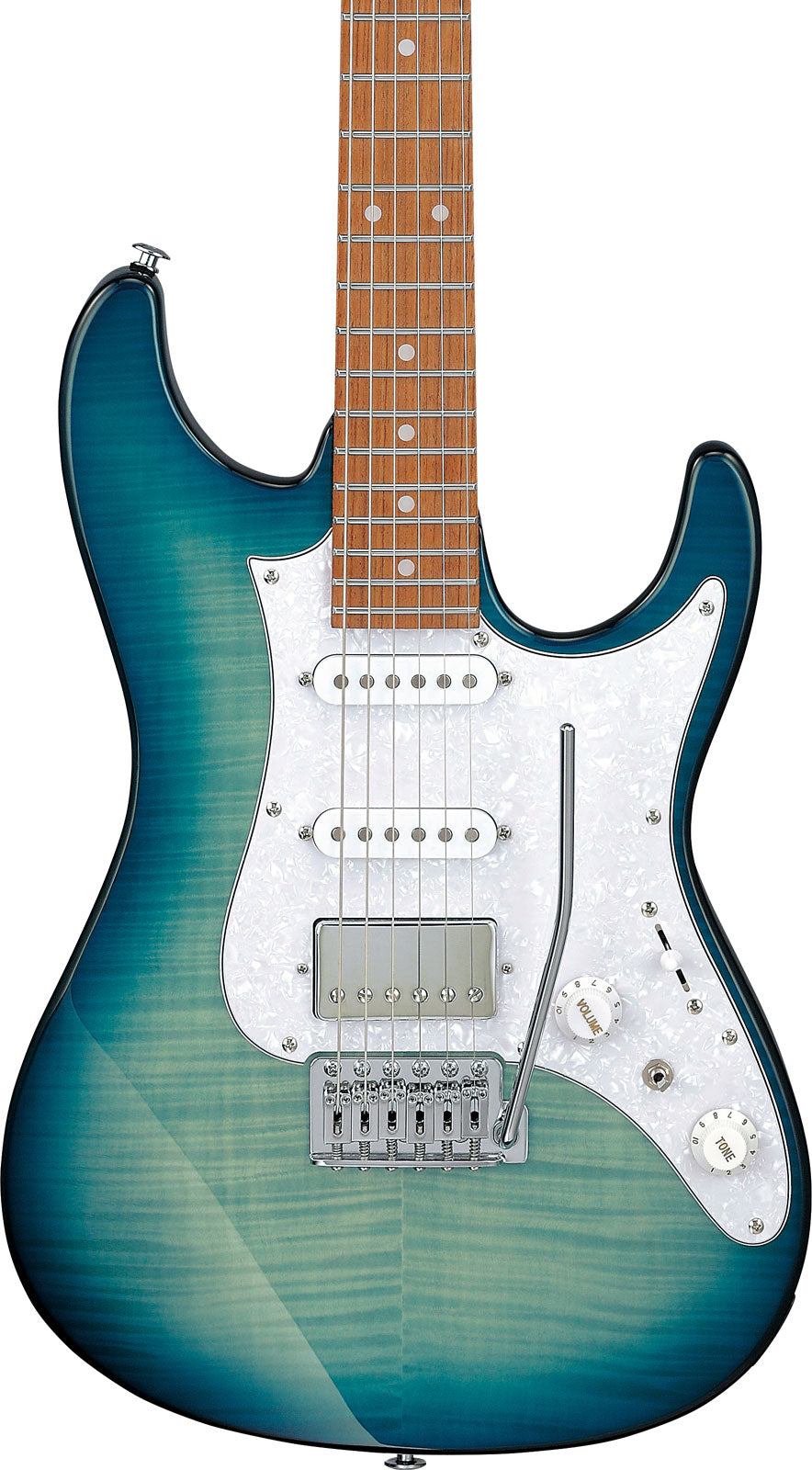

The alder body provides a natural balance (firm lows, present mids, clear highs) and good definition, while the quilted maple top adds precision and bite to the attack. The HSS Ibanez Classic Custom configuration combines two Alnico single coils (neck and middle) for clear, articulate, and dynamic tones, with a more powerful and punchy ceramic humbucker at the bridge for overdriven sounds. The dyna-MIX9 with Alter Switch multiplies textures: humbucker split, single coil combinations, and a mode simulating a humbucker character from two singles, ideal for switching from a bright clean to a thicker lead without changing guitars. The T106 tremolo with its 6 individual saddles facilitates fine intonation and action adjustment, to get the best out of tuning accuracy and sustain.

Recommended Compatible Accessories

For transport, the manufacturer recommends the M300C case and the IGB540-BK gig bag. For strings, you can keep the original gauge 010-046 to maintain the intended playing balance and tension on the 25.5" scale length.

Technical specifications

Electronics: microphone configuration	HSS	Scalloped	Double
Category	ST	Body	Alder
Left handed	No	Bridge / tailpiece	Tremolo
Strings	Steel	Electronics	Passive
Nbr of strings	6	Color	Gradient
Top	Curly maple	Finishing	Glossy
Fingerboard	Jatoba	Hardware	Chromed
Nbrs of frets	22

Neck type	AZ	String spacing	0.41" / 10.5 mm
Neck wood	torrefied maple	Tuners	locking

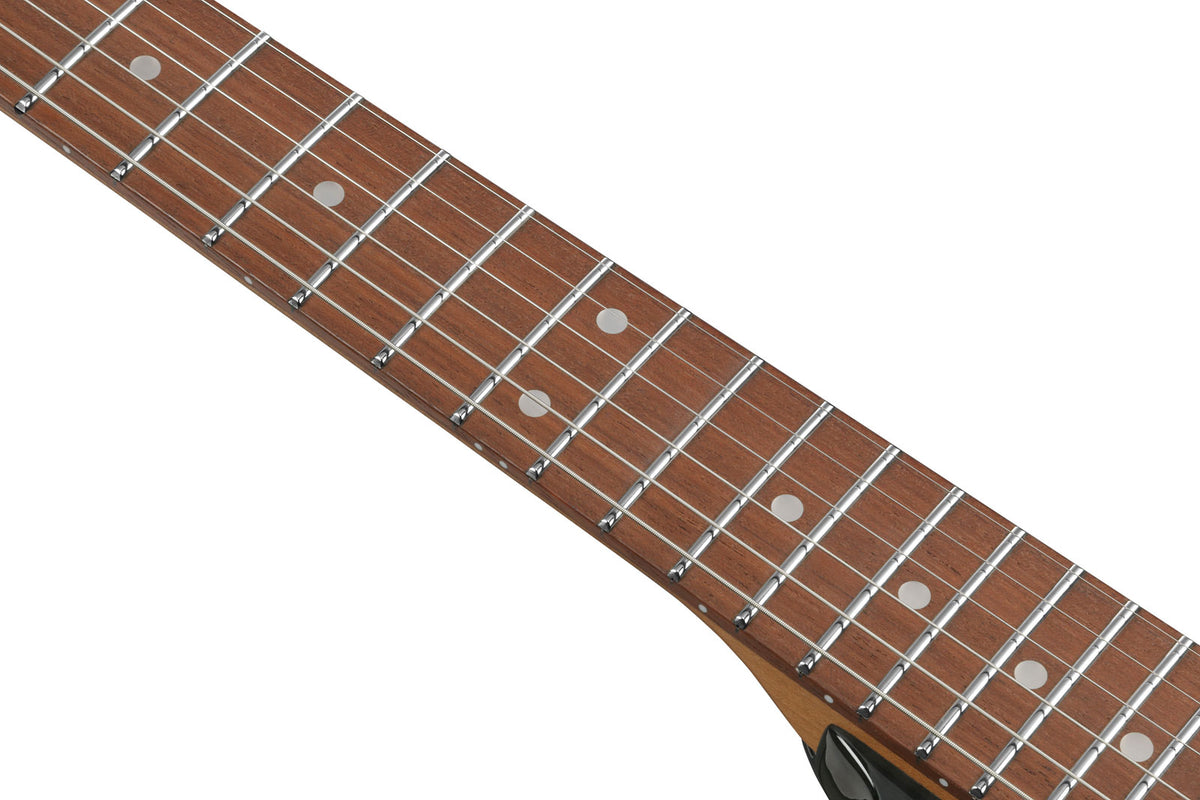

Inlays	white dots	Hardware color	chrome
Number of frets	22	Neck pickup	Ibanez Classic Custom (S) (passive / Alnico)
Fret type	Jumbo stainless steel	Middle pickup	Ibanez Classic Custom (S) (passive / Alnico)
Scale length	25.5" / 648 mm	Bridge pickup	Ibanez Classic Custom (H) (passive / ceramic)
Nut width	1.65" / 42 mm	Switching system	dyna-MIX9 with Alter Switch
Width at 22nd fret	2.22" / 56.5 mm	Factory tuning	1E, 2B, 3G, 4D, 5A, 6E
Thickness at 1st fret	0.81" / 20.5 mm	String gauge	.010 / .013 / .017 / .026 / .036 / .046
Thickness at 12th fret	0.89" / 22.5 mm	Recommended case	M300C
Radius	12.01" / 305 mm	Recommended gig bag	IGB540-BK
Bridge	T106 tremolo	Neck/body joint	Super All Access Neck Joint
