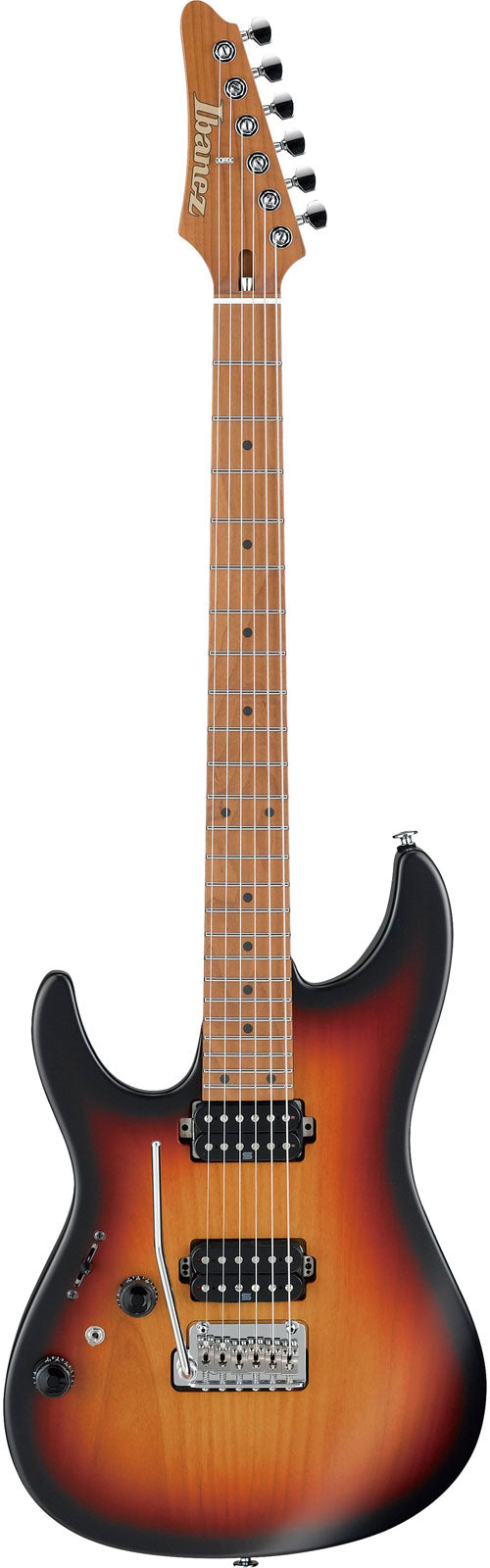

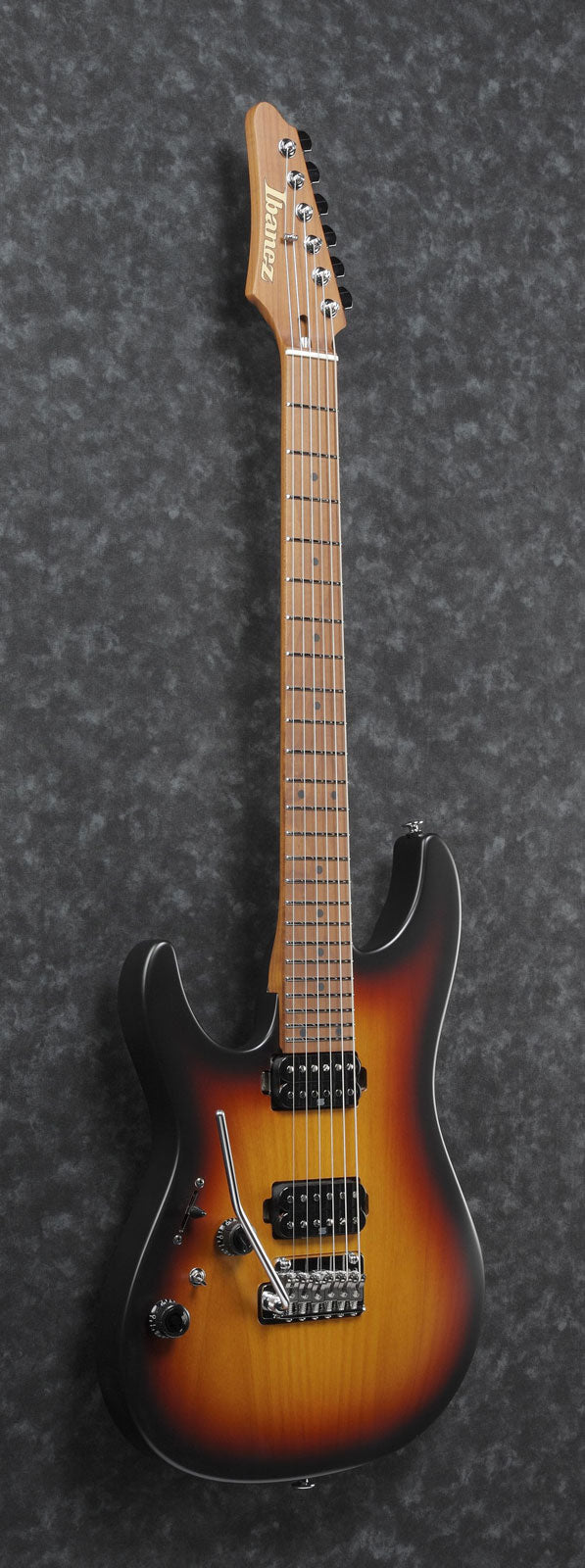

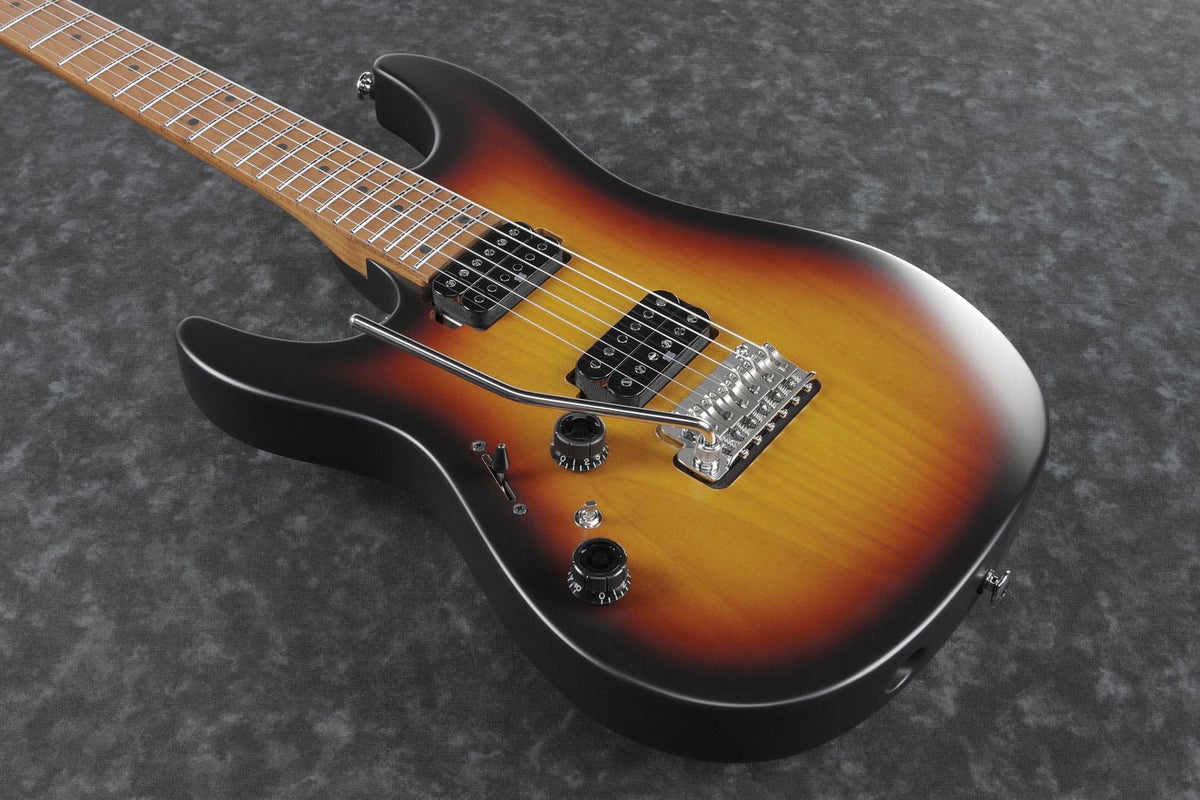

Ibanez Az2402L-Tff Tri Fade Burst Flat Prestige
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ibanez
https://www.ibanez.com
------------------------
Safety manager:
Hoshino Europe
Email: info@hoshinoeurope.com
Address:
The AZ Series: The Modern Ibanez Designed "From A to Z"
With the AZ series, Ibanez conveys a simple idea: the guitar should become a natural extension of the musician. Everything is designed to accommodate contemporary techniques (precise attack, dynamics, hybrid playing, extended positions), while maintaining "classic" benchmarks: balance, ergonomics, and tones usable in all contexts. This AZ fits this philosophy by combining modern luthiery, high-end hardware, and particularly flexible electronics.
Who Is It For, and Which Styles?
This Ibanez AZ is aimed at intermediate to expert guitarists who want an electric guitar capable of handling rehearsals, studio, and stage without compromise. It excels in modern rock, fusion, pop, prog, funky grooves, and expressive lead lines with tremolo. Thanks to the dyna-MIX10, it also covers more "vintage" ranges when you need to clean up the sound, thicken crunch tones, or play tighter rhythms.
The Sound
The alder body provides a natural balance: present mids, firm lows, and clear attack, ideal for versatile sounds. The S-TECH WOOD roasted maple neck and fingerboard enhance the immediate response feel and definition, while improving stability against temperature and humidity changes. The Seymour Duncan Hyperion pickups (Alnico 5 magnets, moderate output) emphasize fundamental clarity even under distortion, with precise attack and excellent compatibility with pedals. Finally, the dyna-MIX10 and its Alter switch multiply combinations: full humbucker, scooped sounds, and Power Tap mode for more "single-coil" colors while retaining body.
Recommended Compatible Accessories
To maintain the original feel, opt for D'Addario EXL110 strings in gauge .010-.046 (factory setup). A standard strap will also be suitable for standing play. The M20AZL case is included, convenient for safely transporting the guitar.
Technical specifications
| Left handed | Yes | Nbr of strings | 6 |
| Strings | Steel | ||
| Material | alder | Fret edge treatment | Prestige fret edge treatment |
| Finish | satin polyester | Inlay | black dot |
| Contour | ergonomic back contour | Side dot inlays | Luminlay side dots |
| Total length | 978 mm / 38.50" | Nut | oil-impregnated bone |
| Body length | 452 mm / 17.80" | Bridge | Gotoh T1802 |
| Body width | 309 mm / 12.17" | Type | 2-point floating tremolo |
| Body thickness | 44 mm / 1.73" | String spacing | 10.5 mm / 0.41" |
| Net weight | 3300 g / 7.28 lb | Tuners | Gotoh Magnum Lock with HAP (height-adjustable posts) |
| Neck type | AZ Oval C | Hardware color | chrome |
| Neck joint | bolt-on | Active or passive | passive |
| Neck material | S-TECH WOOD roasted maple | Neck pickup | Seymour Duncan Hyperion (H) |
| Neck finish | oil | Bridge pickup | Seymour Duncan Hyperion (H) |
| Neck thickness at 1st fret | 20.5 mm / 0.81" | Controls | 1 volume, 1 tone |
| Neck thickness at 12th fret | 22.5 mm / 0.89" | Selector | 5-position switch |
| Scale length | 25.5" / 648 mm | Other switches | dyna-MIX10 switching system with Alter switch |
| Nut width | 42 mm / 1.65" | Special strings | D'Addario EXL110 |
| End width | 57 mm / 2.24" | Gauges (from high to low) | .010 / .013 / .017 / .026 / .036 / .046 |
| Number of frets | 24 | Tuning (from high to low) | 1E, 2B, 3G, 4D, 5A, 6E |
| Fingerboard | S-TECH WOOD roasted maple | Included case or bag | M20AZL |
| Fingerboard radius | 305 mm / 12.01" | Other included items | tremolo arm, multi-tool |
| Fret type | jumbo stainless steel | ||
Questions frequently asked
Is this Ibanez AZ2402L-TFF well designed for left-handed players?
This version is specifically configured for left-handers and features 24 frets on a 648 mm scale length. The AZ Oval C neck is bolt-on to an alder body.
Does the dyna-MIX10 allow for single-coil sounds?
The dyna-MIX10 system, combined with the Alter switch, offers several combinations with the two Seymour Duncan Hyperion humbuckers. The Power Tap mode provides tones close to single coils while retaining body. The pickups use Alnico 5 magnets and moderate output.
What tremolo is fitted on this guitar?
The Gotoh T1802 bridge is a two-point floating tremolo, complemented by Gotoh Magnum Lock tuners with adjustable-height HAP posts.
What strings and case are supplied?
The original setup uses D'Addario EXL110 strings in .010-.046 gauge, tuned to standard E. An M20AZL case, a tremolo arm, and a multitool are included.
Is the neck suitable for modern techniques and bends?
With a 305 mm fretboard radius and jumbo stainless steel frets, the neck facilitates bends and playing in extended positions. The S-TECH WOOD roasted maple and oiled finish contribute to a direct response.
