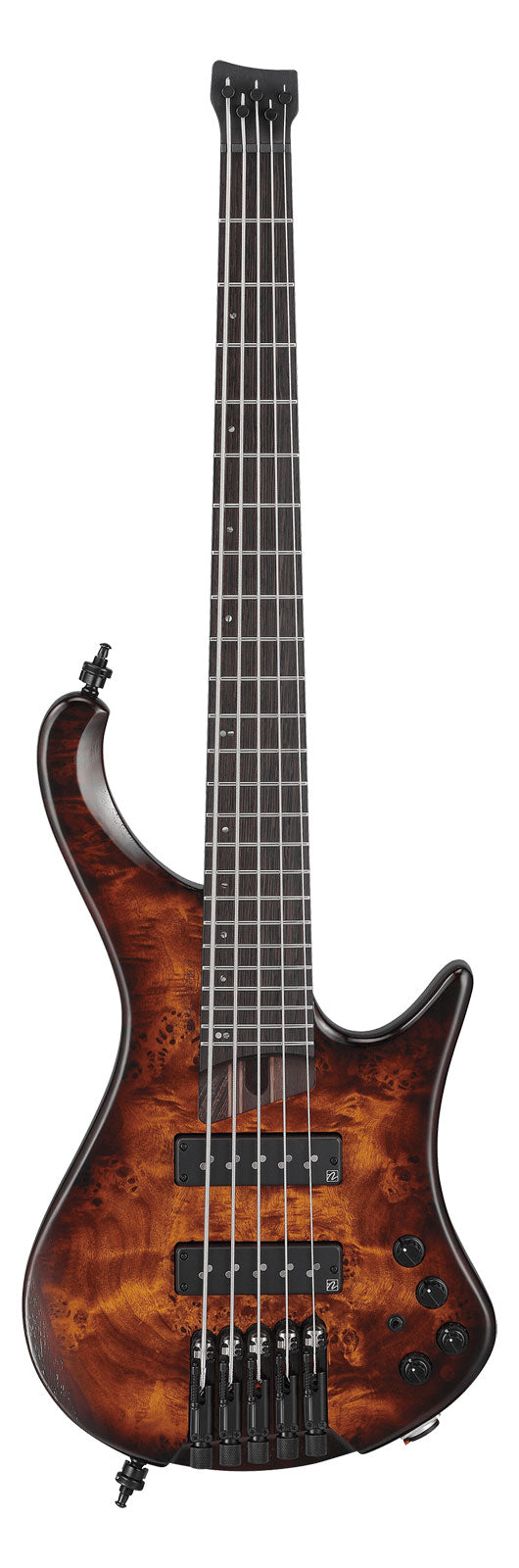

Ibanez EHB1505S-DEL Dragon Eye Burst Bass Workshop

Ibanez Bass Workshop: The Spirit of Innovation Serving Bassists

For over 40 years, Ibanez has explored new design approaches to meet the diverse needs of bassists. The Ibanez Bass Workshop program aligns with this philosophy: offering bold instruments designed to open new sonic and ergonomic horizons. The EHB1505S-DEL perfectly illustrates this philosophy, featuring an ultra-modern headless format, premium materials, and electronics designed to navigate dense and demanding mixes.

Who Is This 5-String Headless Bass For?

The Ibanez EHB1505S-DEL is aimed at intermediate to advanced bassists seeking a comfortable, reliable, and very contemporary instrument. Its 30" / 762 mm scale length provides a softer playing feel, ideal for fast runs, wide intervals, and long rehearsals. It excels in modern music styles (fusion, pop, gospel, progressive metal, electro) while remaining comfortable whenever precision, attack, and excellent note separation on the B string are required.

Sound Characteristics

The Nordstrand Big Split Custom duo combines the energy of a humbucker-format pickup with highly articulated response: the lows remain dense, the mids are present without muddiness, and the highs retain beautiful clarity. The 3-band active EQ (Bass, Middle, Treble) allows instant adaptation of the bass to the context: warm and deep tone, punchier slap, or emphasized mids to cut through a busy mix. The 9-piece PangaPanga/Walnut neck construction reinforced with graphite promotes stability and consistent sustain, while the lightweight selected African mahogany body and poplar burl top add a fast response, very effective for modern and defined sounds.

Recommended Compatible Accessories

This bass requires 1 x 9V battery to power the active electronics (not specified as included). A gig bag is included to protect the instrument daily.

Technical specifications

Electronics: microphone configuration	HH	Body	Mahogany
Left handed	No	Bridge / tailpiece	Fixed
Strings	Steel	Electronics	Active
Nbr of strings	5	Color	Black
Top	Poplar bramble	Finishing	Satin
Fingerboard	Panga Panga	Hardware	Black
Nbrs of frets	24

Format	headless electric bass, ergonomic body, chambered body	String spacing	18 mm / 0.71"
Wood	poplar burl top / selected lightweight African mahogany body	Tuners	Ibanez custom
Finish	satin polyurethane	Hardware color	black
Back	angled, flared cut; comfortably rounded body edges, arched body	Strap Locks	Schaller S-Locks
Dimensions	total length 917 mm / 36.10"	Configuration	active
Neck type	EHB5	Neck pickup	Nordstrand Custom Big Split
Construction	bolt-on neck	Bridge pickup	Nordstrand Custom Big Split
Thickness (1st fret)	19.5 mm / 0.77"	EQ (active)	Ibanez Custom Electronics 3-band EQ
Thickness (12th fret)	21.5 mm / 0.85"	Controls	1 volume, 1 balancer, bass, middle, treble
Scale length	30" / 762 mm	Additional control	EQ switch; passive tone control on treble knob
Nut width	1.77" / 45 mm	Number of strings	5
Radius	20" / 500 mm	String gauge	.045/.065/.080/.100/.130
Number of frets	24	Special strings	D'Addario EXL170-5SL
Frets	medium stainless steel	Tuning (low to high)	1G, 2D, 3A, 4E, 5B
Inlays	offset abalone dots	Gig bag	included
Side markers	luminescent side dot inlays	Battery required	1 x 9V
Bridge	MR5HS	Other included items	hex wrench
Nut	plastic
