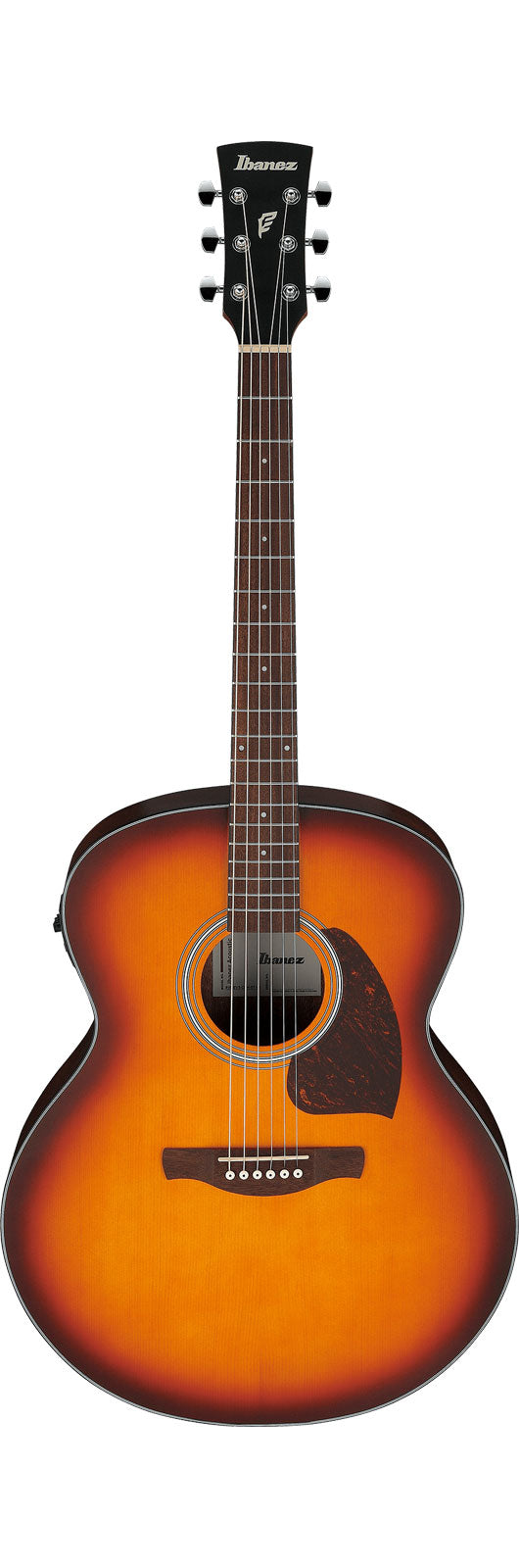

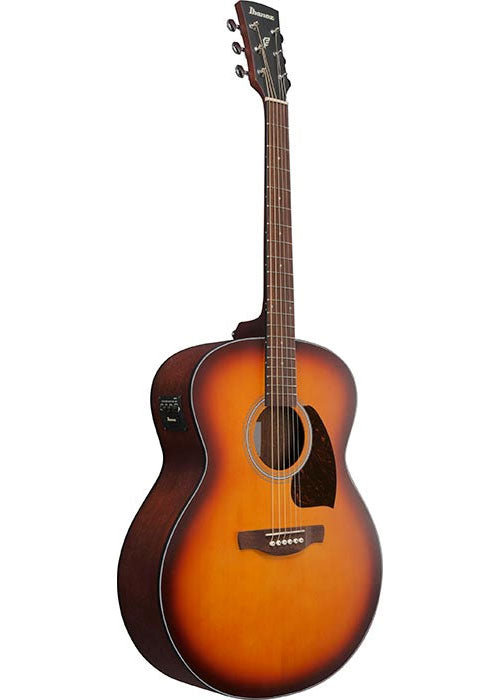

Ibanez PJ50E-Oah Open Pore Vintage Amber Sunburst Top Open Pore Natural Back And Sides

An Ibanez Jumbo Designed to Play Loud... and Plugged In

With its Jumbo size, the PJ50E aims for generous projection and a broad response in the low end, while maintaining clear definition thanks to its spruce top. The addition of simple and effective electronics (AEQ-2T) makes it comfortable both for acoustic playing and amplification, without complicating the controls on the side of the instrument.

For Which Guitarist and Styles?

This electro-acoustic is especially suited for beginner to intermediate guitarists looking for a comfortable jumbo to work on rhythm playing, accompany vocals, or play in a band. It fits very well with pop, folk, variety, acoustic rock styles, and energetic strumming, with a useful power reserve for rehearsals as well as small stage performances.

Sound Characteristics

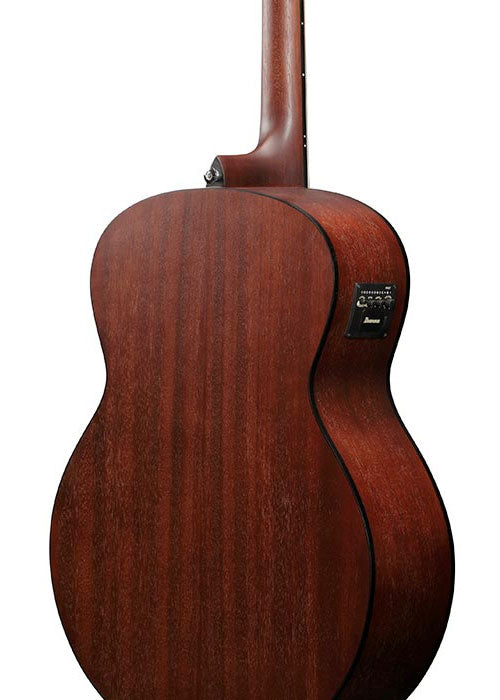

The spruce top provides precise attack, brightness, and good chord clarity, helping the guitar to "cut through" the mix. The meranti used for the back and sides tends toward a warm and balanced sound, with present mids and even diffusion. The nandu fingerboard and bridge complete the set with a rather round and musical response. When amplified, the undersaddle pickup favors a direct and defined reproduction, while the AEQ-2T preamp allows quick adjustment of bass and treble, and the use of the built-in tuner even when not plugged in.

Recommended Compatible Accessories

To stay as close as possible to the original feel and tension, choose a set of Ibanez IACS6C strings (gauge .012/.016/.024/.032/.042/.053). For the electronics, have a spare 9V battery on hand. A case is recommended: AEL50C (not included).

Technical specifications

Format	Jumbo body	Radius	250 mm / 9.84"
Top	spruce	Bridge	nandu wood

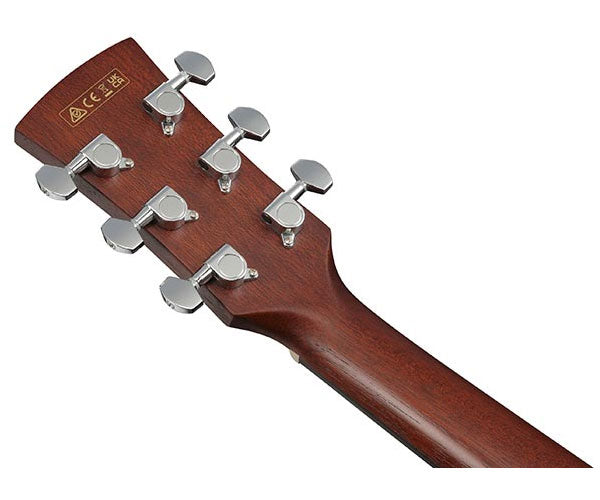

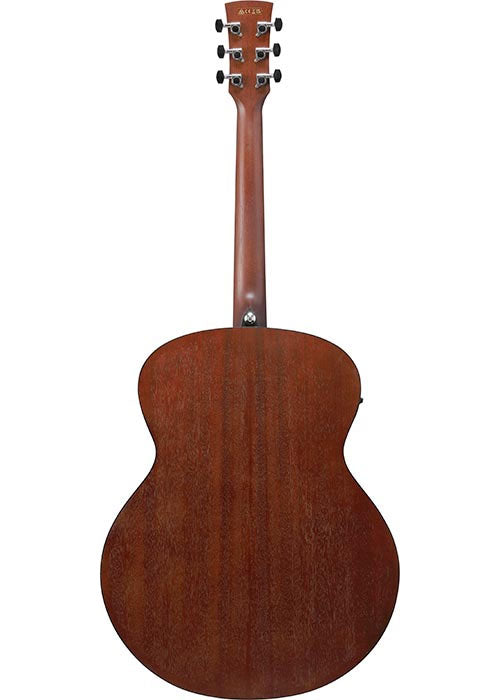

Back and sides	meranti	Tuners	chrome die-cast
Rosette	water decal	Bridge pins	Ibanez Advantage
Body dimensions	length 20 1/2" / 520.7 mm; width 16 3/4" / 425.45 mm; maximum depth 4 3/4" / 120.65 mm	String spacing	11 mm / 0.43"
Neck	meranti	Pickup	Ibanez undersaddle
Fingerboard	nandu wood	Preamp	Ibanez AEQ-2T with built-in tuner
Inlays	white dots	Controls	tuner on/off switch, bass, treble, volume
Number of frets	20	Output	6.35 mm (1/4") jack
Scale length	25.5" / 648 mm	Power supply	1 x 9V battery
Nut width	42 mm / 1.65"	Strings	Ibanez IACS6C
Width at 14th fret	54 mm / 2.13"	Gauge	.012/.016/.024/.032/.042/.053
Thickness at 1st fret	21 mm / 0.83"	Factory tuning	1E, 2B, 3G, 4D, 5A, 6E
Thickness at 7th fret	22 mm / 0.87"	Recommended case (not included)	AEL50C
