Ibanez TWP10 Twin Peaks Wah

An Ibanez Wah Designed to Go Beyond the Traditional "Single Peak"

The wah-wah is one of the most expressive effects on the pedalboard: a resonant filter controlled by foot that instantly provides a "speaking" articulation, perfect for funk, rock, and leads. While most wah pedals rely on a single peak point to create this movement, the Ibanez Twin Peaks Wah goes further with a dual peak approach. Thanks to a dual inductance circuit, it simultaneously generates a high resonance and a low resonance, offering a more textured, broader, and especially more adjustable sound.

The result: a wah capable of staying familiar when desired, but also opening up more modern, thicker, or even more "synthetic" territories depending on the balance setting and sweep range chosen.

Who It's For and Which Styles the Twin Peaks Wah Makes a Difference In

The Twin Peaks is aimed at guitarists who like to sculpt their attack and make their phrases more lively, from intermediate to advanced musicians. It excels particularly in funk (tight and precise rhythms), rock (singing leads), but also in metal and modern styles whenever a wah that cuts through the mix without becoming harsh is sought.

In the studio, the dual resonance helps find a unique placement in the arrangement: more body in the lows to thicken a riff, or more accent in the highs to highlight a lead. Live, the Master LEVEL is a real plus to compensate for the sometimes variable volume perception of a wah depending on the sweep and amp.

Controls, Modes, and Design: A Wah Focused on Exploration

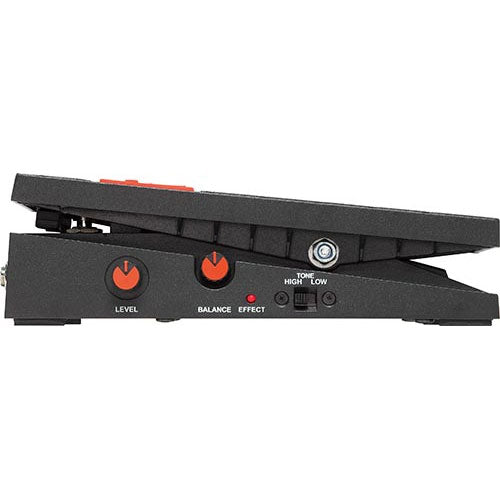

The Twin Peaks is designed to be intuitive while offering an unusual adjustment range for a wah. The core of the concept is the BALANCE control: it manages the mix ratio between the two frequency peaks created by the dual inductance circuit resonances. Turning it counterclockwise emphasizes the high peak (closer to a traditional and more incisive wah). Turning it clockwise accentuates the low peak (broader, rounder, with a "modded/signature" character).

The TONE switch offers two sweep ranges. In HIGH mode, the high resonance sweeps from 670 Hz to 3 kHz, a higher zone than most wahs: perfect for very defined attacks, even if you soften the top end via the balance control, master level, or guitar tone. In this mode, the low resonance ranges from 300 Hz to 1 kHz. In LOW mode, the high resonance covers 440 Hz to 2 kHz (a more "classic" territory), while the low resonance goes from 220 Hz to 750 Hz, ideal for thicker, more organic wahs.

Finally, the Master LEVEL control adjusts the overall output level: unity at 12 o'clock and up to +6 dB boost. The pedal features true bypass to preserve your signal's character when the effect is off.

The Sound

The Twin Peaks' sonic signature lies between traditional expressive wah and a more "sound design" approach. With the high peak, you get that vocal, sharp, and precise character that highlights pick attacks and strumming. Gradually adding the low peak via BALANCE gives the sweep more density and body: notes sound fuller, riffs more imposing, and leads broader, without losing articulation.

The pedal responds very well to dynamics: light playing for subtle movement, strong attack for a more spectacular effect. Thanks to the TONE + BALANCE duo, you can also finely adjust presence in the mix, whether playing bright single-coils or fuller humbuckers.

Technical specifications

Effects	Wah	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Black

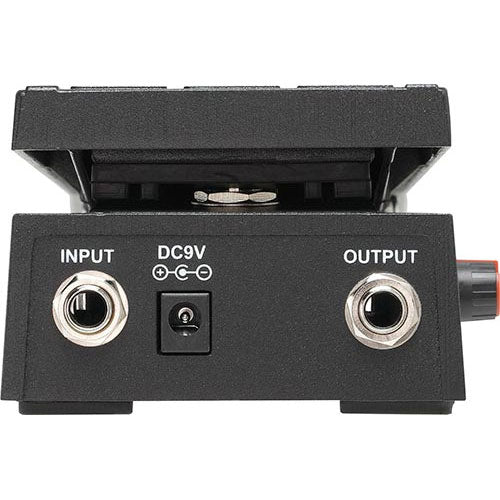

Tone mode switch	HIGH / LOW	Power	9V battery or external 9V AC adapter (center-negative)
BALANCE control	mix between high peak and low peak	Dimensions	96 mm (width) x 202 mm (length) x 84 mm (height)
TONE switch	frequency range selection (HIGH / LOW)	Weight	815 g
Master LEVEL control	unity gain at 12 o'clock, up to +6 dB	Required voltage	9V DC (center-negative) or 9V battery
HIGH mode	high resonance 670 Hz to 3 kHz	Consumption	15 mA
LOW mode	high resonance 440 Hz to 2 kHz
