Icon P1-X

An Extension Designed for the Modular P1 Ecosystem

The Icon P1-X follows a simple logic: build a DAW control surface tailored to your needs, starting from a main module (P1-M) and then adding extra channels as your sessions become more ambitious. This modular approach maintains a consistent ergonomics (same fader feel, same visual cues, same per-channel controls) while increasing the number of accessible tracks without constantly switching pages in your audio workstation.

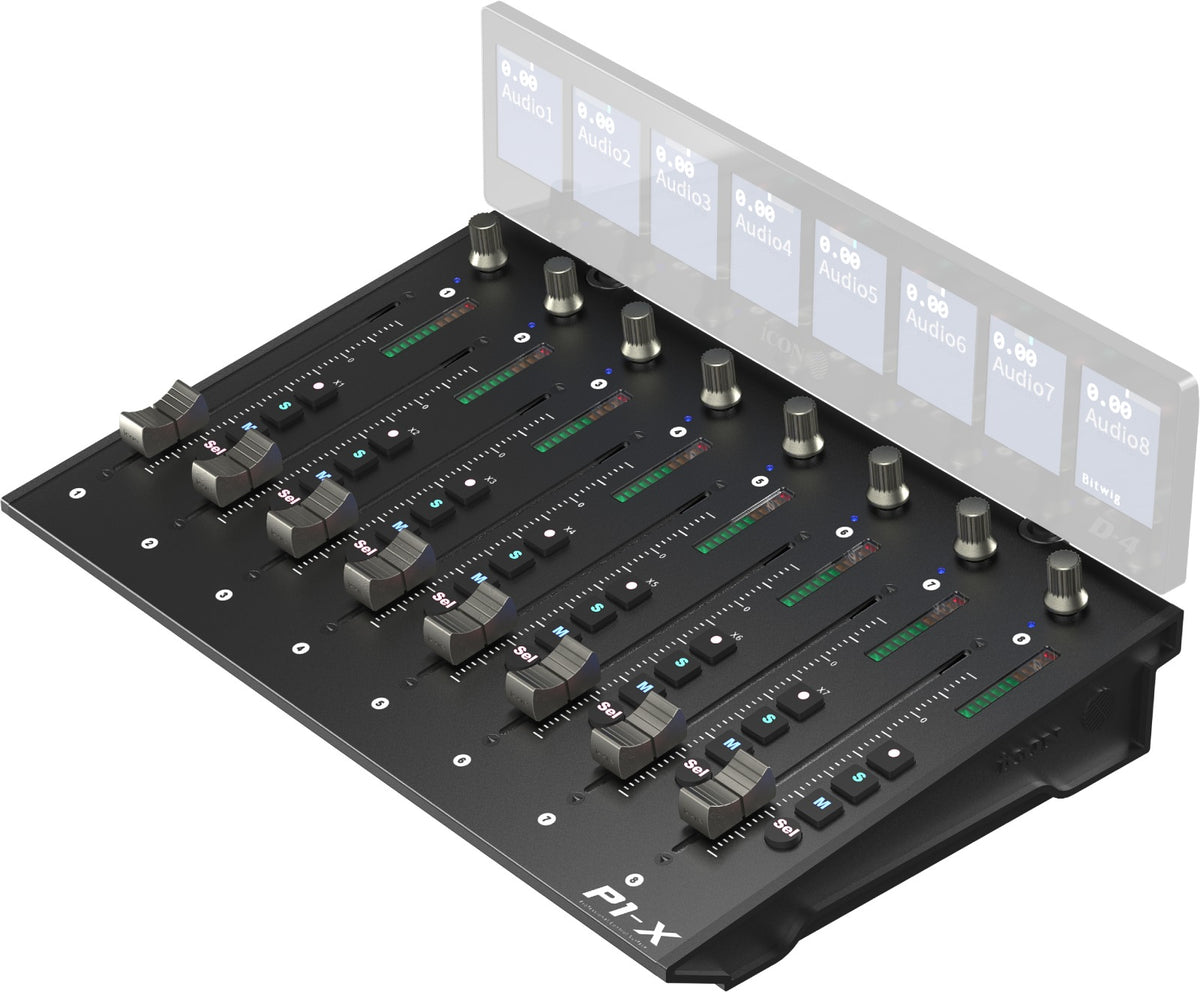

The P1-X is also designed to evolve with the optional D4 display. This screen extension provides more immediate reading of track information (names, pan, and parameters), improving decision speed during mixing and fluidity during editing.

Who Benefits from the P1-X and in What Use Cases Does It Make a Difference?

The P1-X is aimed at producers, mixers, film composers, and demanding home studio users who want to regain "console" reflexes in a software environment. If you regularly mix dense projects (multi-mic drums, orchestral arrangements, large synth templates, vocal sessions with many doubling tracks), adding 8 physical channels drastically reduces mouse operations and bank changes.

During recording, dedicated buttons (record, solo, mute, select) speed up take management, while motorized faders facilitate writing natural automations by touch, with instant position feedback as soon as you switch tracks or sessions. In post-production or sound design, simultaneous access to multiple stems and buses becomes more comfortable, especially when using levels and pans as true tools for sonic storytelling.

Key Features: More Channels, More Control, More Readability

8 additional channels with 12-bit touch-sensitive motorized faders

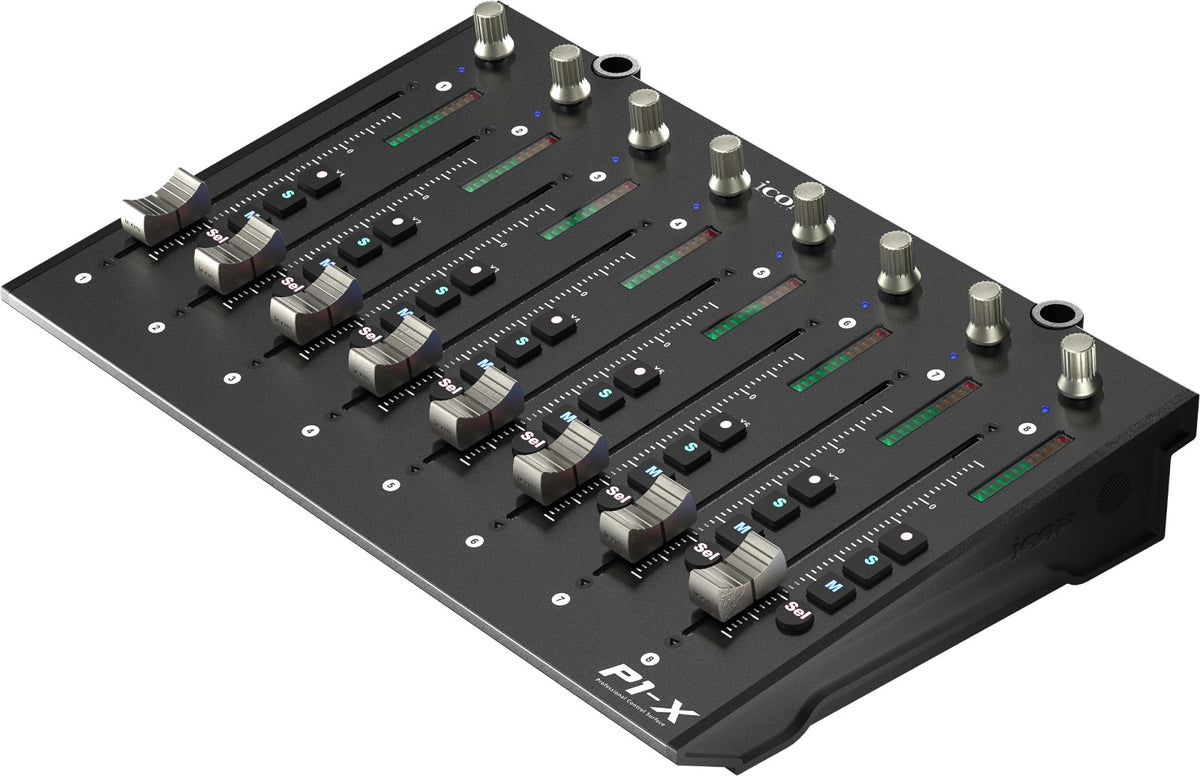

Each P1-X module adds 8 motorized touch-sensitive channel faders with 12-bit resolution. Practically, this means more precise level management, useful for fine adjustments on vocals, reverbs, or parallel buses, and a more musical control of automations. The motorized feature guarantees total consistency between physical position and DAW value, preventing "jumps" and securing your settings when changing banks.

Per-channel controls and immediate visual feedback

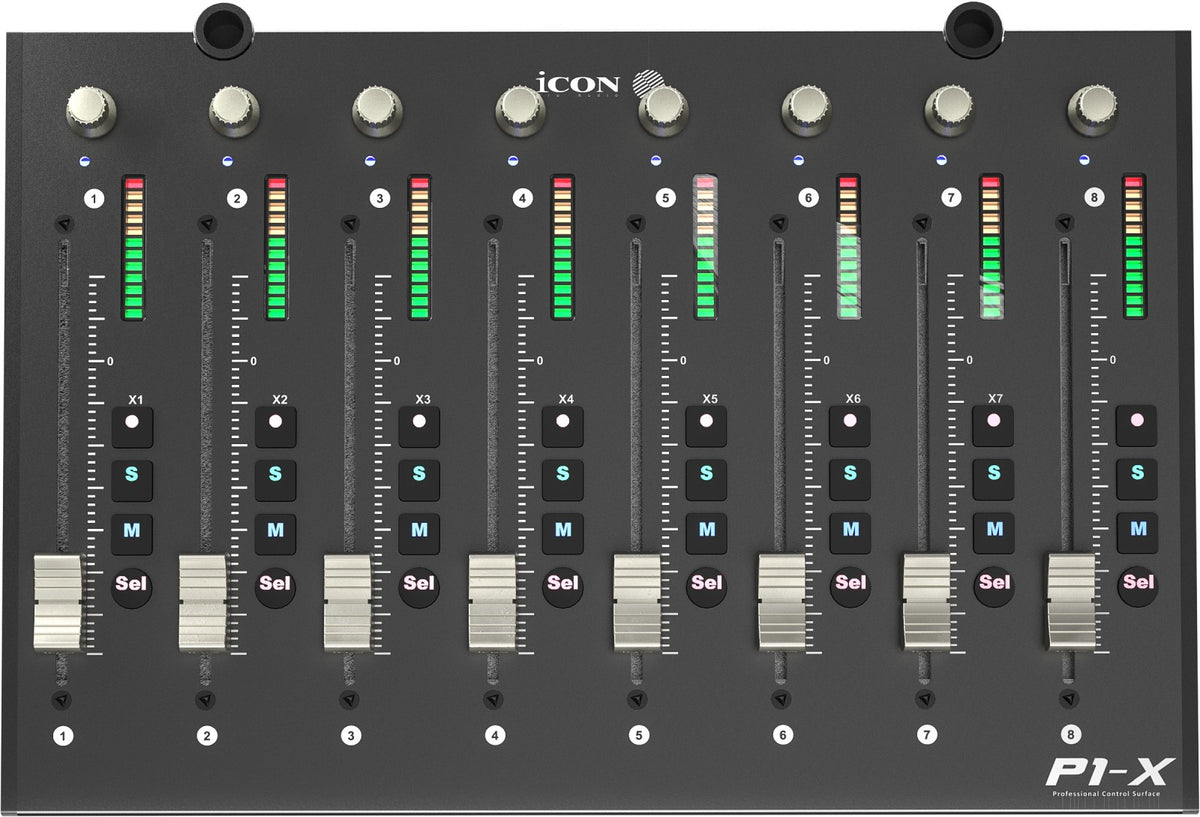

The P1-X integrates on each channel strip a level indicator, a dual-function encoder, as well as essential illuminated buttons (record, solo, mute, select). This layout puts the essentials at your fingertips: navigate, arm, isolate a track, control a parameter, then return to the mix without breaking your concentration. For a performance-oriented workflow (real-time automation writing, volume rides, pan adjustments), the ergonomics become more direct and instinctive than with exclusively on-screen control.

DAW integration via Mackie Control Universal and HUI

Compatibility relies on the Mackie Control Universal and HUI protocols, two widely used standards for communication between control surfaces and audio workstations. This facilitates integration into many environments while maintaining a familiar control logic: banks of 8 channels, quick access to basic commands, and consistent behavior from session to session.

Note: expandability (the number of extenders you can add) also depends on your DAW and its control surface management. If you plan a multi-extender setup, check software support to fully exploit your configuration's potential.

Studio connectivity and D4 display extension

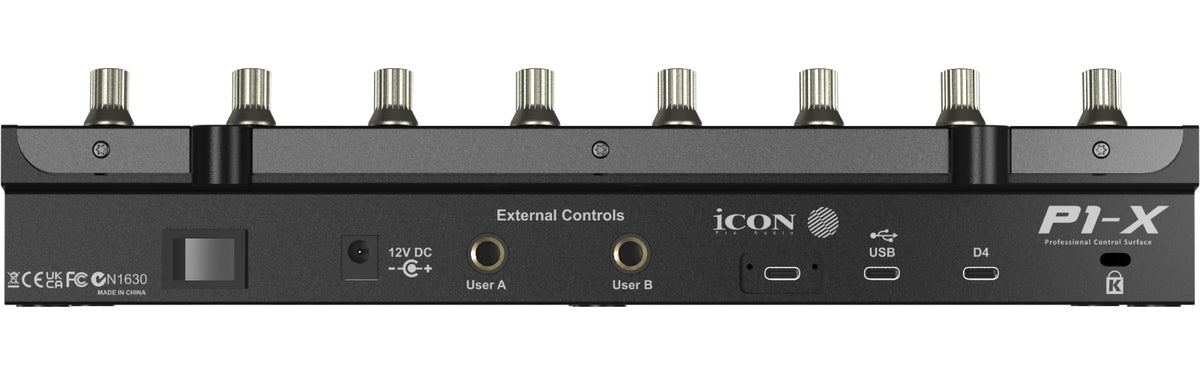

The P1-X uses a USB-C port for easy integration into a modern setup and offers two footswitch inputs (6.3 mm jack) to trigger foot actions (e.g., punch in/out, play/stop, talkback depending on your assignments and DAW). Finally, the D4 option lets you add an extra level of readability, particularly useful when managing many tracks, buses, and headphone mixes.

Technical specifications

Number of faders	8	Inputs	USB-C, 2 x footswitch
Bluetooth	No

Type	expansion for Icon P1-M	Supported DAW software	Ability, Audition, Ableton Live, Bitwig, Cakewalk, Cubase/Nuendo, Digital Performer, FL Studio, Mixbus 32C, Pro Tools, Logic Pro, Luna, Reaper, Reason, Samplitude, Studio One and Tracktion Waveform
Additional channels for Icon P1-M	8	USB port	USB-C
Supported protocols	Mackie Control Universal and HUI	Footswitch inputs	2, 6.3 mm jack
Display expansion	optional D4 unit	Included	USB-C cable and external power supply (12V DC / 2.5A)
Faders	8, touch-sensitive motorized, 12-bit resolution	dimensions	300 x 204 x 61 mm
On each channel	level indicator, encoder and illuminated buttons for record, solo, mute and channel selection	Weight	1.51 kg
