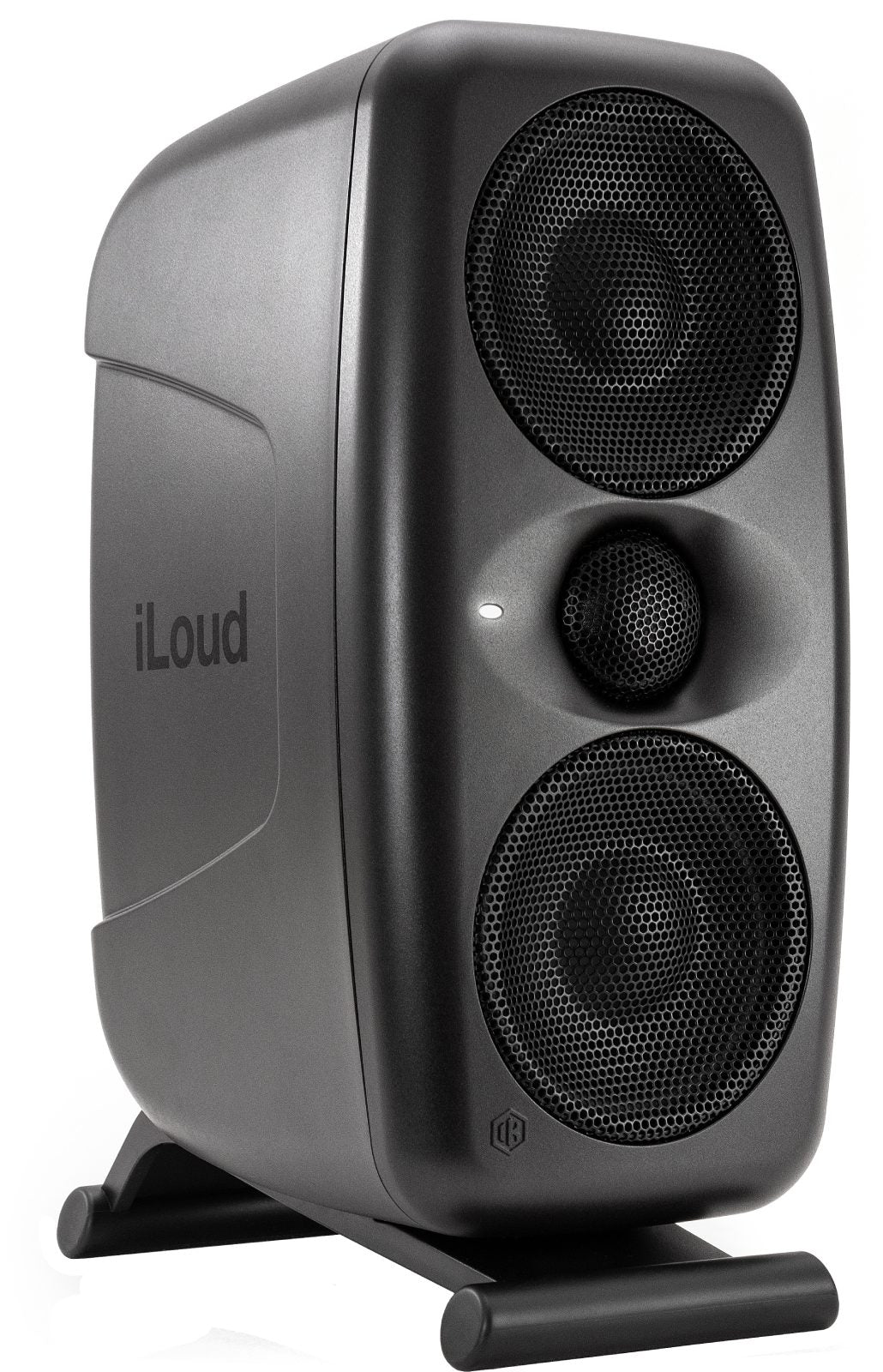

Ik Multimedia iLoud MTM MKII
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know

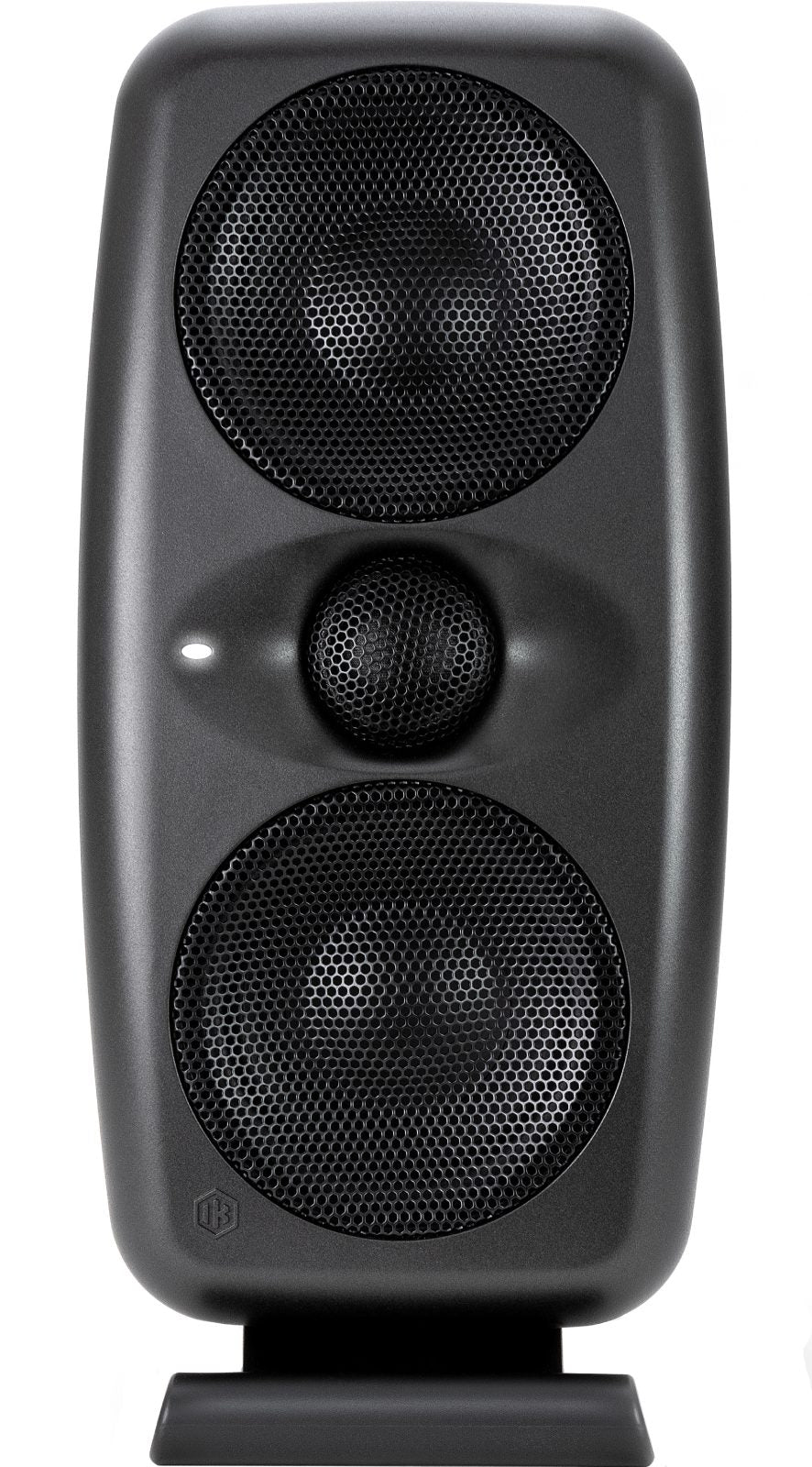

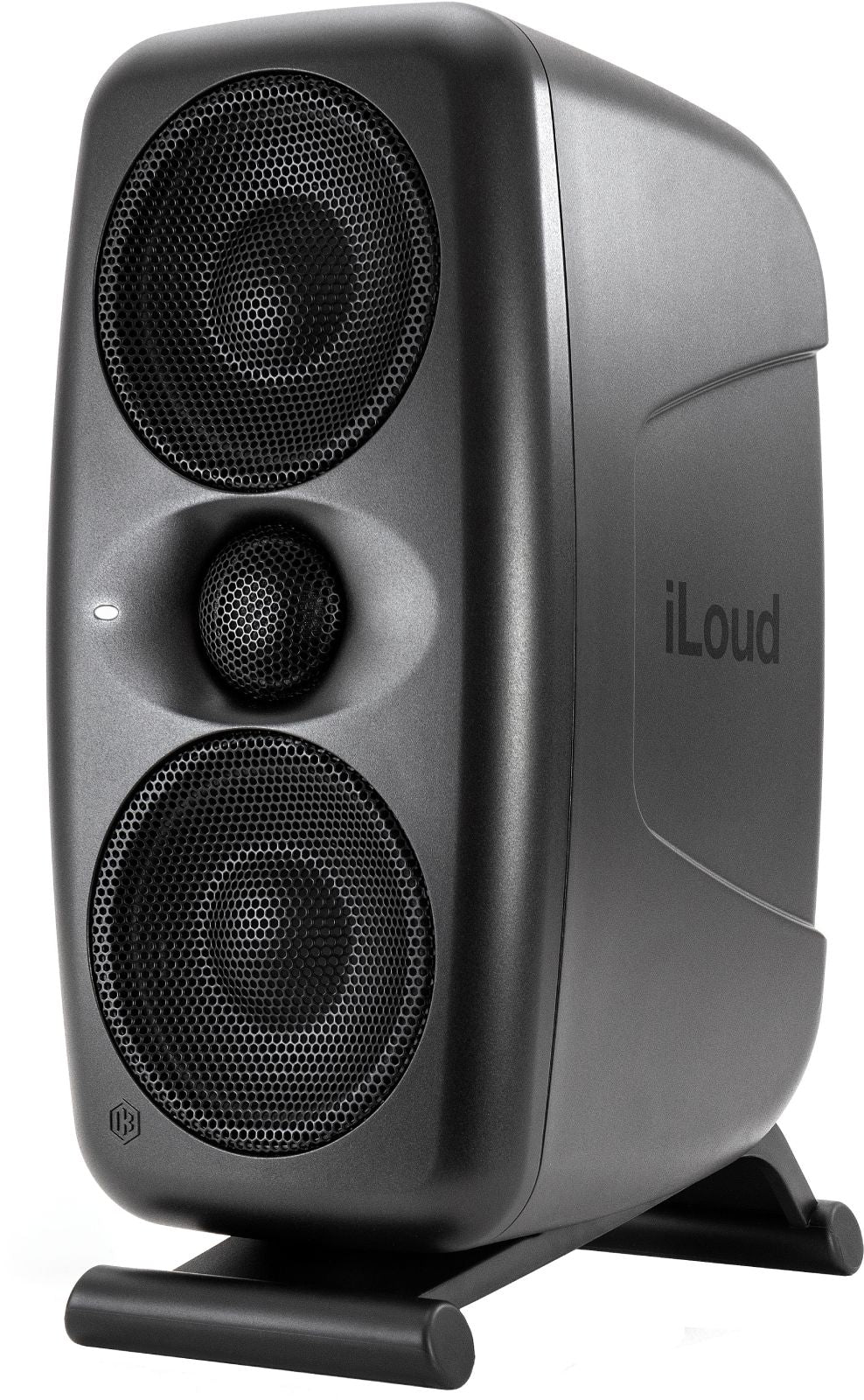

- True ultra-nearfield monitoring in an MTM (D’Appolito) configuration for a highly stable stereo image at close range and fewer unwanted reflections from a desktop.
- Built-in ARC room calibration and ARC X integration to take things further (customization and emulations of more than 20 listening systems to check mix translation).
- DSP and linear-phase filtering with precise time alignment for greater clarity and reduced listening fatigue.
- Surprisingly powerful bass for its size and a high maximum SPL, with a claimed extension down to 36 Hz at -10 dB.
Manufacturer Information
Ik Multimedia
https://www.ikmultimedia.com
------------------------
Safety manager:
Mogar Music France
Email: info@mogarmusic.fr
Address:
An MKII that retains the iLoud MTM DNA while taking precision even further
With iLoud MTM MKII, IK Multimedia retains the compact format that made the MTM series so successful (ideal for a desktop, home studio, or mobile setup) and evolves it to meet today’s demanding mixing needs. The brand announces more efficient drivers and twice the processing power, with a clear objective: more level, greater low-end control, and even clearer reproduction thanks to improved linear-phase behavior and time alignment.
Monitoring designed for the desktop, home studio... and challenging environments
iLoud MTM MKII is aimed at producers, beatmakers, mix engineers, and creators working at close range, often in untreated rooms. Its format makes it easy to place on either side of a screen, on a console, or on stands, while maintaining a consistent listening experience. Controlled vertical dispersion helps limit the impact of reflections from the desktop, while wider horizontal dispersion expands the sweet spot for more comfortable mixing. Thanks to its output level and calibration and adjustment options, it can also serve as a control monitor in an FOH setup, or be integrated into an immersive installation when space is an important consideration.
Technical specifications
| Battery | No | EQ | No |
| Number of channels | 2 channels | Inputs | minijack, USB, combo XLR/jack |
| Bluetooth | No | Color | Black |
| Connection | Combo, USB, XLR | Power output | 100 W |
| Speaker diameter | 1", 3,5" | Quantity | 1 |
| Number of speakers | 3 | ||
| Amplification | 2 amplifiers per speaker, high-efficiency Class D | Extension | 36 Hz to 32 kHz at -10 dB |
| LF power | 70 W RMS | Phase response | system coherence within +/- 15° from 200 Hz to 20 kHz |
| HF power | 30 W RMS | Sensitivity at +4 dBu | a -6 dBu signal generates 94 dB SPL at 1 m |
| LF | 2 x 3.5-inch, cellulose-fiber composite, custom mid-woofers | Sensitivity at -10 dBV | a -17 dBu signal generates 94 dB SPL at 1 m |
| HF | 1-inch, back-chambered silk dome, low distortion | Continuous SPL (free field, 1 m, one speaker, ANSI-2034 Weighted Pink Noise) | 97 dB |
| Acoustic design | DSP-tuned bass reflex | Peak SPL (free field, 1 m, one speaker, ANSI-2034 Weighted Pink Noise) | 110.5 dB |
| Crossover type | digital, linear phase | Peak SPL (half-space, 1 m, one speaker, ANSI-2034 Weighted Pink Noise) | 112.5 dB |

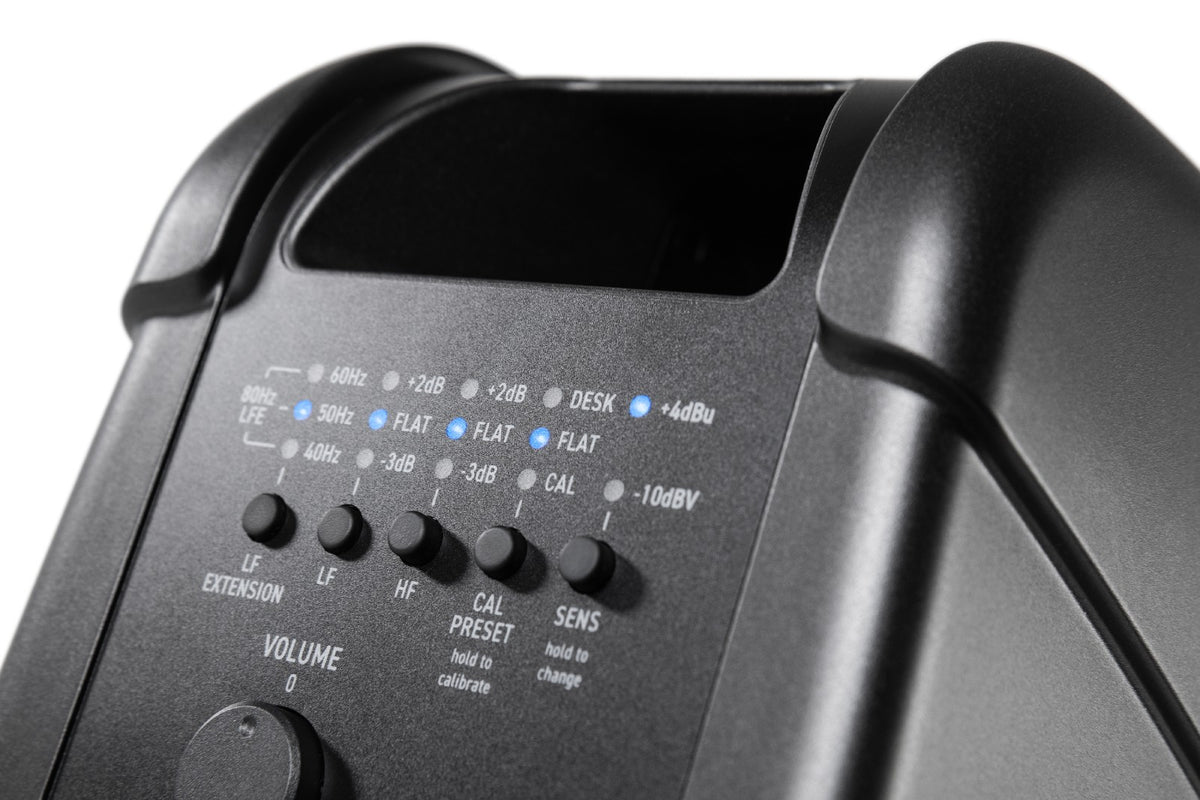

| Crossover frequency | 2.8 kHz | Switches | LF Extension, LF trim, HF trim, Desk position |
| Control | full DSP | LF Extension | -3 dB point adjustable to 40, 50, 60 or 80 Hz (LFE) |
| Total latency (TOF) | 2.44 ms | Desk | -4 dB at 160 Hz and +1 dB at 1.8 kHz |
| Frequency response | 48 Hz to 28 kHz +/- 2 dB | Calibration | built-in automatic digital calibration |
You will also like
Focal
Shape 50
Kali Audio
IN-8 V2
Kali Audio
IN-5
Yamaha
HS 7 Matched Pair
Genelec
8020 DPM
Adam Audio
A4V
Kali Audio
IN-8W V2
Kali Audio
IN-5W
Questions frequently asked
Is the iLoud MTM MKII suitable for a home studio desk setup?
The MTM configuration with two 3.5-inch woofers and a 1-inch tweeter controls vertical dispersion to limit reflections from the desk surface. The Desk setting applies -4 dB at 160 Hz and +1 dB at 1.8 kHz to adapt the listening experience for desk placement.
What bass response is specified?
The frequency response is specified from 48 Hz to 28 kHz at ±2 dB, with an extension down to 36 Hz at -10 dB. The LF Extension switch allows adjustment of the -3 dB point to 40, 50, 60, or 80 Hz for use with a subwoofer.
How does the integrated ARC calibration work?
An automatic digital calibration is built into the speaker to correct the listening experience according to the room. When connected via USB to a computer, the ARC X integration allows fine-tuning and access to over 20 listening system emulations. The USB Type B port also serves for firmware updates via X-MONITOR.

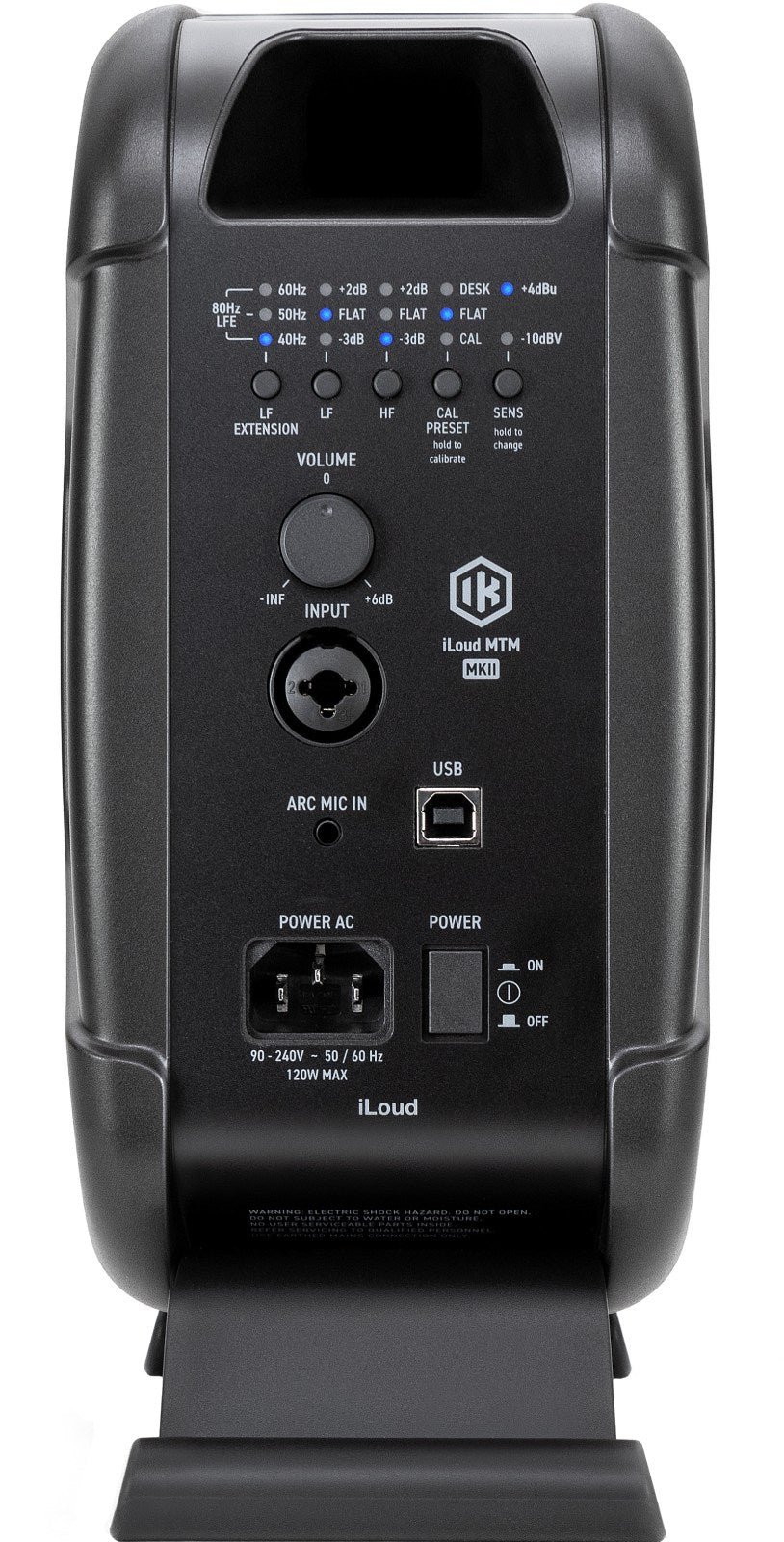

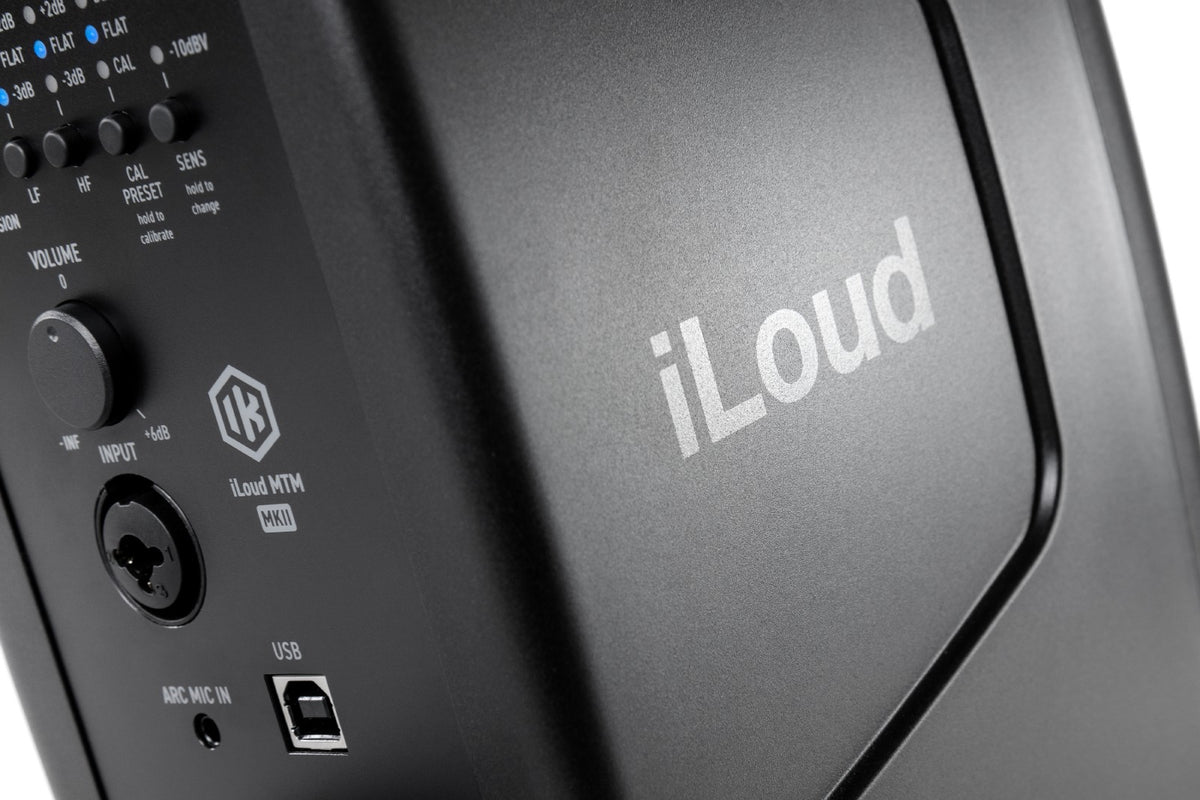

What inputs are available on this monitor speaker?
The audio input is available as a combo XLR/jack connector, with selectable sensitivity at +4 dBu or -10 dBV. A minijack input and a USB port are also provided in the connectivity options.
What maximum sound level can the speaker reach?
The peak SPL reaches 110.5 dB at 1 m in free field for one speaker, according to the ANSI-2034 Weighted Pink Noise measurement.
