J.collyns SPECTRUM WA PRO

What you need to know about the SPECTRUM WA PRO LED fixture

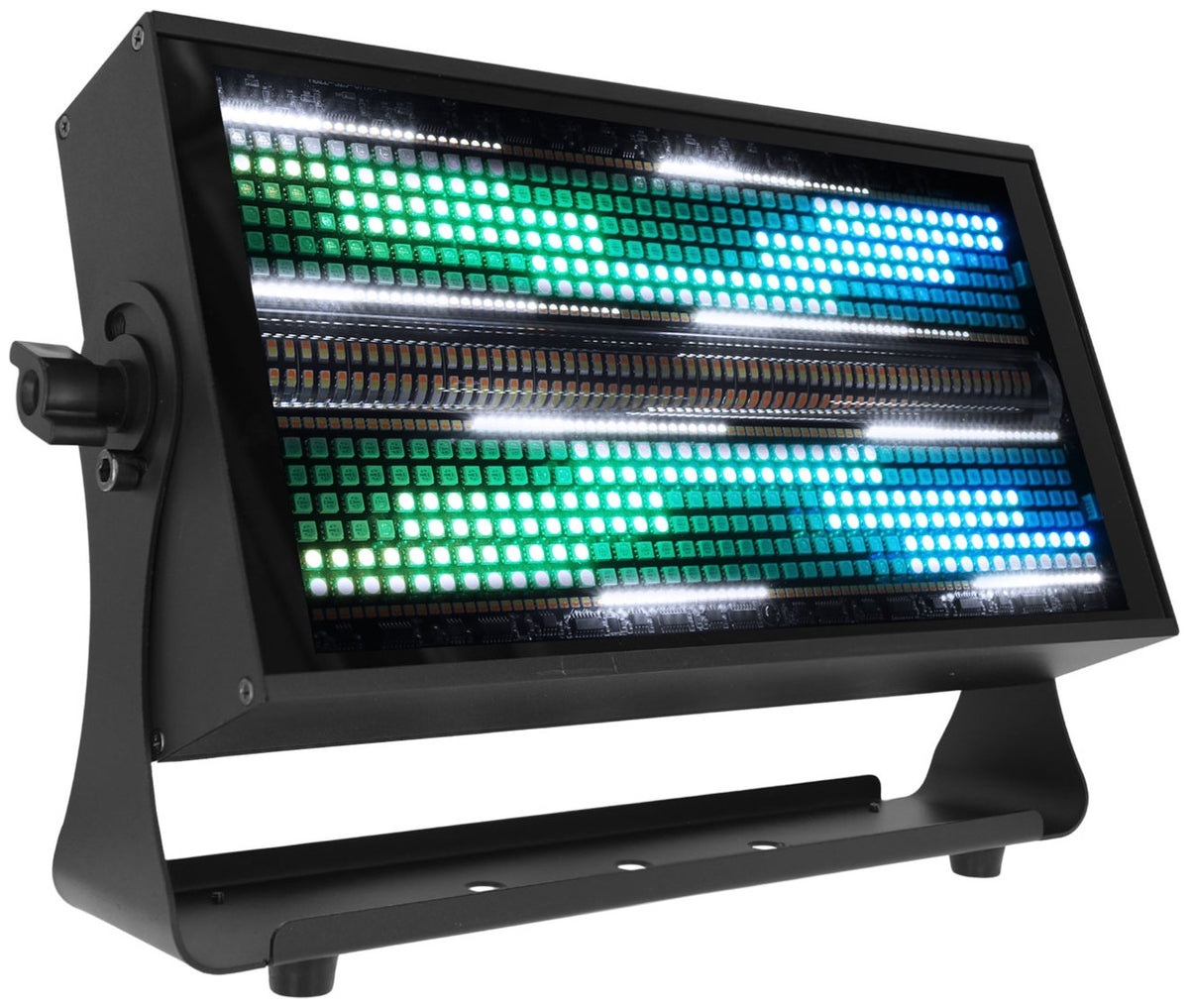

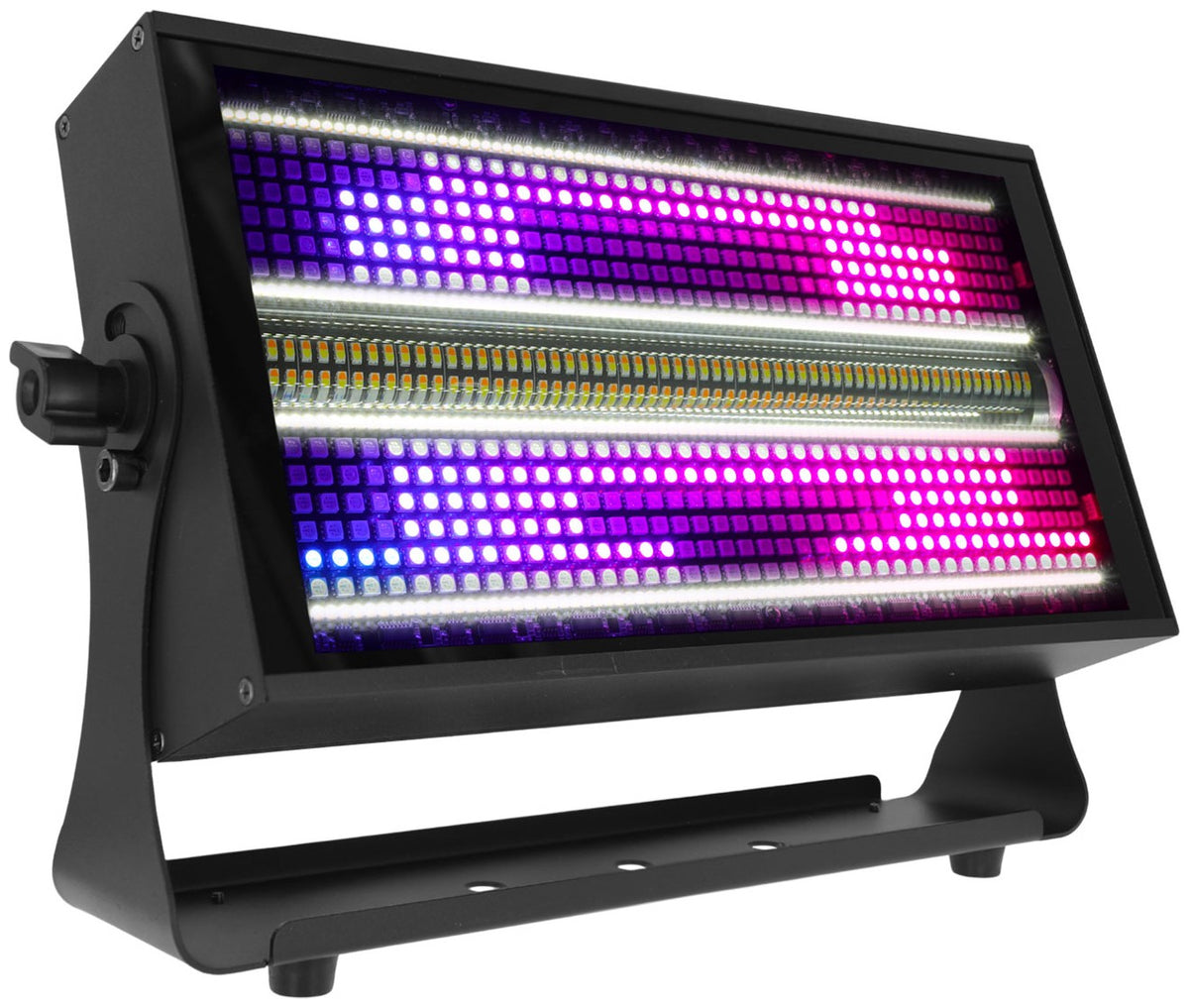

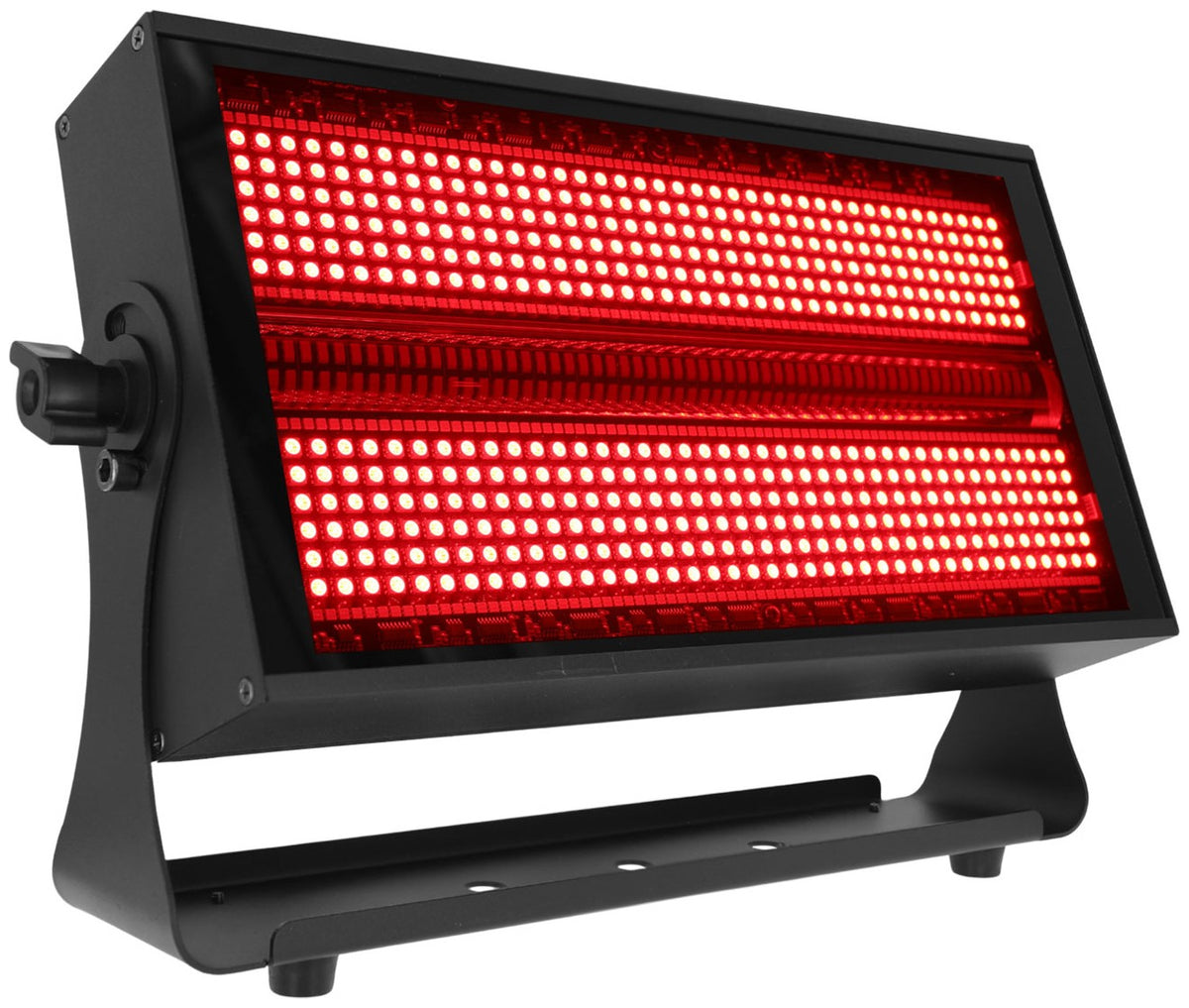

• Dual RGB and Amber White light source: 480 0.3 W RGB LEDs combined with 500 2 W WA LEDs for rich colors, warm atmospheres and dazzling strobes.
• Modern matrix effects: each LED can be controlled individually to create dynamic, precise and fully customized animations.

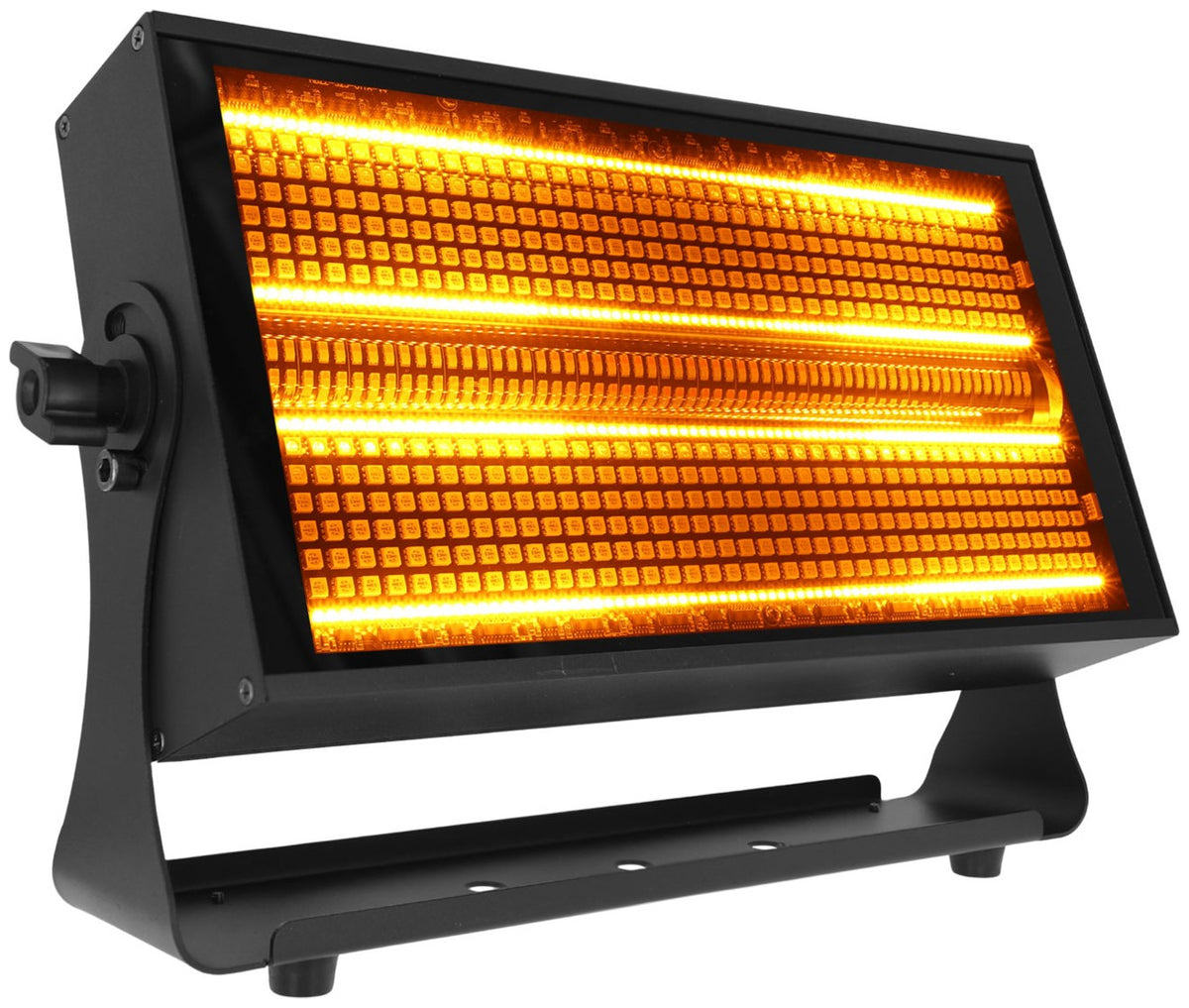

• Central-lens white and amber strobe: an intense visual effect enhanced by a central acrylic lens for a particularly striking output.
• Compact and versatile format: weighing just 4.6 kg, it is easy to install on stage, in trussing, in a club or as part of a permanent installation.

A striking lighting signature for the stage and events

The J. Collyns SPECTRUM WA PRO is designed to bring movement, color and impact to live performances. Its wide 120deg beam angle effectively covers a stage, dancefloor or backdrop, with even light distribution that fills the space without requiring multiple fixtures.

It is a natural fit for concerts, clubs, nightclubs, theatres, DJ nights, weddings, fashion shows and corporate events. Thanks to its white and amber strobe, it can support the build-ups of an electronic set just as effectively as it can create rhythmic accents during a stage performance. Installed in a bar, lively restaurant or multipurpose venue, it also makes it easy to refresh the visual atmosphere.

A matrix fixture for atmosphere creators

The SPECTRUM WA PRO is aimed at mobile DJs looking to enhance their lighting inventory with a modern, spectacular effect, as well as lighting directors and event technicians in search of a compact matrix LED fixture. Its numerous control modes allow it to integrate into both a simple setup and a more advanced DMX system.

Club, concert hall and entertainment venue operators will appreciate its permanent decorative potential. Creative users can use the RGB pixels to create chases, colorful waves, animated patterns and visual transitions, while the amber white section adds a warmer dimension, ideal for stroboscopic effects or more organic stage scenes.

Features and new developments

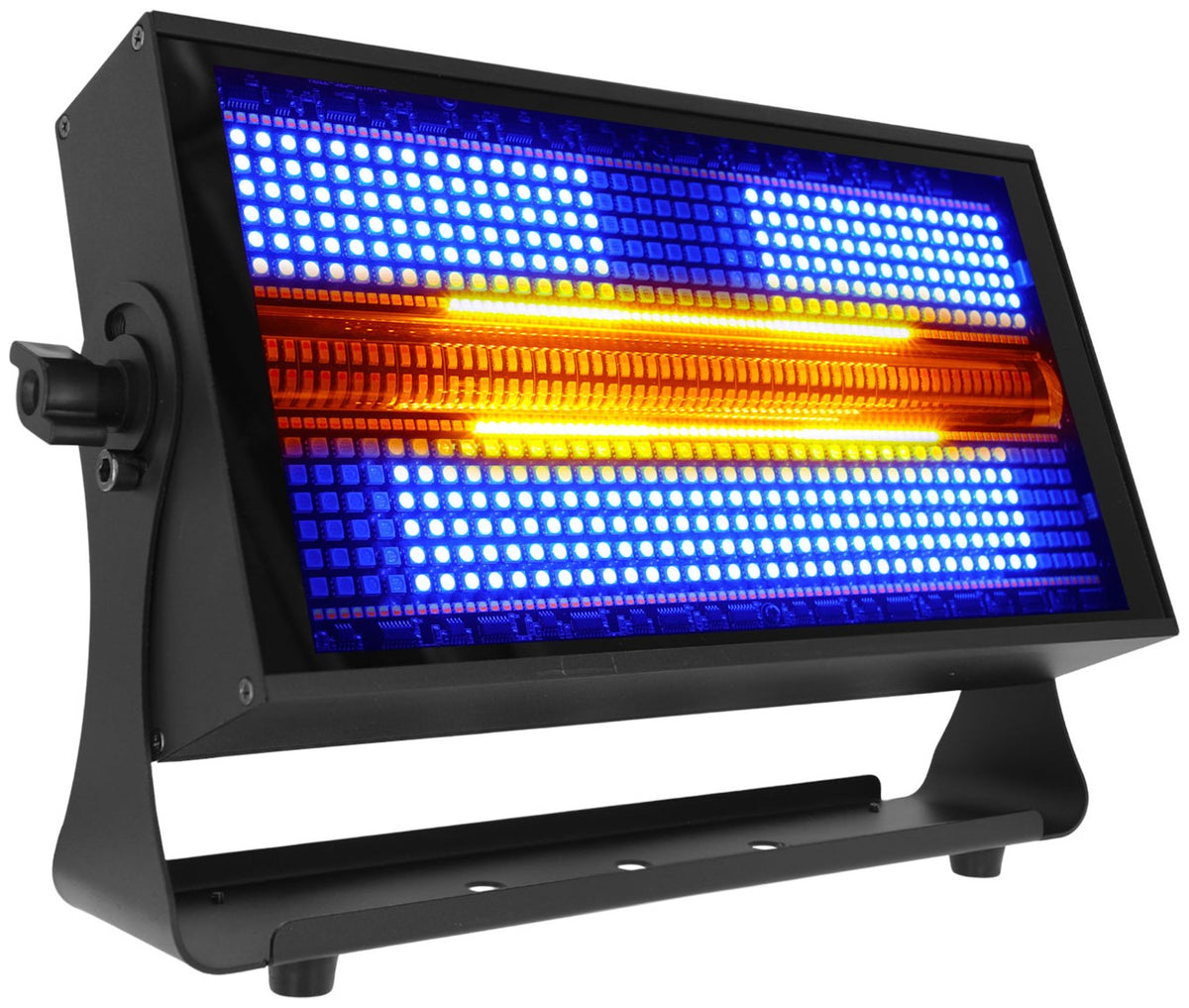

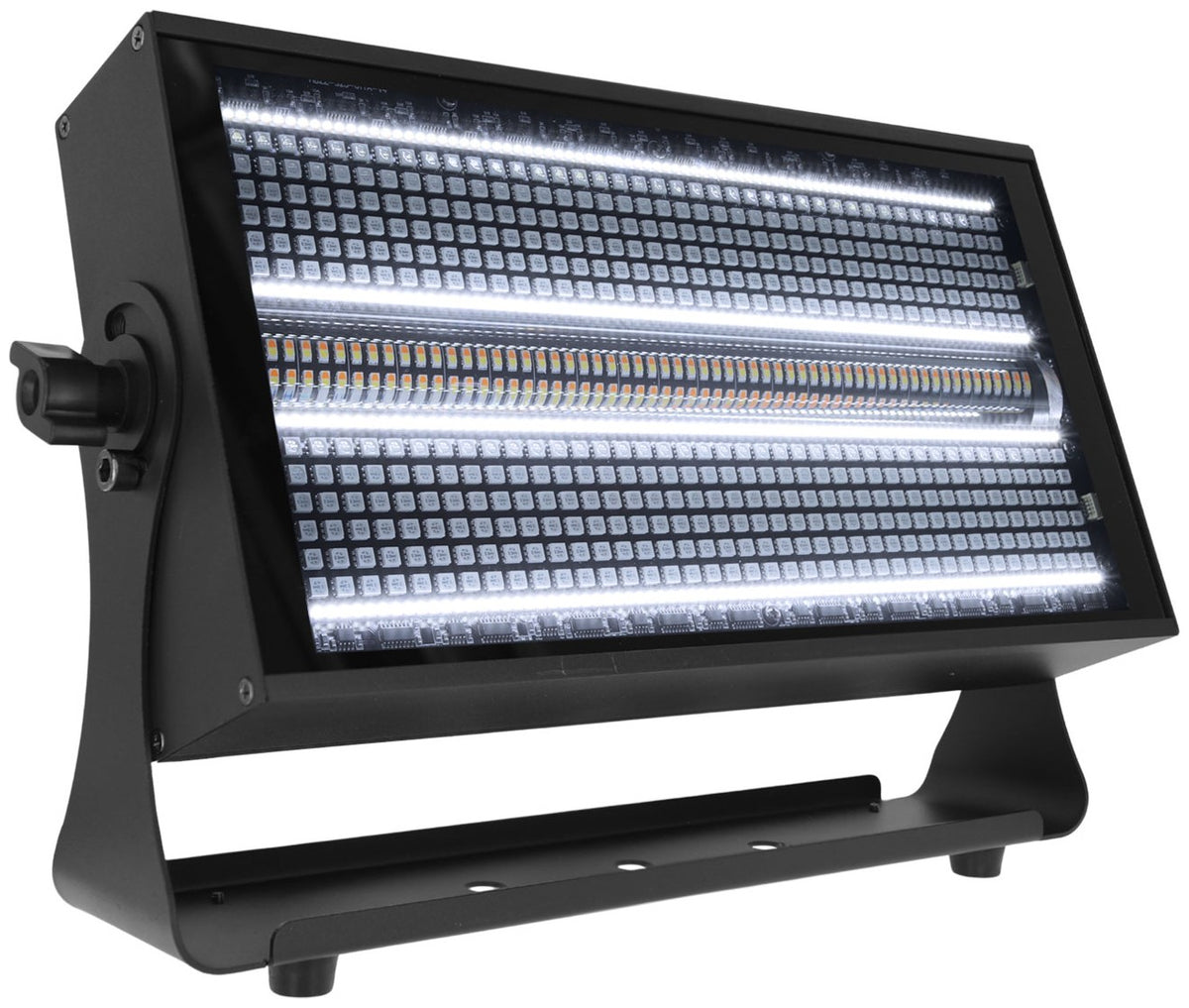

This LED fixture combines 480 0.3 W RGB LEDs with 500 2 W Amber White LEDs, for a total power consumption of 250 W. This combination makes it possible to create saturated colors, multicolored gradients and warmer color-temperature effects, while retaining a powerful, clearly defined strobe. The central acrylic lens enhances the visual presence of the amber white effect and contributes to a particularly contemporary aesthetic.

Fully matrix-capable, the SPECTRUM WA PRO offers pixel-by-pixel control for creating detailed lighting effects. Its 380 built-in effects provide an effective creative foundation for quickly achieving professional results, even without complex programming. For advanced installations, its 7-, 22- or 280-channel DMX modes enable progressive control, from simplified operation to complete matrix management.

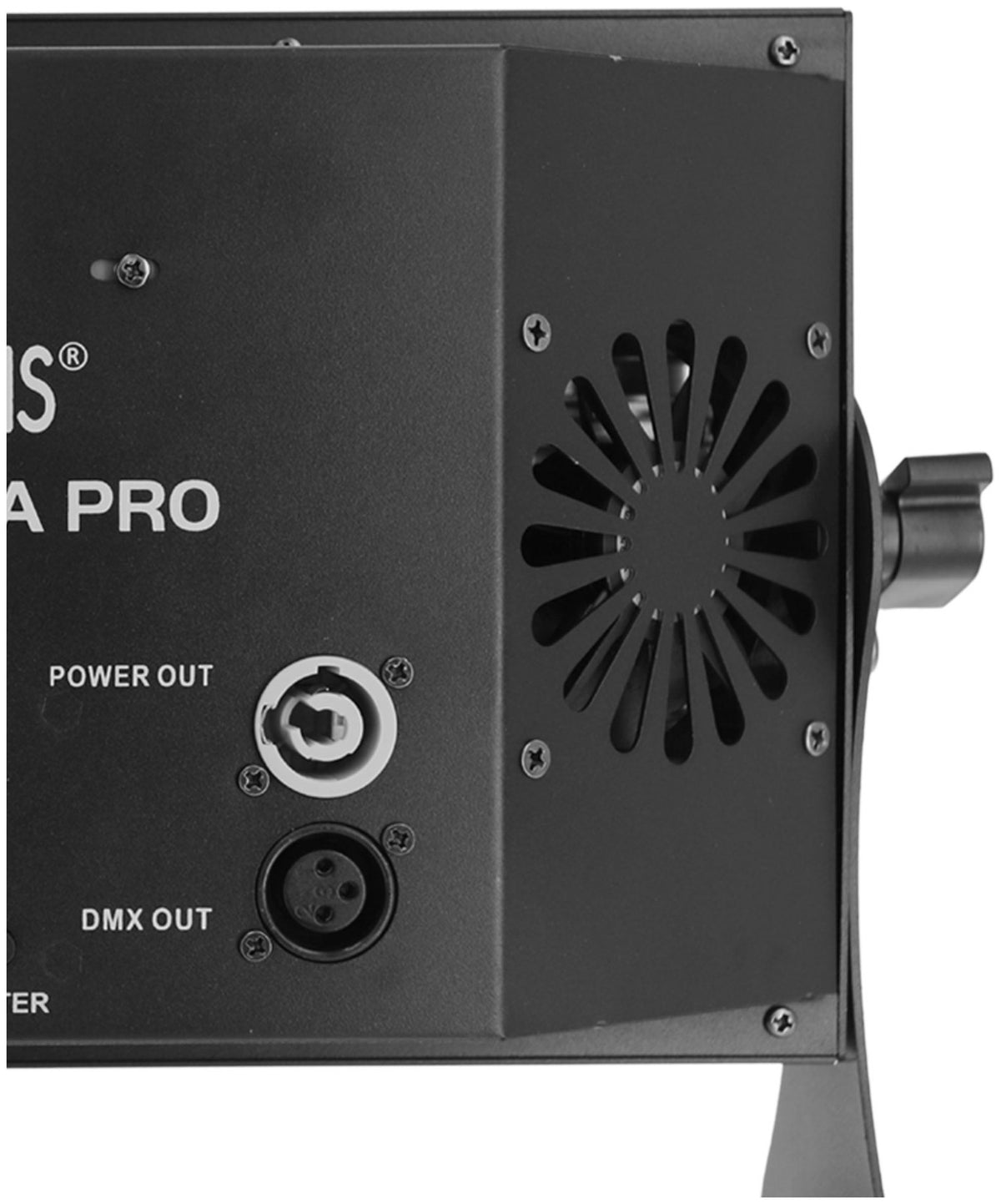

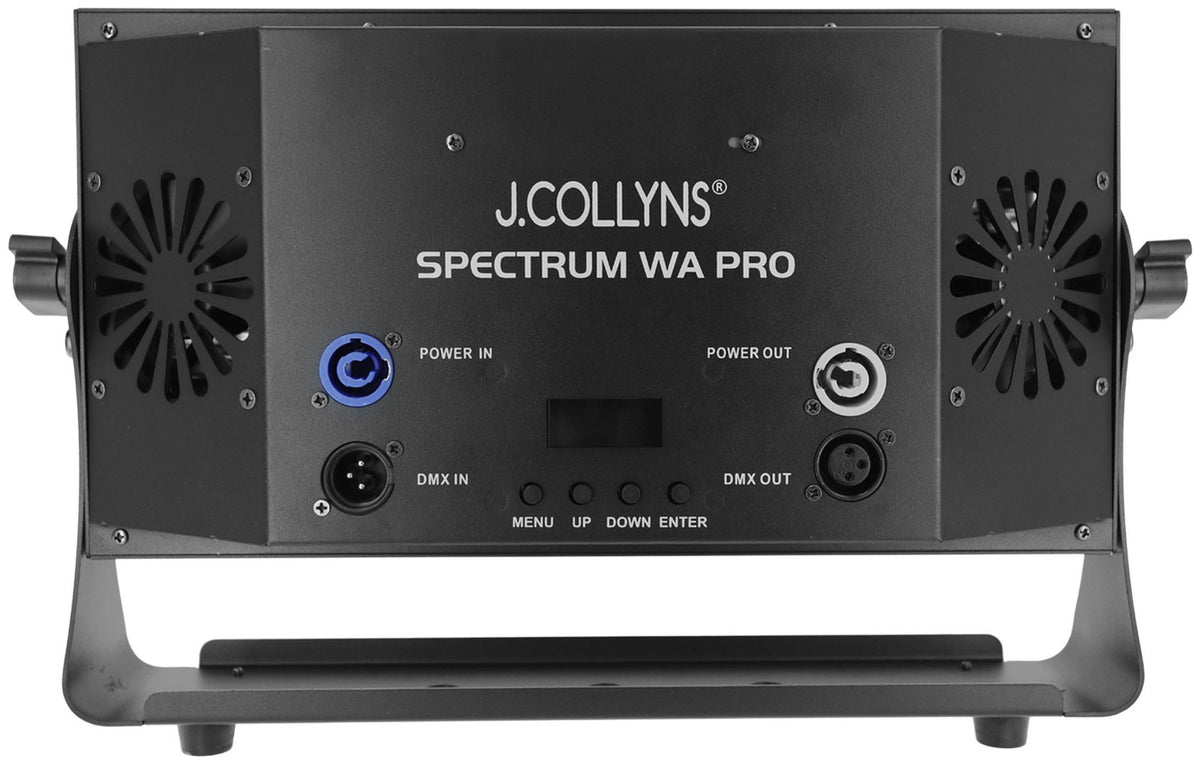

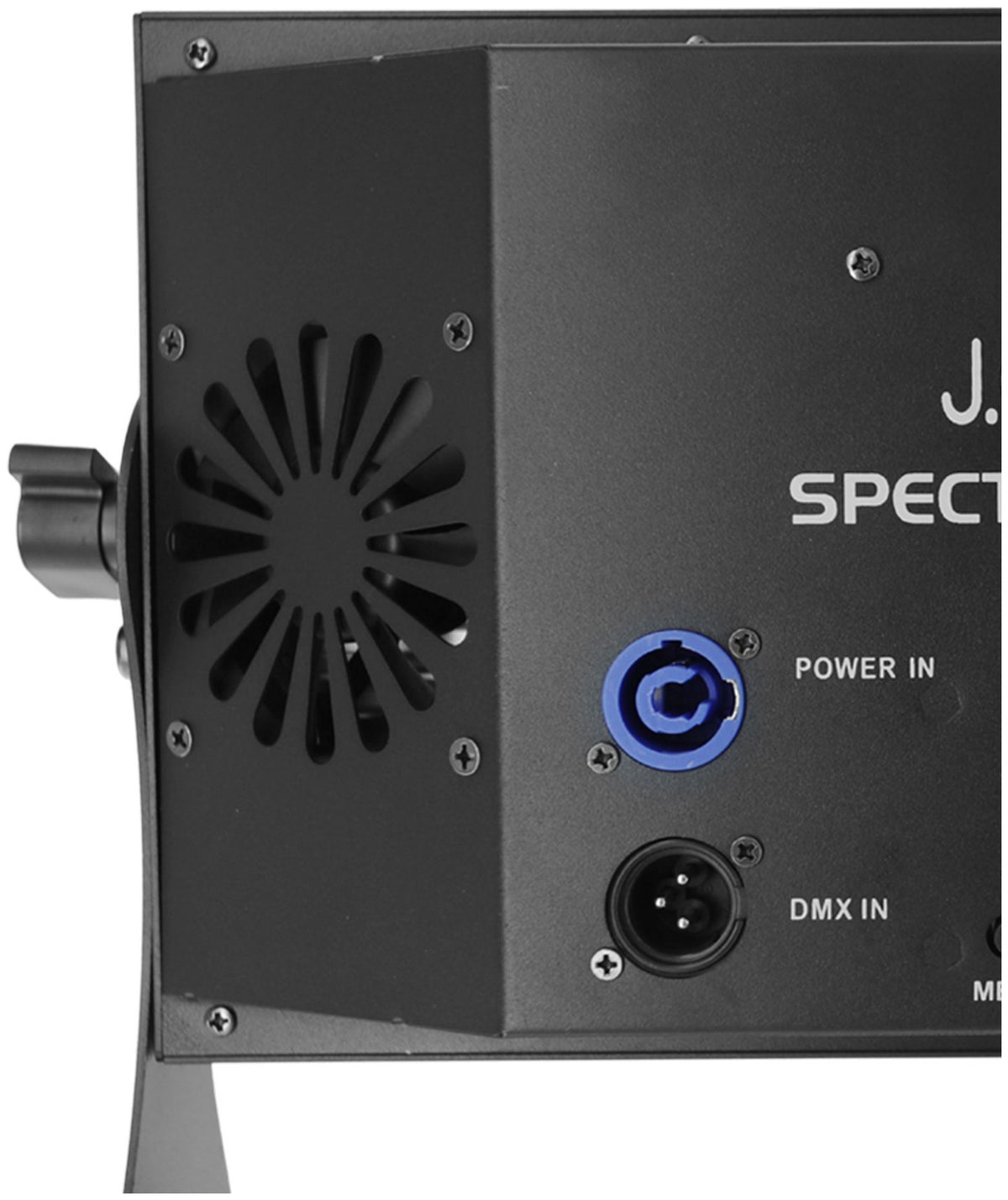

The fixture offers DMX512, automatic, sound-activated and master-slave modes. It can therefore operate on its own for autonomous animation, react to the rhythm of the music or synchronize with multiple fixtures. Its digital display makes adjustments directly on the housing easy, while the 3-pin DMX IN and OUT connectors, along with the PowerCon IN and OUT power connections, simplify cabling in professional setups.

Technical specifications

Total source power	250 W	Color	Multicolor
Category	Other Projectors

Fixture type	matrix LED fixture with central strobe	DMX channels	7, 22 or 280 channels
RGB LEDs	480 x 0.3 W LEDs	Protocols and modes	DMX512, master-slave, automatic and sound-active
White Amber LEDs	500 x 2 W LEDs	DMX input and output	3-pin connectors
Central lens	acrylic	Power supply	PowerCon IN and OUT
Beam angle	120deg	Power supply voltage	AC 100-240 V, 50-60 Hz
Total power	250 W	Dimensions	37.5 x 25 x 8 cm
Strobe	1 to 20 flashes per second	Weight	4.6 kg
Number of effects	380
