Jackson Guitars Pro Series Signature Misha Mansoor Juggernaut Ht7 Ebo Signal Yellow
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Jackson Guitars
https://www.fender.com
------------------------
Safety manager:
Fender (EDC) B.V.
Email: contactemea@fender.com
Address:
A Signature Designed with Misha Mansoor, Tailored for Modern Metal
This Pro Series Signature adopts Misha Mansoor's "stage/studio tool" approach: a 7-string guitar focused on precision, with uncompromising technical choices. Between its Juggernaut body shape, black hardware, and Signal Yellow finish, it combines a bold look with a design centered on stability, tuning accuracy, and real-world efficiency.
Who Is It For, and Which Styles?
The Juggernaut HT7 is mainly aimed at intermediate to expert guitarists playing 7 strings who seek a reliable instrument for low tunings. It excels in modern metal, djent, prog, hardcore, and all styles where rhythmic precision, note separation, and tight palm-mutes are essential, while remaining versatile enough thanks to its wiring and 5-position selector switch.
Sound

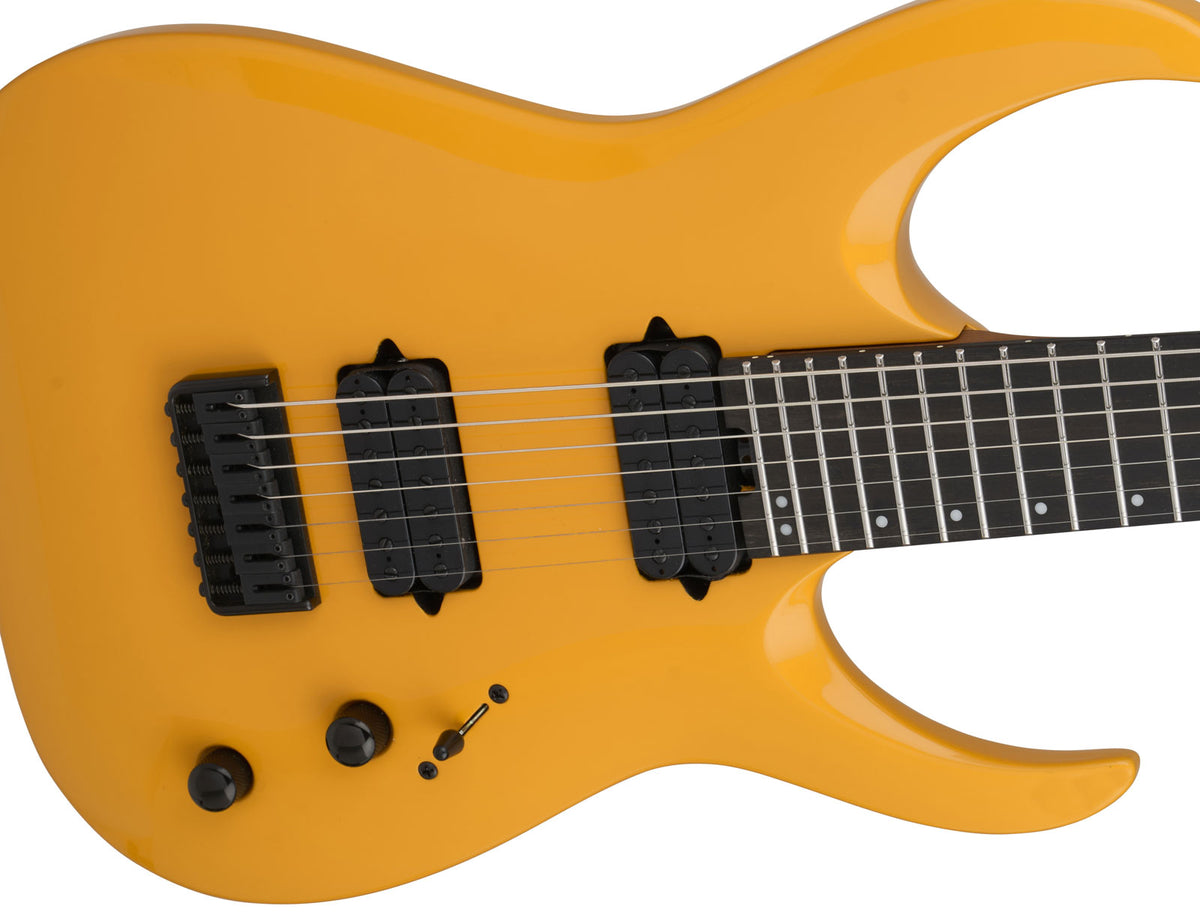

The poplar body offers a balanced and direct response, ideal for a modern guitar where attack and clarity under saturation are desired. The 26.5" / 673 mm scale length increases string tension, helping to maintain tight lows and more stable intonation in low tunings. The two Jackson Uncovered MM1 humbuckers, mounted directly into the body, provide a more "immediate" feel and sharp attack. The 5-position selector allows switching from thick humbucker tones to thinner, single-coil-like combinations for clean passages, arpeggios, or sharper riffs, while the volume and tone controls with push/pull facilitate tonal variations during playing.
Recommended Compatible Accessories
This guitar comes with a Jackson gig bag included, convenient for transport. For other accessories, compatibility (hard case dimensions, alternative string sets depending on tuning, etc.) depends heavily on your setup and preferences: it's best to check before choosing specific accessories.
Technical specifications
| Electronics: microphone configuration | HH | Bridge / tailpiece | Fixed |
| Category | ST | Electronics | Passive |
| Left handed | No | Electroacoustic | No |
| Strings | Steel | Color | Yellow |
| Nbr of strings | 7 | Finishing | Glossy |
| Fingerboard | Ebony | Hardware | Black |
| Nbrs of frets | 24 | ||
| Body shape | Juggernaut | Scale length | 26.5" / 673 mm |
| Wood | poplar | Hardware finish | black |
| Body finish | gloss | Tuners | Jackson Sealed Die-Cast Locking |
| Neck material | caramelized maple | Control knobs | Dome-Style |
| Reinforcements | graphite | Bridge | Jackson HT7 String-Through-Body Hardtail |
| Construction | bolt-on with 4 screws (recessed screws) | Configuration | HH |
| Joint | scarf joint | Bridge pickup | Jackson Uncovered MM1 |
| Neck finish | oiled | Neck pickup | Jackson Uncovered MM1 |
| Headstock | Jackson AT-1 4x3 (4 over / 3 under) | 𝗦𝗲𝗹𝗲𝗰𝘁𝗼𝗿 𝘀𝘄𝗶𝘁𝗰𝗵: 𝟱-𝗽𝗼𝘀𝗶𝘁𝗶𝗼𝗻 𝗯𝗹𝗮𝗱𝗲 | |
| Truss rod | dual-action with adjustment wheel | ▸ Position 1 | full bridge humbucker |
| Truss rod adjustment | Heel-Mount Truss Rod Adjustment Wheel | ▸ Position 2 | inner two single coils |
| Inlays | Offset White Dot | ▸ Position 3 | both full humbuckers |
| Side dots | Luminlay | ▸ Position 4 | outer single coil of neck pickup |
| Number of frets | 24 | ▸ Position 5 | full neck humbucker |
| Fret size | jumbo stainless steel | Controls | volume, tone (with push/pull select feature) |
| Radius | 20" / 508 mm | Gig bag | Jackson Gig Bag included (reference 2991512106) |
| Nut width | 44.45 mm / 1.75" | Country of origin | Indonesia |
| Nut | black plastic | ||
Questions frequently asked
Is the Jackson Pro Series Signature Misha Mansoor Juggernaut HT7 suitable for low tunings?
Its 26.5" (673 mm) scale length increases string tension, which helps maintain tight lows and stable intonation in low tunings. The Jackson HT7 String-Through-Body Hardtail fixed bridge further enhances this focus on stability. This setup is intended for modern metal, djent, prog, and hardcore playing styles.
What tones does the Juggernaut HT7's 5-position selector offer?
The 5-position blade selector provides access to the full bridge humbucker, both full humbuckers together, and the full neck humbucker. Single coil positions are also available: inner coils of both pickups in position 2 and the outer coil of the neck pickup in position 4.
Is the neck designed for fast technical playing?

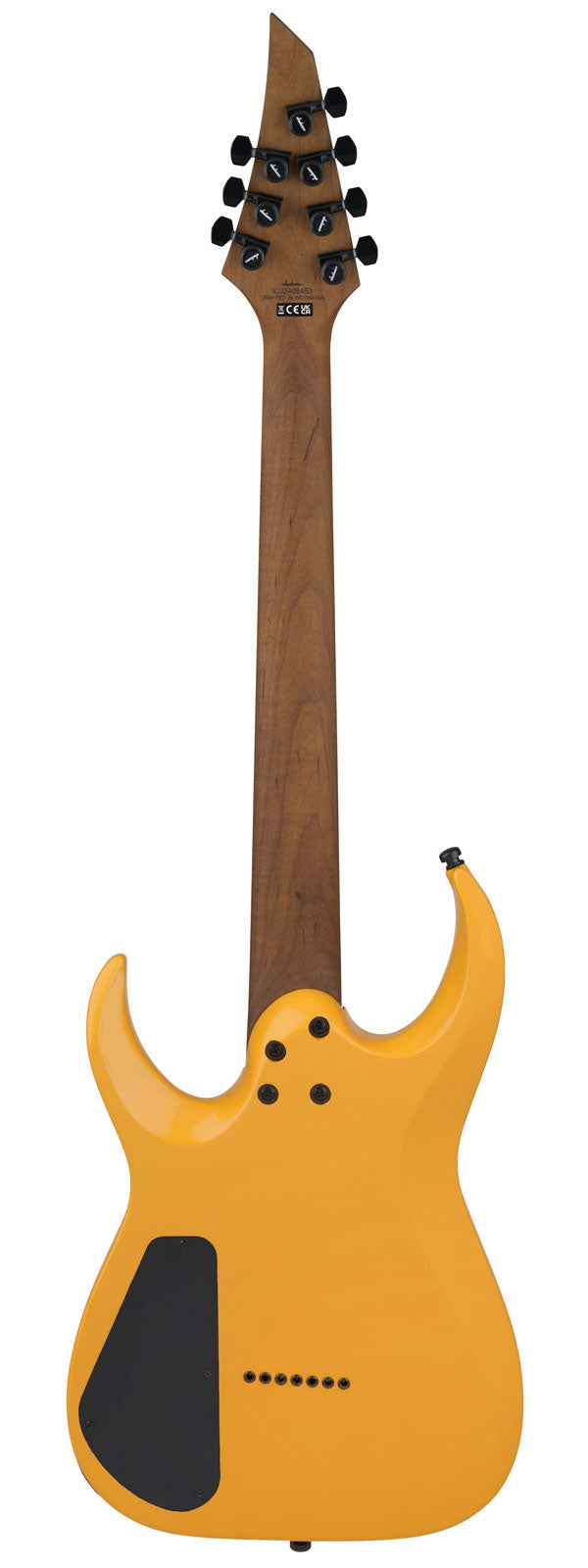

The bolt-on caramelized maple neck features an ebony fingerboard with a 20" (508 mm) radius, 24 jumbo stainless steel frets, and an oil finish. Graphite reinforcement rods are integrated in the neck, and a truss rod adjustment wheel is located at the neck joint. Luminlay side dots improve visibility on stage.
Does this 7-string guitar have a vibrato?

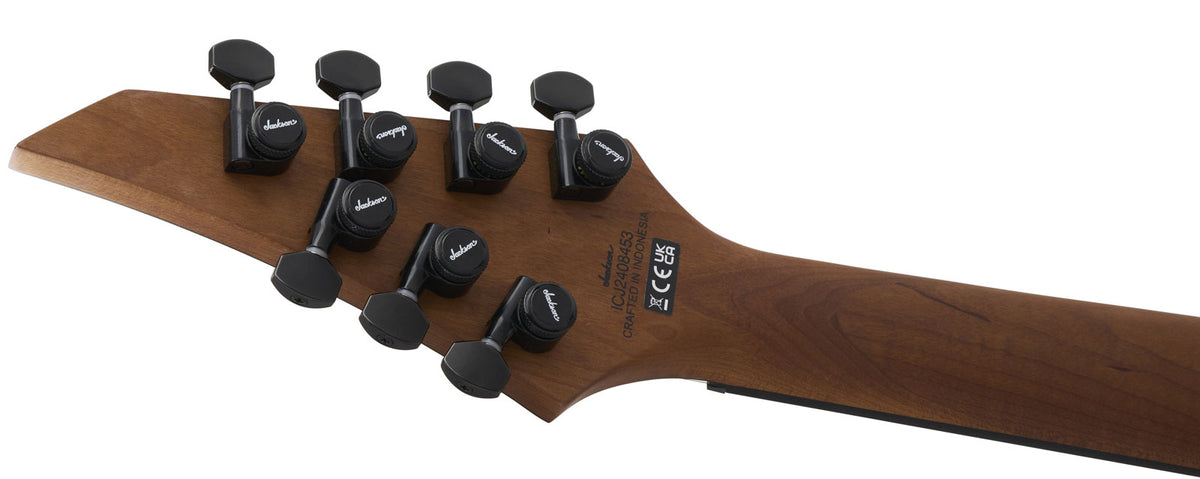

It is equipped with a Jackson HT7 String-Through-Body Hardtail fixed bridge with no vibrato indicated, as well as Jackson Sealed Die-Cast Locking tuners.
Is a gig bag included with the Jackson Juggernaut HT7 Signal Yellow?
A Jackson Gig Bag is provided, under the reference 2991512106.
