Jackson Guitars Pro Series Signature Misha Mansoor Juggernaut Ht7P Ebo Chlorine Burst

A Signature Designed for Modern Playing: The Juggernaut According to Misha Mansoor

Developed around Misha Mansoor's requirements, the Juggernaut HT7P fits into the world of guitars crafted for rhythmic precision and low tunings. With its bolt-on construction and hardtail string-through-body bridge, it emphasizes stability, attack, and a very direct feel, while maintaining true versatility thanks to its 5-position electronics.

Who Is It For, and What Styles?

This 7-string electric guitar is primarily aimed at intermediate to advanced guitarists seeking fast playability (20" / 508 mm radius, 24 jumbo frets) and excellent note-to-note definition. It excels in modern metal, djent, progressive metal, but also in heavy rock and expressive lead playing, notably thanks to the coil combinations available via the 5-position selector and push/pull function.

Sound

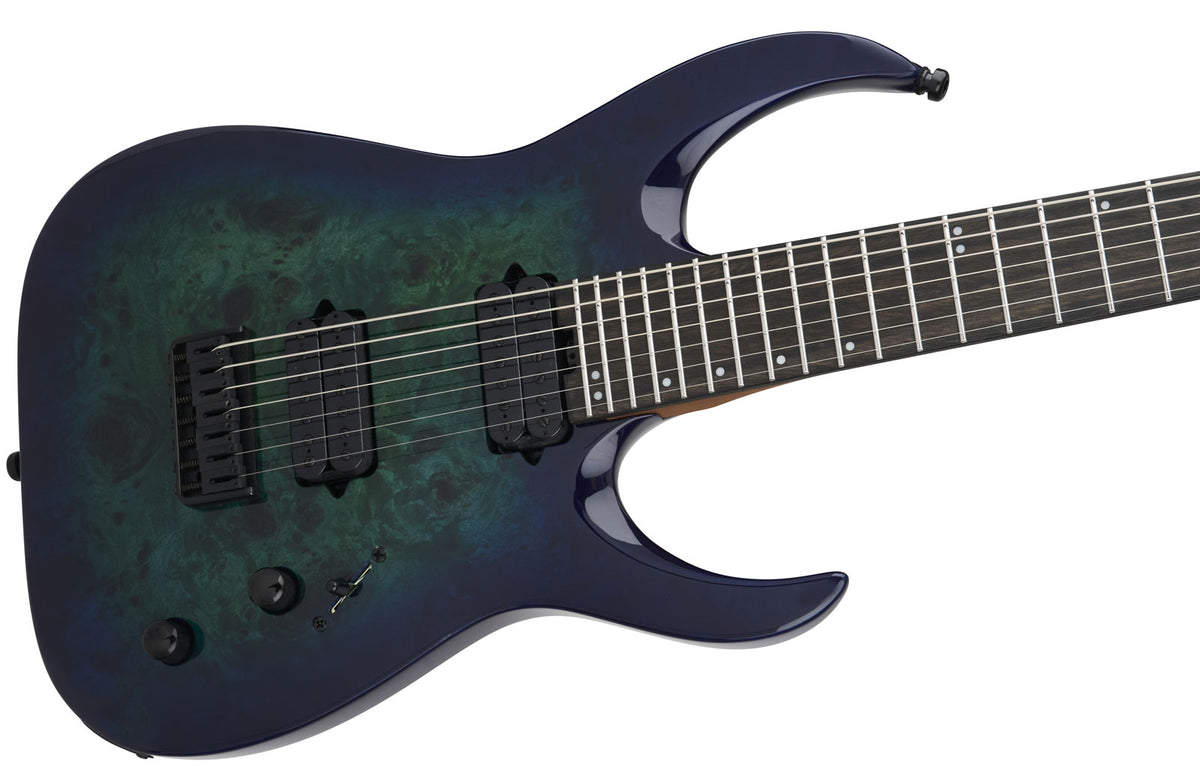

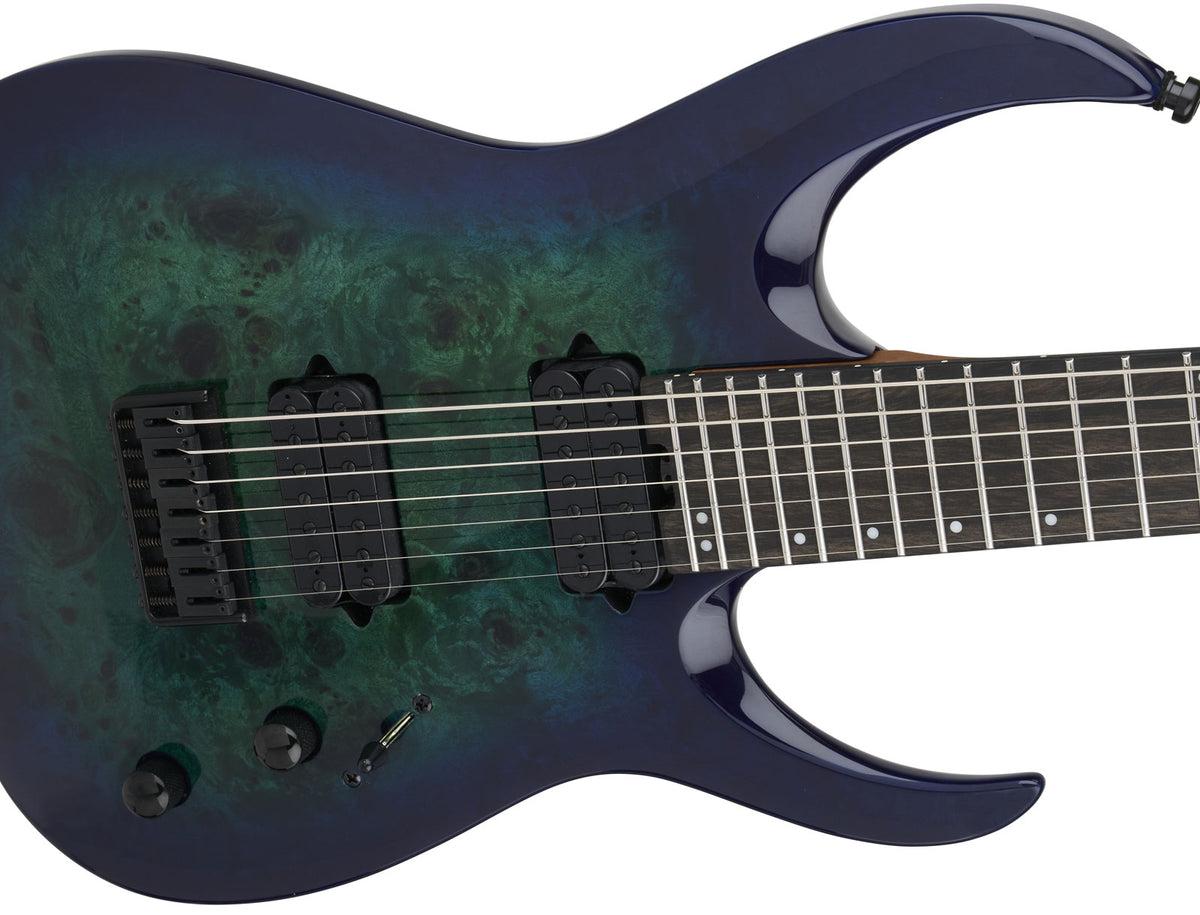

The pair of Jackson MM1 pickups (HH configuration) delivers a tight low end, present mids, and a clear attack, particularly effective on palm-muted rhythms and extended chords. The direct mount setup enhances immediacy and precision. The 5-position selector allows switching between full humbuckers and single-coil combinations (inner/outer coils depending on position), useful for brightening a saturated sound or finding more articulated textures. The Jackson HT7 string-through-body hardtail bridge promotes good tuning stability and solid sustain, while the oiled neck finish contributes to a fast and natural feel.

Recommended Compatible Accessories

To stay as close as possible to the original setup, a 7-string string set with gauges .009-.054 (Horizon Devices Progressive Tension Standard 7) is a reliable choice. For transport, the compatible recommended options are: Jackson Soloist/Dinky SKB Hardshell (reference 299-6100-506) or Soloist/Dinky Gig Bag (reference 299-1512-106).

Technical specifications

Electronics: microphone configuration	HH	Bridge / tailpiece	Fixed
Category	ST	Electronics	Passive
Left handed	No	Electroacoustic	No
Strings	Steel	Color	Gradient
Nbr of strings	7	Finishing	Glossy
Fingerboard	Ebony	Hardware	Black
Nbrs of frets	24

Body shape	Juggernaut	Truss rod	Dual-Action with Wheel
Wood	poplar	Truss rod nut	Heel-Mount Truss Rod Adjustment Wheel
Body finish	gloss	Scale length	26.5" / 673.1 mm
Neck material	caramelized maple	Hardware finish	Black
Neck finish	oiled	Bridge	Jackson HT7 String-Through-Body Hardtail
Neck attachment	4-Bolt (recessed screws)	Tuners	Jackson Sealed Die-Cast Locking

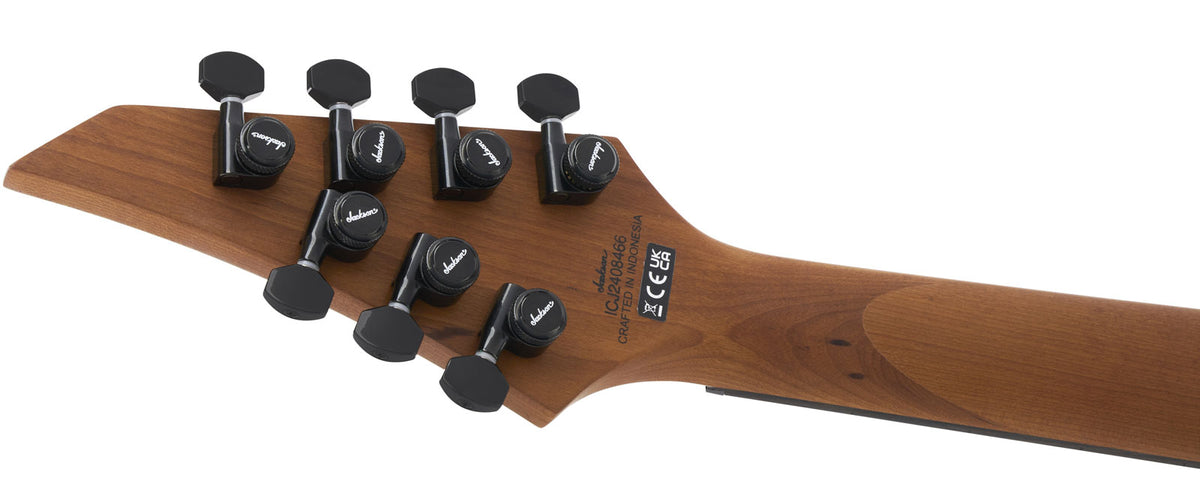

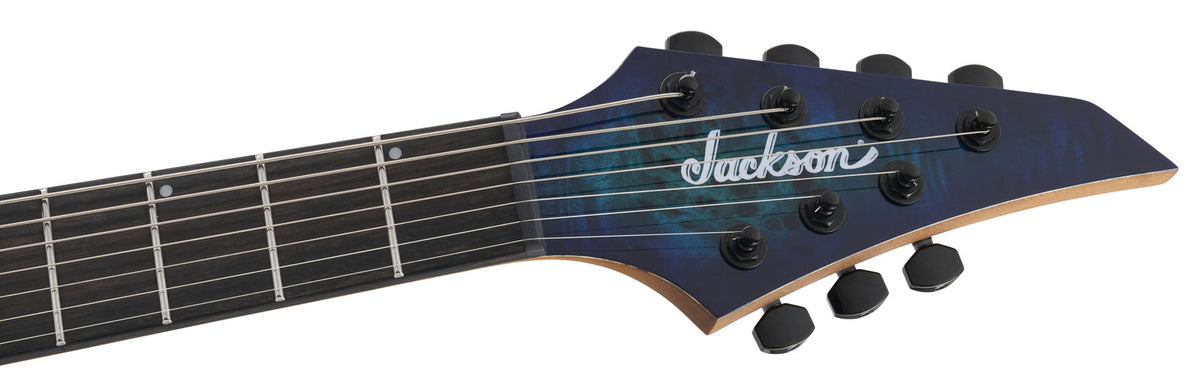

Headstock	Jackson AT-1 4x3 (4 Over/3 Under)	Control knobs	Dome-Style
Inlays	Offset White Dot	Configuration	HH
Side dots	Luminous side dots	Bridge pickup	Jackson Uncovered MM1
Number of frets	24	Neck pickup	Jackson Uncovered MM1
Fret size	Jumbo	Pickup selector	5-position switch: Position 1. Full bridge pickup, Position 2. Two inner single coils, Position 3. Both full humbuckers, Position 4. Outer single coil of neck pickup, Position 5. Full neck pickup
Radius	20" / 508 mm	Controls	Volume, Tone (with Push/Pull Select Feature)
Nut	black plastic	Case / gig bag	Optional Jackson Soloist?/Dinky SKB Hardshell (reference 299-6100-506); Optional Soloist?/Dinky Gig Bag (reference 299-1512-106)
Nut width	1.75" / 44.45 mm	Country of origin	Indonesia
