A soundhole pickup designed to respect your acoustic guitar
The Kna SP-1 was designed for guitarists who want to amplify a steel-string acoustic while preserving the character of their instrument. Its "soundhole" format is placed directly at the guitar's opening, a practical solution to quickly achieve a usable sound without invasive installation.
For which guitarists and situations?
This guitar pickup is aimed at musicians who play rehearsals, concerts, or at home and want a quick setup without luthiery or drilling. Whether you are a pick accompanist, fingerstyle player, or rhythm player with chords, the SP-1 aims for faithful and dynamic reproduction, with good sensitivity to capture playing nuances.
Passive design, soundhole-mounted pickup, and ready-to-play connectivity
The SP-1 combines a simple and effective approach: a magnet-mounted soundhole pickup paired with a passive design to avoid power supply constraints. The piezo pickup is integrated into a mahogany piece, aiming to deliver a detailed and musical sound. Practically, the included cable (3 m 3.5mm mini-jack) and 6.35mm Jack adapter facilitate connection to an acoustic amplifier, mixer, or audio interface, depending on your setup.
Technical specifications
| EQ | No |
| Category | piezo sensor |
| Type | piezo, passive microphone, rosette |
| Instrument | folk guitar |
| Color | Black |
| Guitar microphone type | "Single Coil" |
| Passive design | no battery required |
| Includes 1 cable | 3 m 3.5mm male mini-jack and 1 x 6.35mm male Jack adapter |
| Weight | 45.35 g |
| Upper side length | 113 mm |
| Lower side length | 107 mm |
| Height | 15 mm |
| Minimum soundhole diameter to fit | 92 mm |
| Maximum impedance | 3.6 kOhms |
Questions frequently asked
Is the Kna SP-1 compatible with all acoustic guitar soundholes?
Installation requires a soundhole with a minimum diameter of 92 mm. The pickup measures 113 mm on the upper side, 107 mm on the lower side, and 15 mm in height.
Does the Kna SP-1 pickup operate without a battery?
Its passive design does not require any batteries.
What cable is included with the Kna SP-1?
The package includes a 3 m 3.5 mm male mini-jack cable. A 6.35 mm male jack adapter is also provided for connection to an acoustic amplifier, mixer, or audio interface.
What sound quality can be expected from this soundhole pickup?
The piezo sensor is integrated into a mahogany housing. This design aims for detailed and dynamic reproduction of playing nuances. No equalizer is built into the pickup.

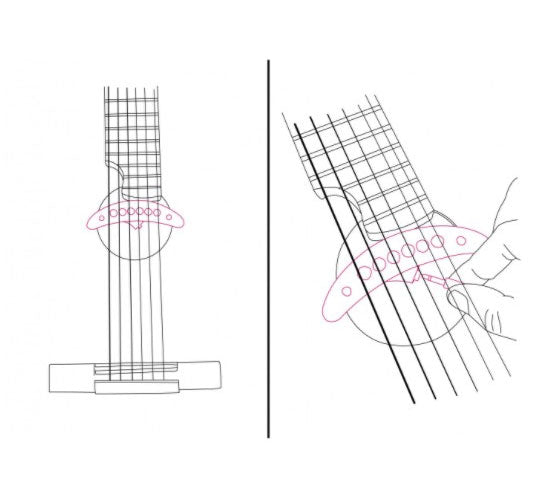

Does installing the SP-1 require modifying the guitar?
The installation is done directly in the soundhole without drilling or luthier intervention. Weighing 45.35 g, this format is designed for quick setup on steel-string acoustic guitars.
