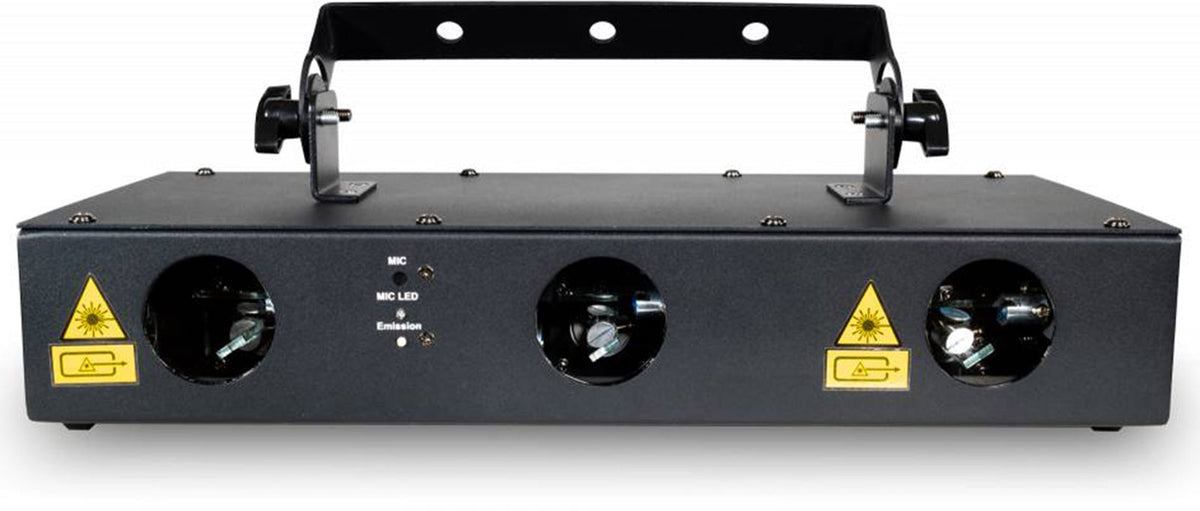

Laserworld EL-200RGB MK2
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- Striking trichromatic RGB rendering with 200 mW total power (guaranteed 155 mW ) and a narrow beam of 3 mm / 2 mrad for sharp beams.
- Approximately 50 built-in patterns (tunnels, waves, sawtooth, etc.) usable in Auto, Musical, and DMX modes for ready-to-use shows.
- Stepper motor scanners at 2-5 kpps, max scanning angle 30 deg : ideal for small to medium stages.

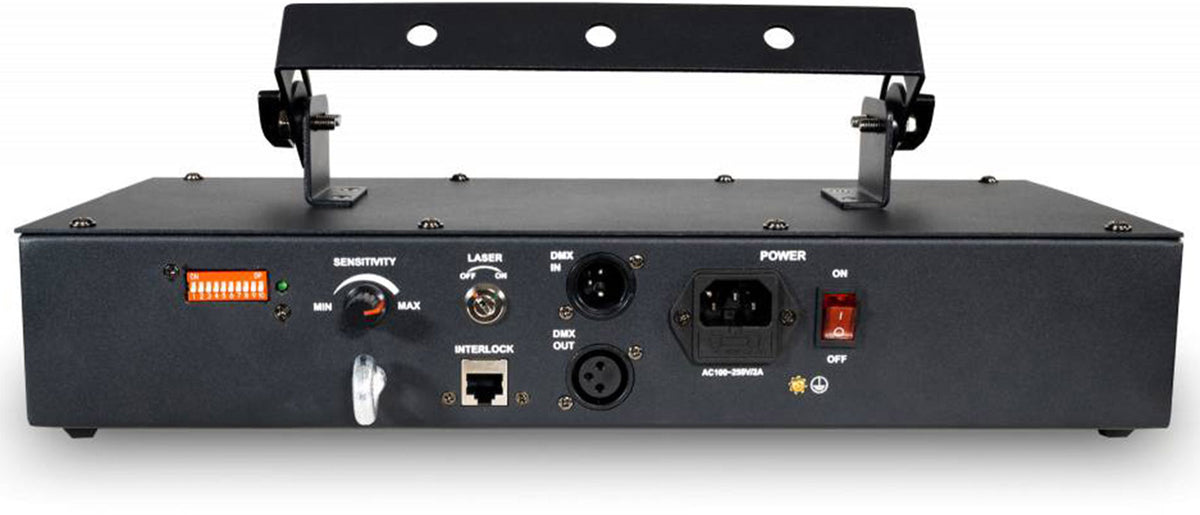

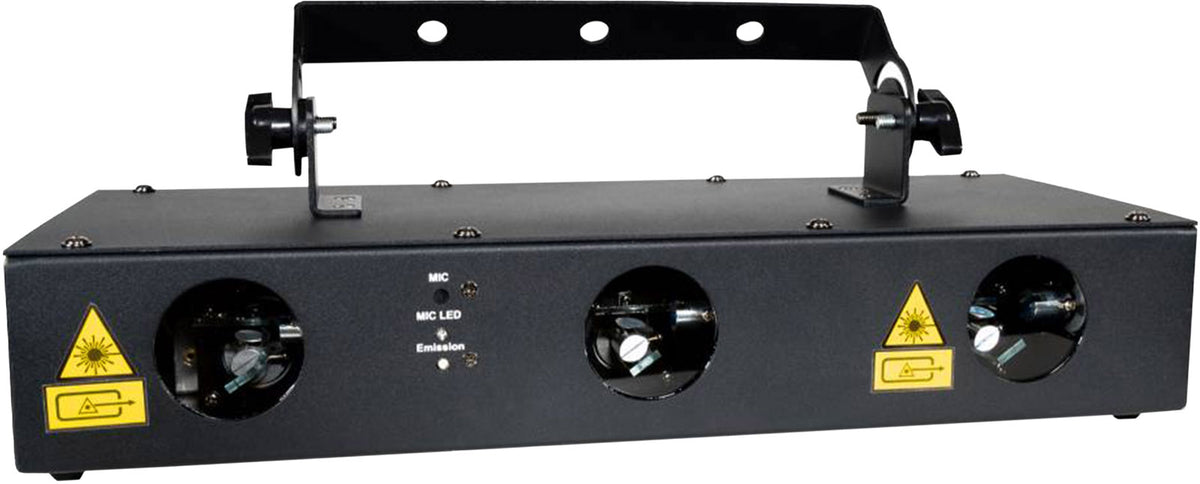

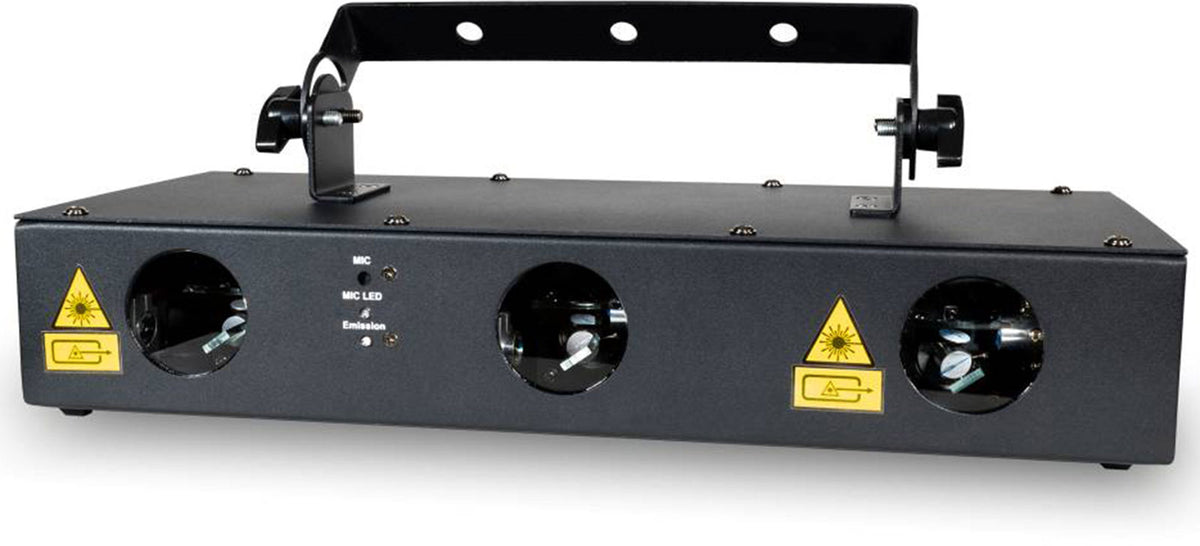

- Compact chassis (3.9 kg) with interlock and key, universal power supply 85-250 V AC, Class 3B laser.
Manufacturer Information
Laserworld
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
Designed for Stage, Club, and Event Use
The Laserworld EL-200RGB MK2 delivers colorful and dynamic laser effects in bars, clubs, small concert venues, and DJ performances. Its built-in pattern bank covers essential lighting show elements: enveloping tunnels, fluid waves, geometric animations, and ceiling effects to energize a dancefloor or highlight a stage act.
For private parties, corporate events, or weddings, it integrates easily into existing lighting setups to add a spectacular aerial dimension, especially with slight smoke or fog diffusion to visualize the beams.
Who Is This Laser Projector For?
Perfect for the mobile DJ seeking a striking effect without complex setup, it is also suitable for the lighting technician or club operator looking for a reliable supplementary laser. Rental companies and community organizations will appreciate its robustness and simplicity, while the knowledgeable private user will find a compact solution to create a stage atmosphere at home, respecting laser safety regulations.
Features and Innovations
Thanks to its RGB sources (red 638 nm, green 532 nm, blue 450 nm), the EL-200RGB MK2 produces vivid colors and sharp contrasts. The narrow beam (approx. 3 mm / 2 mrad) maintains good coherence, while the stepper motors reaching 2-5 kpps ensure smooth movements over a 30 deg angle. The library of about 50 predefined patterns instantly delivers tunnel, wave, and varied geometric effects.
In Auto mode, the projector cycles through sequences for immediate output. Musical mode synchronizes effects to the beat, useful for DJ sets. Via DMX control, you can manage pattern selection, speed, and direction to integrate the laser into your lighting control. For safety, the key and interlock facilitate compliance and secure operation of a Class 3B laser (responsible use and trained operators recommended).
Technical specifications
| Total power | 200 mW | Max scanning angle | 30 deg |
| Guaranteed power | 155 mW | Basic patterns | approx. 50 (tunnels, waves, sawtooth, etc.) |
| Red power | 70 mW / 638 nm | Operating modes | Auto mode, Musical mode, DMX |
| Green power | 25 mW / 532 nm | Power supply | 85-250 V AC 50/60 Hz |
| Blue power | 60 mW / 450 nm | Power consumption | 60 W |
| Laser sources | DPSS Laser diodes | Included accessories | power cable, manual, interlock, key |
| Laser class | 3B | Dimensions | 175 x 395 x 85 mm |
| Beam specifications | approx. 3 mm / 2 mrad | Weight | 3.9 kg |
| Scanners | stepper motors, up to 2-5 kpps | ||
You will also like
Algam Lighting
SPECTRUM 500 RGB - POLYCHROME LASER GREEN RED BLUE
Algam Lighting
SPECTRUM 1500 RGB - POLYCHROME LASER GREEN RED BLUE
Algam Lighting
SPECTRUM 400 RGB - POLYCHROME LASER GREEN RED BLUE
Power Lighting
Lazer 2400 RGB
Power Lighting
LAZER 1200 RGB APP
Power Lighting
Lazer 600 RGB
Laserworld
EL-900 RGB
Laserworld
EL-300RGB
Questions frequently asked
Can the Laserworld EL-200RGB MK2 be controlled via DMX?
The DMX mode allows controlling the selection of patterns, their speed, and direction to integrate the laser into a lighting setup.
What laser effects are available?
About 50 built-in patterns include tunnels, waves, sawtooth shapes, and geometric animations. The scanning angle reaches 30°.
What is the power and color of the beams?
The total rated power is 200 mW, including 70 mW red at 638 nm, 25 mW green at 532 nm, and 60 mW blue at 450 nm. The guaranteed power is 155 mW. The beam is approximately 3 mm with a divergence of 2 mrad.
Does this laser operate automatically with music?
Auto and Music modes are available. Auto mode sequences the built-in patterns, while Music mode synchronizes effects to the beat.
What safety precautions and accessories are provided?
Rated Class 3B, the device comes with a key and interlock; responsible use by trained operators is recommended. Power cable and manual are also included.
