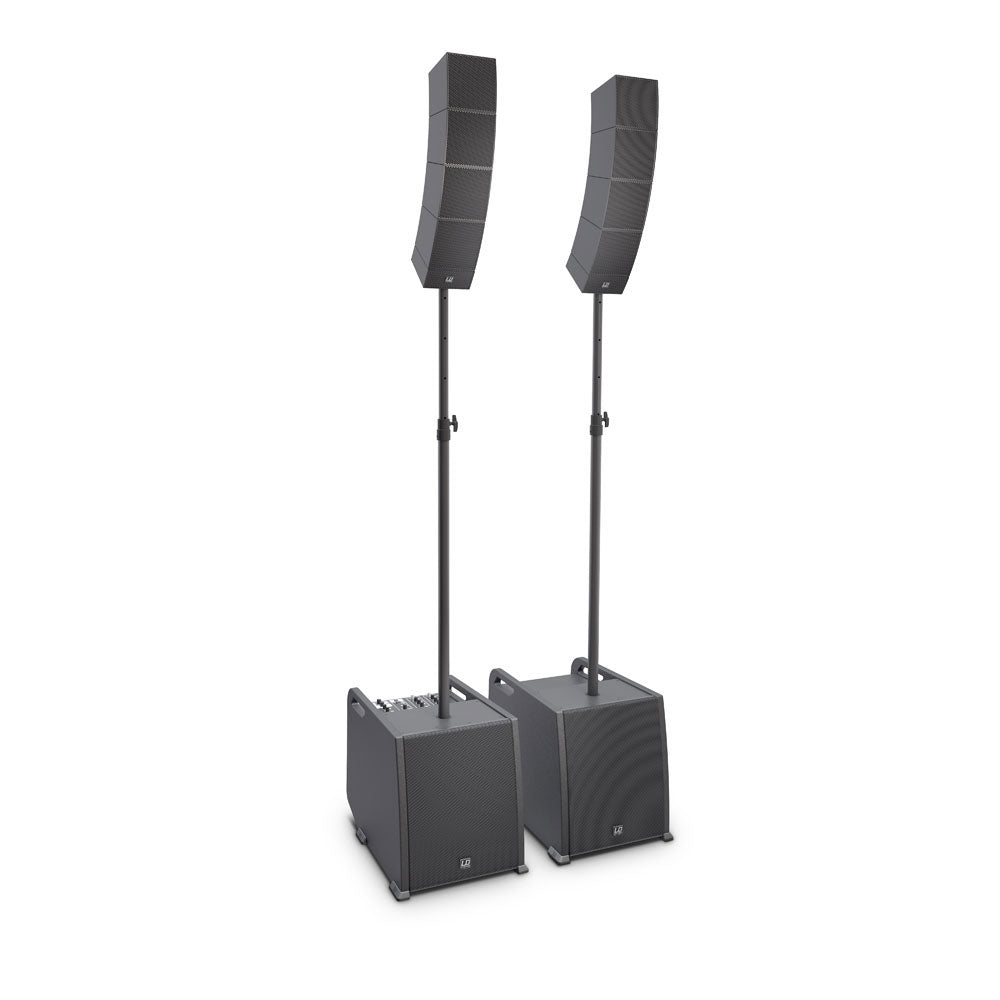

CURV 500 Power Set: the "compact line array" approach designed for stage and installation
The LD Systems CURV 500 Power Set was designed to fulfill a simple idea: to achieve wide coverage and a "line array type" sound in a lightweight, modular, and quick-to-set-up format. Available in several variants suited for live performance as well as fixed installation, the CURV 500 stands out with its integrated design, where the bass cabinet serves both as the mechanical base and the nerve center (amplification, mixing, processing). Designed in Germany, it targets professional use without unnecessary complexity.
A system for DJs, bands, events, and mobile performances
This sound system is ideal if you're looking for a compact solution capable of delivering solid sound levels: DJ gigs, acoustic workshops, small to medium-sized bands, speeches and corporate events, animations, bars, multipurpose rooms, places of worship, or itinerant performances. Thanks to its controlled vertical directivity (line array) and wide horizontal dispersion, the CURV 500 helps project sound evenly, limiting the "hot spot" effect in the front row and lack of presence at the back of the room.
WaveAhead technology, SmartLink, and integrated mixing: efficiency without hassle
WaveAhead: definition and punch in a 12 x 12 cm format
Each satellite uses a 4" midrange speaker combined with 3 x 1" tweeters and WaveAhead technology. The goal: clear and articulated reproduction, with a sense of presence and impact despite the compact size. The system is completed by an integrated passive crossover and a metal grille for reliable use in real conditions.
SmartLink: a modular, lockable, and plug-and-play line array

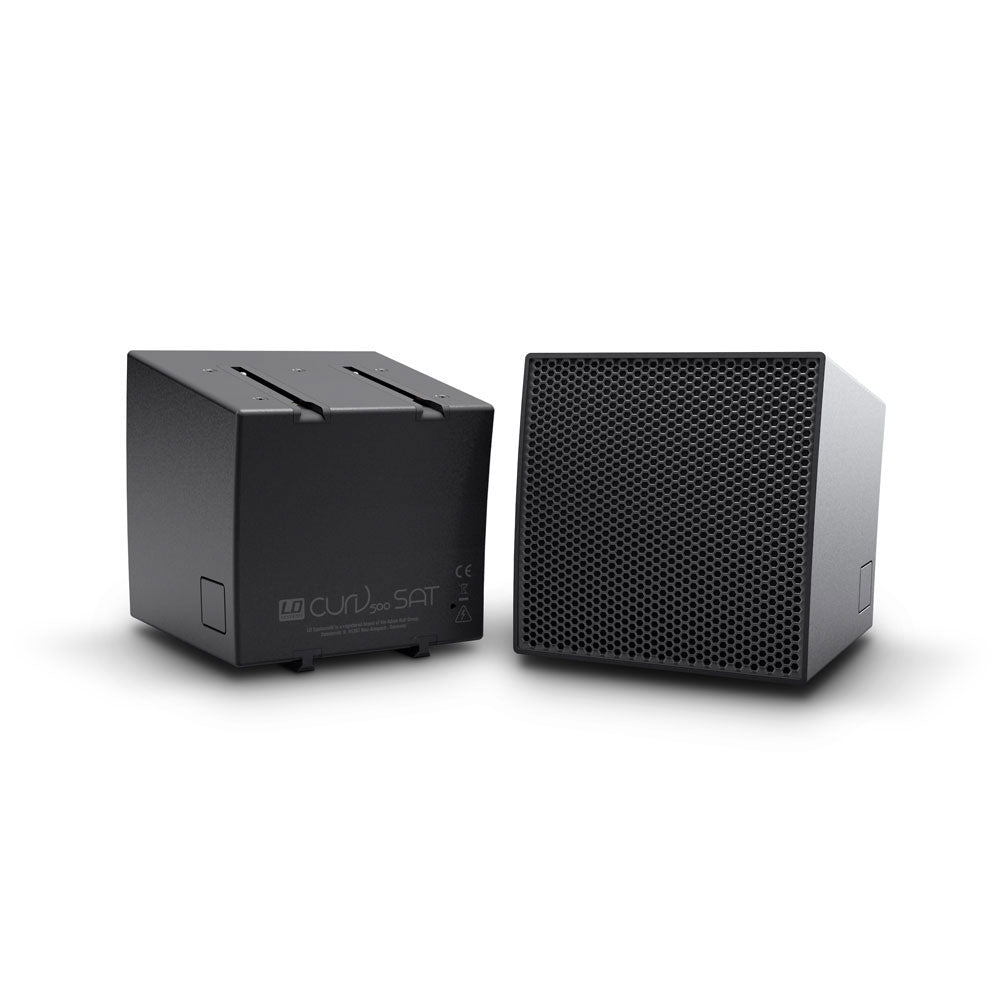

The one-piece die-cast aluminum satellites are designed for quick and stable assembly and connect via the SmartLink adapter. This creates an expandable column designed to adapt to the context: more satellites for increased projection and coverage, while maintaining a system that is simple to transport and install.
Bass cabinets: the heart of the system (amplification, DSP, mixer, and Bluetooth)

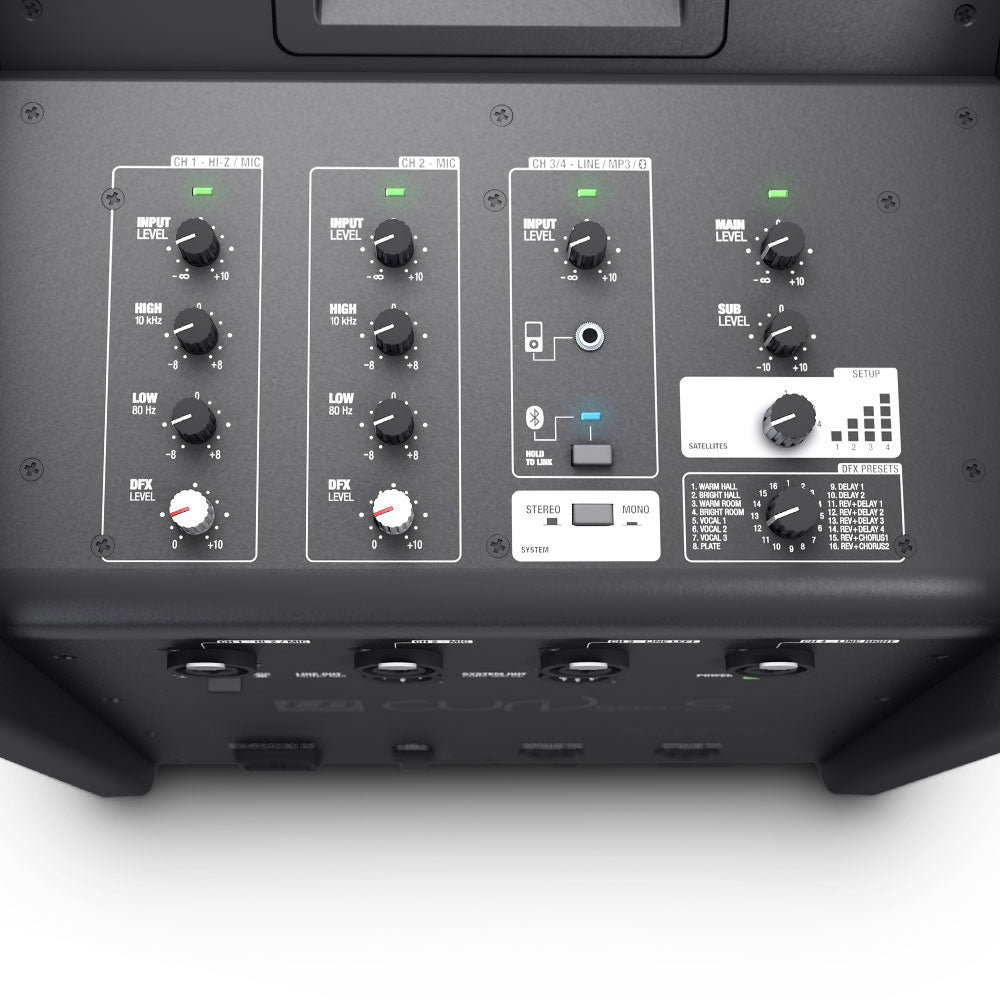

The bass reflex cabinets house a 10" woofer and integrate the system's Class D amplification. The DSP processing includes a multiband limiter and protections (short circuit, overheating, overload) to secure performances at sustained levels. Practically, you benefit from a 4-channel mixer with Hi/Low EQ on channels 1-2, a digital multi-effects processor (16 presets), and a Bluetooth receiver for easy wireless audio source streaming.

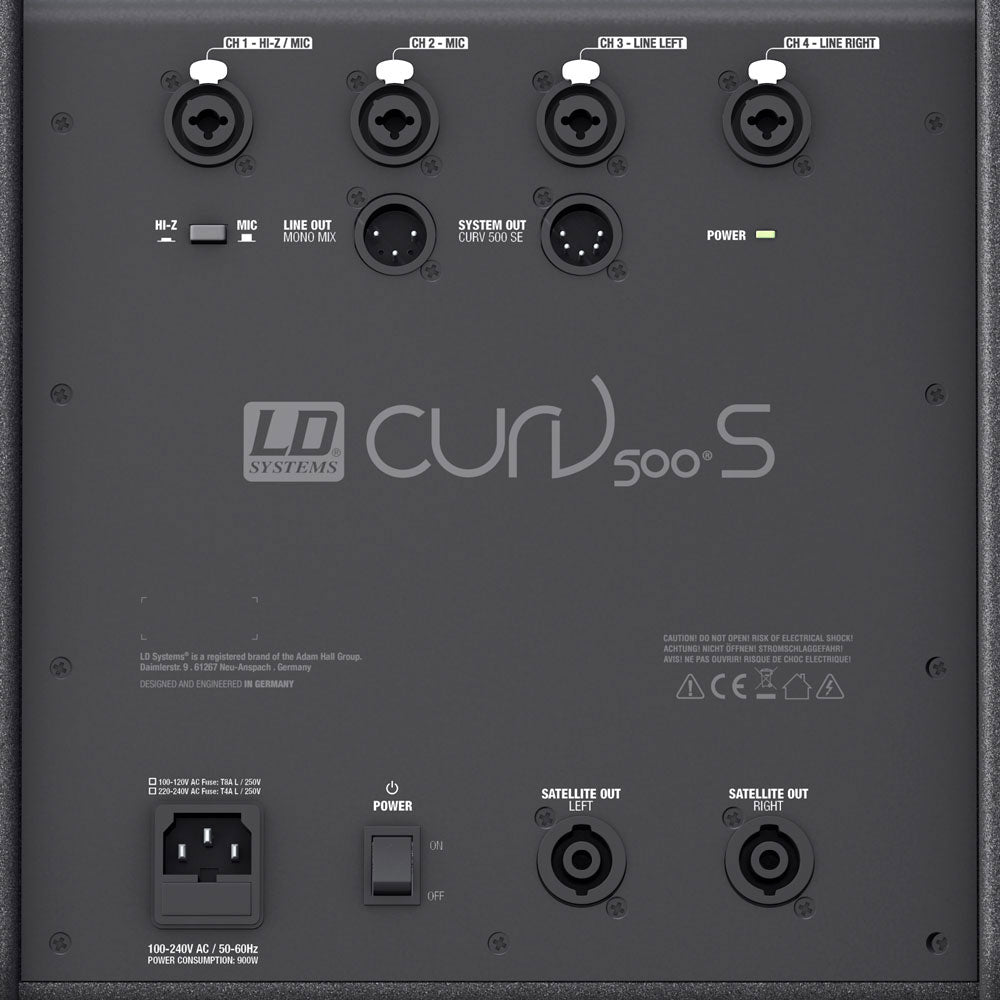

The connectivity is versatile for stage use: inputs on Combo connectors (XLR and 6.35 mm Jack), 3.5 mm mini-jack, dedicated satellite outputs (Speakon compatible), and XLR outputs. Finally, transport is facilitated by 3 ergonomic handles and an M20 threaded socket for support bars.
Technical specifications
| Battery | No | Media Player | Bluetooth |
| Number of channels | 3 channels | Speaker structure | wood |
| Bluetooth | Yes | Inputs | stereo minijack, combo XLR/jack |
| Speaker diameter | 1", 4", 10" | Outputs | XLR |
| Number of speakers | 34 | Color | Black |
| EQ | Yes | Power output | 3680 W |
| Type | Portable line array system | Protections | DSP-based - multiband limiter, short circuit, overheating, overload |
| Nominal output power (RMS) | 920 W | Presets | 4 system DSP presets |
| Number of array satellites | 8 | Speaker | 10" woofer (25 cm) |
| Number of SmartLink adapters | 2 | Cabinet material | plywood |
| Number of bass cabinets | 2 | Surface finish | textured lacquer |
| Maximum continuous sound pressure level | 128 dB SPL | Features | 4-channel mixer, Bluetooth, digital multi-effects with 16 presets, 4 system DSP presets, M20 threaded socket, 3 ergonomic handles |
| Maximum peak sound pressure level | 134 dB SPL | Controls | Input Level potentiometers (Ch1-4), Hi-Z selector, Hi/Low EQ (Ch1-2), DFX effects (Ch1-2), DFX presets, DSP presets, Bluetooth Link selector, Mono/Stereo selector, Sub Level and Main Level potentiometers |
| Frequency response | 47 Hz to 20 kHz | Indicators | Signal, Limit, Bluetooth, Power |
| Dispersion angle (H x V) | 110deg horizontal, 10deg vertical per satellite | Connectors | 1x Mic/Hi-Z (Combo XLR/6.35 mm Jack), 1x Mic (Combo XLR/6.35 mm Jack), 2x Line (Combo XLR/6.35 mm Jack), 3.5 mm mini-jack, 2 x Array Satellite Out (Speakon compatible), Line Out (XLR), System Out (5-pin XLR) |
| Amplification | Class D | Dimensions (W x H x D) | 325 x 383 x 491 mm |
| Output power (RMS/peak) | Bass cabinet: 300 W / 1200 W | Weight | 16.5 kg |
Questions frequently asked
What power and sound level does the LD Systems CURV 500 PS deliver?
The system delivers 920 W of nominal power and reaches 128 dB SPL continuous, with 134 dB SPL peak. Its frequency response ranges from 47 Hz to 20 kHz.
Can a microphone, guitar, and Bluetooth source be connected?
The mixer section offers 4 channels, including one Mic/Hi-Z input on a Combo XLR/6.35 mm jack for an instrument. Two Line inputs on Combo connectors and a 3.5 mm mini-jack input are also available. A Bluetooth receiver allows wireless audio source streaming.
What coverage do the CURV 500 satellites provide?
Each satellite covers 110° horizontally and 10° vertically, featuring a 4-inch speaker and three 1-inch WaveAhead tweeters.
Does the system include effects and DSP settings?
Four system DSP presets and a multiband limiter are integrated into the Class D amplification. A digital multi-effect with 16 presets is available on channels 1 and 2, with Hi/Low EQ.
How is the CURV 500 Power Set transported and assembled?
Two 16.5 kg subwoofers come with eight satellites and two SmartLink adapters. The cast aluminum satellites connect via the SmartLink system. An M20 threaded socket allows mounting on a support pole.
