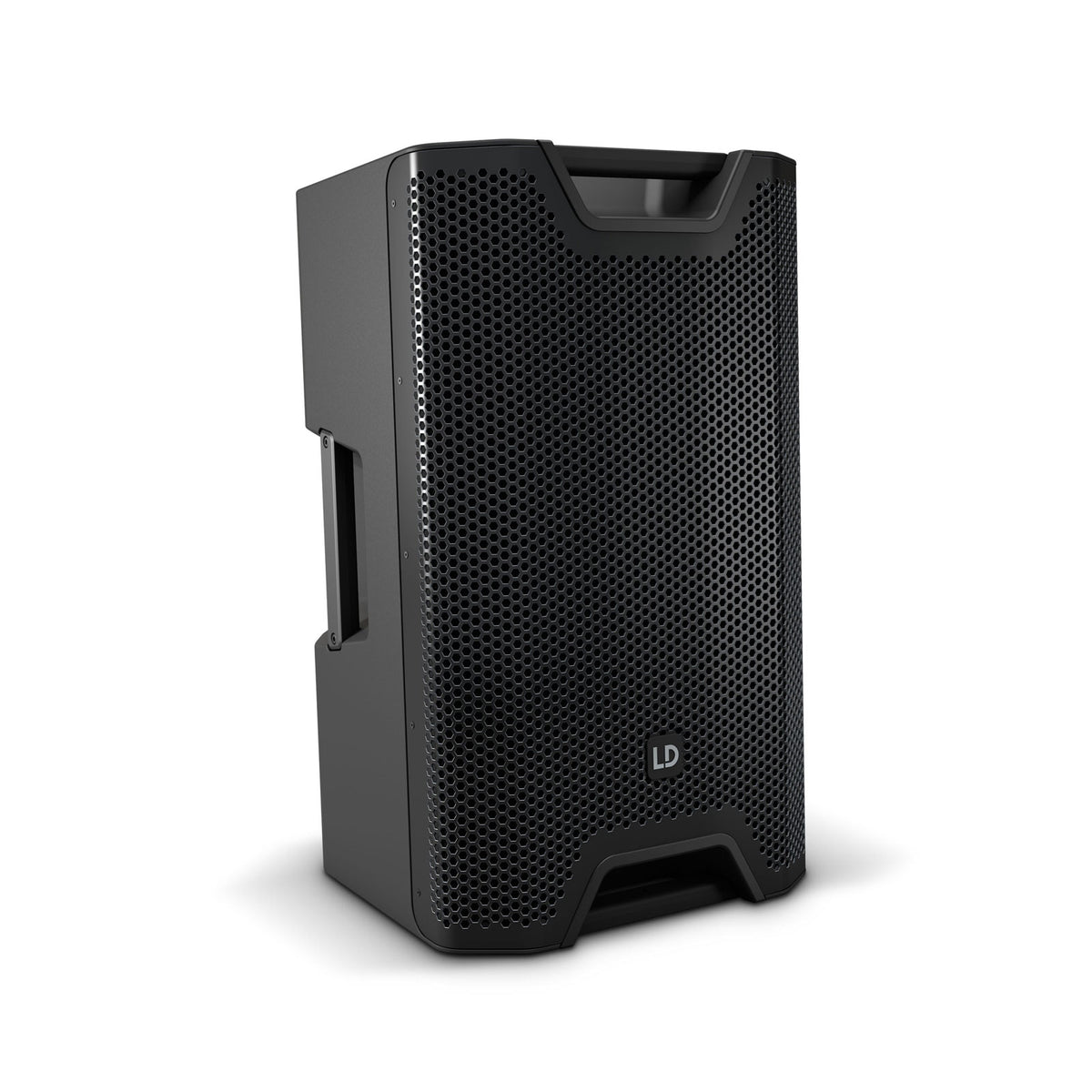

LD Systems Icoa 12 A BT (Bluetooth)

A Speaker Designed for Versatility in the ICOA Range

With the ICOA 12 A BT, LD Systems offers an active speaker that stands out with an "all-in-one" approach: coaxial design, full DSP processing, extensive mounting options, and modern connectivity. This model embodies the spirit of the ICOA series: providing a reliable and easy-to-use sound system capable of covering both front-of-house and monitor applications without multiplying equipment.

Intended Uses and Target Users

Thanks to its bass reproduction and headroom, the LD Systems ICOA 12 A BT is an excellent choice for musicians, bands, dance schools, and service providers looking for a simple-to-adjust and quick-to-install 12-inch active speaker. DJs will appreciate its ability to operate in a lightweight setup, including when music playback without a subwoofer is desired at certain events.

Its format allows use as a vertical satellite on a stand, as a stage monitor (horizontal position), or as a suspended installation depending on the configuration. It is a coherent solution for sound reinforcement during rehearsals, small stages, dance classes, or events, while maintaining clean sound and excellent projection.

Sound Control, Dispersion, and Connectivity: A Speaker Ready for the Field

Coaxial Design and Rotatable Tweeter: Better Controlled Coverage

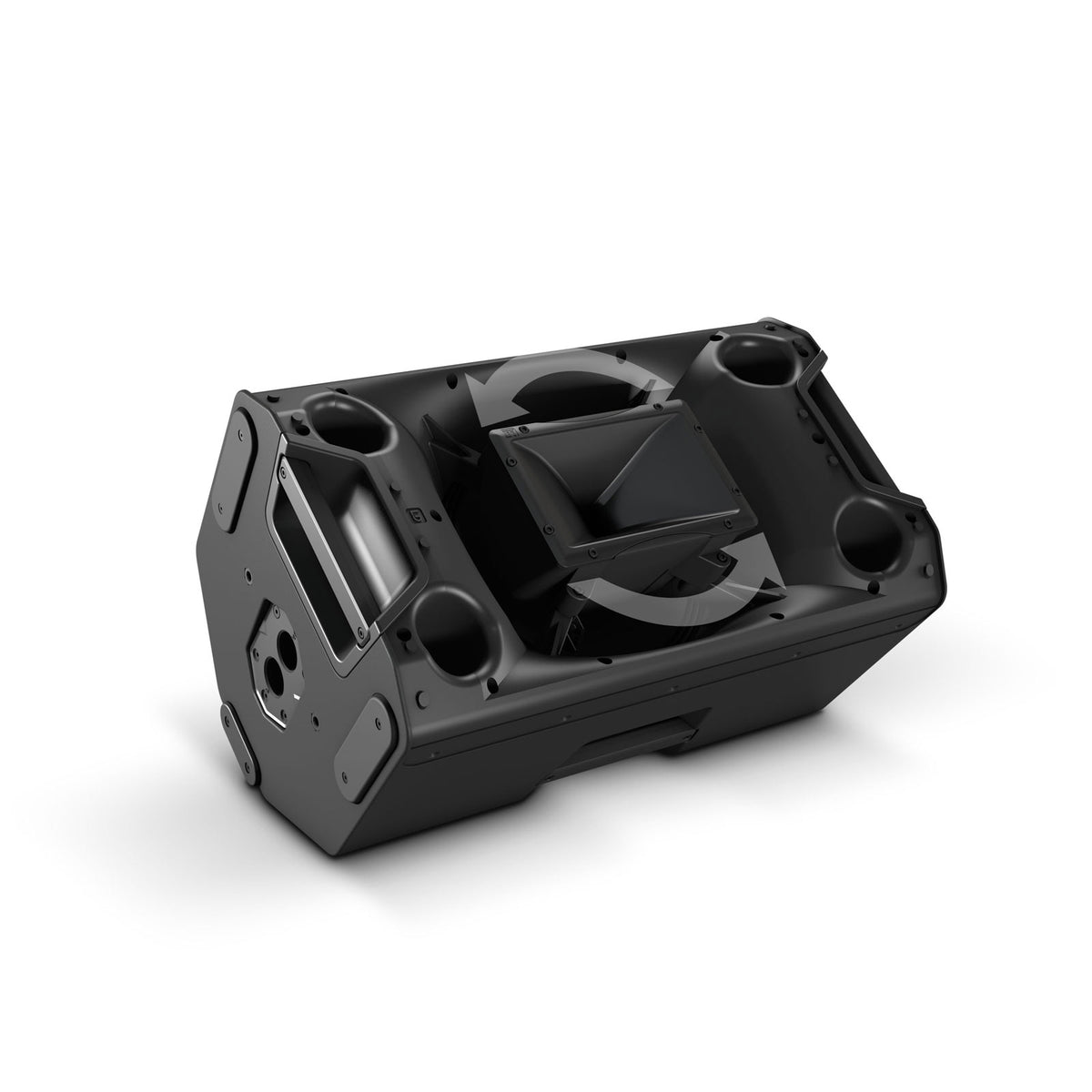

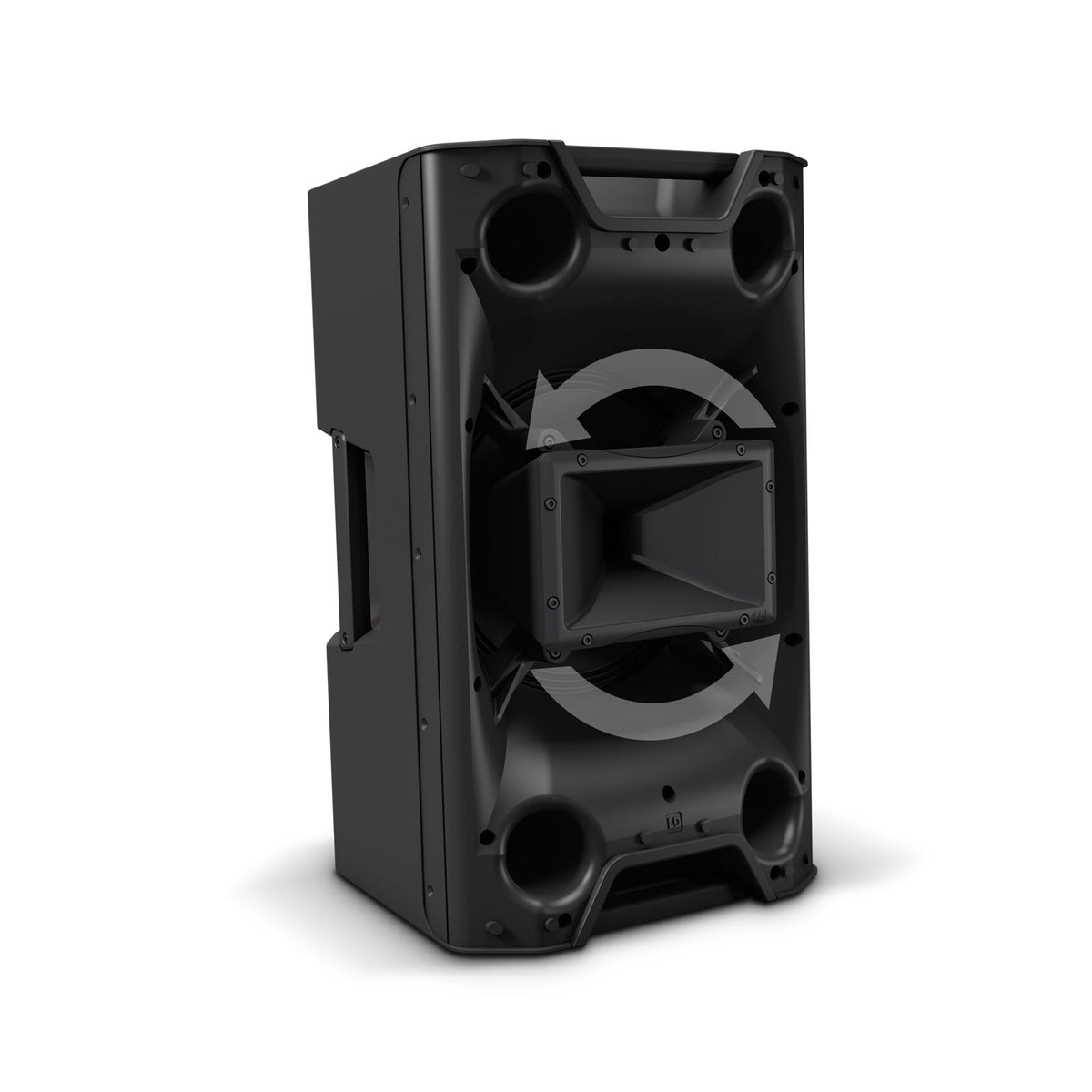

The coaxial structure emphasizes phase coherence and precision, particularly useful for vocals and instruments. The rotatable CD tweeter, optimized via BEM, facilitates adapting the dispersion based on the speaker's orientation, whether front-of-house or monitor. The steel horn delivers a directivity of 90deg x 50deg for controlled coverage.

DynX DSP: Presets, Equalization, and Delay

LD Systems' DynX DSP technology aims for clear and powerful sound even at high levels. The 4 presets allow quick switching between different contexts, while the 3-band equalizer helps fine-tune the timbre. The delay function provides useful adjustment when managing multiple speaker setups or aligning sound according to the stage and room.

Bluetooth, Combo Inputs, and Mix Output: Simple and Effective

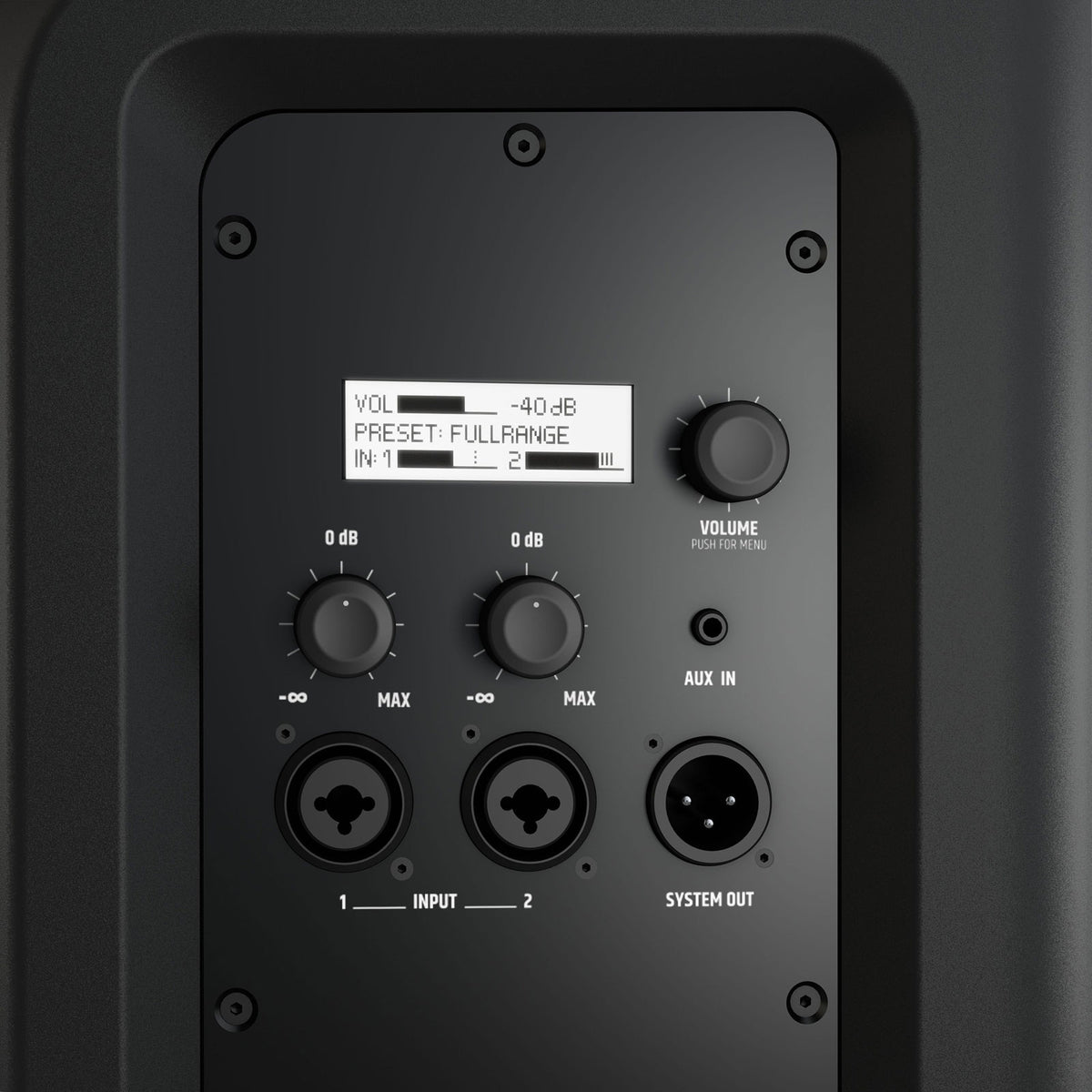

The BT version adds Bluetooth 4.0 streaming, ideal for playing playlists from a smartphone or tablet or for wireless audio content playback. For wired sources, the speaker offers 2 combo XLR / 6.35mm Jack mic/line inputs, plus a 3.5 mm stereo mini-jack AUX input. The XLR Mono Mix output allows sending a mono mix to another speaker or another part of the system.

Installation, Stage Monitoring, and Transport

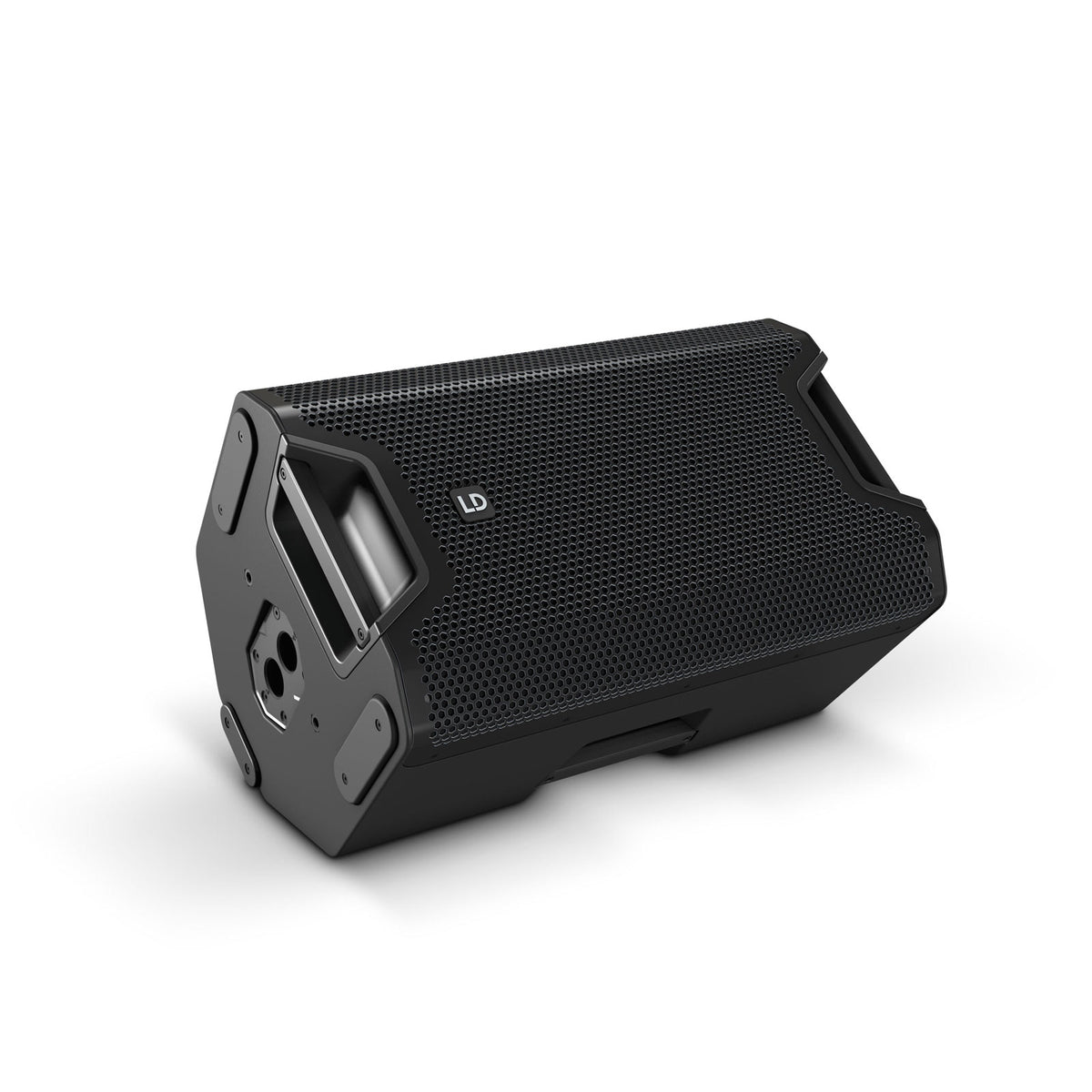

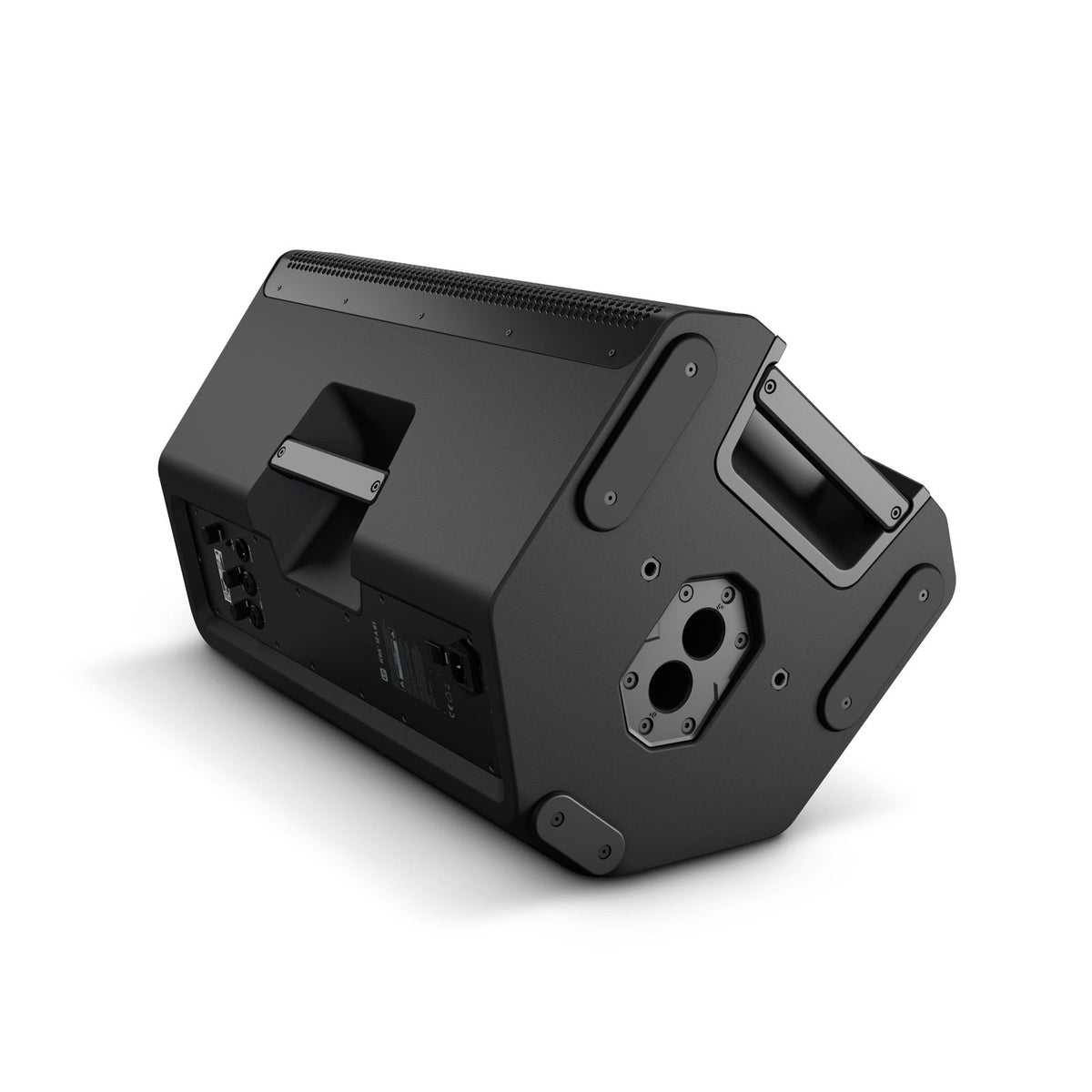

In monitor configuration, the 55deg monitor angle provides suitable projection toward the performer. Vertically, the Dual Tilt 36 mm base allows two fixed positions (0deg or 5deg) to direct sound toward the audience depending on stand height and coverage depth. For rigging, the ICOA 12 A BT features 6 M10 mounting points. Finally, transport is facilitated by 4 aluminum handles with ergonomic rubberized surfaces, convenient for frequent setups and teardowns.

Technical specifications

Battery	No	Cutaway	Yes
Number of channels	2 channels	Speaker structure	polymer molding
Bluetooth	Yes	Inputs	stereo minijack, combo XLR/jack
Speaker diameter	1", 12"	Outputs	XLR
Number of speakers	2	Color	Black
EQ	Yes	Power output	300 W
Media Player	Bluetooth	Nominal mode power consumption (Wh)	150 W

Power	300 Watt RMS / 1200 Watt Peak	Floor angle	55deg
Power consumption	150 Watt	Monitor angle	55deg
Drivers	12-inch LF speaker and 1-inch HF driver	Mounting	0deg, 5deg, 6 M10 rigging points, 36 mm base
Maximum level	126 dB	Dimensions (W x H x D)	635 x 396 x 375 mm
Frequency response	50 - 20000 Hz	Weight	19.95 kg
Steel horn	90deg x 50deg
