LD Systems LD Dave 8 Roadie

A DAVE "Roadie": the "pro audio in motion" spirit in a compact format

With the DAVE 8 Roadie, LD Systems applies its "pro audio in motion" philosophy to an active system designed for performances where quick setup and compactness matter as much as sound quality. In the DAVE range, this configuration combines a compact bandpass subwoofer with two easily positioned satellites to achieve coherent sound dispersion and solid low-end presence, even in limited spaces.

Who it's for and what it's for: rehearsals, small stages, and portable sound reinforcement

The LD Systems DAVE 8 Roadie targets musicians and small ensembles seeking a reliable portable PA system for rehearsals, showcases, coffee concerts, events, speeches, or as a main system in small venues. Its all-in-one format is also ideal for keyboardists, acoustic duos, and presenters who want to quickly connect a microphone, audio source, and/or instrument without multiple boxes.

Thanks to its specified frequency response of 45 to 19,000 Hz and 60 x 60 degrees dispersion, it aims for clean and intelligible projection, with structured bass from the subwoofer and detailed highs from the satellites. The maximum sound pressure level reaches 117 dB SPL continuous and 123 dB SPL peak, useful for maintaining headroom during dynamic passages.

Connectivity and control: a true "plug and play" logic

The DAVE 8 Roadie stands out for its flexible connections: it offers 3 different inputs, usable simultaneously, to mix multiple sources without hassle. One input uses a Combo connector (XLR / 6.35mm Jack) designed for a dynamic microphone. A second input combines RCA connectors (cinch type) for computers and Combo connectors to connect a mixer, keyboard, or line source. Finally, the third input accepts both a 3.5mm stereo mini-jack and a 6.35mm Jack: ideal for an audio player or an electro-acoustic guitar, with an MP3 / Hi-Z selector to adapt the operation.

Class A/B amplification with protections and stage-oriented settings

The amplification module is integrated into the bass cabinet and operates in Class A/B, powering both the subwoofer and satellites. To secure the system during intensive use, standard protections (short circuit, overload) are included, along with a built-in limiter to prevent overloads and preserve speaker longevity.

Balancing the mix in seconds

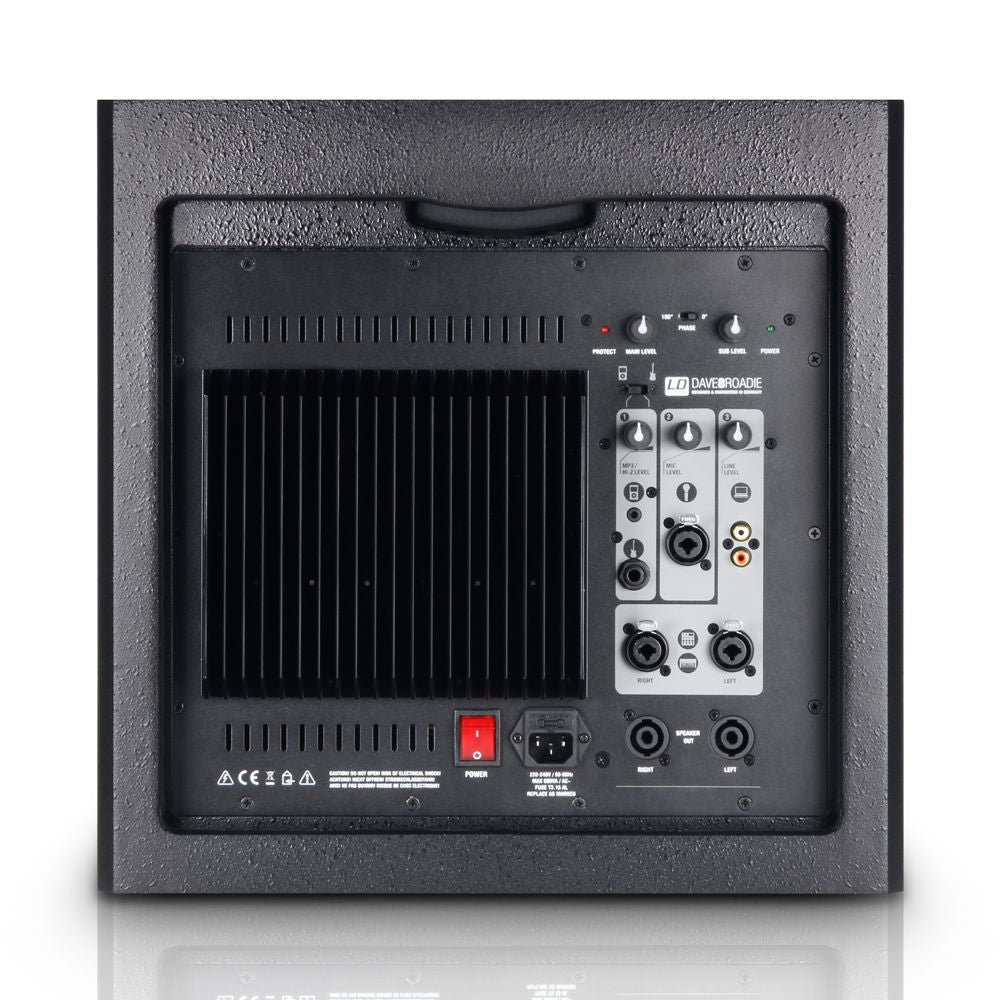

Front panel controls allow precise adjustment of the sound: Sub level to control the bass foundation, Main level for overall volume, and dedicated controls for Mic, Line, and MP3 / Hi-Z. A 180-degree polarity switch helps optimize phase according to placement and acoustics, resulting in tighter and better-integrated bass.

Designed to move

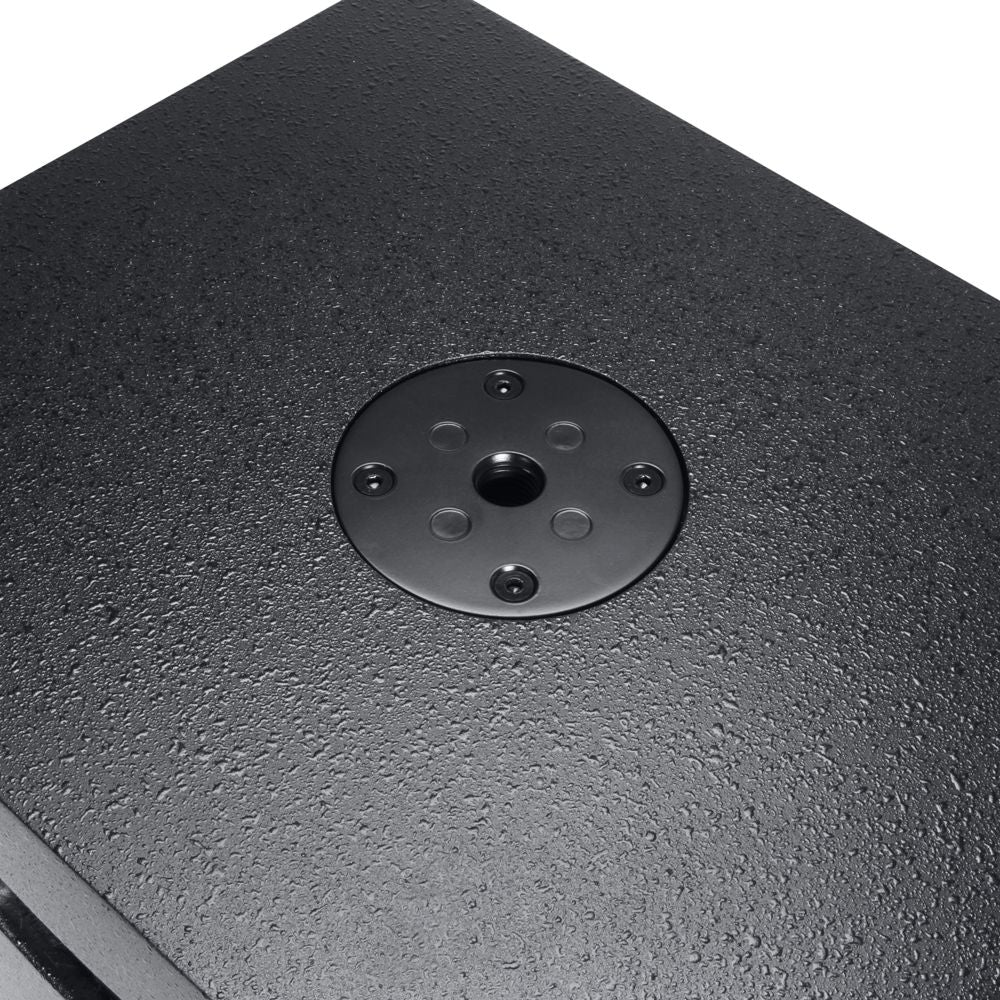

Between the robust front grilles, ergonomic handles on the cabinet and satellites, and the M20 threaded base on the cabinet, everything is designed to facilitate transport, quick setups, and regular use. The result: a relevant companion for musicians seeking a compact, efficient, and coherent solution without sacrificing vocal clarity or instrument punch.

Technical specifications

Type	active	Midrange driver magnet	Ferrite
Color	black	Midrange driver brand	custom design
Maximum continuous sound pressure level	117 dB SPL	Midrange voice coil diameter	1 inch
Maximum peak sound pressure level	123 dB SPL	Horn	radial
Frequency response	45 - 19,000 Hz	Tweeter diameter	1 inch
Dispersion angle (H x V)	60 x 60 degrees	Tweeter magnet	Ferrite
Woofer diameter	8 inches	Tweeter brand	custom design
Woofer magnet	Ferrite	Tweeter voice coil diameter	1 inch
Woofer brand	custom design	Nominal impedance mid/high satellite	4 Ohms
Woofer voice coil diameter	1.5 inches	Speaker inputs	1
Enclosure type	bandpass	Speaker input connectors	Speakon compatible
Enclosure material	MDF (medium-density fiberboard)	Mid/high satellite enclosure construction	sealed
Enclosure surface finish	paint	Mid/high satellite enclosure material	MDF (medium-density fiberboard)
Subwoofer width	345 mm	Mid/high satellite surface finish	paint
Subwoofer height	430 mm	Mid/high satellite width	150 mm
Subwoofer depth	460 mm	Mid/high satellite height	350 mm
Subwoofer highlights	built-in limiter, M20 threaded base, handles	Mid/high satellite depth	170 mm
Subwoofer weight	20.7 kg	Mid/high satellite highlights	16 mm threaded base, metal front grille, carrying handle
Midrange driver diameter	2 x 4 inches	Mid/high satellite weight	4.2 kg
