A Series Designed for the Stage: The U500, Professional Level Made Accessible
The U500 series from LD Systems was developed with a clear goal: to offer a wireless microphone system capable of delivering professional sound, flawless reliability, and modern usability, while remaining affordable. Within the range, the U500 positions itself as a powerful solution for musicians, singers, hosts, and service providers who need a robust system that is simple to deploy and built for intensive use.
This U505 version operates within the 584 to 608 MHz range and supports a "multi-system" approach: up to 12 systems can be used simultaneously within the designated bands. This makes it possible to build a coherent setup for studios, rehearsals, small stages, and events, while maintaining a smooth installation experience.
Who It's For and What It's For: Live Singing, Speech, Events, Performances
The LD Systems U505 is an excellent choice if you are looking for a reliable handheld wireless microphone for vocals or speech, with precise reproduction and a cardioid pattern designed to minimize unwanted sound pickup around the capsule. It is suitable for both performing artists and hosts, speakers, associations, or equipped venues (rehearsal rooms, schools, small stages) seeking an effective system without complexity.
The series is also available in variants adapted for other uses (brass instruments, guitar, lavalier mic, headset mic), allowing you to unify your equipment setup under a single operating logic if you have multiple sources on stage.
Technical specifications
| Category | Complete system | Capsule | static |
| Directivity | cardioid | ||
Questions frequently asked
Is the LD Systems LD U505 HHC suitable for stage vocals?
The cardioid condenser capsule is designed for vocals and speech, with a directional pattern that limits sound pickup around the microphone. The frequency response ranges from 30 to 16,000 Hz.
What is the frequency range of the system?
This model operates in the UHF band from 584 to 608 MHz and features 96 channels grouped into 8 groups of 12 channels each.
How many wireless microphones can operate simultaneously?
Up to 12 systems can be used simultaneously on the designated bands. The automatic channel scan helps select a free frequency, then infrared synchronization aligns the transmitter and receiver.

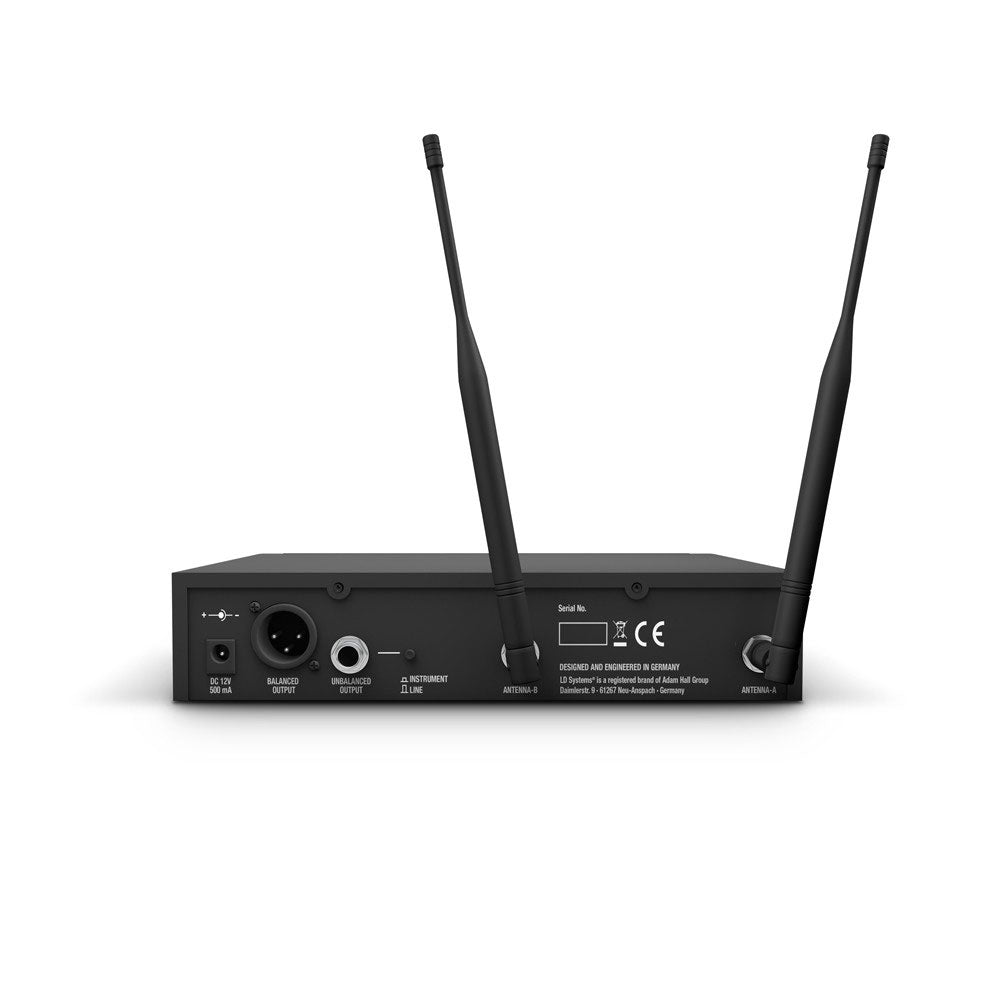

What audio outputs are available on the receiver?
The receiver includes a balanced XLR output and an unbalanced 6.35 mm jack output. The maximum output level reaches +10 dBu.
What battery life and radio stability does this wireless microphone offer?
The transmitter uses two AA batteries and provides over 10 hours of operation with alkaline batteries. The UHF True Diversity reception employs two BNC antennas, while the RF power is adjustable to 2, 10, or 30 mW. A squelch combined with a pilot tone mutes the output in the absence of the transmitter's pilot signal.
