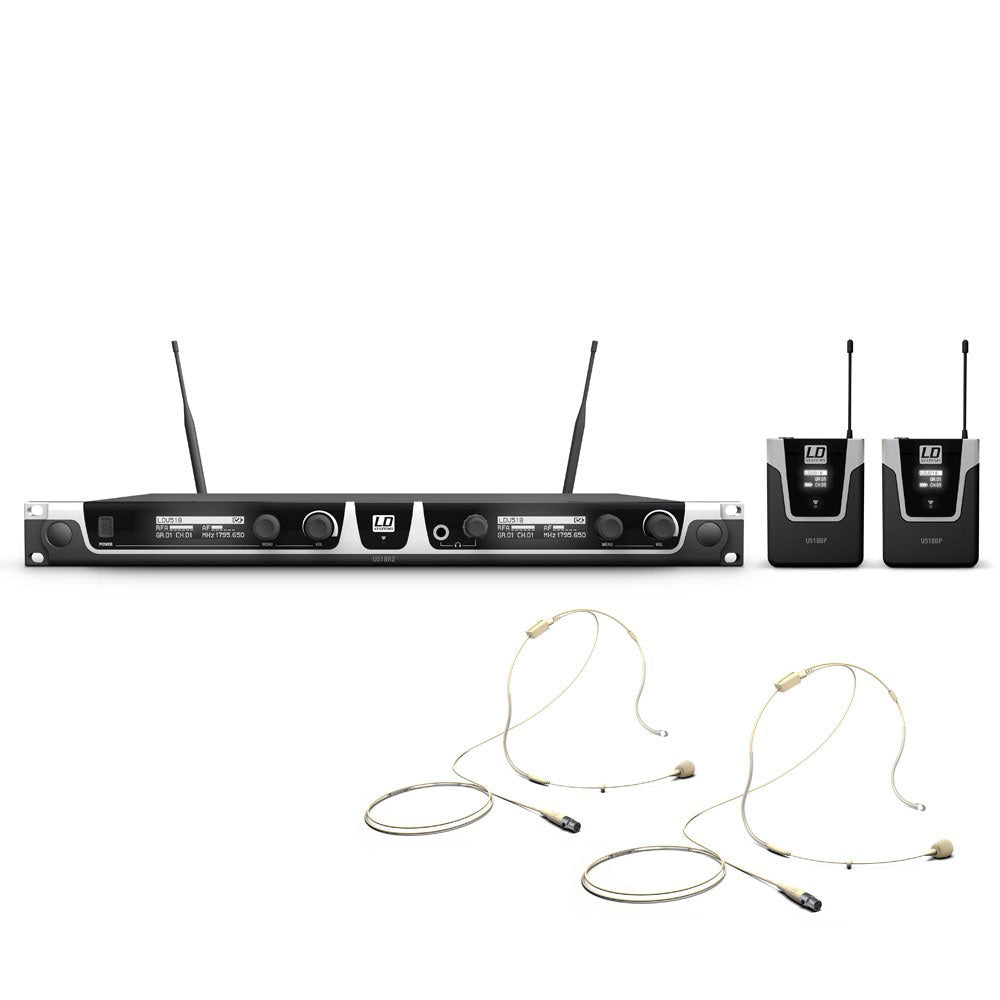

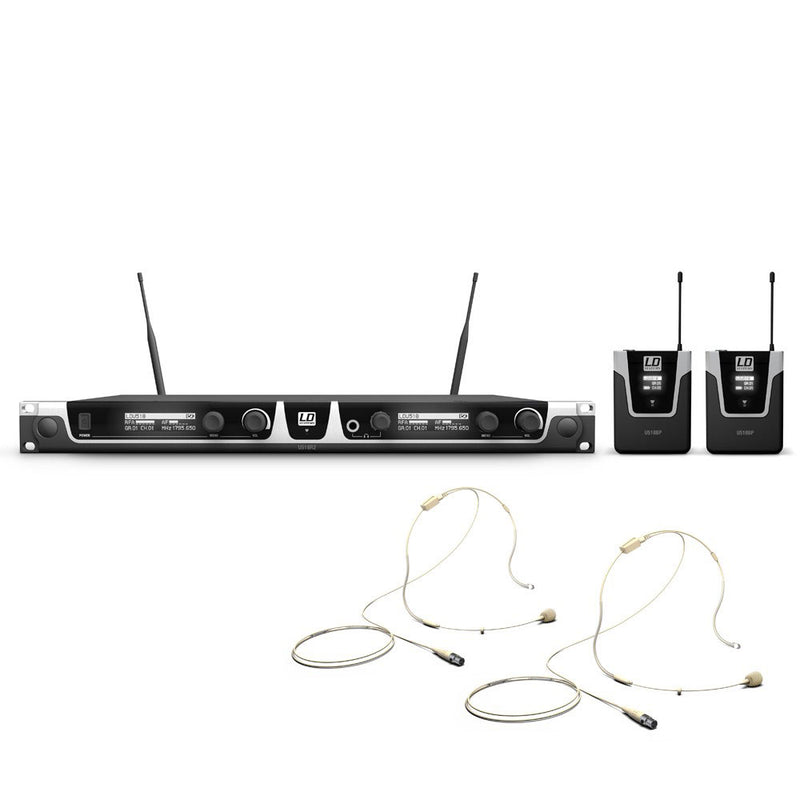

LD Systems LD U518 BPHH 2

WIN42: a series designed to gain flexibility on UHF bands

Developed to better adapt to the evolving usage constraints of HF systems (notably those anticipated by 2015), the WIN42 follows a logic of deployment flexibility without compromising a professional approach. The goal is clear: to offer a UHF system capable of covering numerous contexts, with extended frequency management and practical functions that simplify daily operation.

For singers, speakers, and musicians: mobility without compromise

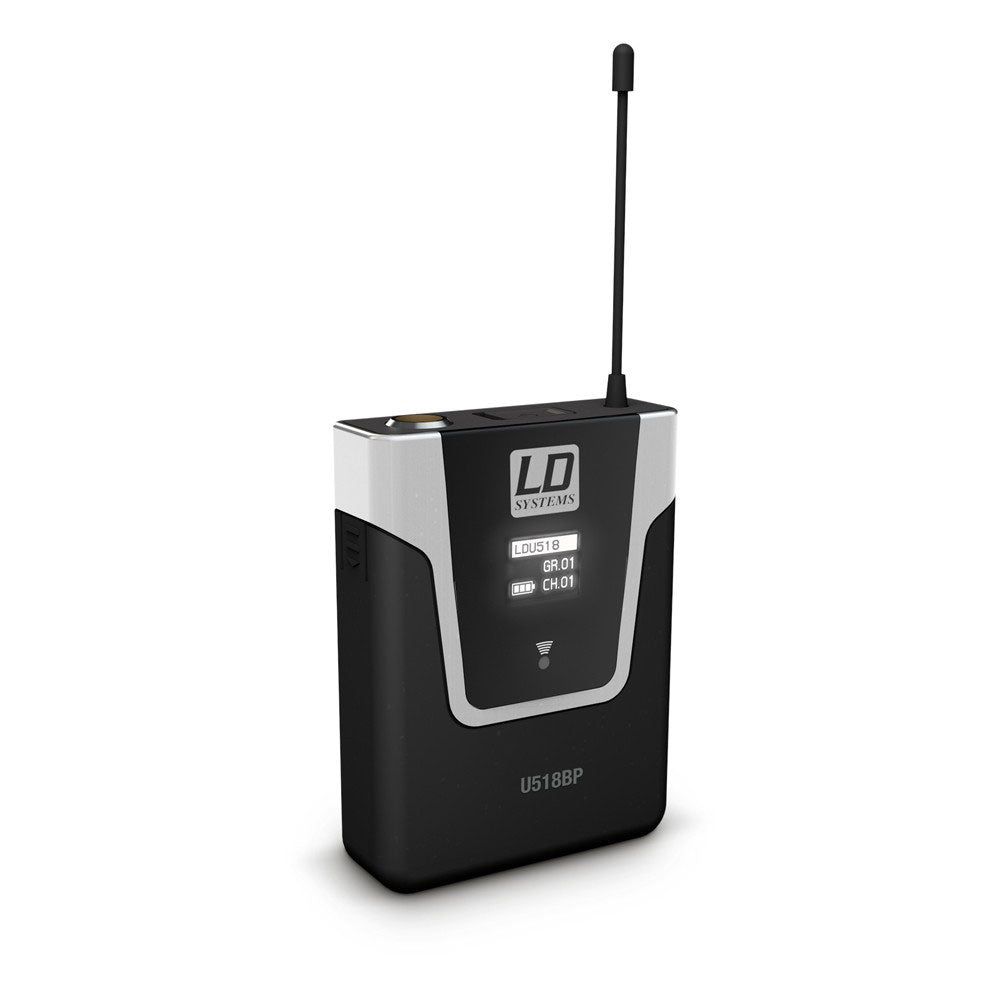

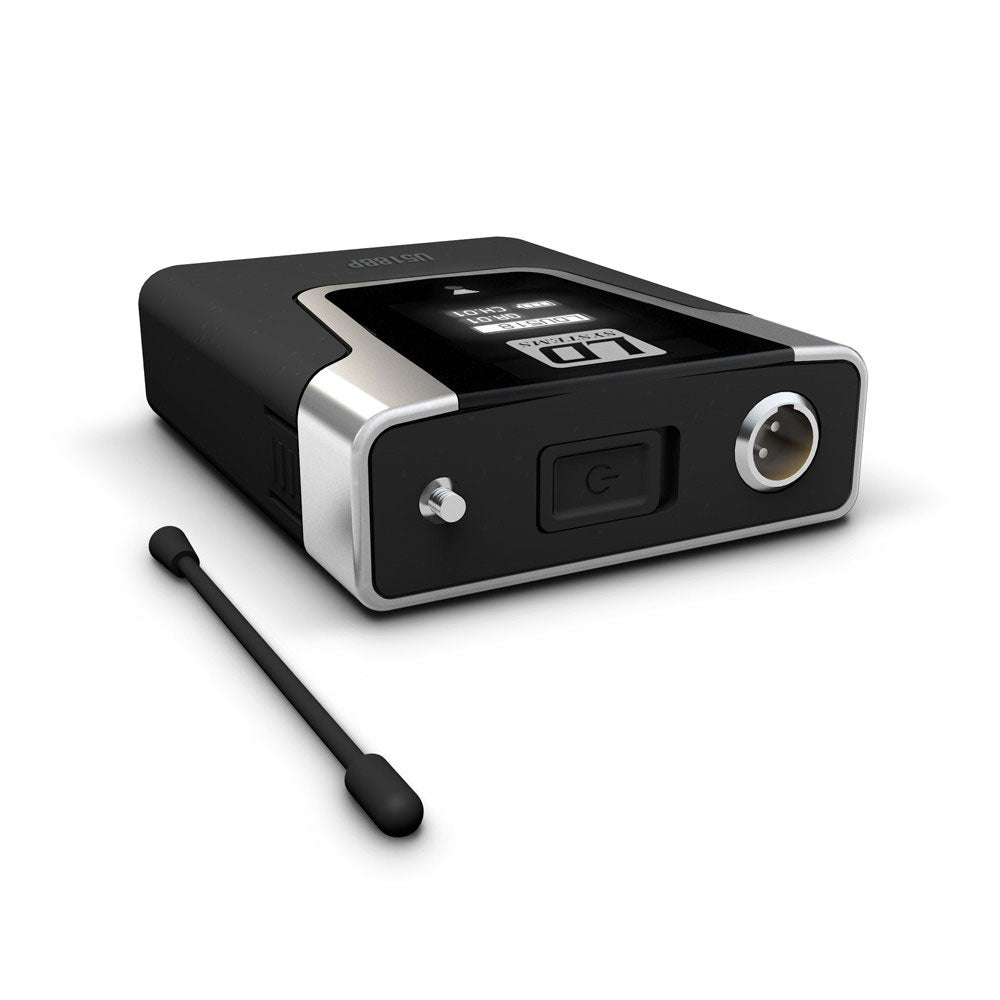

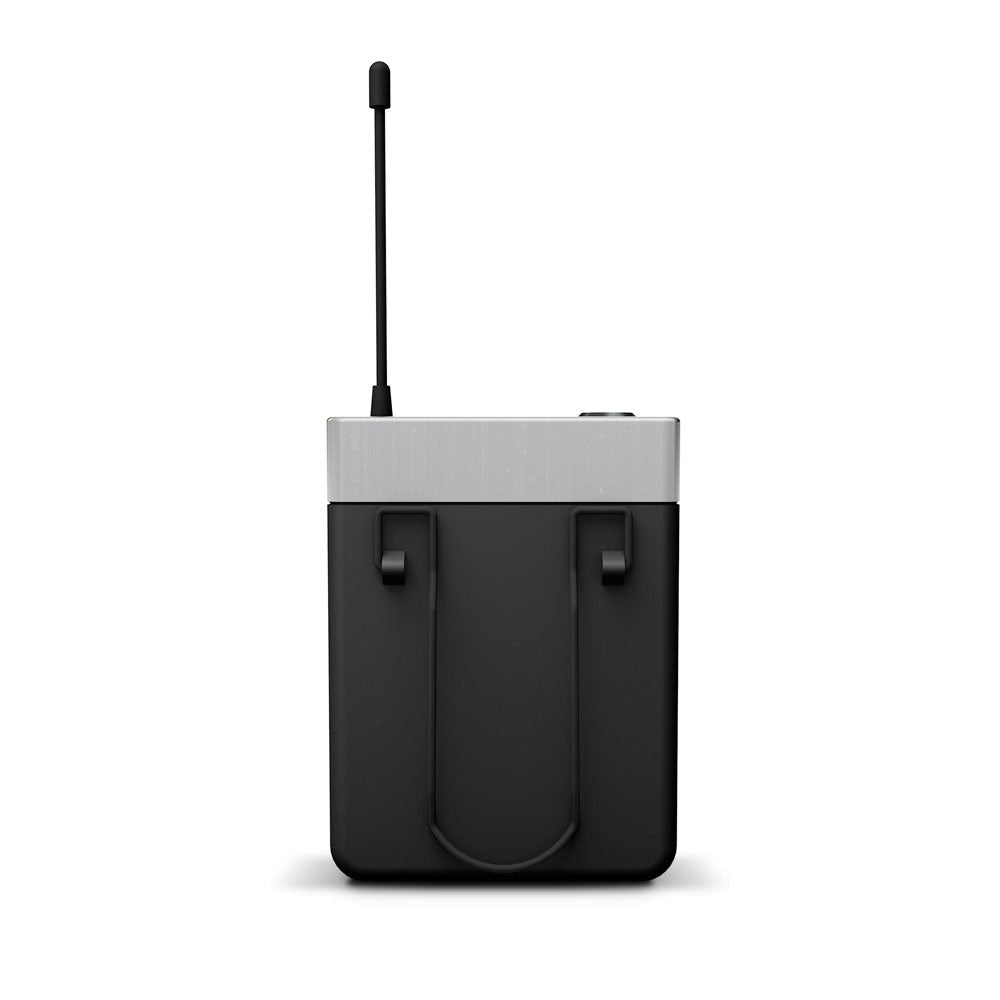

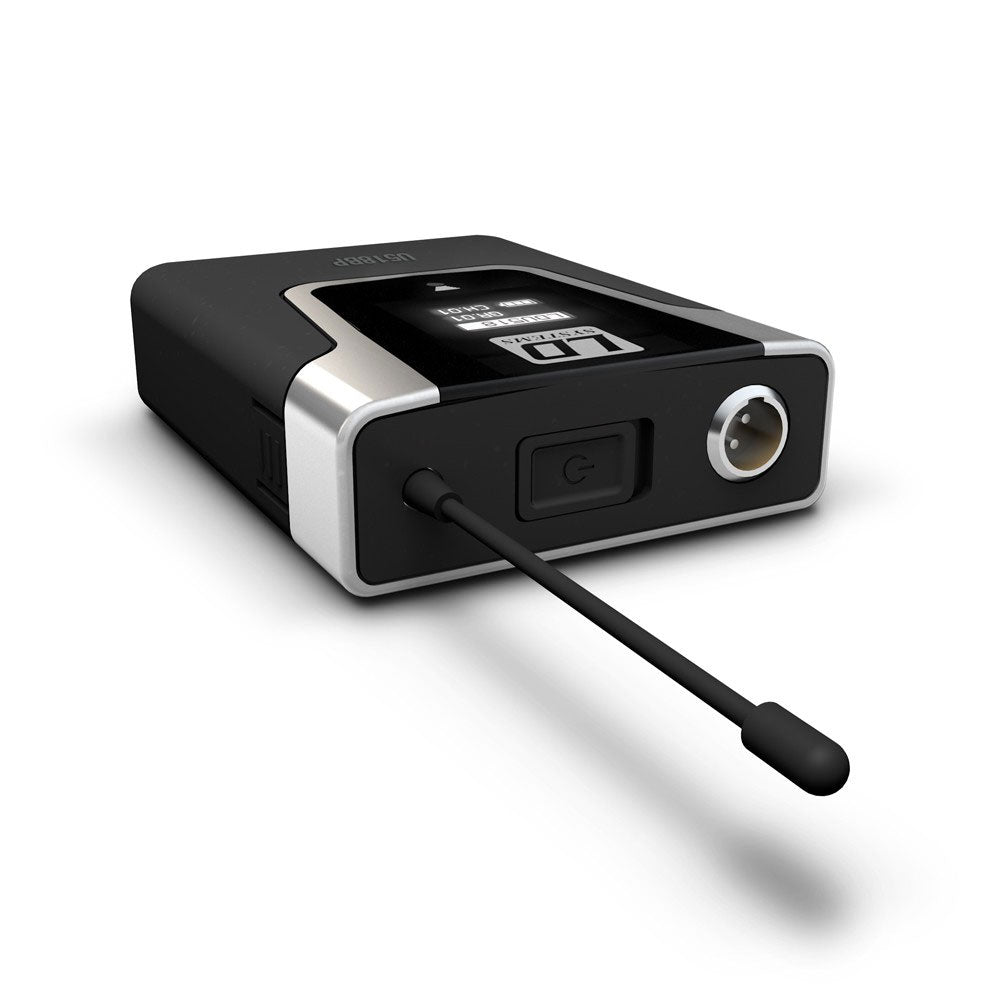

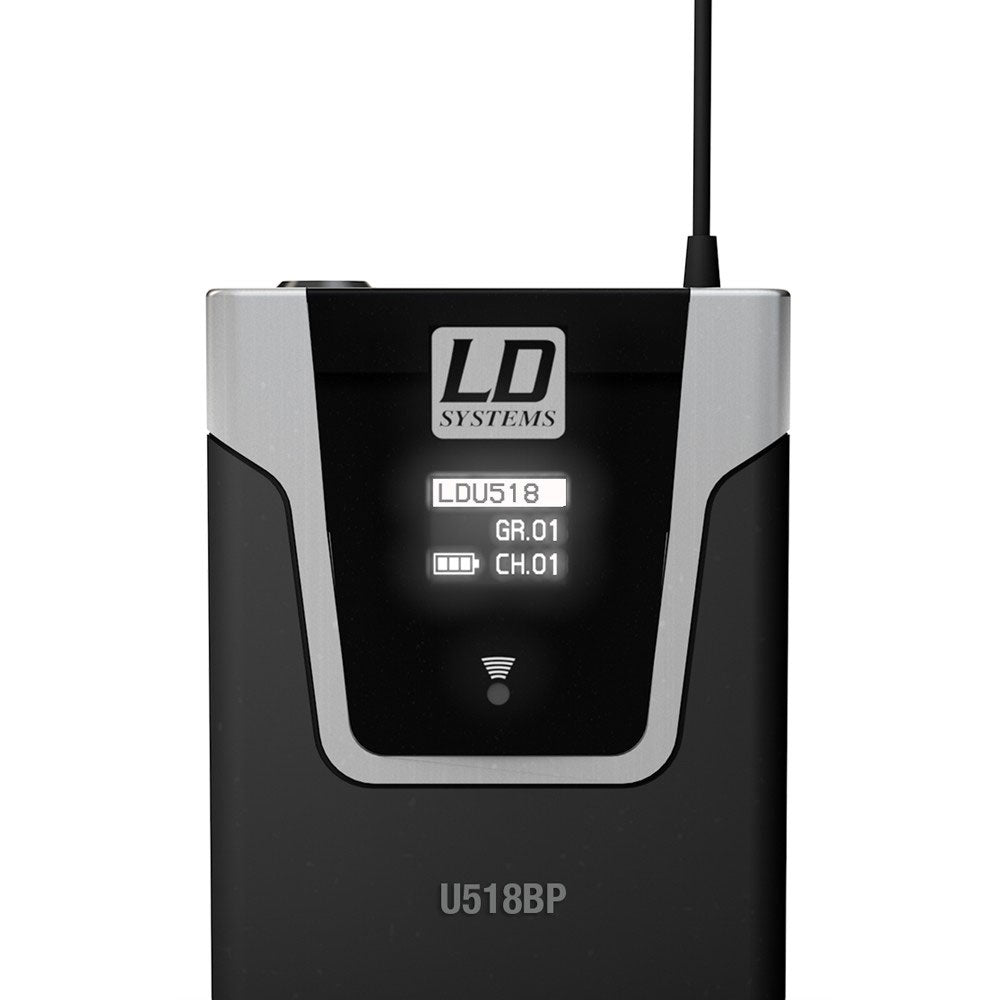

This WIN42 set is designed for all situations where freedom of movement is essential: lead vocals, spoken interventions, hosting, instrumentation... Handheld or belt-pack transmitters (depending on configuration) ensure transmission adapted to the constraints of live performances, events, and itinerant services, while fitting perfectly in fixed installations (multipurpose rooms, places of worship, schools, businesses).

Thanks to the large number of available frequencies and the ability to operate multiple systems simultaneously, the WIN42 is particularly comfortable whenever several users need to be equipped or when the radio environment is crowded.

Channel search, synchronization, and reception: field-oriented functions

Channel Scan: quickly find a clear frequency

The Channel Scan function helps identify interference-free working frequencies. A real time saver when arriving at a venue already equipped or when adapting to last-minute configurations. Once the frequency is found and stored, the configuration can be efficiently transmitted to the transmitter.

Infrared synchronization: simpler setup

The system allows transmission of frequency values from receiver to transmitter via infrared. This step reduces input errors and speeds up preparation, especially when multiple channels need to be set coherently.

Adjustable transmission power: reliability according to context

The transmission power is adjustable directly on the microphone (3 levels: 10, 30, and 50 mW). Depending on distance, radio density, and stage constraints, you can prioritize battery life, RF discretion, or link robustness.

True Diversity receiver: enhanced stability

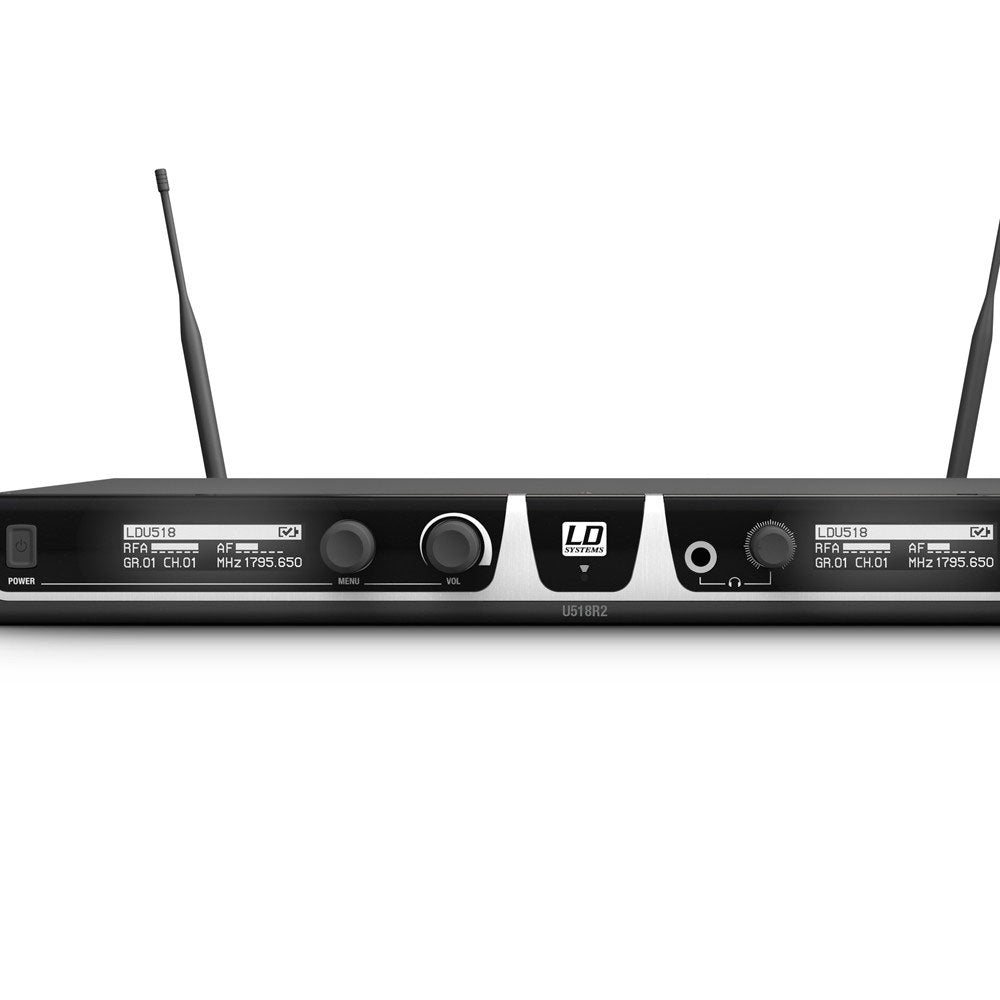

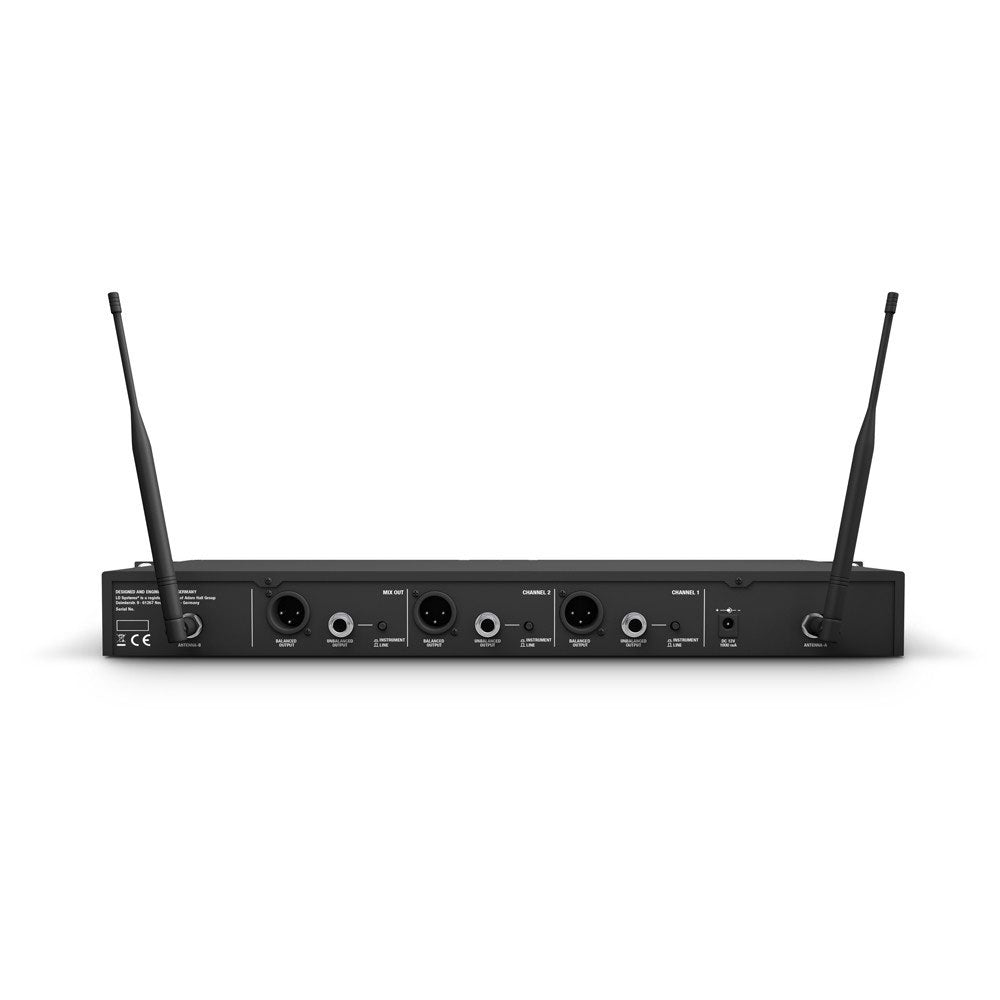

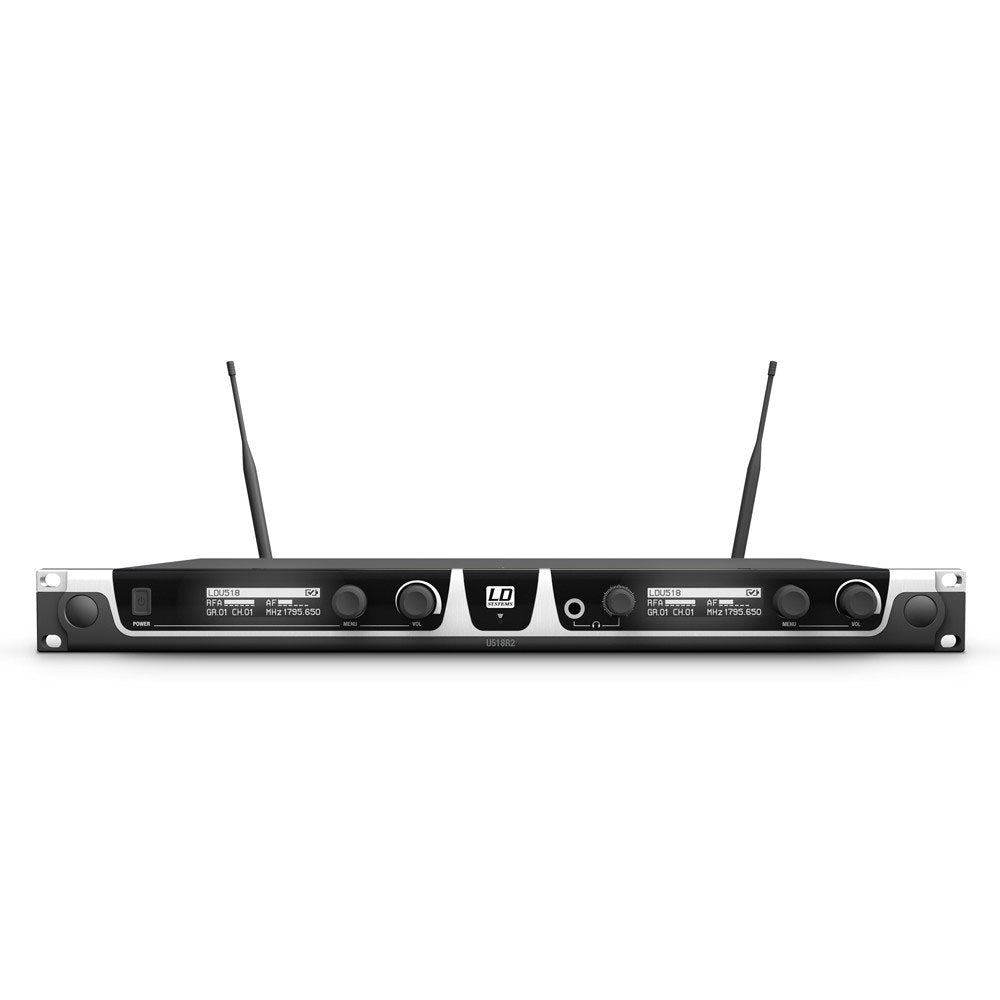

The True Diversity receiver helps secure transmission under real conditions. It adopts a half-rack 19-inch format, convenient for compact racks as well as installations where space is limited, while retaining user-oriented features: battery level display, indication of the transmitter's Mute status, and 4 switchable EQ presets for quick sound adjustment.

Interchangeable capsule: adapt the microphone to voice and use

On the handheld transmitter, the interchangeable microphone capsule is screw-mounted, allowing quick changes of sound character (dynamic or condenser capsule) depending on the voice, style, or desired detail level. This modularity is a real asset for microphone fleets, rental companies, or users seeking an evolving system.

Technical specifications

Category

Complete system

Capsule

dynamic / static

UHF frequency bands	734 to 776 MHz	Type	True Diversity
User frequency bank	1680 possible frequencies, adjustable in 25 kHz steps	Format	half-width 19-inch rack
Adjustable transmission power at the microphone	10, 30, and 50 mW
