LD Systems LDRM102HSB5 (655 - 679 MHZ)

An all-in-one solution designed for mobile sound reinforcement

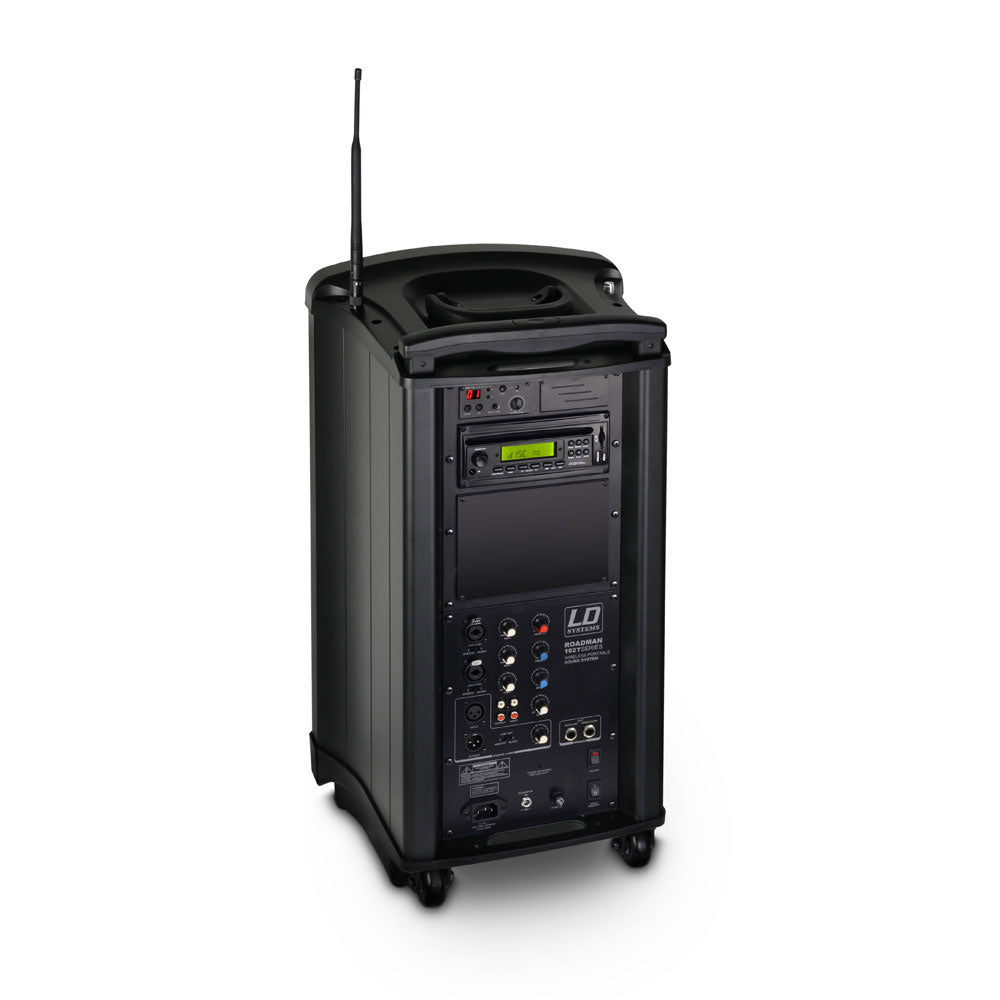

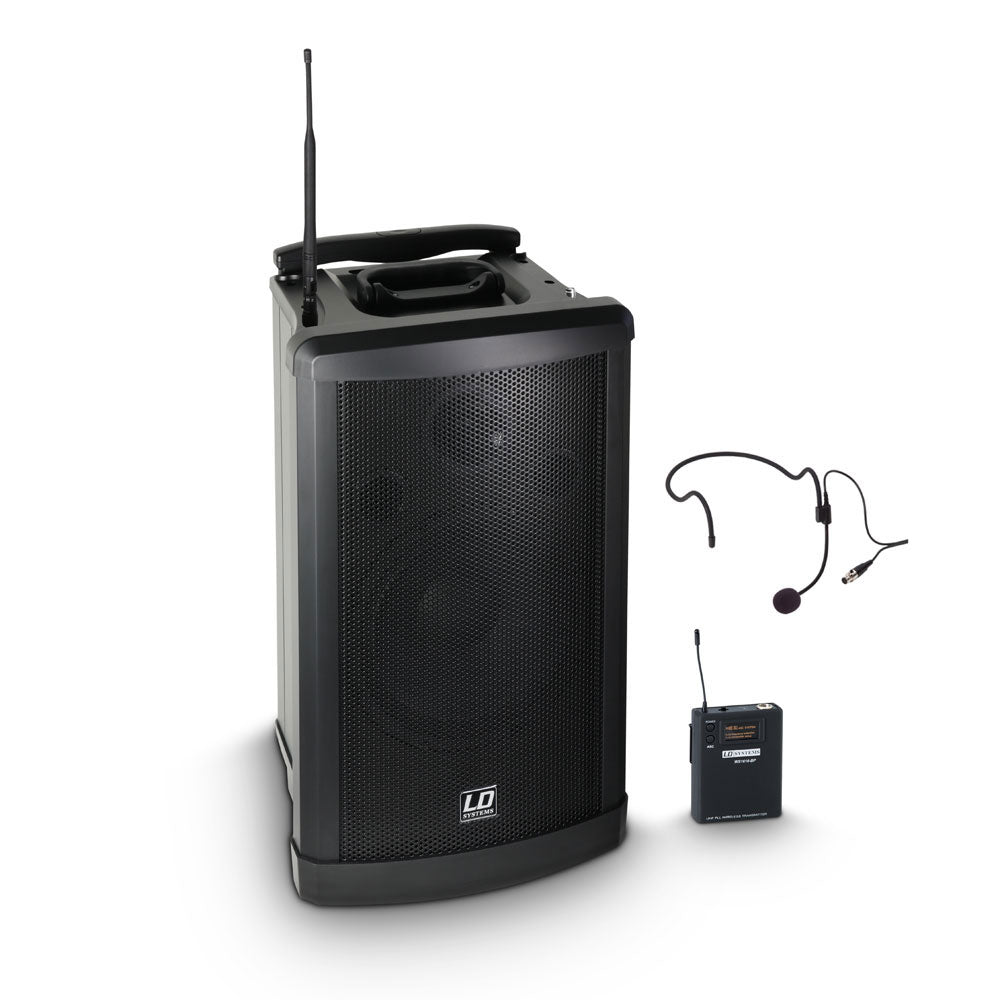

The LD Systems Roadman 102 HS B5 combines an active loudspeaker, battery power supply, compact mixing section, multimedia player and wireless microphone link in a single system. This all-in-one design meets the needs of users looking to set up a clear, practical sound system that can be put into operation quickly, without relying on multiple external devices.

Its 10-inch loudspeaker combined with a 1-inch tweeter delivers balanced sound distribution for speech, announcements and background music. Compact, rugged and easy to move, this portable loudspeaker prioritizes battery life and ease of use in situations where access to mains power is not always readily available.

The ideal partner for presenters, trainers and speakers

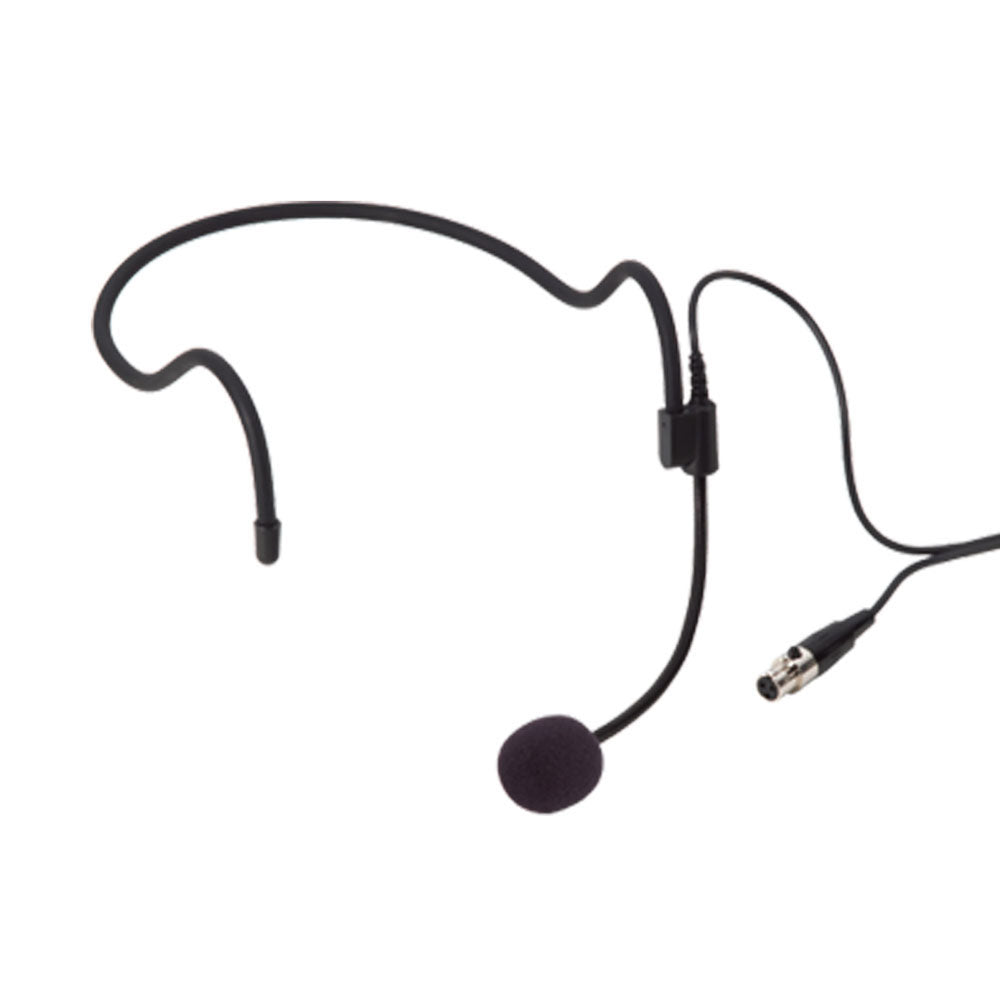

Thanks to its wireless headset microphone, the Roadman 102 HS B5 is particularly suited to fitness coaches, teachers, lecturers, presenters, guides, associations and speakers in educational or cultural settings. The headset keeps the hands free for writing, demonstrating a movement, handling equipment or interacting naturally with the audience.

This battery-powered PA loudspeaker is also suitable for small musical performances, ceremonies, speeches, outdoor meetings, places of worship and community events. With a maximum sound pressure level of 115 dB, it provides the necessary headroom to effectively cover a moderately sized group in a room, courtyard or reasonably sized outdoor space.

For mobile DJs and event organizers, it is a relevant secondary solution for providing sound at a cocktail reception, welcome area, workshop or speech. Its portability allows it to be set up quickly wherever a conventional active loudspeaker would require mains power and more cabling.

Voice, music and multimedia sources combined in a self-contained loudspeaker

The Roadman 102 HS B5 features an 80 W RMS and 320 W peak Class D amplifier. This amplification delivers dynamic sound reproduction while preserving battery life. Bass and treble controls make it possible to adapt the sound to the environment, whether the priority is speech intelligibility or adding more presence to playback music.

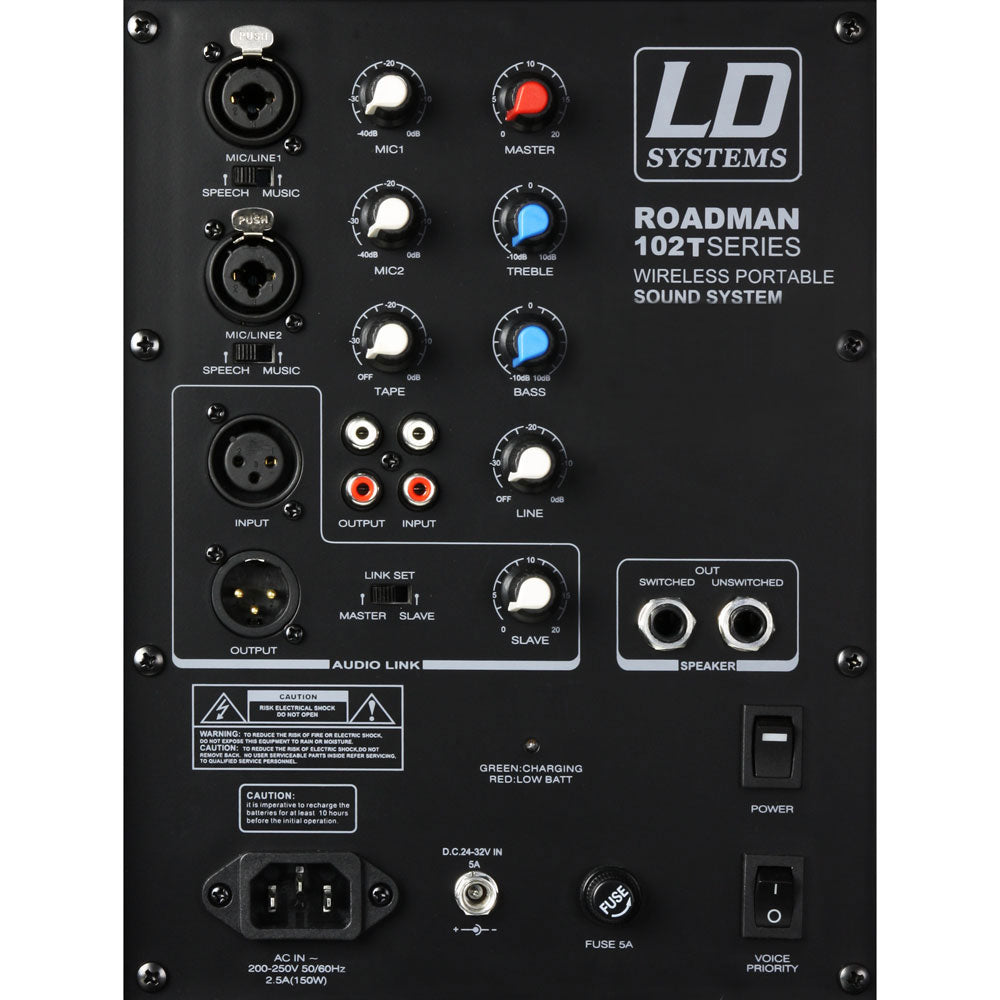

Two microphone or line inputs on combination XLR and 6.35 mm jack connectors allow additional sources to be connected, including a wired microphone, instrument, mixing desk or audio player. Independent controls make it easy to balance voices, music and external sources. The Voice Priority function can automatically bring the voice to the forefront when someone speaks.

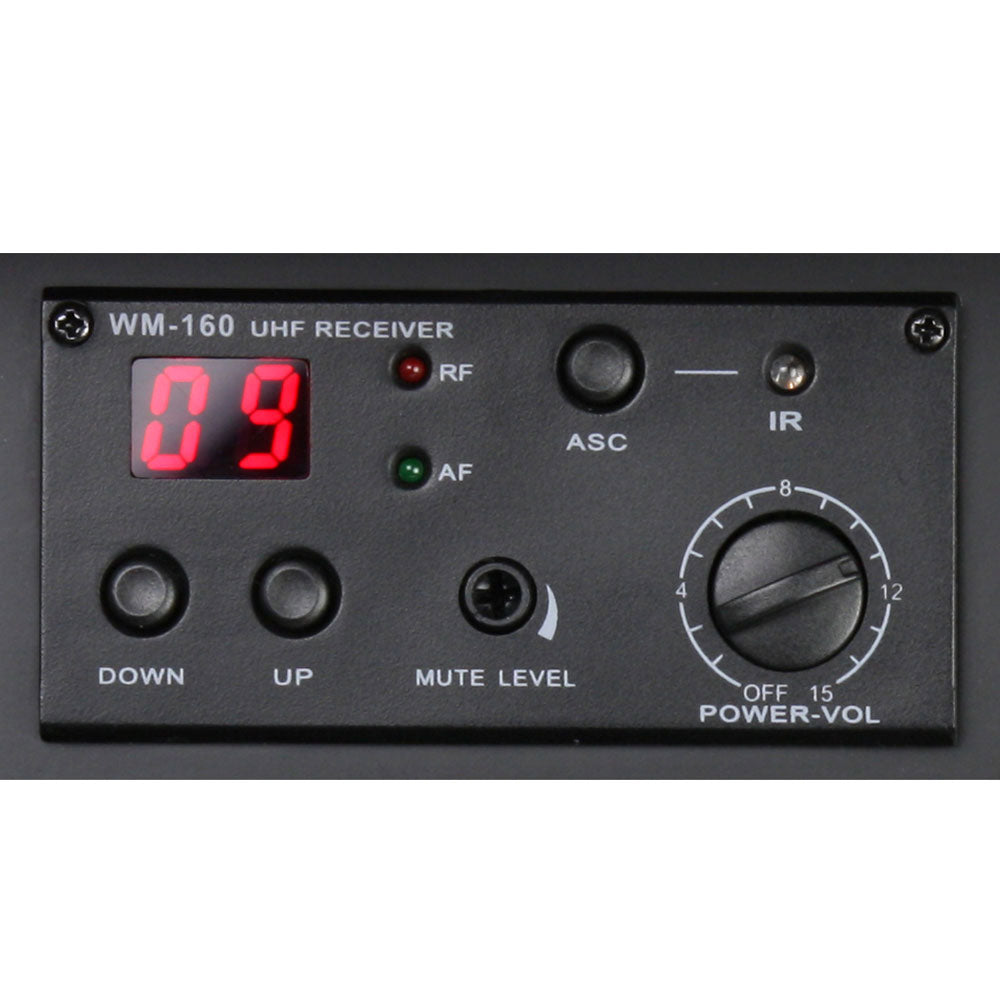

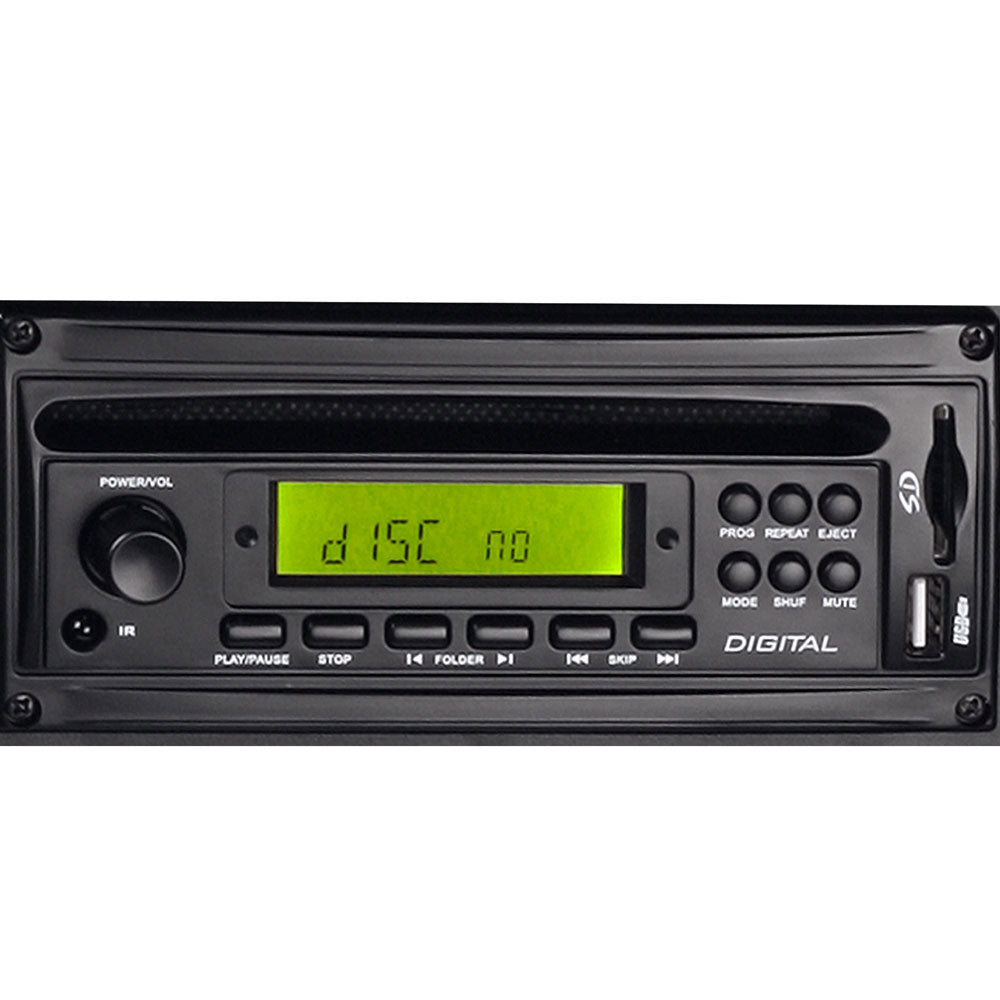

The integrated player supports audio CDs, MP3 CDs, USB drives and SD cards. This makes it possible to play a playlist or jingles without a computer. The Audio-Link function also allows the loudspeaker to be integrated into a larger setup, with a master and follower configuration. The wireless system operates in the 655–679 MHz frequency range.

Technical specifications

Battery

Yes

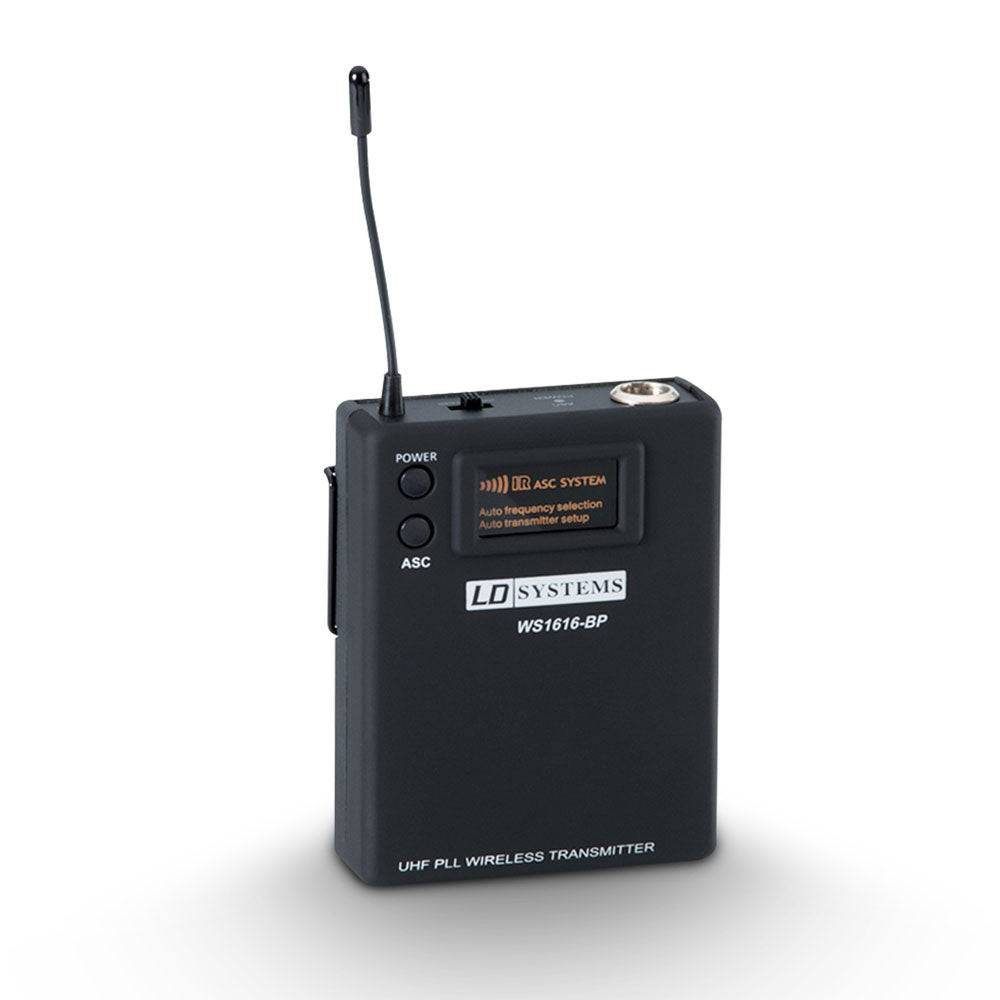

Type	portable battery-powered sound reinforcement loudspeaker	Microphone supplied	wireless headset microphone with beltpack transmitter
Configuration	system with wireless headset microphone	HF frequency range	655 to 679 MHz
Design	2-way loudspeaker	Controls	microphone 1 and microphone 2 volume
Woofer and midrange driver	10 inches, i.e. 254 mm	Equalisation	bass and treble
Tweeter	1 inch, i.e. 25.4 mm	Audio-Link function	main or follower mode
Frequency response	70 to 16,000 Hz	Media player	CD, MP3, USB and SD card
Sound pressure level	95 dB for 1 W at 1 m	Compatible media	audio CD, CD-R, CD-RW, USB flash drive and SD card
Maximum sound pressure level	115 dB	Supported formats	audio CD, MP3 and WMA
Acoustic design	bass reflex	Display	backlit multifunction LCD
Protection	short-circuit protection circuit	Microphone inputs	2
Amplifier	Class D	Microphone input connectors	XLR and 6.35 mm jack
RMS power	80 W	Line inputs	3
Peak power	320 W	Line input connectors	RCA and Audio-Link input on female XLR
Built-in rechargeable batteries	2 x 12 V, 4.5 Ah	Line outputs	3
Indicators	power and battery charge level	Output connectors	RCA and Audio-Link output on male XLR
