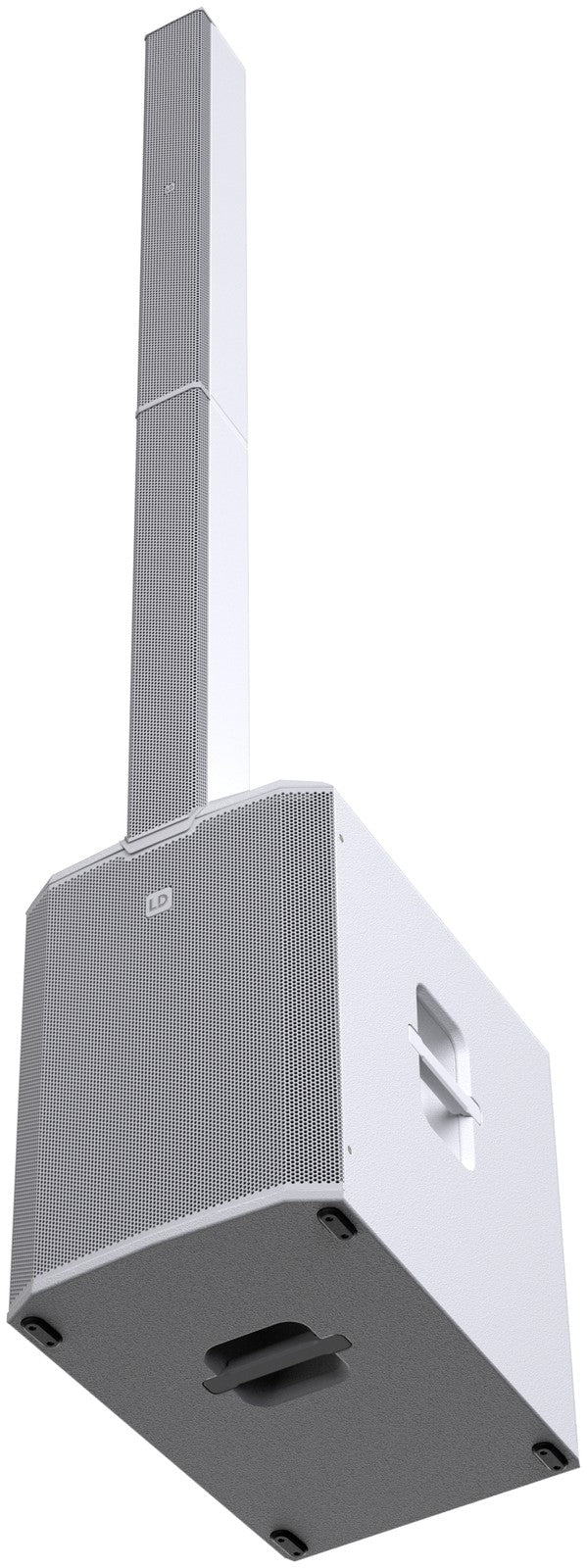

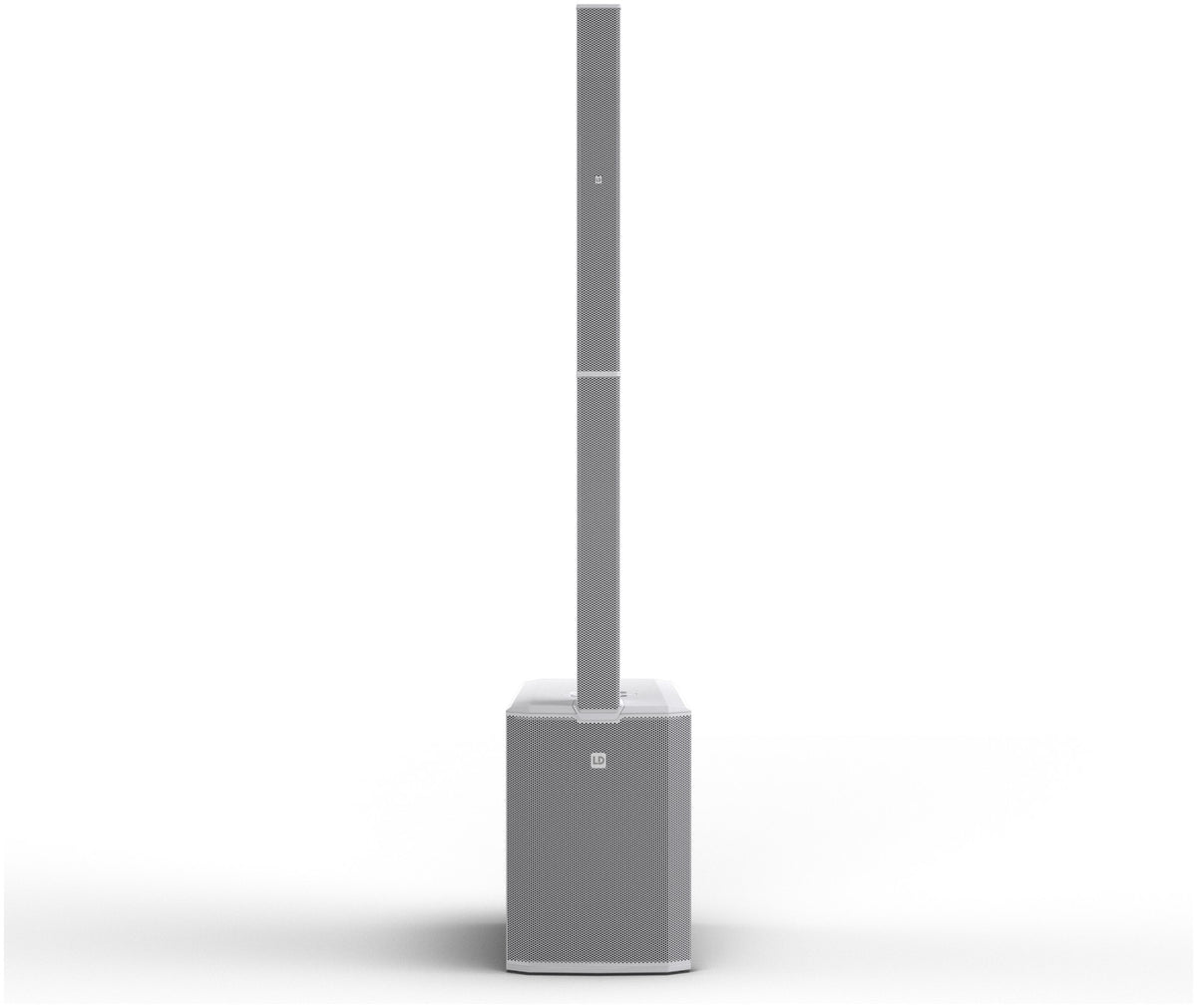

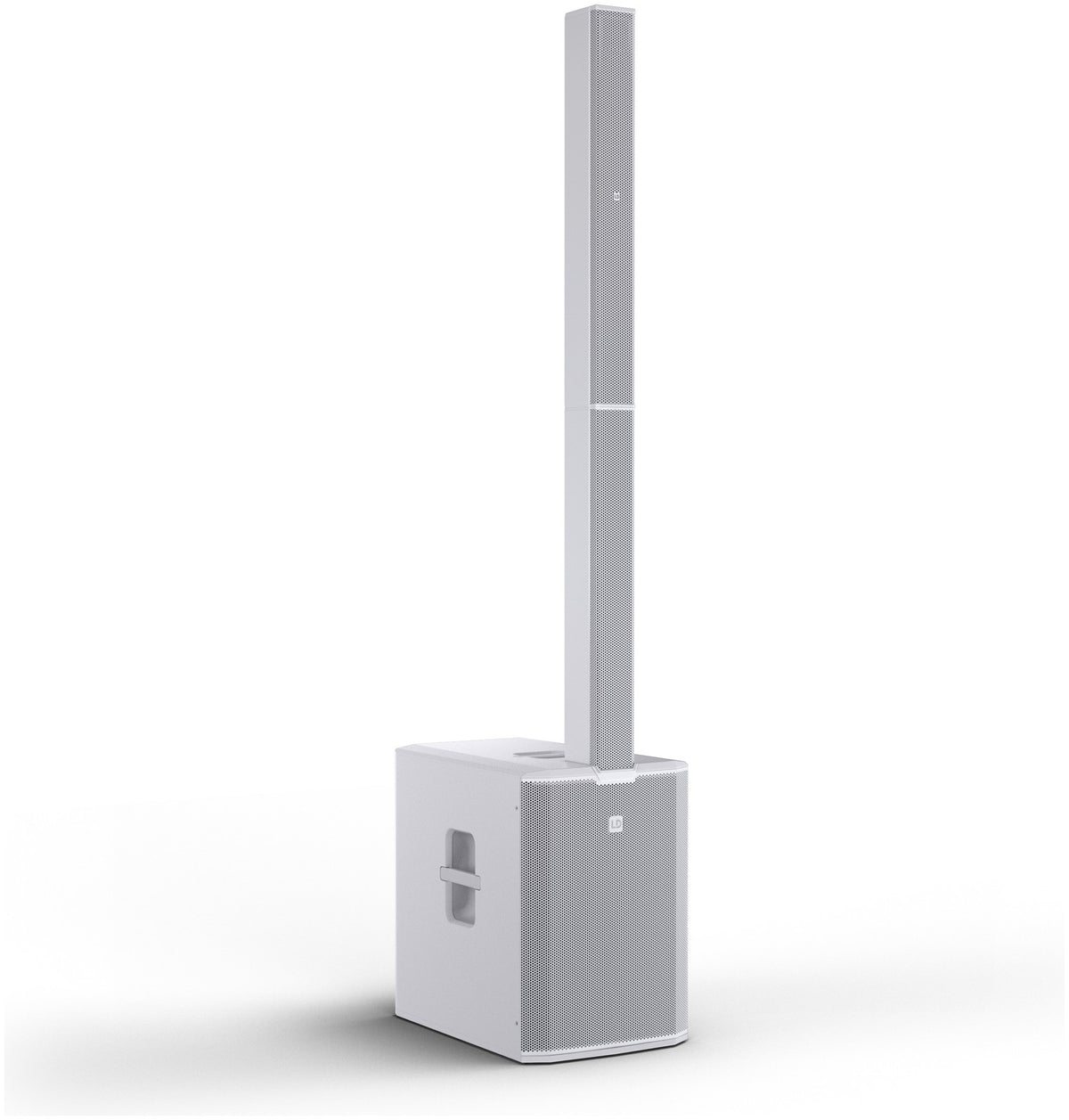

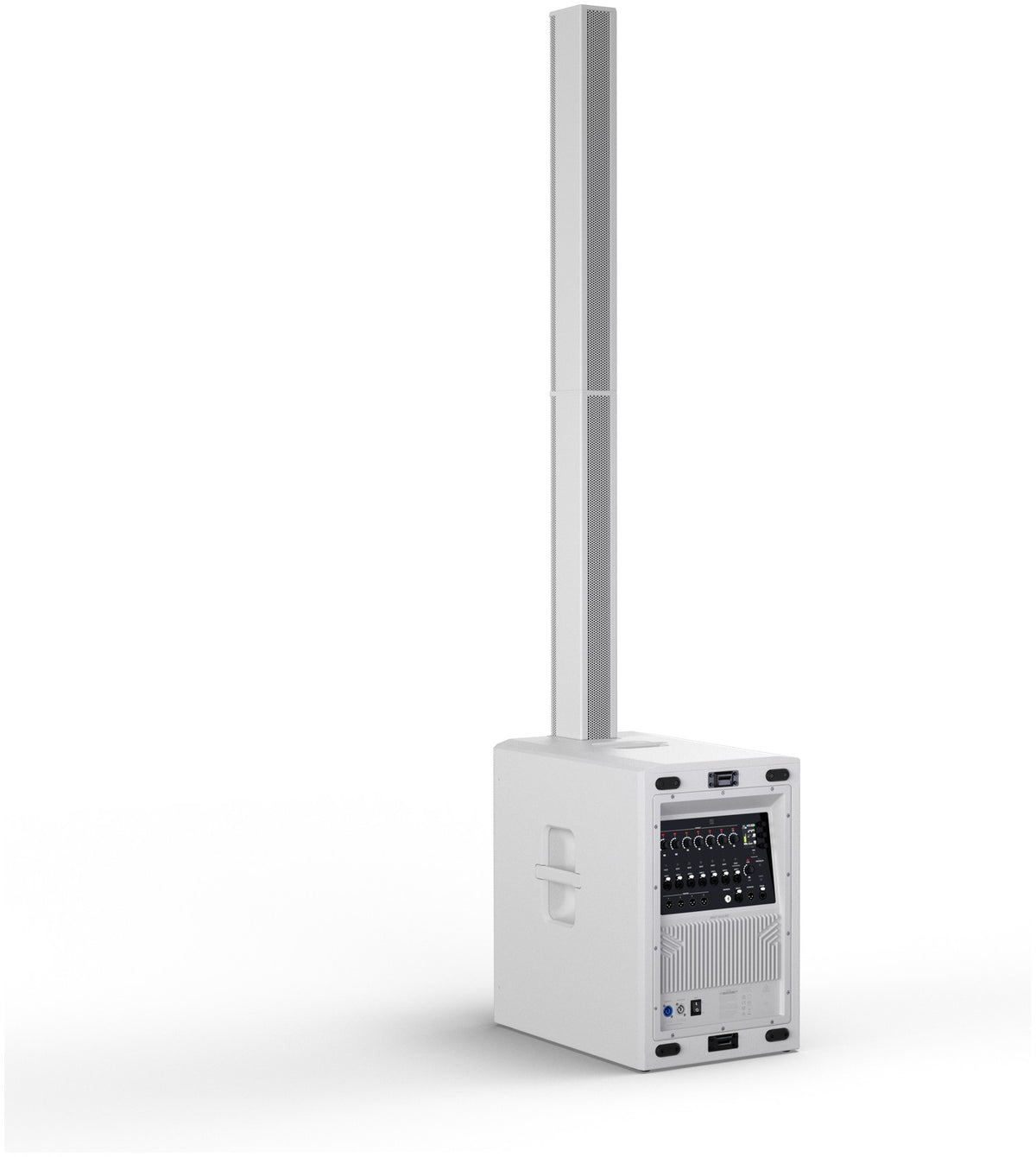

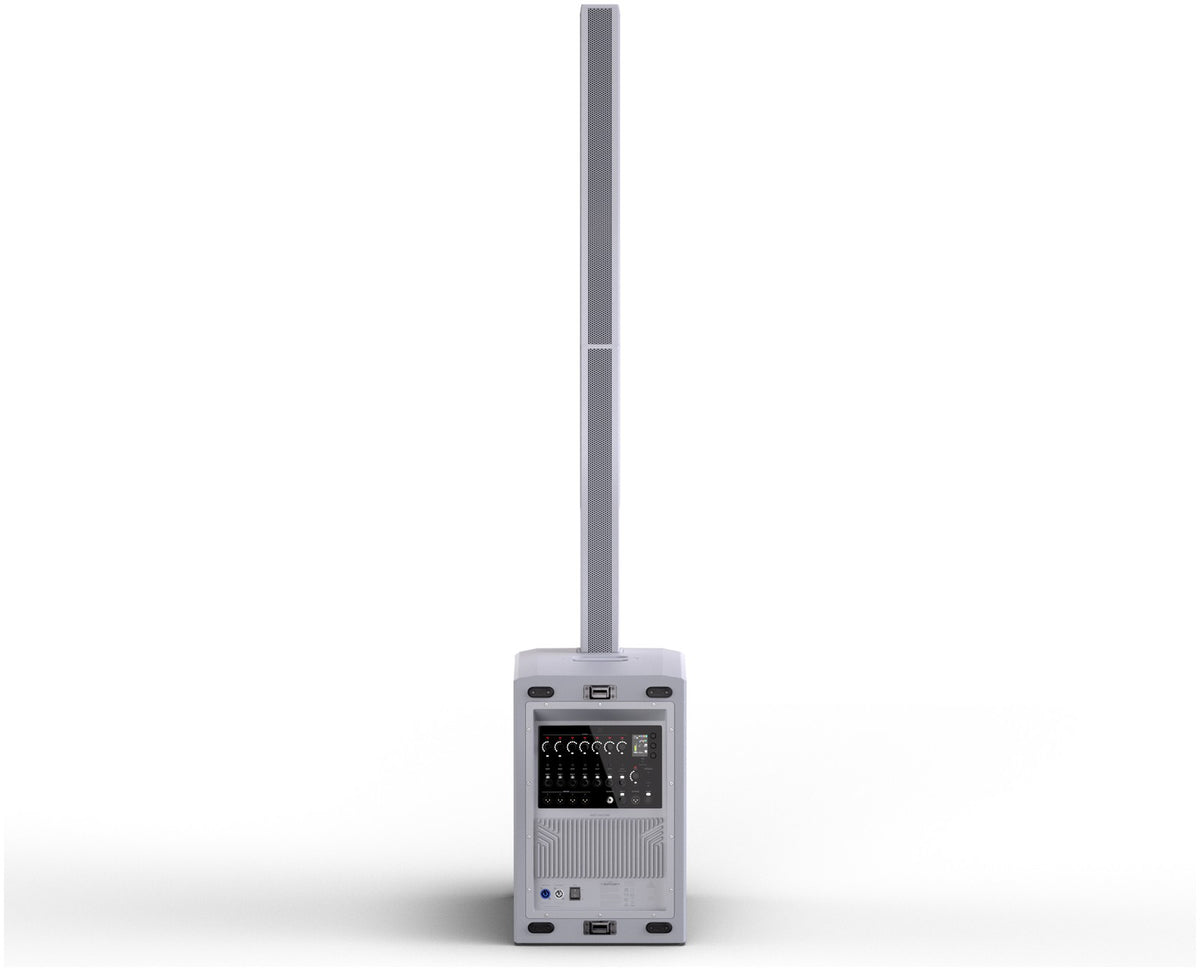

LD Systems MAUI44 G3 MIX W

A MAUI column designed for ambitious stages

The LD Systems MAUI 44 G3 MIX takes the column PA concept into a resolutely professional dimension. It retains what makes the MAUI series so strong: fast setup, a discreet aesthetic and wide sound dispersion, while adding substantial power reserves, a genuine digital mixer and an acoustic design created for large-scale live performances.

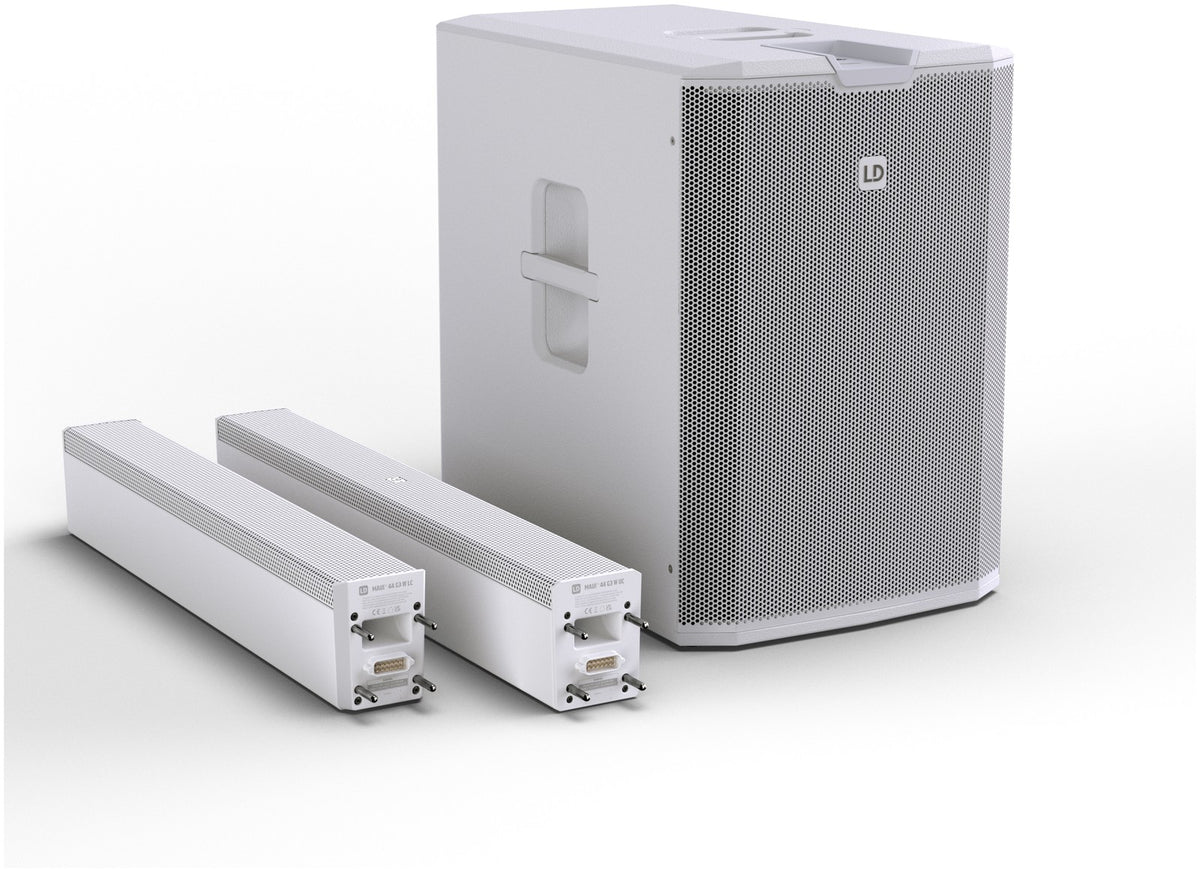

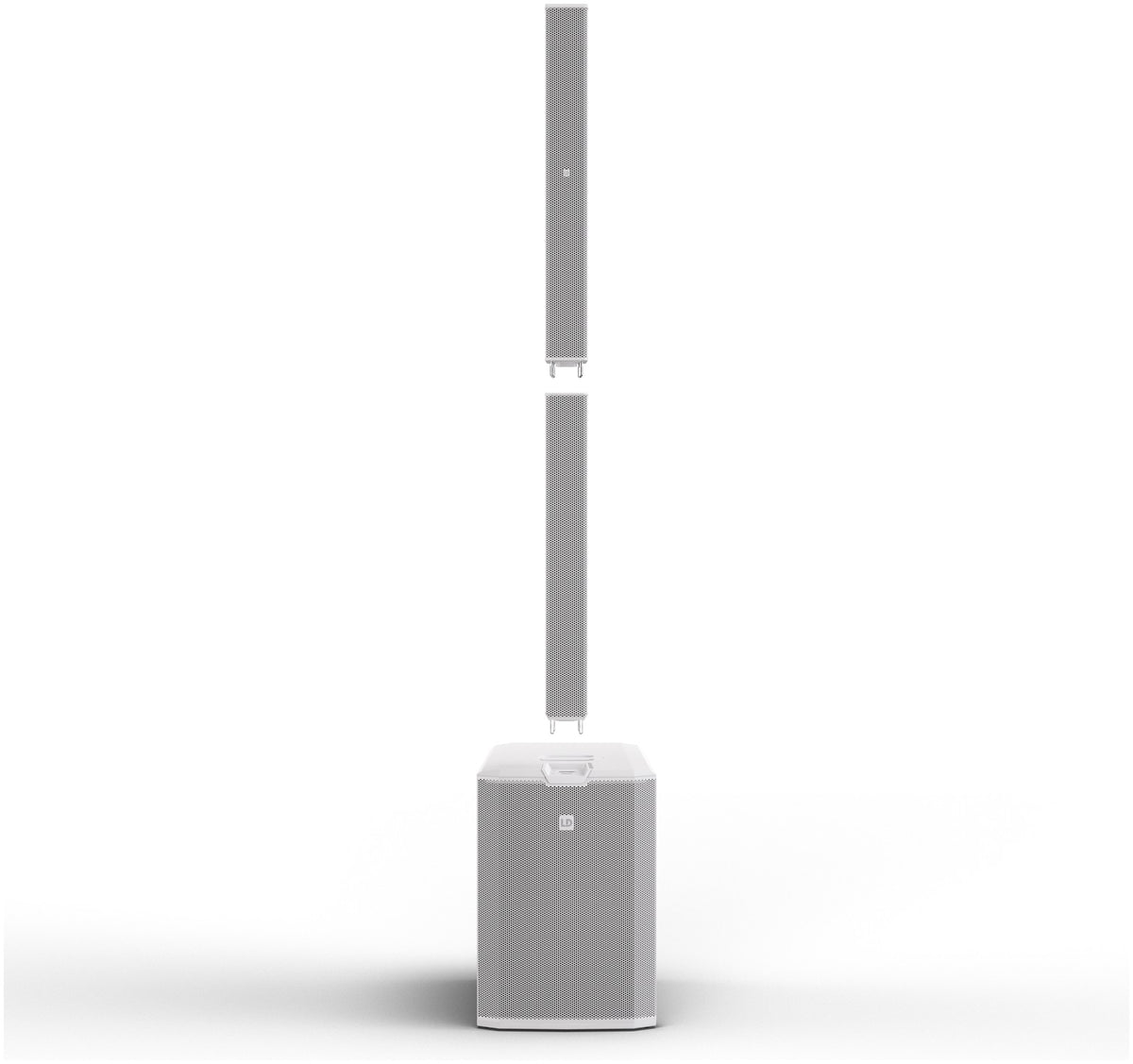

Its 4-way active system combines a robust subwoofer with a two-piece column. This design delivers coherent full-range reproduction, with pronounced vocal presence, precise high-frequency definition and physical low end without sacrificing the overall clarity of the mix.

The all-in-one solution for bands, live artists and event production

The MAUI 44 G3 MIX is aimed at solo performers, duos, bands, mobile DJs, presenters, performance venues and event professionals looking to centralize sound reinforcement and mixing in a compact system. Its numerous inputs allow microphones, instruments, audio players or line sources to be connected without always having to transport an external console.

Its four monitor outputs make it easy to manage stage monitoring for several musicians. The column’s cardioid directivity also limits the quantity of sound sent back toward the performers: a valuable advantage for improving onstage comfort and reducing the risk of feedback, particularly in reverberant venues or high-volume setups.

Digital mixer, wireless control and cardioid sound dispersion

The built-in digital mixer features eight XLR/¼-inch Combo inputs, six of which are equipped with microphone preamps. The internal effects enhance vocals and instruments without additional equipment, while the footswitch input keeps certain controls accessible during performance. Bluetooth also enables wireless streaming of background music, backing tracks or content from a compatible device.

All system settings can be controlled from the integrated color display or via the free MAUI MIX app for iOS and Android. For larger configurations, two MAUI 44 G3 MIX systems can be linked via SysLink to create a stereo system. The entire setup can then be controlled centrally, with access to all 16 available channels.

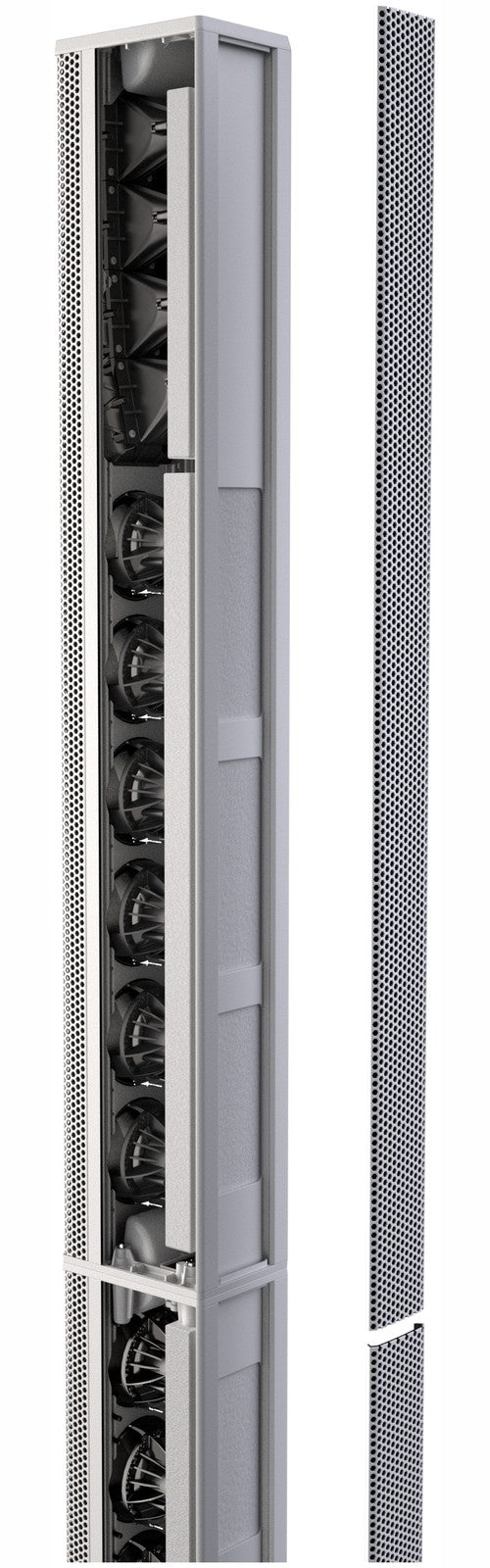

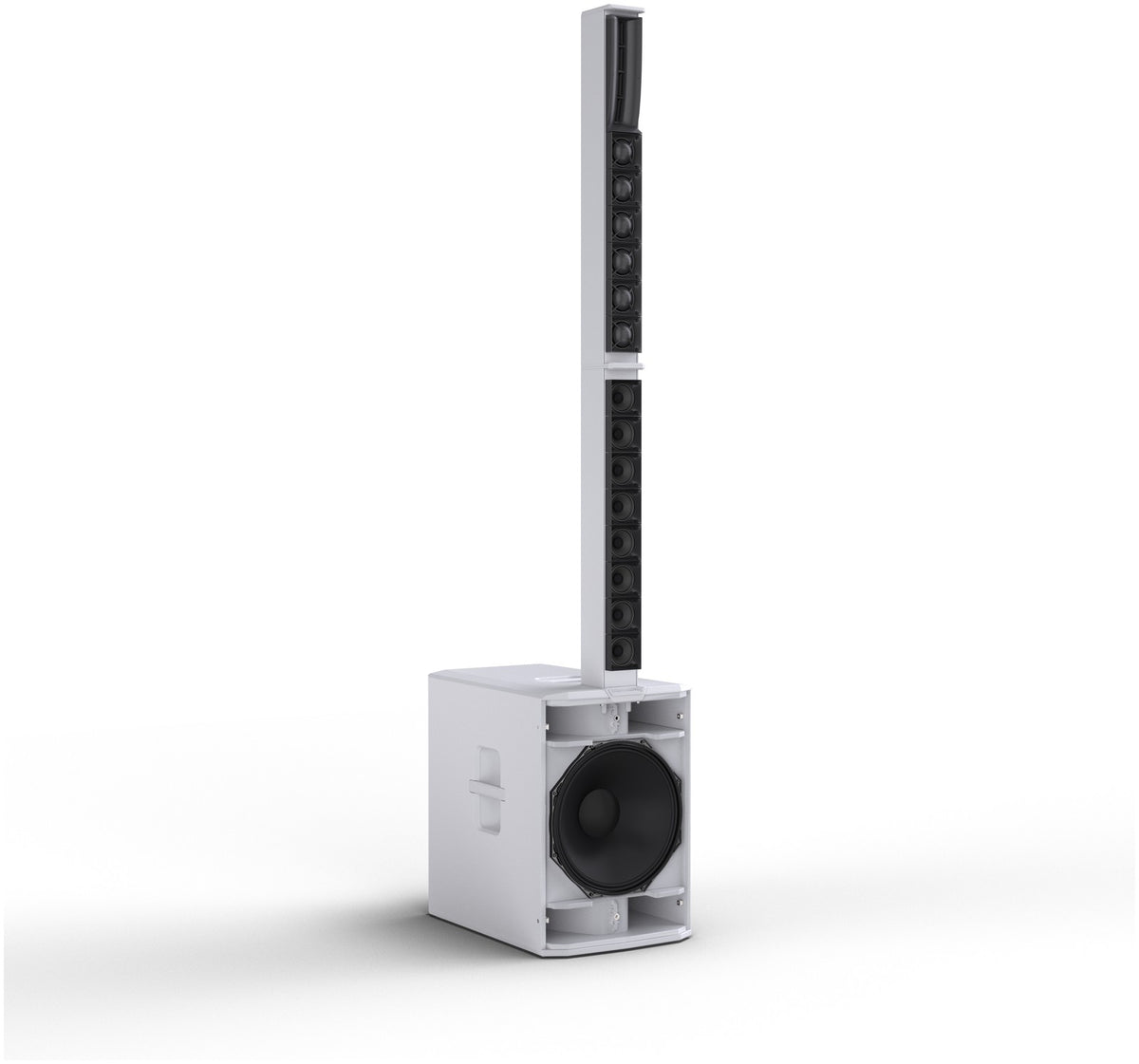

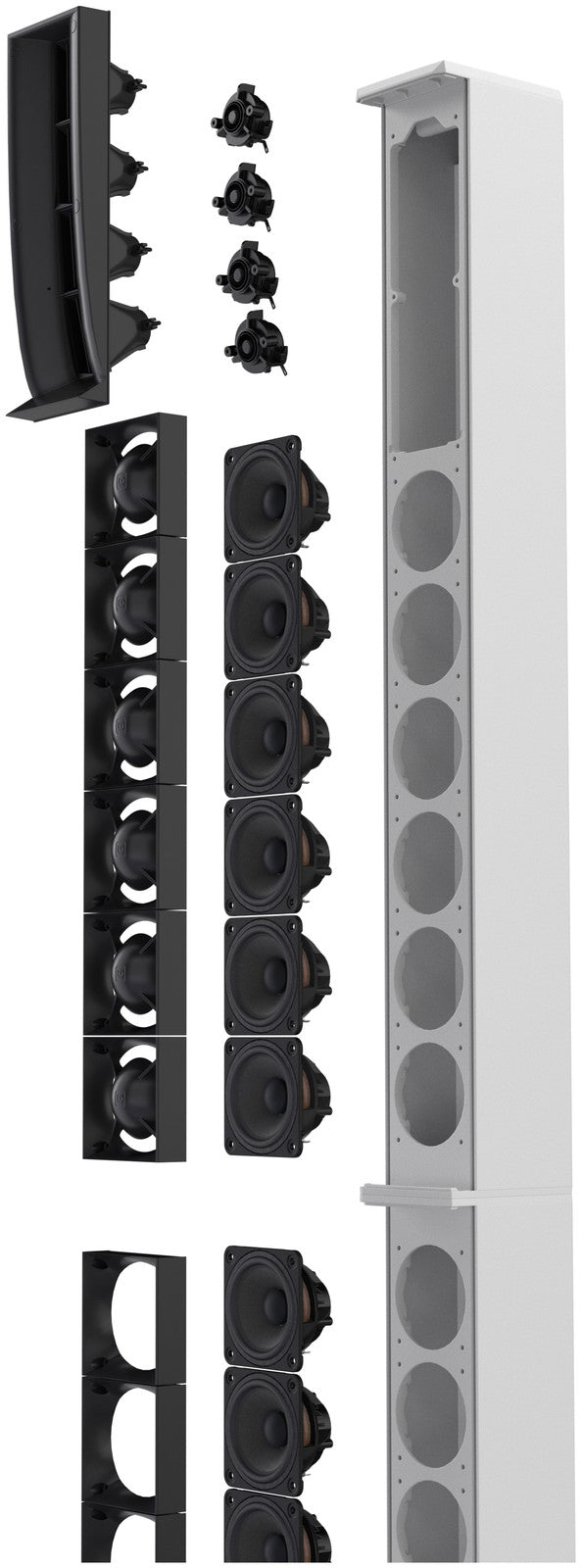

The column combines fourteen 3.5-inch neodymium midrange speakers with four 1-inch compression drivers. The BEM-optimized waveguides and phase plugs contribute to a homogeneous 120 x 25-degree cover. The horn-loaded midrange drivers deliver efficiency, impact and intelligibility, which are particularly valuable for vocals and speech.

The subwoofer houses a 15-inch neodymium woofer in a bass-reflex enclosure, optimized to reduce air turbulence in the ports. The result is extended, clean and punchy low end, even at high levels. Adding a second MAUI 44 G3 or MAUI 44 G3 MIX SUB subwoofer further expands the possibilities: facing forward, it increases low-frequency sound pressure; facing backward with the cardioid preset, it focuses more of the bass toward the audience.

Technical specifications

Battery	No	EQ	Yes
Number of channels	3 channels	Media Player	Bluetooth
Bluetooth	Yes	Speaker structure	wood
Connection	Combo	Inputs	combo XLR/jack
Speaker diameter	1", 15", 3,5"	Color	White
Number of speakers	19	Power output	1800 W

Type	fully active 4-way column PA system	High frequencies	4 x 1-inch compression drivers
RMS power	1,800 W	Cover angle	120 x 25 degrees
Peak power	3,600 W	Column design	passive cardioid
Maximum sound pressure level	133 dB SPL	Rear dispersion reduction	up to 18 dB between 100 Hz and 1 kHz
Extended low-frequency response	down to 34 Hz	Built-in digital mixer	8 channels
Crossover frequencies	200 Hz, 700 Hz and 1,800 Hz	Microphone preamps	6
Amplification	Class D	Internal effects	yes
Audio processing	DynX DSP Generation 2	Footswitch input	yes
Protection	advanced Peak, RMS and thermal limiters	Wireless audio streaming	Bluetooth
Subwoofer	1 x 15-inch neodymium	Monitor outputs	4
Midrange	14 x 3.5-inch neodymium	System output	1
