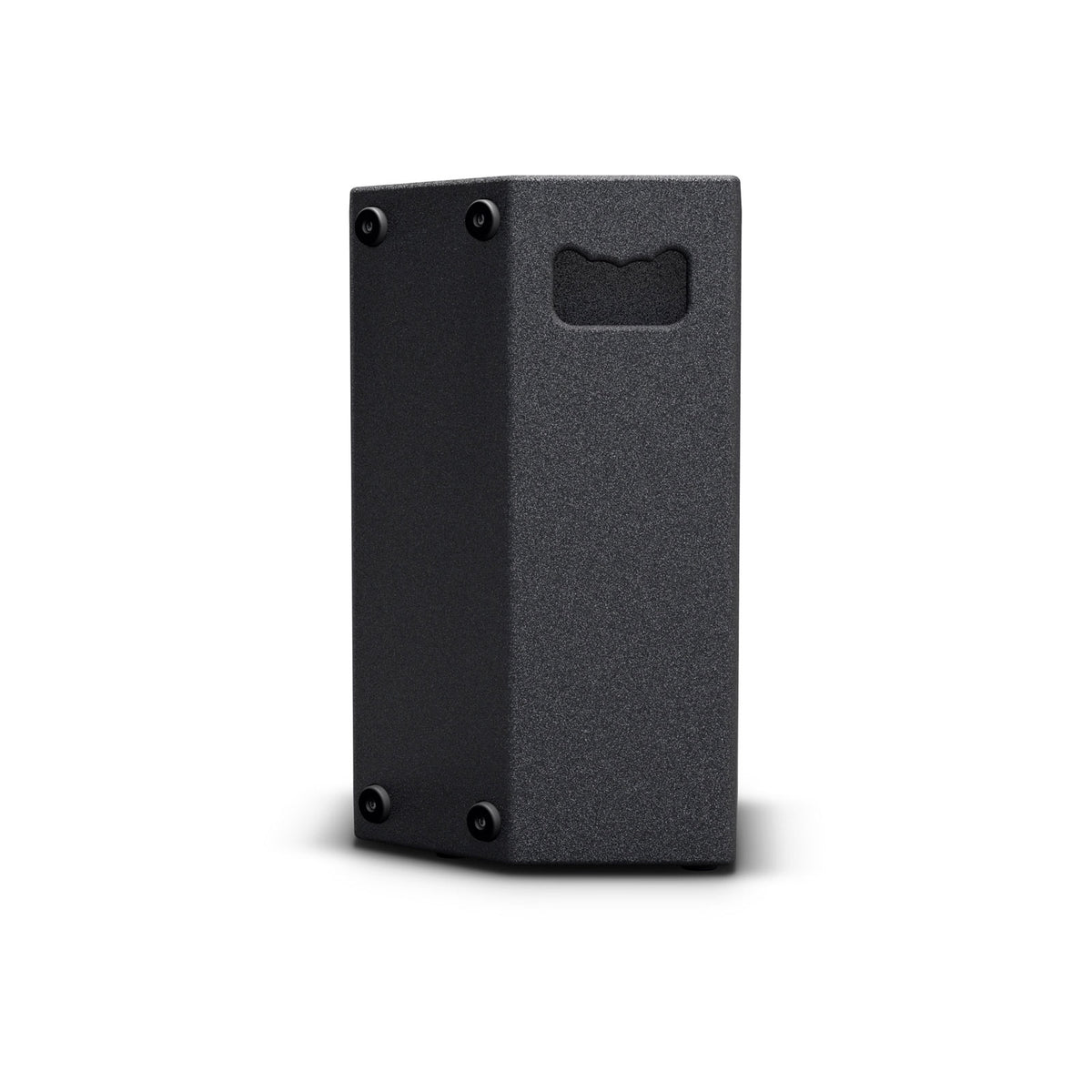

LD Systems Mix 10 A G3

A "mix & play" format in the spirit of the MIX G3 range

The LD MIX 10 A G3 follows the "all-in-one" approach: a powered speaker designed for gigs where quick setup and portability are as important as sound quality. With its built-in mixer and onboard processing features, it targets small sound reinforcement setups, rehearsals, events, and light stage use, while maintaining scalability: standalone in mono or paired with a passive LD MIX 10 G3 via the speakON output to create a simple and coherent stereo system.

Who is it for and what are its uses?

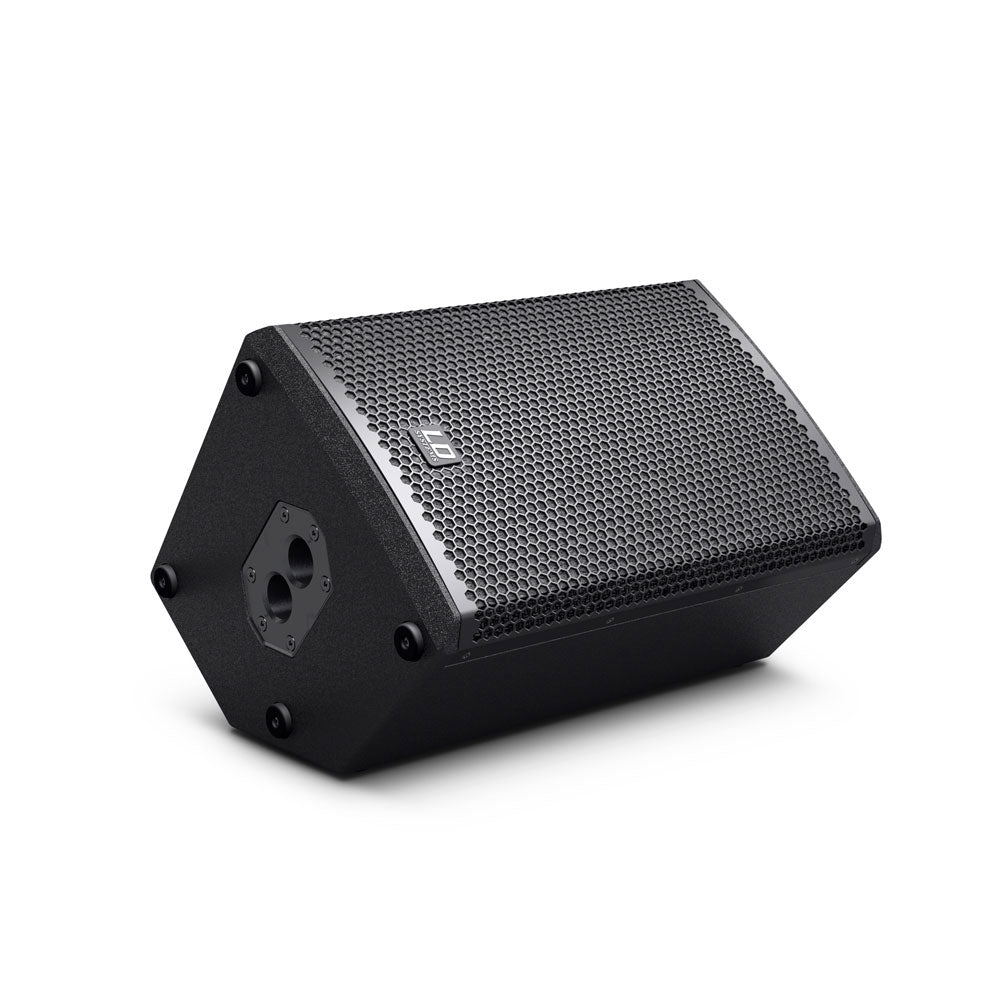

This active speaker is ideal if you need a compact system capable of handling multiple sources without additional equipment: vocals, electric guitar via hi-Z input, keyboard, audio player, smartphone, or tablet. It is particularly suited for duo musicians, small bands, events, conferences, and classes, as well as a personal monitor solution thanks to its stage monitor format and monitor angle.

Its lightweight and easily portable format, combined with controlled sound dispersion, allows clean sound reinforcement for a close audience while preserving vocal clarity and punch in the low-mids, even at higher volumes.

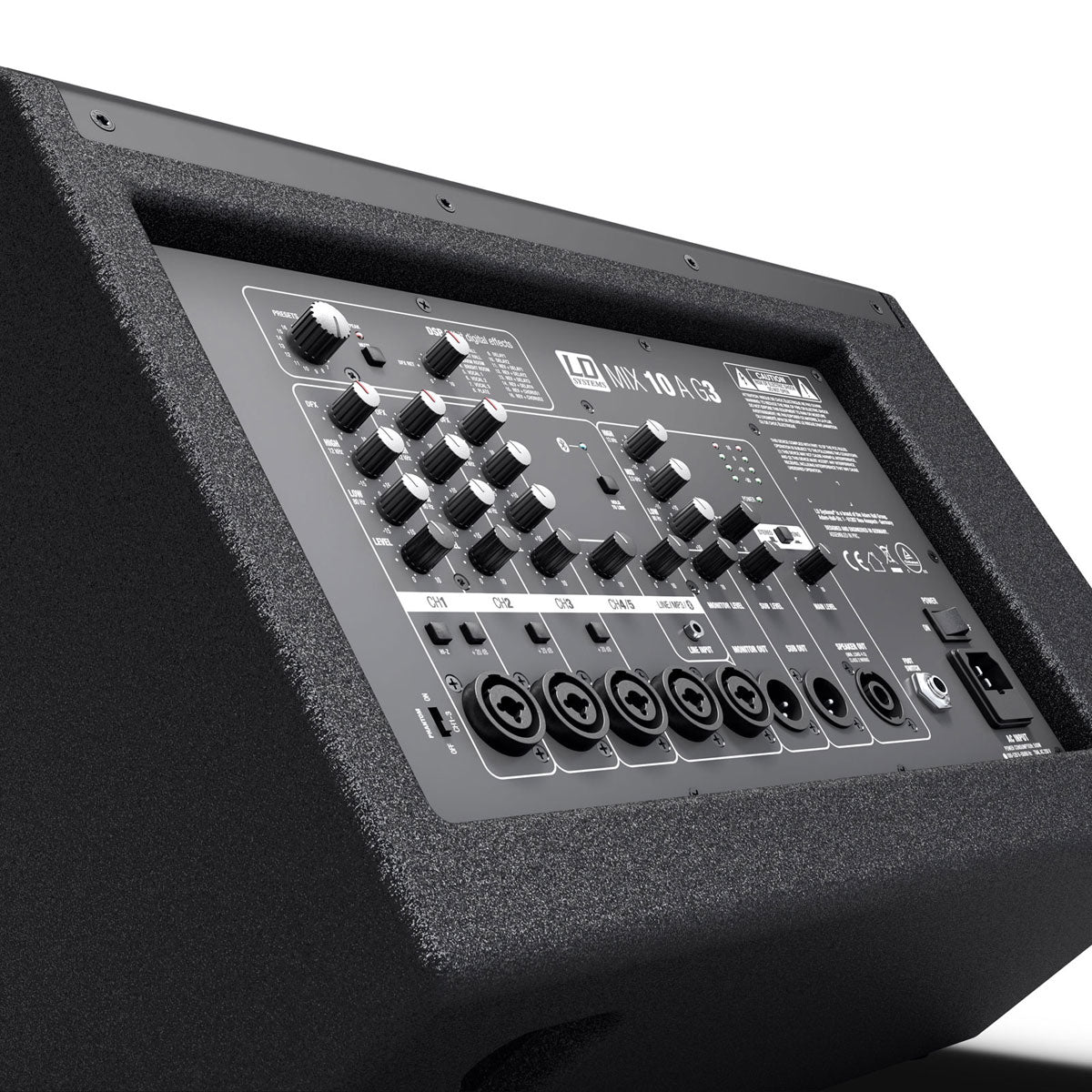

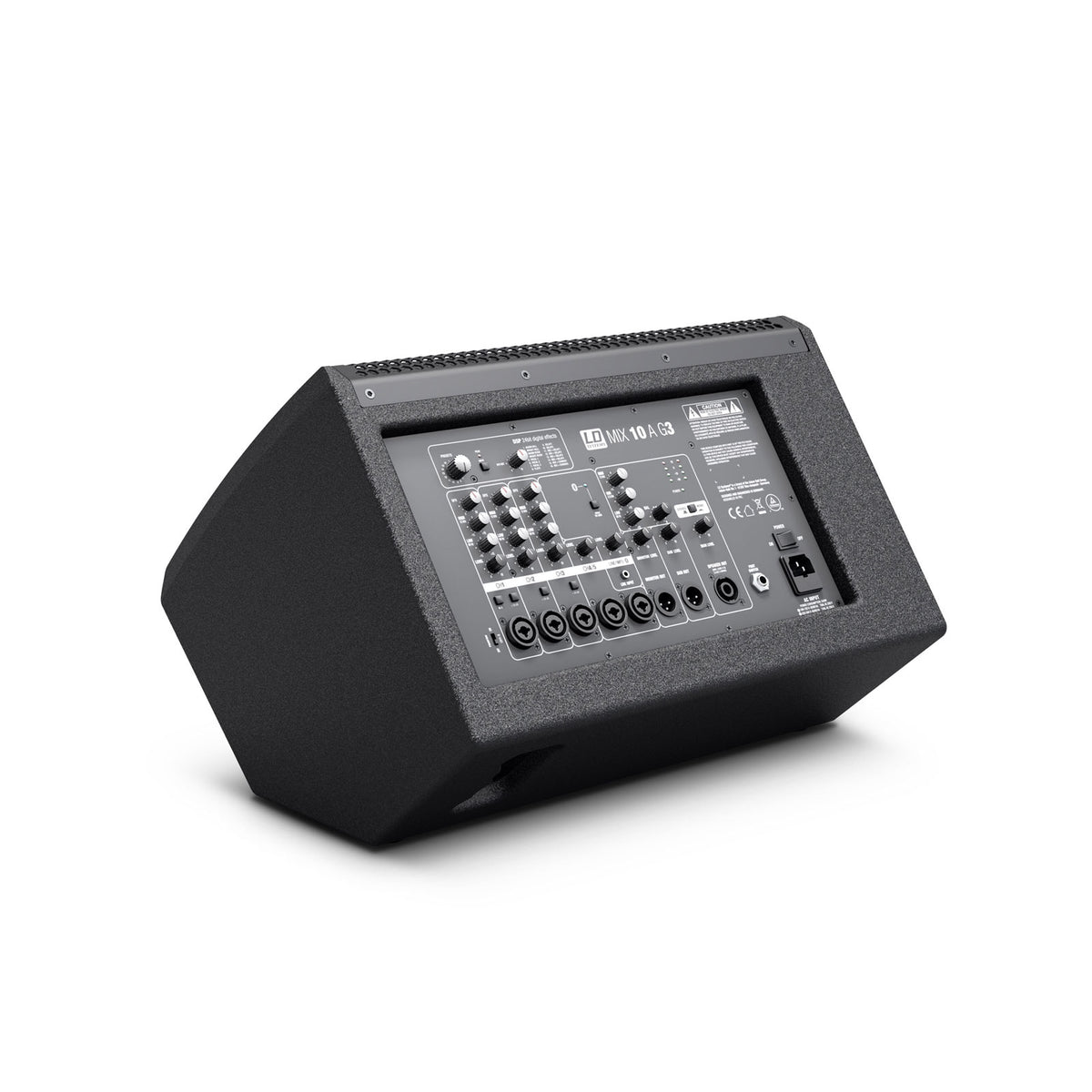

Integrated mixer, DSP, and connectivity: the heart of versatility

True mixing control, directly on the speaker

The integrated 7-channel mixer accepts a wide variety of sources. You have 3 mic channels with 2-band EQ and 48 V phantom power for condenser microphones (as needed). For instruments, the switchable hi-Z input on CH1 facilitates direct connection of a guitar or bass, while a stereo line channel allows easy integration of an external audio source.

Global equalization and clear level metering

To quickly adjust your sound in the room, the master section offers a 3-band main EQ dedicated to overall sound shaping. The 4-segment LED meter helps visualize levels and optimize gain, whether you are rehearsing, performing, or speaking.

16 DSP presets, Bluetooth streaming, and built-in protections

The integrated DSP provides 16 effect presets to adapt the tone and ambiance to your use, without an external processor. The Bluetooth audio streaming is convenient for playing hold music, backing tracks, soundtracks, or lesson materials from a mobile device.

For reliable operation, the speaker includes a limiter and protections against overcurrent, overload, short circuit, and overheating, ensuring amplifier safety and system longevity.

Dedicated outputs and stereo expansion

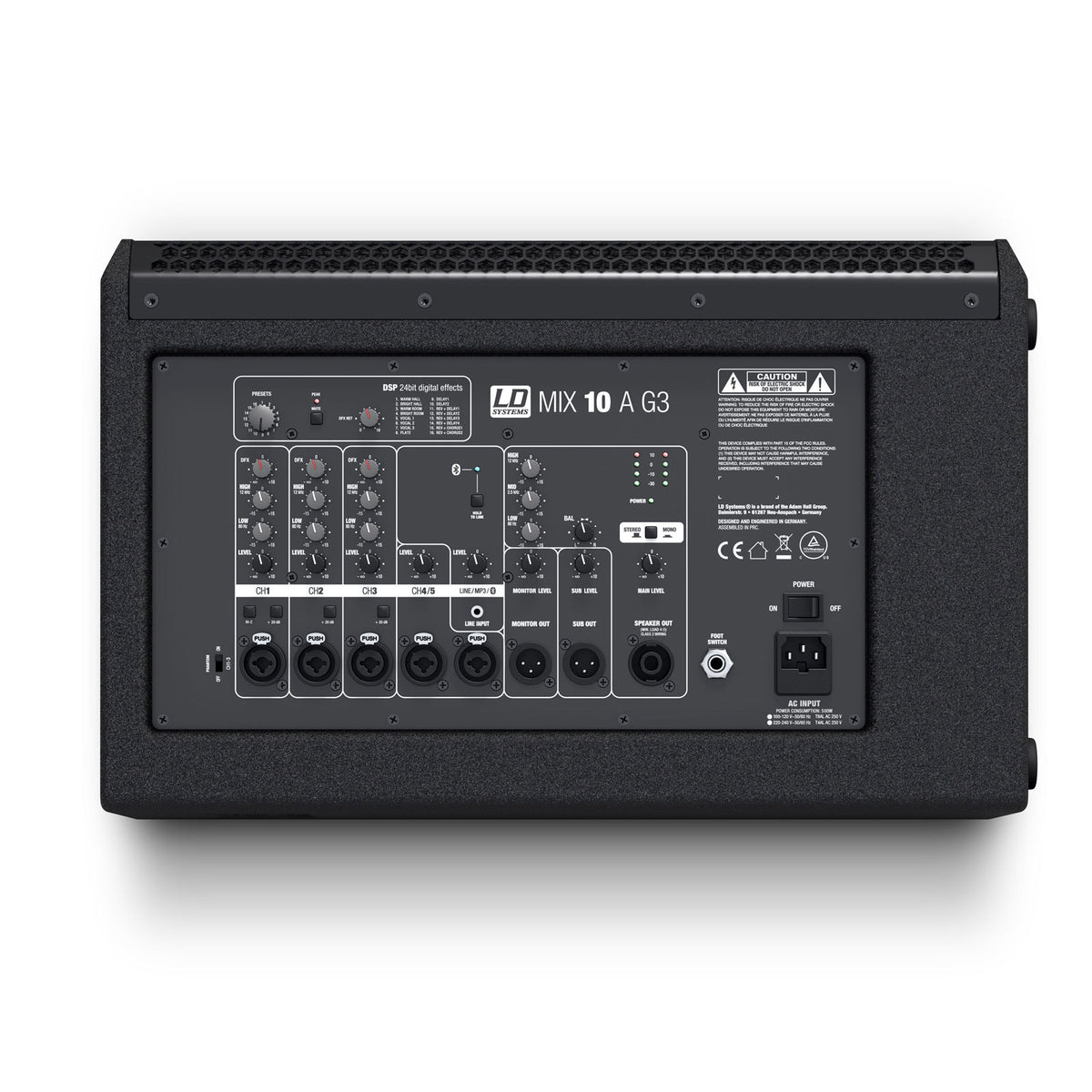

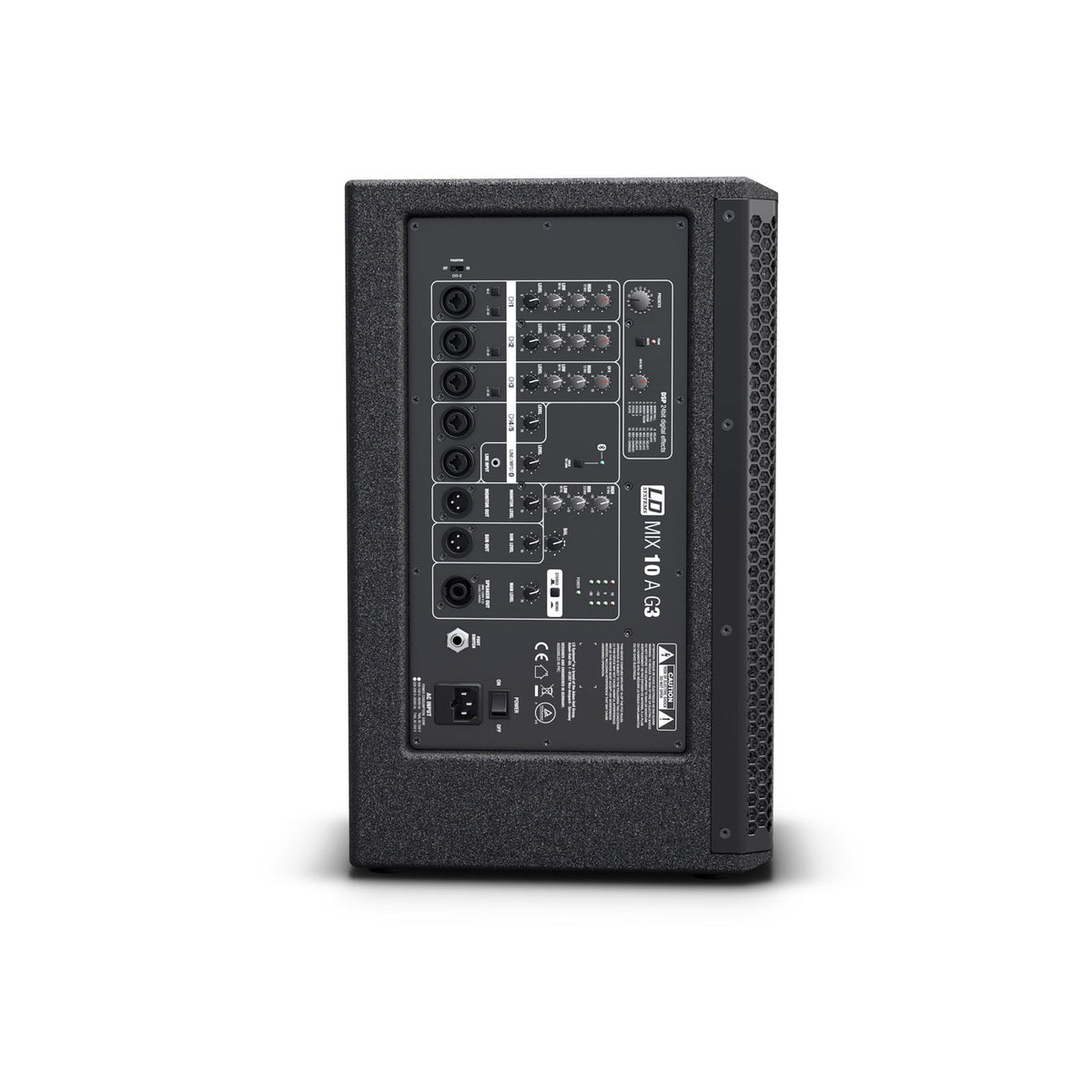

The output connectivity includes XLR outputs for monitor and subwoofer, useful to complement your setup (separate monitor, subwoofer) while maintaining simple cabling logic. A speakON output allows powering a passive LD MIX 10 G3 and quickly setting up a stereo configuration without adding extra components.

Technical specifications

Monitor angle	50deg	Line channel	stereo
Pole mount with dual tilt	0deg or 5deg	Main EQ	3 bands
Amplification	Class D	DSP	16 effect presets
Power	2 x 200 watts RMS	Metering	4-segment LED
Peak power	2 x 400 watts	Audio streaming	Bluetooth
Frequency response	65 Hz to 20 kHz	Protections	limiter, overcurrent, overload, short circuit, thermal
Dispersion	90deg x 60deg	XLR outputs	monitor and subwoofer
Woofer	10 inches (custom)	Applications	standalone mono or stereo with LD MIX 10 G3
HF driver	Celestion 1 inch	Width	315 mm
Integrated mixer	7 channels	Height	489 mm
Mic channels	3 with 2-band EQ	Depth	307 mm
Phantom power	48 V	Weight	12.3 kg
Switchable hi-Z input	CH1
