Lehle 3 At 1 Sgos Switch
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

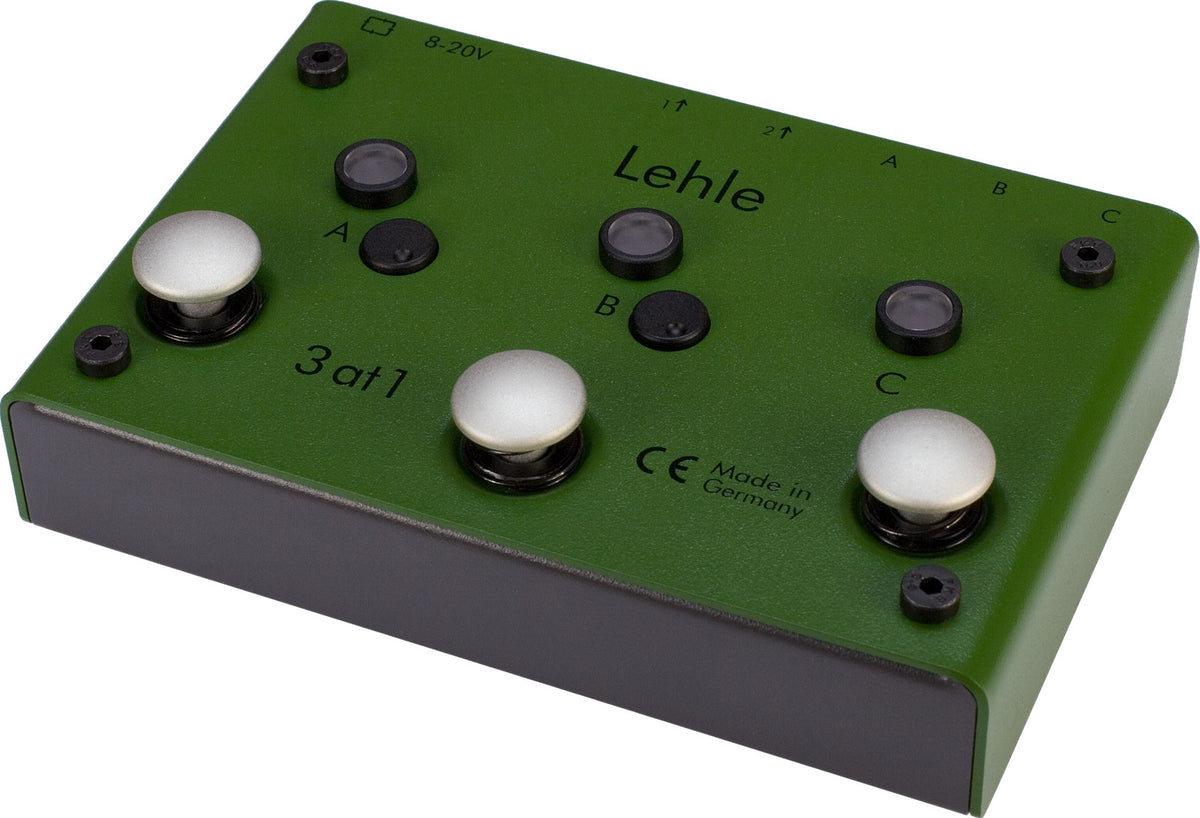

The essentials to know about the Lehle 3at1 SGoS switcher
The essentials to know about the Lehle 3at1 SGoS switcher
- ABC True Bypass input selector: switch from one guitar to another (or from one source to another) without unplugging, with an ultra-transparent audio path.
- Full stereo: all inputs/outputs and internal routing are stereo, perfect for magnetic pickups + piezo, keyboards, or line outputs.
- Silent switching: gold-plated contact relays + active "pop/click" suppression system for clean changes live.
- Advanced control: level adjustment on inputs A and B, footswitch selection of Output 1 / Output 2, and remote control via MIDI Program Change.
Manufacturer Information
Lehle
https://www.lehle.com
support@lehle.com
------------------------
Safety manager:
Filling Distribution
Email:
Address:
An "SGoS" switcher designed for stage and modern rigs
The Lehle 3at1 SGoS belongs to the "SGoS" (Second Generation of Switching) family: switching pedals designed to simplify instrument changes and ensure reliability in complex pedalboards. The idea here is clear: connect up to three sources (A, B, C) and route them to the desired output, while preserving the dynamics and bandwidth of your signal, whether magnetic pickups, a piezo, or a line-level signal.
Who is the Lehle 3at1 SGoS for, and in what contexts does it make a difference?
This switcher is aimed at guitarists and bassists who alternate several instruments during the same gig, musical theater musicians, stage technicians, as well as home studio users who want clean and reproducible routing. It is especially useful if you switch from an electric to an electro-acoustic (piezo), from an active bass to a passive bass, or if you alternate between instrument and stereo source (keyboard, audio player, stereo preamp).
Live, it becomes the "hub" at the start of the pedalboard: everything stays plugged in, you no longer touch cables, and you maintain a consistent level from one instrument to another. In the studio, it is a powerful tool to save time during takes, compare instruments, or send a source to an amp or console without patching hassles.
Technical specifications
| Effects | Remote Control, Selector | Use | electric guitar |
| Format | Pedal | Color | Green |
| Type | sector | ||
| Switched signals | magnetic pickups, piezo and line-level signals | Input A / B / C selection | 3 footswitches |
| Audio modes | mono or stereo | Routing to Output 1 or Output 2 | additional press on the active footswitch |
| Bypass | True Bypass | Remote control | MIDI Program Change |
| Relays | gold-plated contacts | Dimensions | 156 x 103 x 47 mm |
| Switching noise suppression | active system (pop/click) | Weight | 645 g |
| Level adjustment | on inputs A and B, relative to input C | Included accessories | Lehle 3at1 SGoS switcher, documentation |
| Inputs | 3 (A, B, C) via 6.35 mm stereo jack (TRS), mono-compatible | Required voltage | 8 V to 20 V DC |
| Outputs | 2 (Output 1, Output 2) via 6.35 mm stereo jack (TRS), mono-compatible | Power consumption | 97 mA |
| SGoS network connectivity and MIDI | 6.35 mm stereo jack socket (TRS) | Polarity | center-negative |
You will also like
MXR
Talk Box M222
MXR
M87 BASS COMPRESSOR
Boss
SY-1 Compact Pedal Guitar Synthesizer
EBS
MULTICOMP SE
MXR
M82 Bass Envelope Filter
MXR
Octave M280 Vintage Bass
Electro Harmonix
Micro POG
Digitech
Whammy Bass Pitch Shifter - Harmonizer
Questions frequently asked
Lehle 3at1 SGoS: how many instruments can it connect?
Three sources A, B, and C can be connected via 6.35 mm TRS jacks, which are also compatible with mono plugs. The inputs are suitable for magnetic microphones, piezos, and line-level signals.
Can an instrument be sent to two amps or a tuner?
Pressing the footswitch on the active input a second time routes the signal to Output 2. Both outputs use 6.35 mm TRS jacks compatible with mono plugs.
How to balance volume between several guitars?
Inputs A and B each have a level control. This adjustment notably allows matching the level of an electric guitar with that of an electro-acoustic equipped with a piezo.
Is the switcher MIDI controllable?
Selection changes can be remotely controlled via MIDI Program Change. A 6.35 mm TRS jack socket also allows networking with other SGoS switchers.
What power supply is needed for this Lehle switcher?
The power supply requires a DC voltage from 8 to 20 V DC, with negative polarity at the center. The stated consumption is 97 mA. The enclosure measures 156 x 103 x 47 mm and weighs 645 g.
