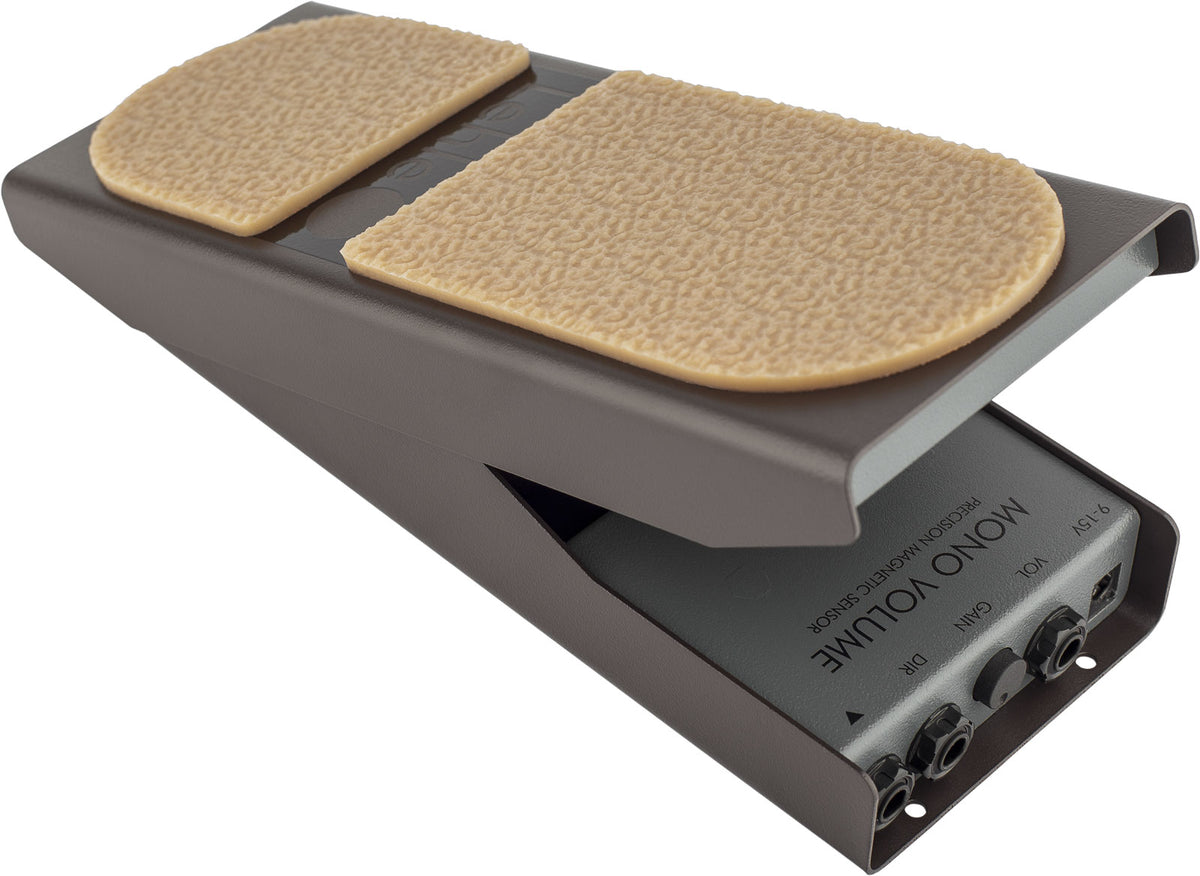

Lehle Mono Volume

A Modern Approach to the Volume Pedal: From Potentiometer to VCA

Most traditional volume pedals rely on a potentiometer, a mechanical part subject to wear (crackling, irregular curves, maintenance). Lehle adopts a different philosophy: the pedal moves only a magnet, measured by a precisely calibrated Hall sensor, which then controls a VCA (voltage-controlled amplifier). The result: a very smooth control feel, reliability designed for the stage, and a level of precision difficult to achieve with classic mechanical or optical solutions.

Who It's For and What It's For: Guitar, Bass, Swells, and Gain Control

The Lehle Mono Volume is aimed at musicians who want a high-end guitar volume pedal capable of preserving the original tone in a demanding pedalboard. In post-effects position, it behaves like a clean and progressive master volume ; in front of distortion/overdrive, it becomes a gain management tool (cleaning up a crunch, controlling attack, switching from riff to lead without touching the amp).

It also excels in volume swells (ambient, post-rock, worship), where sweep smoothness and mechanical silence make a difference both in studio and live. The buffered direct output simplifies setups: tuner always powered, second amp, or interface input for reamping/DAW.

Hall Sensor, Blackmer VCA, Adjustments and Connectivity: Everything Designed for Consistency

The core concept is the combination of Hall sensor (magnetic distance measurement) + Blackmer VCA : volume variation depends on a control voltage, not mechanical friction. The volume range goes from -92 dB to 0 dB (from near mute to unity gain), and a control allows adding up to +10 dB of boost. The power supply is rectified/filtered/stabilized then doubled internally to 18V, increasing headroom and contributing to the "hi-fi" feel.

For comfort, the pedal is designed to be very quiet and smooth thanks to low-friction bearings, and a screw allows precise adjustment of the pedal's resistance (brake): handy for tailoring the feel to your playing style (light for swells, firmer for precise control).

Sound Character

The Lehle Mono Volume aims for transparent reproduction: no loss of highs when lowering the volume, no muffling sensation, and stable dynamics throughout the sweep. The signal retains its definition, which is especially appreciated with long delays/reverbs, highly nuanced clean tones, or saturations where you want to control the drive level with your foot without changing the guitar's character.

This type of pedal is found on pro pedalboards for its consistency on tour: it has notably been spotted in rigs of artists like Adam Jones, Stone Gossard, Stephen O'Malley, and Sugizo.

Technical specifications

Effects	Volume	Type	sector
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Grey

Volume range	-92 dB to 0 dB	Output	6.35 mm Jack
Adjustable boost	up to +10 dB	Direct Out (buffered)	6.35 mm Jack
Total dynamic range	110 dB	Length	260 mm
Harmonic distortion	< 0.05 % (-10 dBu, 1 kHz)	Width	100 mm
Noise floor	-102 dBu (A-weighted)	Total height	66 mm
Max level	3 V RMS / 11.8 dBu (with 12 V power supply)	Weight	1480 g
Input impedance	2 M?	Required voltage	9 to 15 V DC
Output impedance	500 ohms	Consumption	50 mA
Input	6.35 mm Jack	Internal voltage	doubled to 18 V
