A Receiver Within the Relay Ecosystem: The "Cable-Free" Pedalboard Spirit
The Line 6 Relay G10SR follows the Relay system philosophy: offering a simple-to-use wireless experience, with a format suited for musicians playing on pedalboards. The approach here is clear: a compact receiver, ready to be integrated into your signal chain, allowing you to maintain your playing habits while gaining freedom of movement. Thanks to its compatibility with multiple Relay transmitters, it becomes a practical solution if you already own Line 6 gear, share a transmitter pool, or are looking for a replacement receiver.
A Tool Designed for Guitarists (and Bassists) on the Move: Stage, Rehearsal, Home Studio
This pedal-format receiver targets musicians who want to eliminate the instrument cable without complicating their setup. On stage, it helps secure movement and smooth position changes. In rehearsal, it simplifies setup and reduces clutter. In the home studio, the XLR output allows for more direct connections to a console or interface, depending on your configuration. The G10SR is also relevant for multi-instrument users: you can keep the same "wireless" input point on the pedalboard and adapt the transmitter according to the guitar used.
Technical specifications
| Category | receiver | Frequency band | 2,4 GHz |
| Number of channels | 11 | Color | Black |
| Frequency response | 10 Hz - 20 kHz | ||
Questions frequently asked
Which transmitters are compatible with the Line 6 Relay G10SR?
The receiver is compatible with Line 6 Relay G10T, G30, G50, G55, and G90 transmitters. It can therefore serve as a replacement receiver or be integrated into an existing Relay system.
Can the Relay G10SR be mounted on a pedalboard?
Its pedal-sized format is designed for floor integration in an effects chain. The signal can be sent to an amplifier input, pedalboard, or multi-effects via the 6.35 mm jack output.
What is the range of the G10SR wireless receiver?
The maximum advertised range is 39.6 m line of sight. The connection uses the 2.4 GHz band and features 11 RF channels.

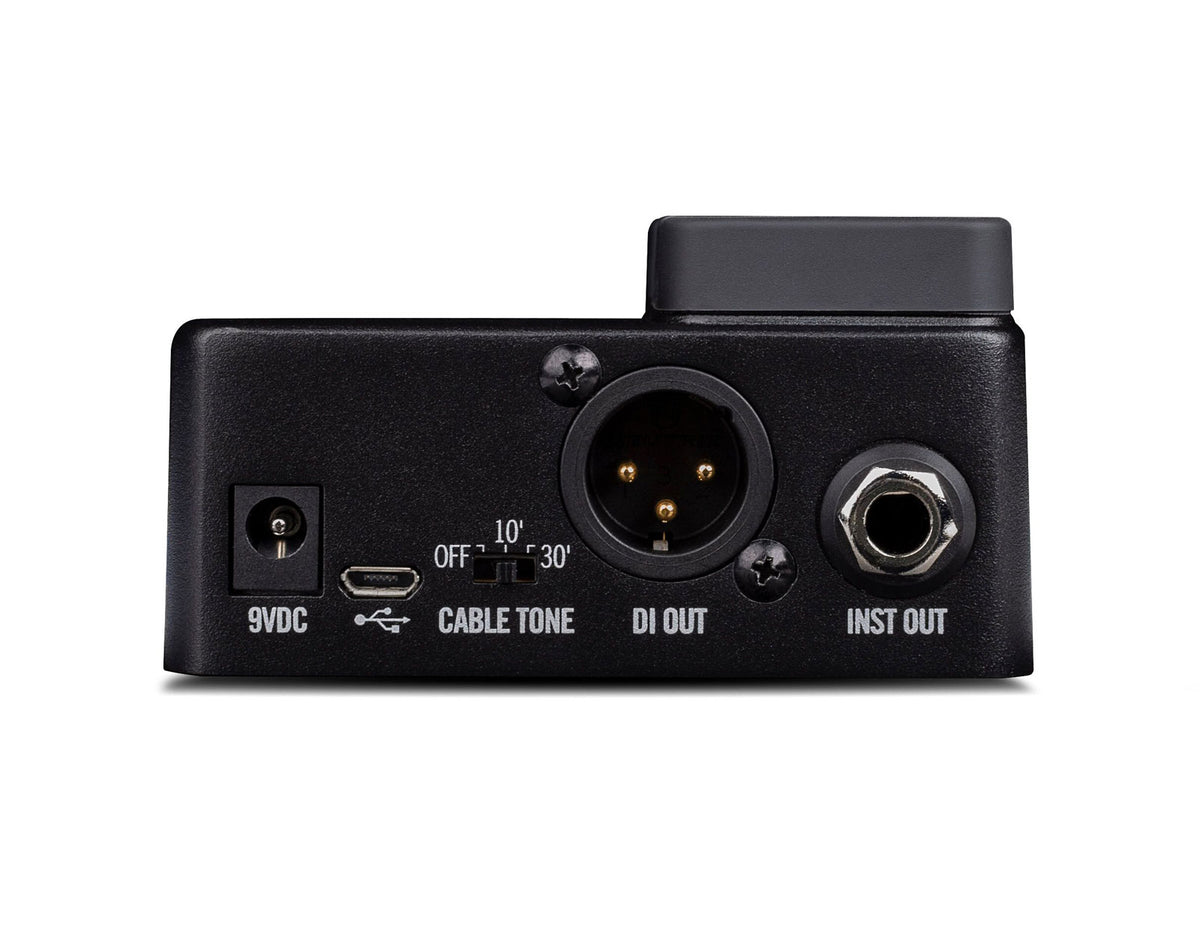

What outputs are available on the G10SR?
A 6.35 mm jack output allows connection to an amplifier or pedalboard. An XLR output is also provided for connection to a mixing console or interface. These two formats facilitate adaptation to rehearsal and stage setups.
What is the latency of the Line 6 Relay G10SR?
The latency is under 2.9 ms, with a frequency response of 10 Hz to 20 kHz. LEDs indicate the radio link status and transmitter battery level.
