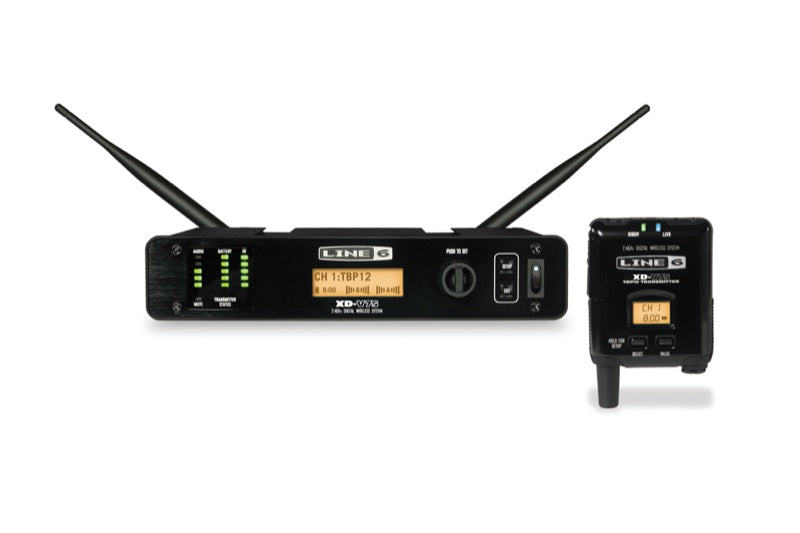

A Professional Wireless System Designed for Stage and Rack Installations
Designed for demanding musicians, presenters, and artists, the XD-V75TR relies on proven 4th generation digital transmission with ultra-simple setup: select a channel on both the transmitter and receiver, and synchronization happens within seconds. In multi-system configurations, automatic channel scanning facilitates RF management, while the LCD screens (on both transmitter and receiver) make settings and battery status immediately readable.
Modeled Equalization Filters for Clearer Vocals and More Precise Instruments
The XD-V75TR goes beyond a simple radio link: its equalization filter models optimize clarity and impact in the PA system, whether you are on vocals or an instrument. You quickly choose the appropriate model directly from the transmitter, allowing you to adjust the tonal character according to the room, style, and playing energy without having to overhaul your entire signal chain.
Clarity, Dynamics, and Signal Security: The Line 6 Digital Signature
Thanks to 24-bit conversion and a frequency range from 10 Hz to 20 kHz, the signal remains detailed and responsive, without the typical artifacts of analog compander systems. The advertised dynamic range of 120 dB and DCL (Digital Channel Lock) technology help preserve nuances while differentiating the digital audio signal from other transmissions (including WiFi). For sensitive performances, encryption enhances privacy, and the dynamic filter helps limit unwanted ambient noise.
Technical specifications
| Category | Complete system |
| Number of channels | 14 |
| Frequency response | 10 Hz - 20 kHz |
| Frequency band | 2,4 GHz |
| Color | Black |
| Exclusive Line 6 equalization filter modeling technology | 9 models (6 optimized for vocals, 3 for instruments) |
| Dynamic range | 120 dB (A-weighted measurement) |
| Range | 100 m |
| DCL (Digital Channel Lock) technology | digital channel locking |

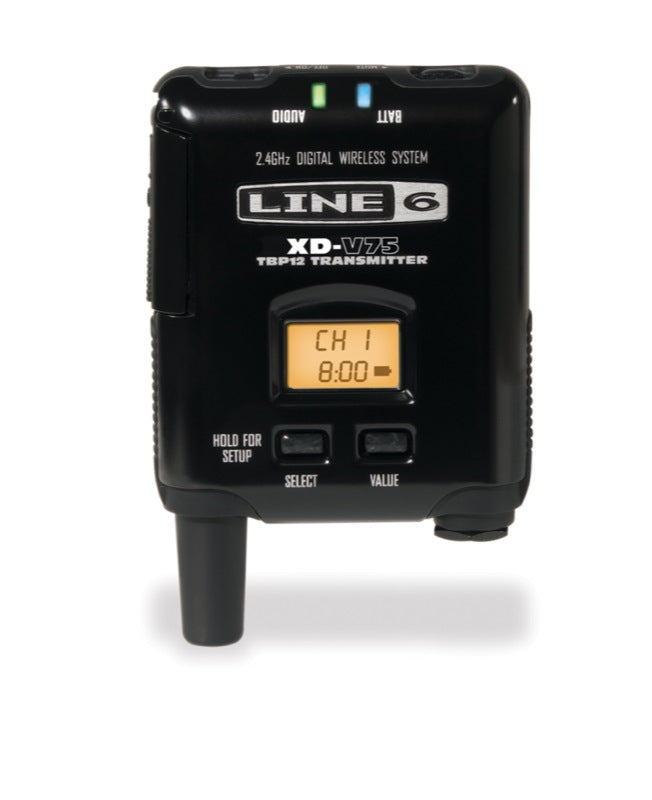

| LCD screen on the transmitter | channel selection, battery status, equalization filter model, etc. |

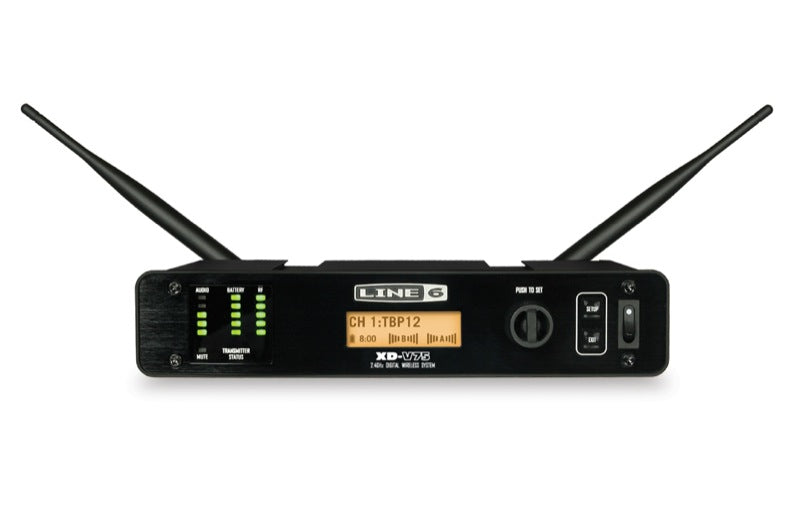

| Large LCD screen on the receiver | channel adjustment, filter selection, battery charge status, etc. |
| Contents | transmitter with protective case, 1/2 rack unit receiver, 2 half-wave antennas, front antenna mounting kit, rack mounting kit, 2 LR6 (AA) alkaline batteries |
Questions frequently asked
What is the range of the Line 6 XD-V75TR wireless system?
A stated range of 100 m allows its use on stage and in setups requiring a significant distance between transmitter and receiver.
How many channels are available to use multiple systems?
The system offers 14 channels in the 2.4 GHz band. Automatic channel scanning facilitates the configuration of several systems. Synchronization is done by selecting a channel on both the transmitter and receiver.
Are the equalization filters suitable for vocals and instruments?
For sound adaptation, 9 filter models are available: 6 optimized for vocals and 3 for instruments.
Is the XD-V75TR suitable for rack mounting?
A rack setup is planned thanks to the half-rack format receiver and the included rack mounting kit. A front antenna mounting kit is also provided.
How does the system handle nearby WiFi transmissions?
The DCL (Digital Channel Lock) technology distinguishes the digital audio signal from other transmissions, including WiFi. The transmission operates at 2.4 GHz with 24-bit conversion and a stated 120 dB A-weighted dynamic range.
