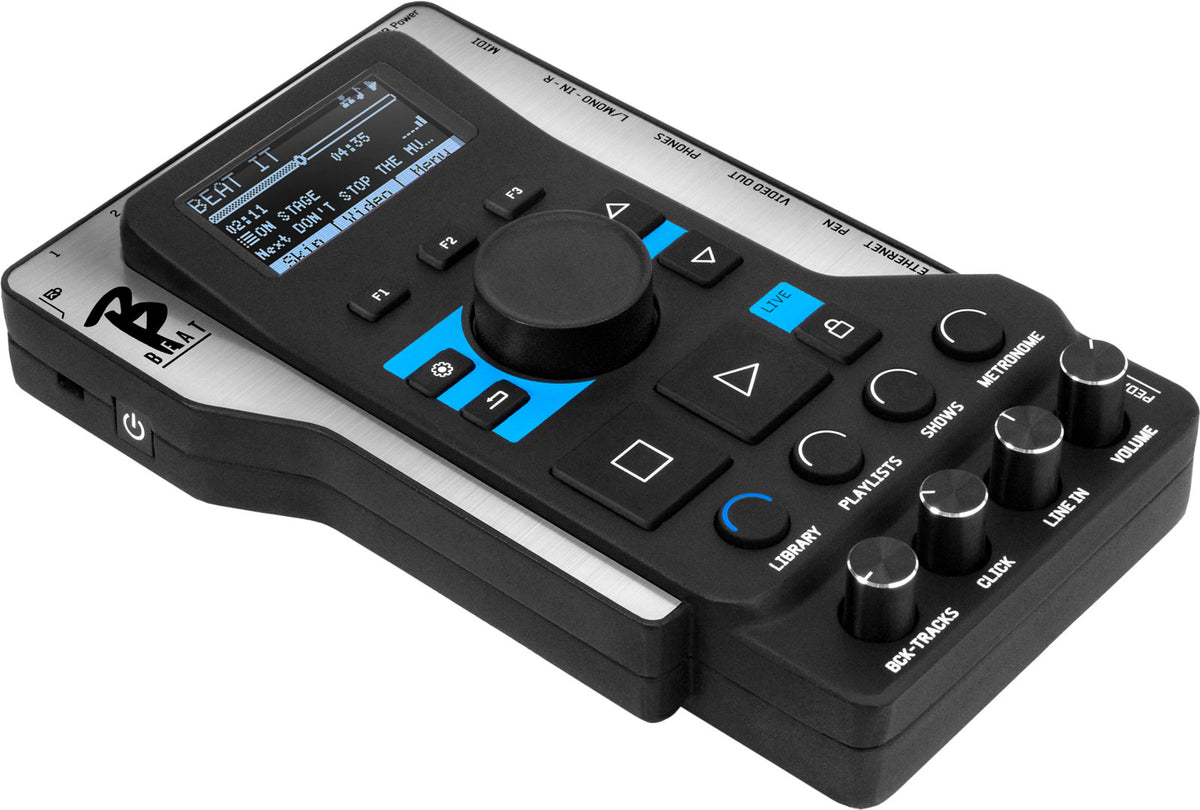

A B.Beat Solution Designed for the Stage, at the Heart of the M-Live Ecosystem
The M-Live B.Beat fits into an "all-in-one" approach dedicated to musicians and hosts who want to run a show without a computer: multitrack audio playback, video streaming, teleprompter, and karaoke-oriented features. This version includes 128 Gb of internal storage, a key point for building a substantial library of tracks, media, and ready-to-play sessions, while maintaining direct control thanks to its OLED screen.
Note: the B.Beat is also available in 32 Gb and 64 Gb versions to adapt memory capacity to your needs (repertoire, set duration, number of videos).
Who and What Uses Make the M-Live B.Beat Stand Out

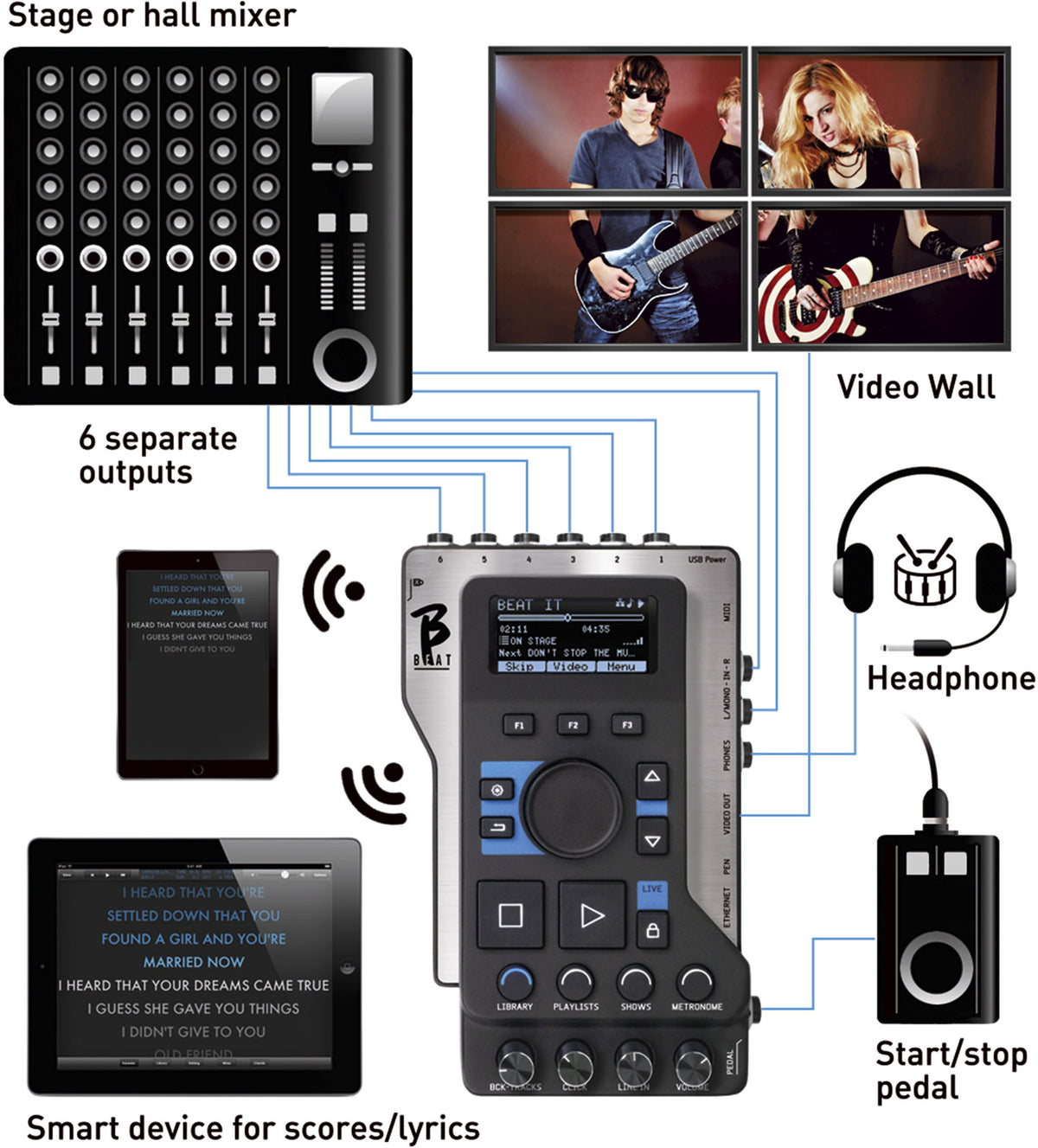

The B.Beat is aimed at singers, duos, bands, tribute bands, karaoke hosts, and performing musicians who want a reliable and quick-to-deploy system. It allows you to carry your multitrack backing tracks, manage separate outputs to the console (e.g., click, stems, additional tracks), and synchronize visuals (video, lyrics) for a more professional stage presentation.
Thanks to the transmission of lyrics and chords to tablets via Wi-Fi, the B.Beat also becomes an excellent comfort tool: each musician can follow their chart or text while maintaining a compact, performance-oriented setup.
Key Features: Multimedia Import, Internal Conversion, and Multi-Output Streaming
Flexible Audio Import and Multitrack Sessions
The B.Beat accepts numerous audio formats on import, then converts them to its internal format to ensure stable playback in live conditions. You can work with simple tracks or more detailed projects (up to 16 mono tracks or 8 stereo tracks), ideal for using stems, isolating certain instrument groups, or preparing alternative versions.
HD / Full HD Video and Media Compatibility
To enhance visual impact, the B.Beat manages an internal video format in H-264 in HD and Full HD (1280x720 / 1920x1080). It also accepts videos on import (MP4, MOV, AVI): the video part is converted to align with internal operation. JPG and PNG images are also compatible, useful for backgrounds, slides, logos, or title screens.
Conversion, Digital Processing, and Output
Internal audio processing relies on 24 Bit / 48 kHz multichannel D/A conversion (Sigma/Delta architecture) with a typical signal-to-noise ratio of 112 dB, to maintain a clean and usable sound on front of house. The output gain of +3.0 dB helps optimize the level in the audio chain, depending on your console, monitors, or amplifiers.
Technical specifications
| Input connector | Jack 6.35 mm, USB, RJ45, MIDI |
| Output connector | Jack, HDMI |
| Sampling frequency | 48 kHz |
| Internal Storage Capacity | 128 Gb |
| Internal video format | H-264 HD / Full HD (1280x720 / 1920x1080) |
| Compatible video formats on import (only the video part will be converted) | MP4, MOV, AVI |
| Compatible image formats | JPG, PNG |
| Video output | HDMI (max resolution 1920x1080) |
| Ethernet port | RJ45 |
| Internal digital audio processing | 8-channel D/A 24 Bit Sigma/Delta 48 kHz |
| Output gain | +3.0 dB |
| Resolution | 128 x 64 |
| Line Input (L+R) | 2 x 6.35 mm jacks |

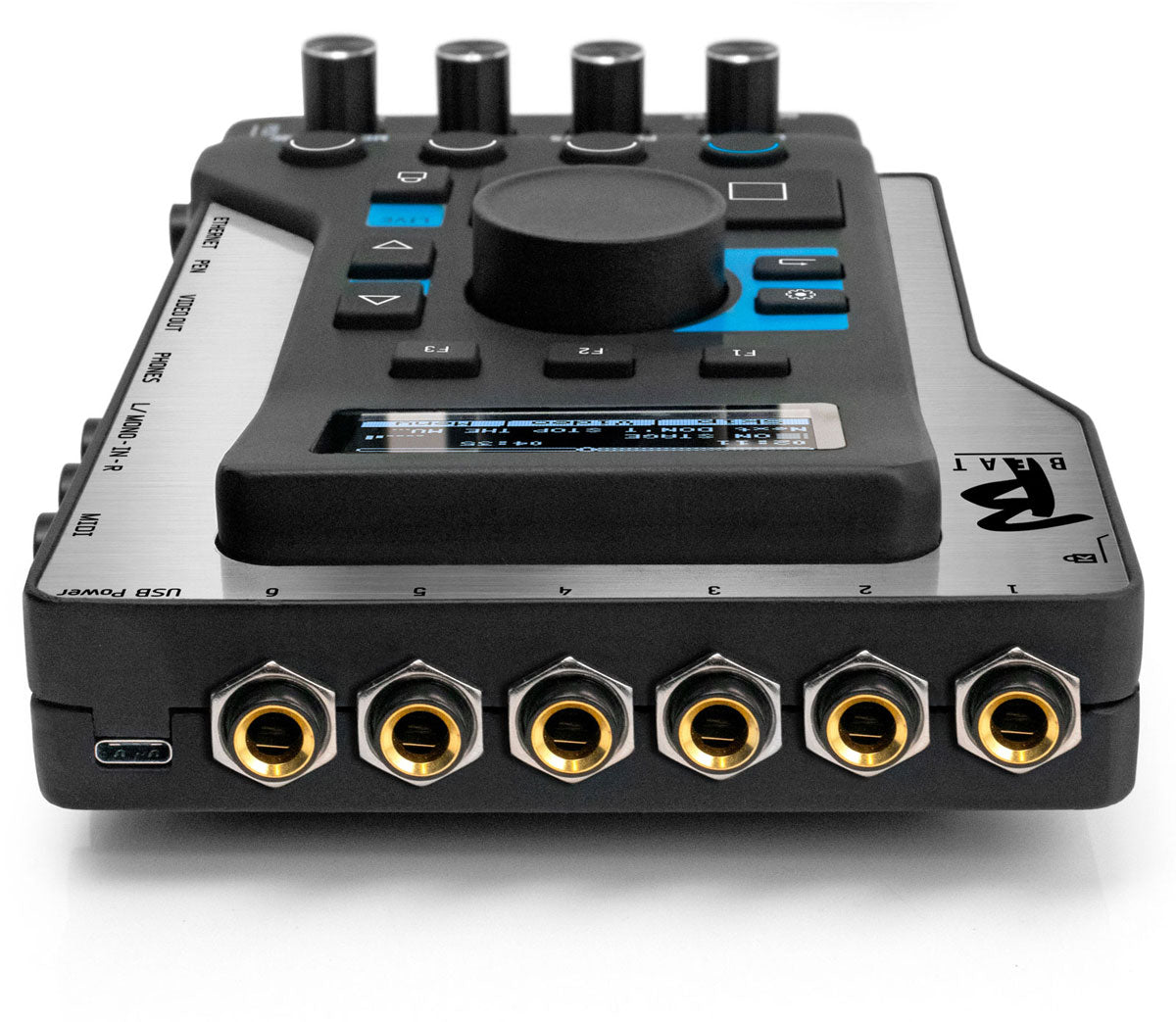

| Audio Output | 6 x 6.35 mm jacks |
| Headphone Output | 6.35 mm TRS jack |
| Footswitch | 6.35 mm jack |
| USB to Device | USB-A |
| USB MIDI | USB-B |
| MIDI In/Out | 2 x 5-pin DIN |
| Power supply | via USB-C adapter 5.1V DC, 3A, included |
| Battery life on 10000mAh / 2.4A PowerBank | approximately 6 hours |
| Dimensions | 220 x 125 x 55 mm |
| Weight | 550 g |
Questions frequently asked
How many multitrack channels can the M-Live B.Beat 128Gb play?
Playback supports sessions of up to 16 mono tracks or 8 stereo tracks. Separate outputs allow sending, for example, a click track and distinct stems to the console.
Which video formats are compatible with the player?
MP4, MOV, and AVI files are accepted for import, with their video portion converted to the internal H-264 format. The HDMI output delivers a maximum resolution of 1920 x 1080 pixels.
Can the B.Beat display lyrics and chords on a tablet?
Wi-Fi transmission of lyrics and chords to tablets is provided for following texts and chord charts on stage.

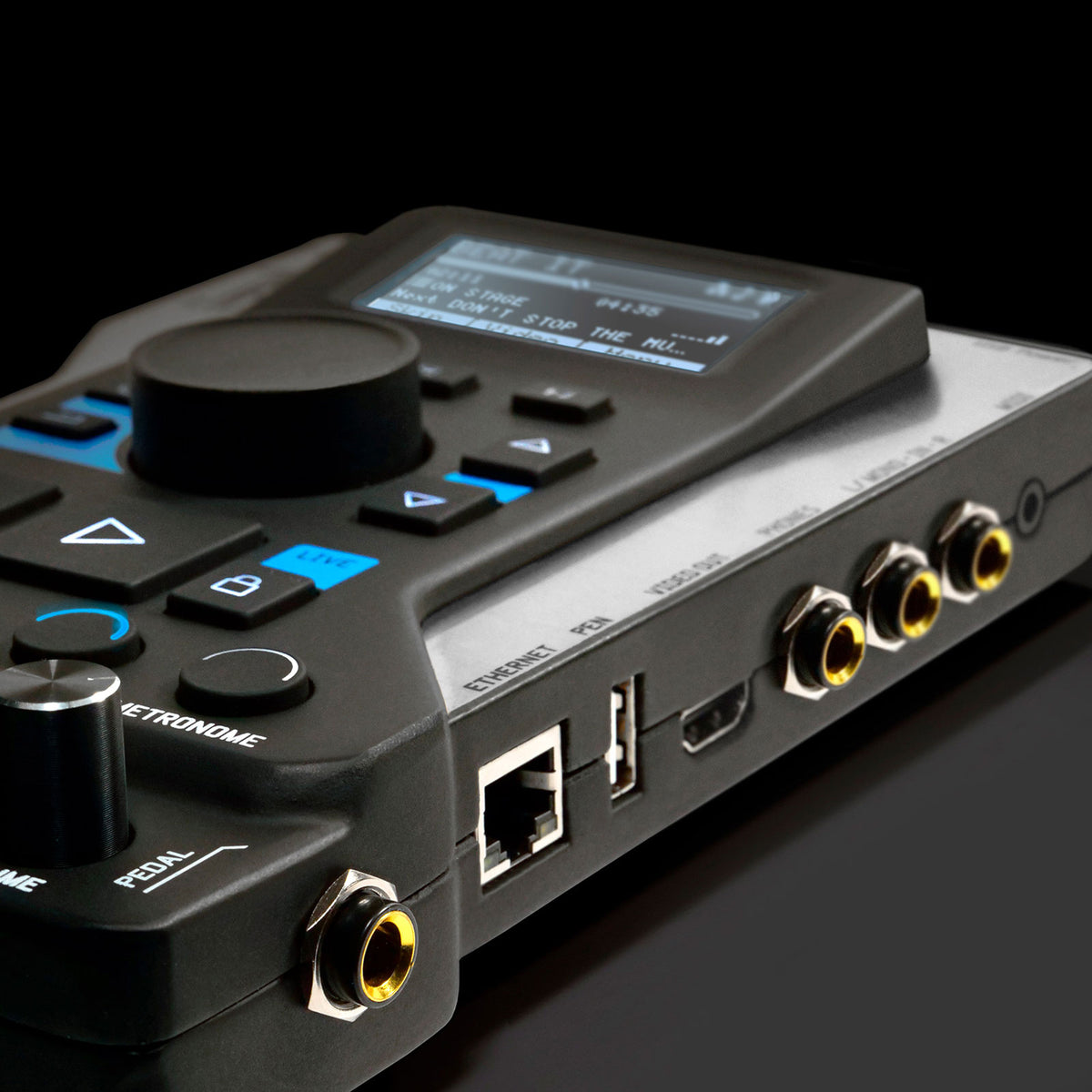

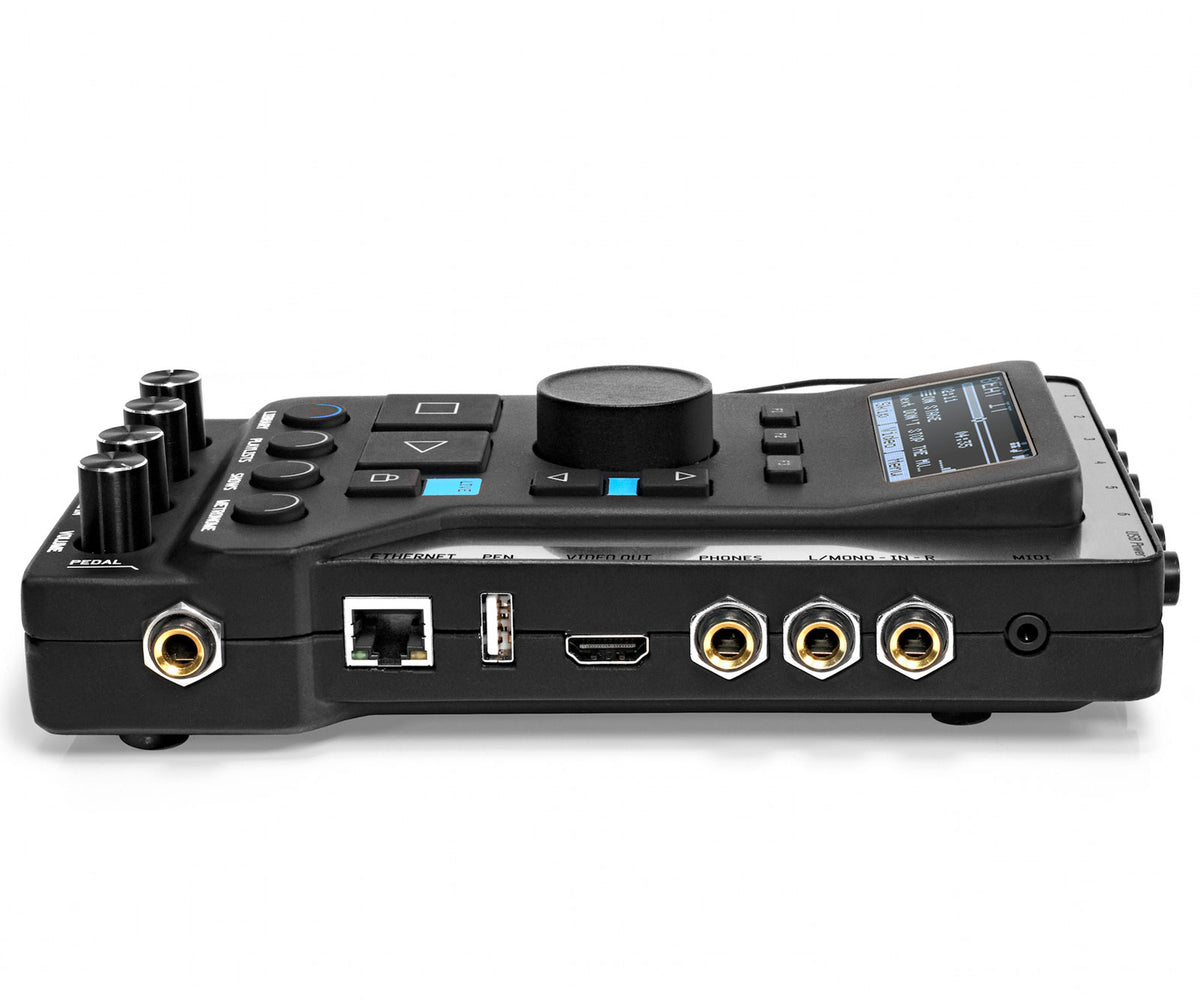

What audio connectivity is available?
The device has two line inputs on 6.35 mm jacks, six audio outputs on 6.35 mm jacks, and a headphone output on a 6.35 mm TRS jack. Internal conversion relies on 8 channels D/A 24-bit / 48 kHz, with a stated output gain of +3.0 dB.
Is 128 Gb of internal storage sufficient for backing tracks and videos?

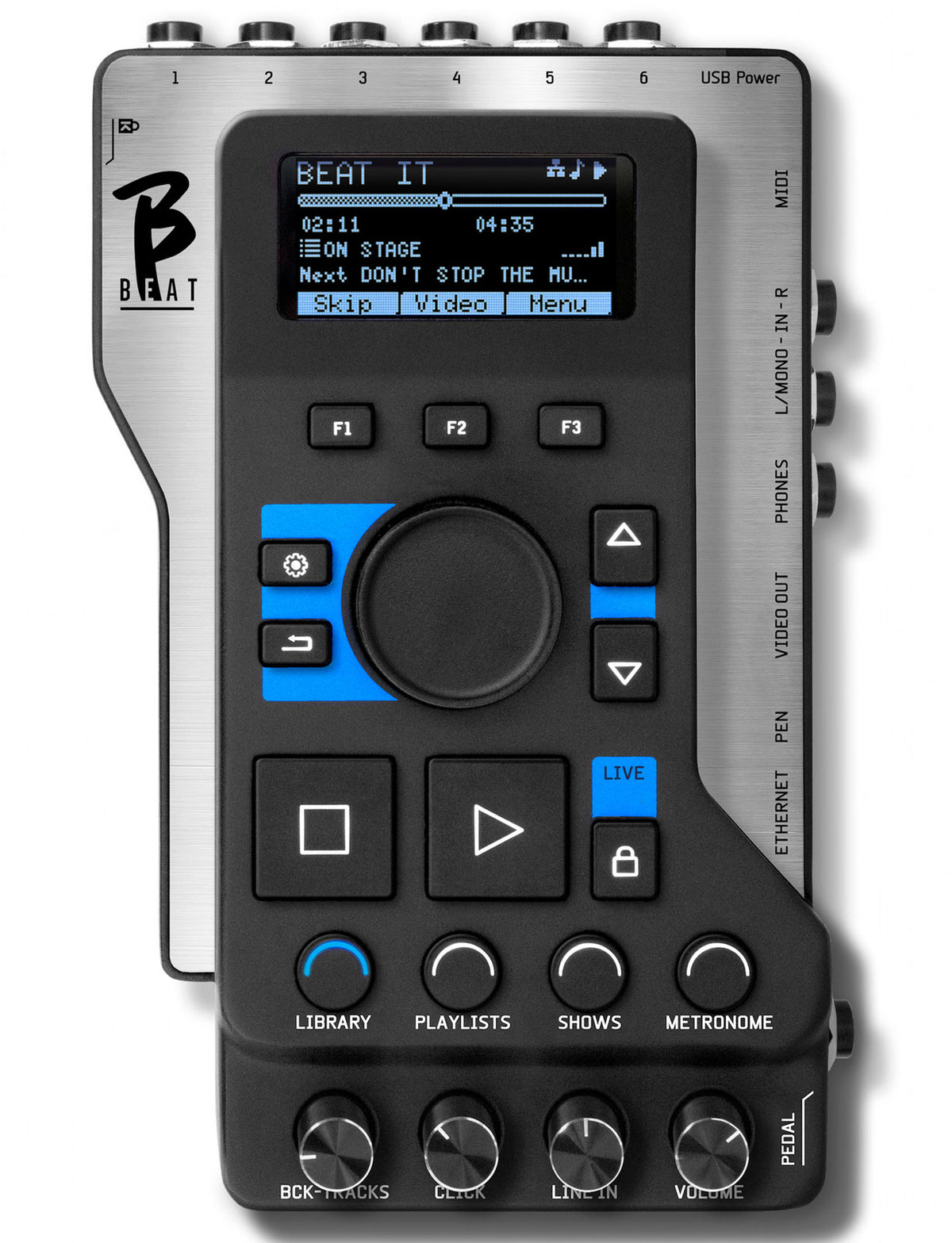

This version features 128 Gb of internal memory to store songs, media, and prepared sessions. JPG and PNG images are also supported for backgrounds, logos, or title screens. A 128 x 64 OLED screen provides access to the unit's functions.
