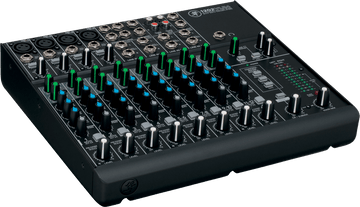

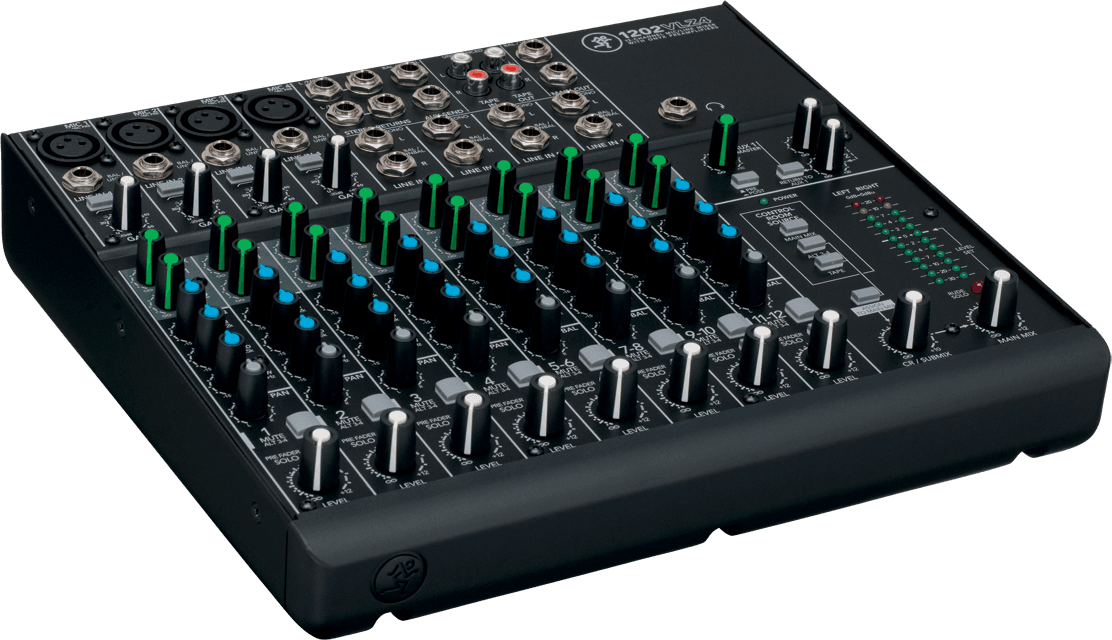

Mackie 1202-VLZ4
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Mackie
https://www.mackie.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
Essential Information About the Mackie VLZ4 Mixing Console
- Onyx Preamps renowned for their low noise, wide headroom, and exemplary precision.
- Reinforced steel chassis "Built-Like-A-Tank" for rock-solid reliability both in the studio and on stage.
- Flexible routing with Alt 3/4 bus, 2 Aux sends and stereo return for effects.

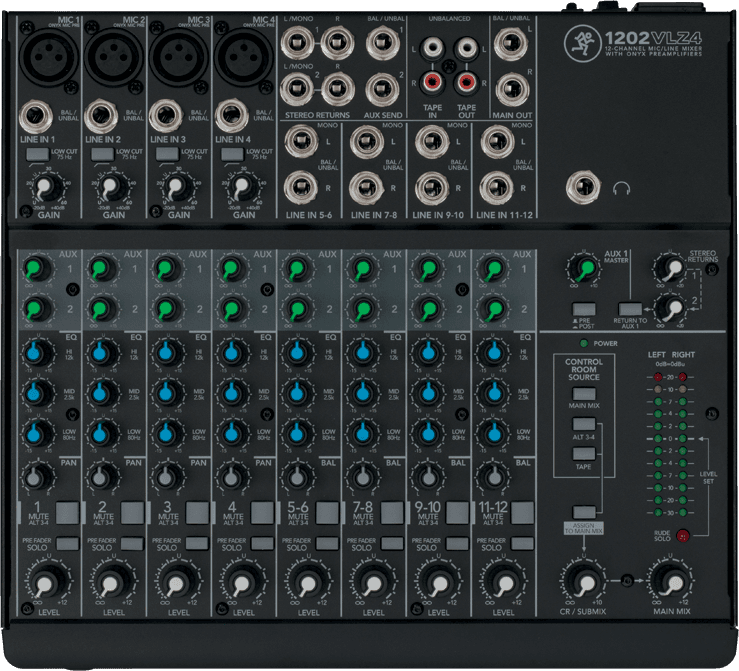

- Comprehensive connectivity with balanced XLR and 6.35mm Jack inputs, XLR main outputs, and headphone/control room monitoring.
A Pro Heritage in a Compact Format
Since the 1990s, the VLZ series has been a benchmark for analog consoles. This VLZ4 generation continues the brand's DNA with precise Onyx preamps, meticulous design, and a robust chassis. Designed to deliver "broadcast" quality, it is aimed at those who want the Mackie sound signature and reliable touring performance every day.
Who Is It For and What Are Its Uses?
The VLZ4 is ideal for home studios, mobile recording, small stages, conference rooms, and rehearsal bands. Its intuitive operation, channel volume and pan control, as well as pre-fader solo (depending on model), facilitate quick soundchecks and efficient workflows.
Technical specifications
| Insert | Yes | Busses / groups | 2 bus |
| Number of channels | 12 | Number of auxiliary sends | 2 |
| Phantom power supply | Yes | Mic inputs | 4 x XLR |
| Motorised faders | No | Line inputs | 4 x unbalanced jacks, 4 x balanced jacks |
| Filters | Low cut at 75 Hz | Inputs (other) | 2 x Rca, 2 x stereo effects returns 2 x balanced jacks |
| Rackable | Yes | Main outputs | 2 x XLR, 2 x balanced jacks |
| Rack unit | 7 | Outputs (other) | 2 x Rca, 2 x Aux balanced Jacks |
| Category | analog mixer | Color | Black |
| Number of mic preamps | 4 | Weight | 3 kg |
| Number of auxiliary returns | 1 | Dimensions (mm) | 303 x 284 x 75 |
Questions frequently asked
How many microphones can be connected to the Mackie 1202-VLZ4?
The mixer features 4 XLR mic inputs with Onyx preamps and phantom power. The mono inputs include a 75 Hz high-pass filter.
Can the 1202-VLZ4 be used for rehearsals or small live gigs?
This model is suitable for band rehearsals and small live performances thanks to its 12 channels. Two auxiliary sends per channel allow for monitor mixes or external effects.
What outputs are available for speakers and headphones?
The main section includes 2 XLR outputs and 2 balanced 6.35 mm jack outputs. A dedicated Control Room section and a headphone output provide monitoring options.
Can individual channels be sent separately to a recorder or streaming device?
The Alt 3/4 subgroup enables routing of sources to a recorder, streaming, or separate monitor mix. RCA tape connections are also available for connecting an external player or recorder.
Is the Mackie 1202-VLZ4 rack-mountable?
This mixer is rack-mountable in a 7U format and measures 303 x 284 x 75 mm. It weighs 3 kg.
