Mackie Onyx 12
Regular price
495,00 âŹVAT incl.
0,90 ⏠Ecotax included
Sale price
Reference price
0,90 ⏠Ecotax included
Regular price
In stock online
In stock in store
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years

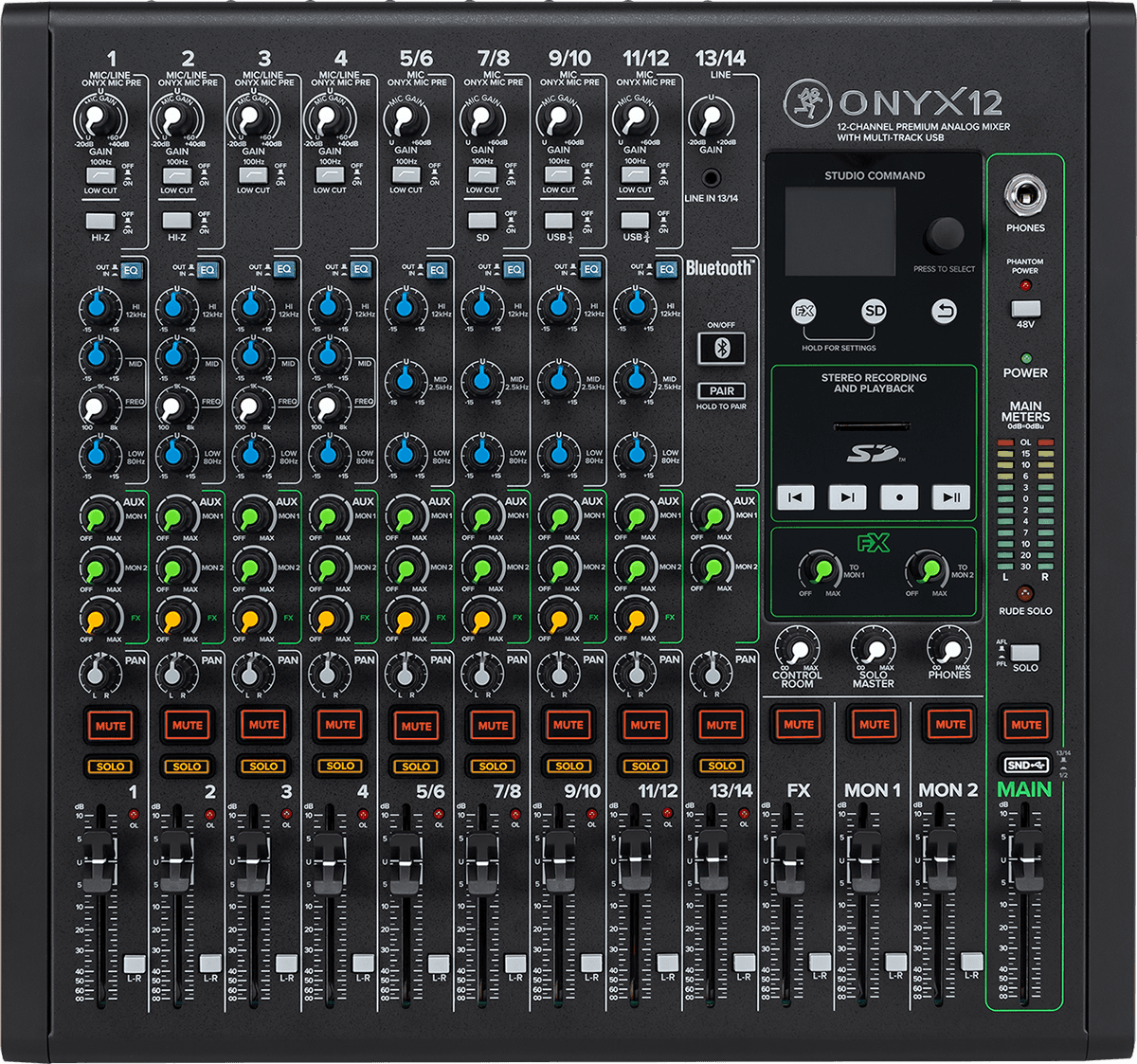

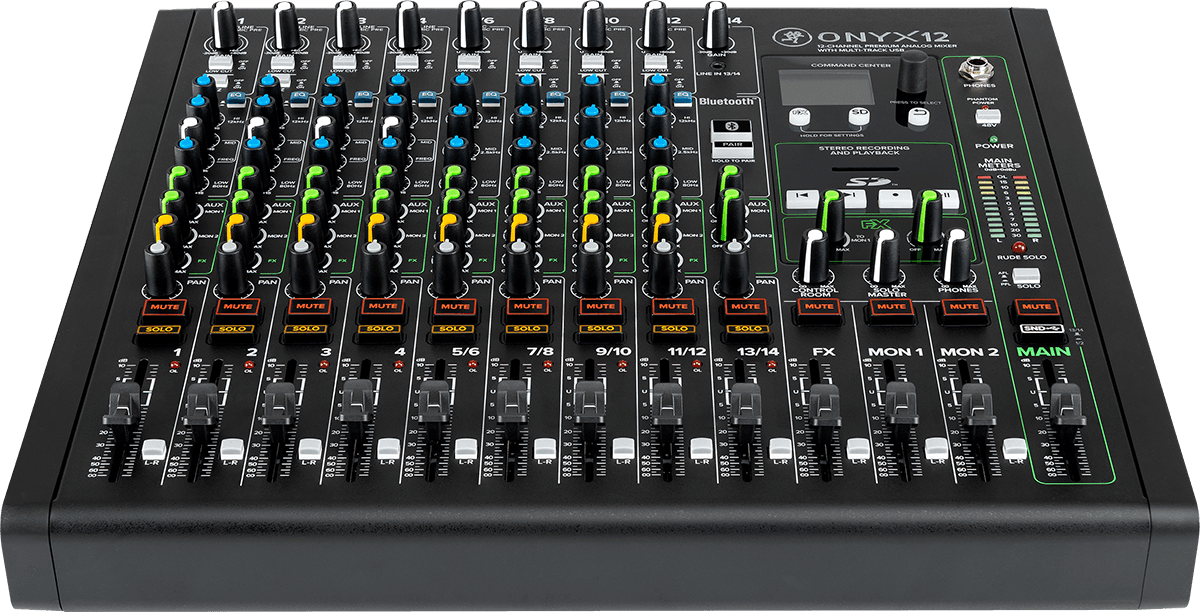

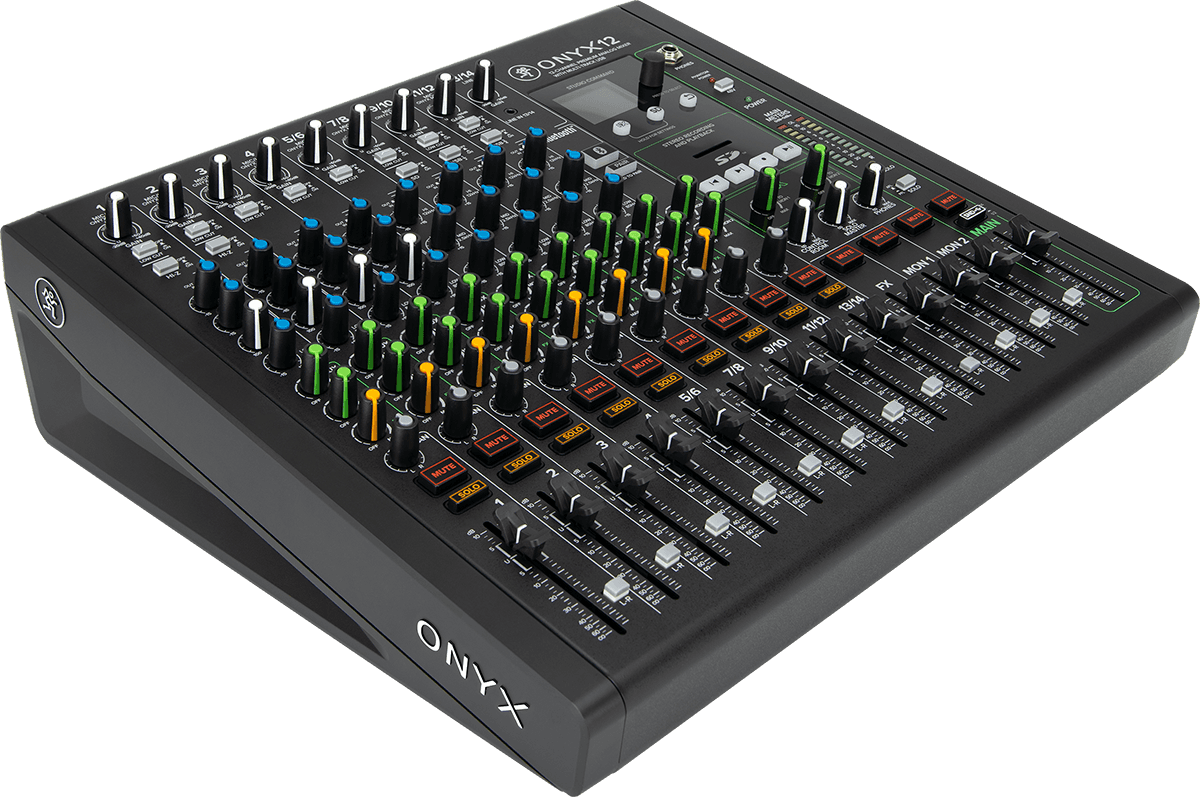

Essential Information About the Mackie Onyx 12 Mixing Console
Essential Information About the Mackie Onyx 12 Mixing Console
- Onyx Preamps with very low noise offering up to 60 dB of gain for clean and powerful recordings.
- 12x4 USB Interface at 24-bit/96 kHz + direct SD card recording/playback for flexible capture.
- Studio Command Color Display and illuminated buttons for clear control even on dark stages.
- Perkins "British style" EQ and customizable built-in effects processor with 6 user presets.
Manufacturer Information
Mackie
https://www.mackie.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
The Onyx DNA, a Modern Classic
True to Mackie's philosophy, the Onyx 12 combines the warmth of an analog console with the flexibility of a modern recorder. The Perkins EQ, inspired by prestigious British desks from the 60s/70s, delivers broad and precise musicality, while the Onyx preamps ensure ample and quiet gain headroom.
For Stage, Home Studio, and Streaming
Whether you're mixing a concert, producing in a home studio, or streaming live, the Onyx 12 serves as a reliable audio hub. Its generous connectivity, Bluetooth for background music, and USB multitrack recording simplify both soundchecks and post-production.
Technical specifications
| Insert | Yes | Busses / groups | 2 sub-groups |
| Number of faders | 16 | Number of auxiliary sends | 3 |
| Number of channels | 8 | Mic inputs | 7 x XLR |
| Phantom power supply | Yes | Line inputs | 14 x balanced jacks |
| Motorised faders | No | Inputs (other) | USB, minijack |
| Provided software | Tracktion Waveform | Main outputs | 2 x XLR, 2 x balanced jacks |
| Rackable | Yes | Outputs (other) | monitor 2 x balanced jacks |
| Rack unit | 14 | Color | Black |
| Category | USB console | Built-in effects | Yes |
| Fader travel | 60 mm | Display | OLED |
| Number of mic preamps | 8 | Weight | 5.8 kg |
| Recording | USB, SD card | ||
| Channel EQ | 3-band with semi-parametric mids | Control Room outputs | balanced 6.35 mm jack (12-segment LED level meter) |
| Multi-effect | programmable via the OLED display | Headphone output | 6.35 mm jack with volume control |
| Buses / groups | 2 subgroups | Other outputs | monitor 2 x balanced jacks |
| Mono inputs | 4, XLR and balanced jack with insert, adjustable gain (60 dB), Hi-Z switch (channels 1-2), 3-band EQ with semi-parametric mids and 100 Hz high-pass filter | USB port | 12x4 multitrack playback and recording, USB returns on channels 9/10 and 11/12 |
| Mono/stereo inputs | 4, XLR and 2 x jack and 2 x balanced 6.35 mm jacks, adjustable gain (60 dB), 3-band EQ and 100 Hz high-pass filter | SD card | stereo recording and playback (return on channel 7/8) |
| Line In inputs | 2 x balanced 6.35 mm jacks and stereo minijack / Bluetooth, with volume, pan, 2 Aux sends, Mute, Solo and signal indicator | Software | Tracktion Waveform, Pro Tools First |
| Other inputs | USB, minijack | Software bundle | Mackie Musician Collection (23 plug-ins) and Waveform OEM multitrack recording software without âLiteâ restrictions |
| Main L & R outputs | XLR and balanced 6.35 mm jack (12-segment LED level meter) | ||
You will also like
Mackie
Pro FX 16 V3
Regular price
498,00 âŹVAT incl.
0,90 ⏠Ecotax included
Sale price
Reference price
0,90 ⏠Ecotax included
Regular price
Yamaha
MG16xu
Regular price
525,00 âŹVAT incl.
0,90 ⏠Ecotax included
Sale price
Reference price
0,90 ⏠Ecotax included
Regular price
Zoom
LIVETRACK L-8
Regular price
425,00 âŹVAT incl.
0,90 ⏠Ecotax included
Sale price
Reference price
0,90 ⏠Ecotax included
Regular price
Soundcraft
Efx 12
Regular price
499,00 âŹVAT incl.
0,00 ⏠Ecotax included
Sale price
Reference price
0,00 ⏠Ecotax included
Regular price
Presonus
StudioLive AR16c
Regular price
599,00 âŹVAT incl.
0,90 ⏠Ecotax included
Sale price
Reference price
0,90 ⏠Ecotax included
Regular price
Soundcraft
Efx 8
Regular price
408,00 âŹVAT incl.
1,00 ⏠Ecotax included
Sale price
Reference price
1,00 ⏠Ecotax included
Regular price
Allen & Heath
ZED14
Regular price
469,00 âŹVAT incl.
1,00 ⏠Ecotax included
Sale price
Reference price
1,00 ⏠Ecotax included
Regular price
Presonus
StudioLive AR12c
Regular price
0,90 ⏠Ecotax included
Sale price
499,00 âŹVAT incl.
509,00 âŹ
Reference price
0,90 ⏠Ecotax included
Regular price
Customer reviews
Based on 2 reviews
- 5 stars, 2 reviews
- 4 stars, 0 reviews
- 3 stars, 0 reviews
- 2 stars, 0 reviews
- 1 star, 0 reviews
The review form didn't open. Please try again.
-
A very practical mixer that still stands up to the new models with compression and various gadgets
Automatically translated
-
I am very happy
Automatically translated
No reviews match this filter.
Reviews can't be loaded right now. Please try again.
Automatically translated
Questions frequently asked
Does the Mackie Onyx 12 allow multitrack recording on a computer?
The USB port supports 12x4 multitrack playback and recording up to 24-bit/96 kHz. USB returns are assigned to channels 9/10 and 11/12. Waveform OEM software and the Mackie Musician collection of 23 plug-ins are included.
How many microphones can be connected to this mixer?
This mixer features 7 XLR mic inputs and 8 Onyx preamps. Phantom power is available for microphones requiring this type of power supply.
Is it possible to record directly to an SD card?
Stereo recording and playback on an SD card are supported, with a return on channel 7/8.

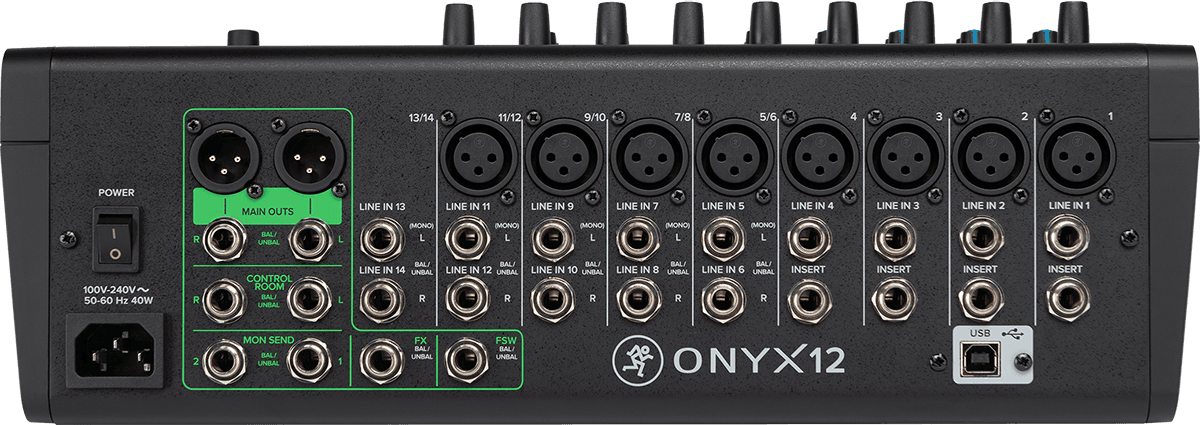

What outputs are available for the front panel and monitor mixes?
The main L/R outputs are provided on balanced XLR and 6.35 mm TRS jacks, with a 12-segment LED meter. A Control Room output is available on two balanced 6.35 mm TRS jacks. The headphone output uses a 6.35 mm jack with volume control.
What sound settings and effects are integrated?
Each channel features a Perkins 3-band EQ with semi-parametric mids and a 100 Hz high-pass filter. Built-in effects are accessible via the OLED Studio Command screen, which allows saving 6 user FX presets.
