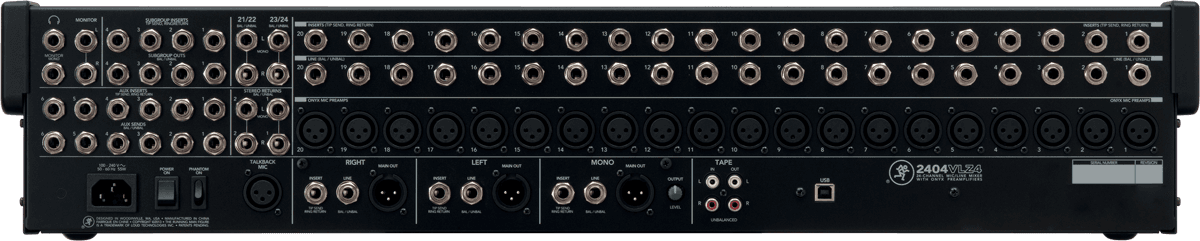

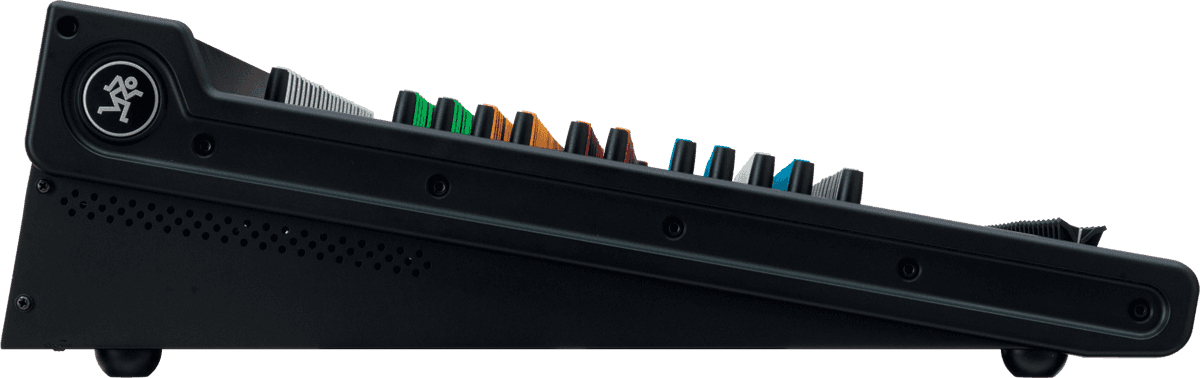

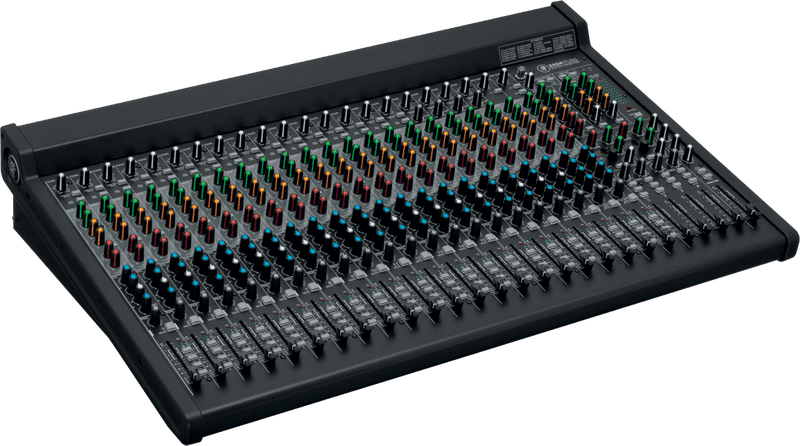

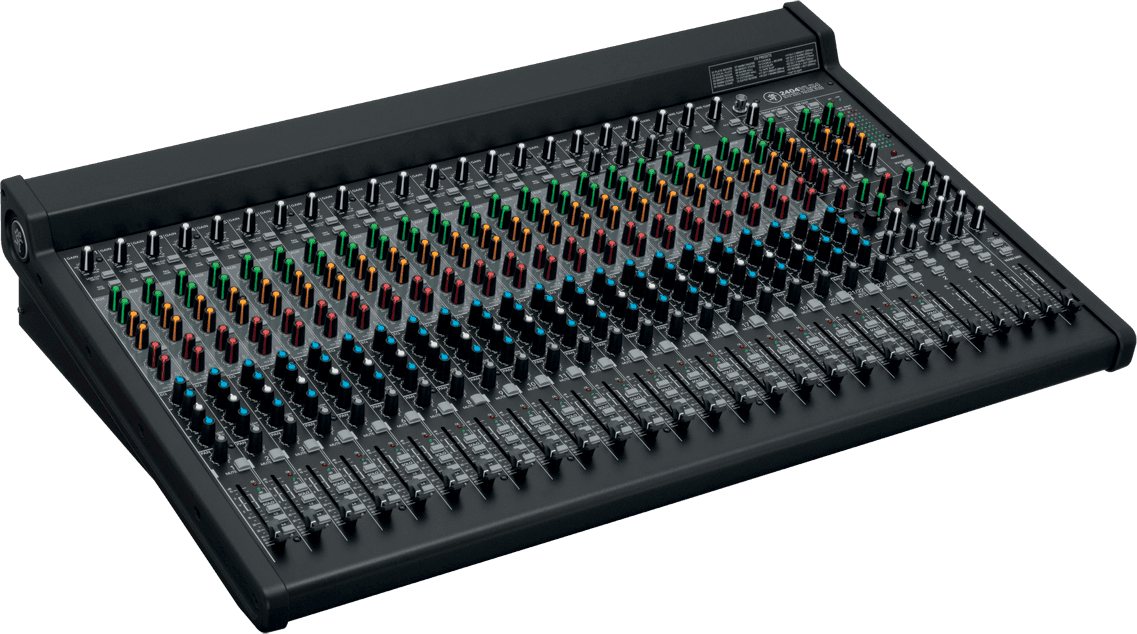

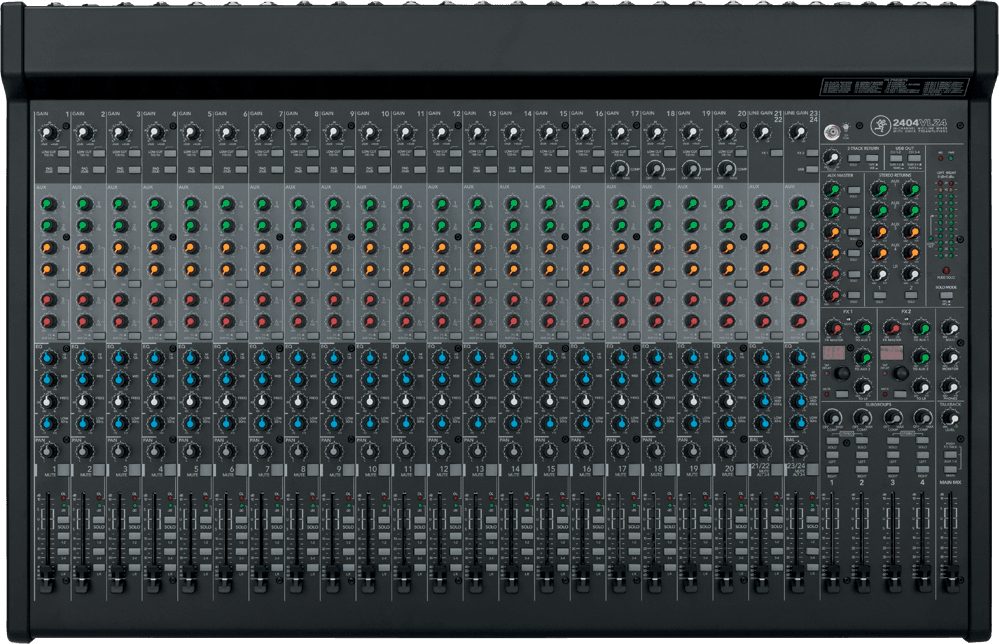

Mackie 2404-VLZ4

Essential Information About the Mackie 2404-VLZ4 Mixing Console

• Proven VLZ4 Audio Quality: wide dynamic range, generous gain, and very low noise for clean mixes both in the studio and on stage.


• Comprehensive Connectivity: 20 mono inputs and 2 stereo inputs, with inserts on mono channels and on the master for easy integration of your external processing.


• Flexible Mixing: 4 subgroups, 6 auxiliaries, and 2 stereo returns to comfortably manage monitors, effects, and sub-mixes.


• "Built-Like-A-Tank" Reliability: reinforced steel chassis designed for touring and demanding environments, with a broadcast-quality oriented approach.

A 2404-VLZ4 in the VLZ Lineage: A Benchmark of Robustness and Versatility

The VLZ4 series continues a long tradition of Mackie consoles known for their durability and consistency in real-world conditions. With a reliability-focused design, this generation upholds the fundamentals that have built the reputation of the range for nearly 25 years: stable audio quality, controlled noise levels, and ergonomics designed for fast workflow. The goal remains the same: to offer a console capable of performing in home studios, rehearsals, live performances, or more "broadcast" uses, without compromising on durability.

For Home Studio, Stage, Rehearsals, and Fixed Installations

The Mackie 2404-VLZ4 is aimed at bands, sound technicians, stage managers, project studios, and equipped venues that need an analog console offering both numerous inputs and true routing flexibility. With its many mono channels, stereo inputs, and auxiliaries, it allows managing a complete set (vocals, guitars, keyboards, drums, monitors, effects) while maintaining intuitive control. In the studio, it is equally relevant for recording multiple sources, creating sub-mixes, or controlling external effects via auxiliary sends.

Technical specifications

Insert	Yes	Busses / groups	4 groups
Number of faders	27	Compressor / gate	channels 17 to 20 compressor
Number of channels	24	Number of auxiliary sends	6
Phantom power supply	Yes	Mic inputs	20 x XLR
Motorised faders	No	Line inputs	20 x balanced jacks, 2 x balanced jacks
Filters	100 Hz low cut	Inputs (other)	2 x Rca, 2 x stereo effects returns 2 x balanced jacks, talkback (XLR)
PFL/AFL mode	Yes	Main outputs	mono XLR, mono jack, 2 x XLR, 2 x balanced jacks
Rackable	No	Outputs (other)	2 x headphone stereo jacks, 6 x Aux balanced jacks, 4 x sub-groups 2 x balanced jacks, Control room 2 x balanced jacks
Category	analog mixer	Color	Black
Fader travel	60 mm	Built-in effects	Yes
Number of mic preamps	20	Weight	14.1 kg
Number of auxiliary returns	2	Dimensions (mm)	748 x 486 x 153
Recording	USB
