A Monitoring Tool Designed for Multi-Person Sessions
In the studio, rehearsal room, or mobile control room, the challenge is often the same: providing clear headphone monitoring for multiple people without struggling with splitters or unmanageable levels. This model relies on a 4-channel architecture and connectivity that is both balanced (XLR) and 6.35 mm jack, adapting to modern audio chains as well as more traditional setups.
Who Is It For and What Are Its Uses?
This headphone amplifier is aimed at recording studios, demanding home studio users, podcasters, and sound engineers who want a reliable monitoring system for multiple simultaneous headphones. Musicians appreciate the ability to achieve comfortable levels and tailored balance, while the operator benefits from quick level monitoring thanks to the LED VU meters.
Technical specifications
| Number of channels | 12 | Direct output | No |
| Rackable | Yes | Color | Black |
| Talkback | No | Power supply included | Yes |
| Category | headphone preamp | Power supply | AC Adapter |
| Volume per channel | Yes | Weight | 3.6 kg |
| Mono switch | Yes | Dimensions (mm) | 224 x 483 x 46 |
| Inputs | 2 x jack, 2 x XLR, 4 x jack aux in | ||
Questions frequently asked
How many headphones can be connected to the Mackie HM-400?
The design includes 4 channels, each equipped with 3 headphone outputs, totaling 12 headphone outputs.
What audio inputs are available on this headphone amplifier?

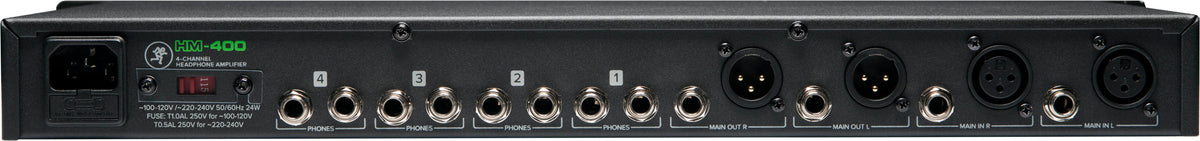

The main connectivity includes 2 XLR inputs and 2 6.35 mm jack inputs. Four auxiliary jack inputs are also available, one Aux input per channel. This setup allows for dedicated sources to be integrated into the headphone mix.
Is it possible to send a different click track to each musician with the HM-400?
Each channel has an Aux input and a Mix/Aux balance control. This makes it possible to blend a dedicated source, such as a click or guide track, with the main mix on each of the 4 channels.
Is the Mackie HM-400 rack-mountable?
The rack-mountable format measuring 483 x 224 x 46 mm allows for rack installation, with a listed weight of 3.6 kg.
Does the HM-400 have talkback and level indicators?

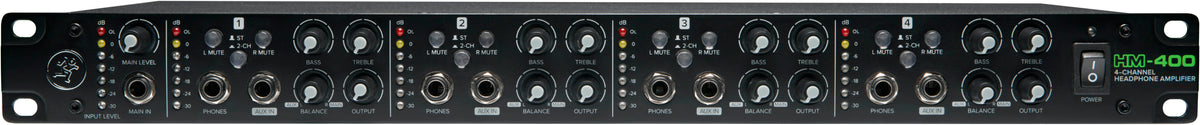

No talkback function is integrated. 7-segment LED VU meters are present on each channel as well as on the master, while a mono switch and mute controls are available.
