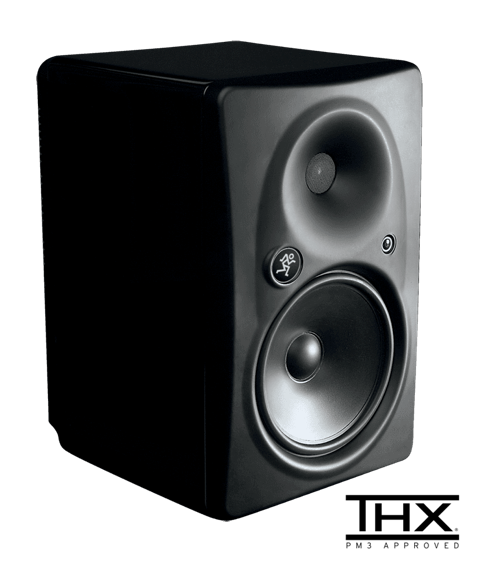

Mackie HR824 MK2
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About Mackie HR824mk2 Active Studio Monitors
Essential Information About Mackie HR824mk2 Active Studio Monitors
- Ultra-precise stereo image thanks to the Zero Edge Baffle design that reduces diffraction and improves mix clarity.
- Firm and detailed bass down to 35 Hz via the rear passive radiator, ideal for assessing the low end without artificially boosting the bass.
- Remarkably linear frequency response for more reliable mixing decisions, from vocal placement to snare drum transients.

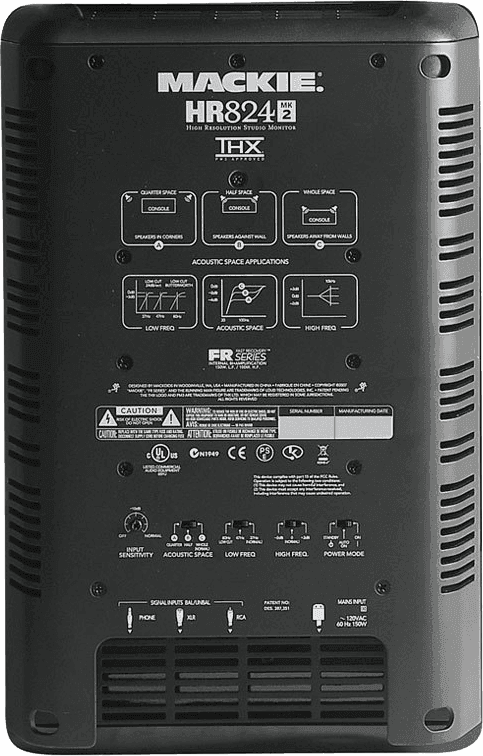

- Room adaptation with Acoustic Space, LF roll-off, and HF controls, plus comprehensive XLR, TRS, and RCA connectivity.
Manufacturer Information
Mackie
https://www.mackie.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
An "mk2" Evolution Designed for High-Definition Monitoring
The HR824mk2 continues the legacy of reference monitors designed to provide nearfield listening that is both analytical and enjoyable, without sacrificing accuracy. This mk2 version emphasizes consistent sound dispersion and image stability, notably through the Zero Edge Baffle design and an optimized waveguide aimed at wider and more even dispersion. The goal is clear: to offer you monitoring that "holds up" in modern contexts (production, mixing, and post-production), while remaining relevant for high-definition audio and multichannel setups.
Another key aspect of this approach is controlled bass extension. Rather than relying on a front port that can cause port noise or resonances, the HR824mk2 uses a rear-mounted passive radiator. The intended result is a more intelligible low end with a sense of depth, while maintaining enough articulation to distinguish kick, bass, and sub frequencies.
Who Are the Mackie HR824mk2 Monitors For in the Studio?
These monitors are designed for producers, mixers, and sound engineers who want a reference listening experience capable of enduring long sessions without fatigue, while remaining revealing enough to correct a congested low-midrange, overly long reverb, or harsh highs. Their 2-way format with a large-diameter woofer makes them particularly interesting if you work in genres where bass matters (electronic, pop, hip-hop, modern rock), but also for video editing and mixing, where spectral balance and placement accuracy are essential.
The THX pm3 certification also highlights their suitability for surround applications: if you are building a coherent multichannel listening environment, you primarily seek stable and reproducible reproduction, with linear response and controlled dispersion so that panning and spatial perception remain reliable.
Technical specifications
| Frequency response - start | 37 Hz | EQ | Yes |
| Frequency response - end | 20 kHz | Cut-off frequency | 1,9 kHz |
| Category | monitoring | SPL max | 100 dB |
| Type | passive speaker | Speaker structure | wood |
| Peak power | 500 W | Color | Black |
| Number of channels | 2 channels | Finishing | laque_brillant |
| Amplification | Active amplified | Power output | 250 W |
| Bluetooth | No | Quantity | 1 |
| Controls | volume, Low frequency attenuator 80 Hz or 37 Hz, EQ +2/-2 dB @ 10 kHz, auto standby, proximity control | Weight | 15.7 kg |
| Speaker diameter | 8" | Dimensions (mm) | 425 x 273 x 351 |
| Tweeter | 1" | ||
| Configuration | bi-amplification, 2-way | Passive radiator position | integrated at the rear |
| Certification | THX pm3 for surround applications | Passive radiator | firm, precise bass extension down to 35 Hz |
| Waveguide | wide, smooth-dispersion horn | Balanced inputs | XLR and TRS |
| Internal damping | total | Unbalanced input | RCA |
| Woofer | 8.75 inches (22 cm) | Mounting compatibility | OmniMount, wall and ceiling mounting |
You will also like
Genelec
8030 CP
Focal
Shape 65
Ik Multimedia
iLoud MTM MKII Bundle
Focal
Shape Twin
Aiaiai
UNIT-4
Neumann
KH 120 II White
Dynaudio
LYD-8 Black
Ik Multimedia
ILOUD PRECISION MTM MKII
Questions frequently asked
Do the Mackie HR824 MK2 monitors go low enough to mix bass?
The specified frequency response ranges from 37 Hz to 20 kHz, with a rear passive radiator designed to extend the bass down to 35 Hz. The 8-inch woofer makes it easier to distinguish kick, bass, and sub elements in the mix.
What inputs are available on this studio monitor?
The connectivity includes balanced XLR and TRS inputs, as well as an unbalanced RCA input.
Can the HR824 MK2 be adjusted to the room's acoustics?
There are HF, LF roll-off, and Acoustic Space controls to adapt the sound output for placement near a wall or on a desk. The high-frequency equalization adjusts ±2 dB at 10 kHz. The bass attenuator offers settings at 80 Hz or 37 Hz.
What power and sound level does this speaker deliver?
The bi-amplification provides 150 W for low frequencies and 100 W for high frequencies, totaling 250 W of power. The maximum SPL specified is 100 dB.
Is this speaker suitable for surround sound installation?
The THX pm3 certification and wide dispersion waveguide make it suitable for multichannel setups. OmniMount compatibility allows for wall or ceiling mounting to adjust listening orientation.
