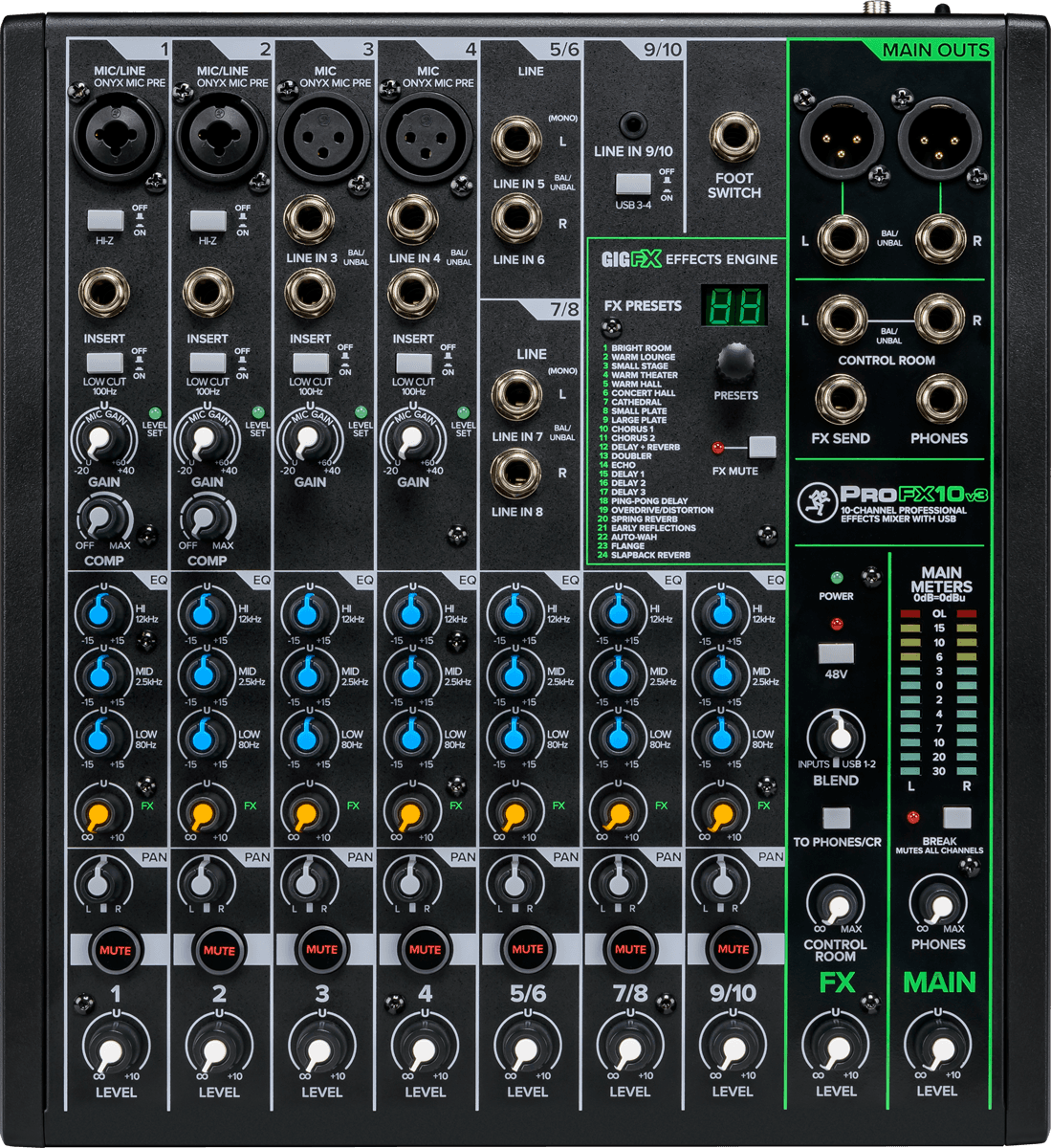

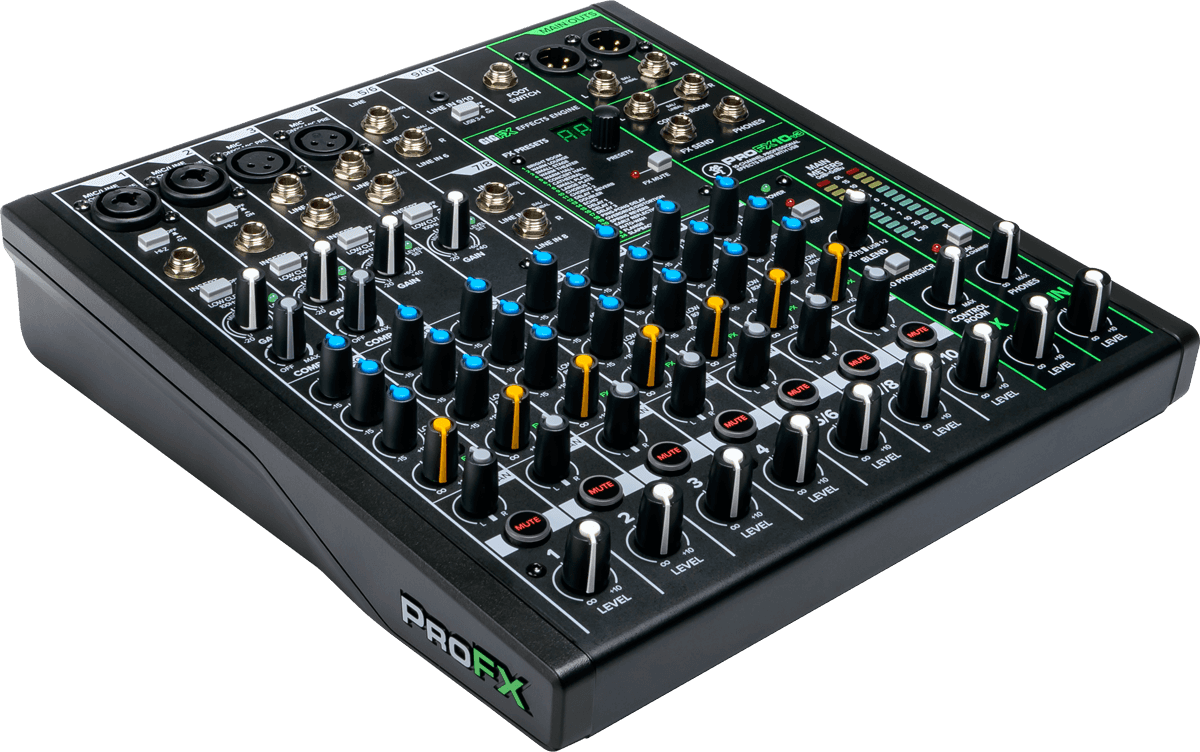

Mackie PROFX10V3

The Essentials to Know About the ProFXv3 Mixing Console

• Comprehensive connectivity: 6 mono/line inputs, 1 stereo mini-jack input, and main outputs in symmetrical XLR and 6.35mm Jack.


• Built-in processing: 3-band EQ per channel, 100 Hz high-pass filter, and "GigFX" multi-effect with 24 presets.


• USB interface for playback/recording with "USB/DIRECT" mix control on headphone and Control Room outputs.


• Smooth stage workflow: inserts on key channels, mute, pan, FX send, and signal indicators per channel.

The ProFXv3 Series, a Versatile Reference for Stage and Studio

An evolution of a range highly praised by sound engineers, the ProFXv3 emphasizes reliability and simplicity. This generation consolidates the historical strengths of the series while optimizing ergonomics, USB connectivity, and built-in effects to meet the current demands of sound reinforcement, recording, and content creation.

For Whom and For What Uses?

Ideal for bands, DJs, places of worship, bars, schools, streamers, and podcast creators, this console excels both live and in the home studio. It facilitates routing to the venue, nearfield control via the Control Room, and headphone listening, while offering simple USB capture for your rehearsals, shows, and online content.

Connectivity and Processing Designed to Get Straight to the Point

The first two channels feature gain up to 60 dB, a Hi-Z switch for instruments, inserts, and a 100 Hz high-pass filter for clean sound capture. The following channels offer the same adjustment comfort with inserts and 3-band EQ, while the stereo inputs easily accommodate keyboards, drum machines, and players.

Smart USB and Monitoring

The USB port manages playback and recording. The "USB/DIRECT" mix control on headphone and Control Room outputs allows instant switching between direct return and USB stream, for precise monitoring without perceptible latency.

"GigFX" Effects Ready for the Stage

With 24 presets, the "GigFX" multi-effect provides effective reverbs, delays, and modulations. The FX send per channel ensures quick and even dosing, suitable for both vocals and instruments.

Technical specifications

Insert	Yes	Recording	USB
Number of channels	10	Line inputs	2 x unbalanced jacks
Phantom power supply	Yes	Inputs (other)	2 x USB, minijack
Motorised faders	No	Main outputs	2 x XLR, 2 x balanced jacks
Filters	100 Hz low cut	Outputs (other)	USB
Provided software	Tracktion	Color	Black
Rackable	No	Built-in effects	Yes
Category	mixer	Display	Meter
Number of mic preamps	4

Dimensions	302 x 272 x 84 mm	Includes	"Waveform OEM" and the "DAW Essentials" collection comprising 16 effect plug-ins to use with any DAW
Weight	2.2 kg
