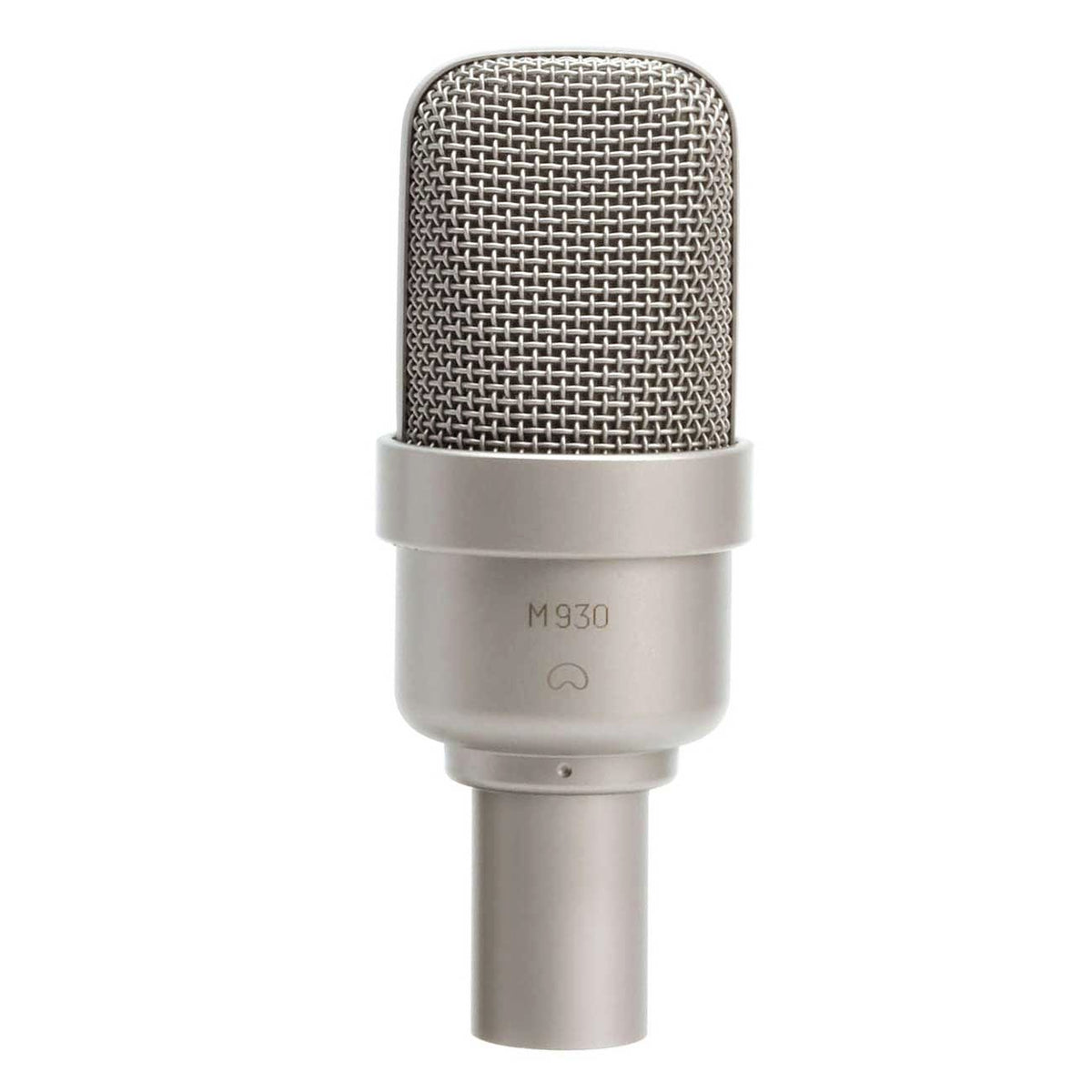

A Modern Classic at the Crossroads of Broadcast and Studio
The M 930 combines a latest-generation large diaphragm capsule with an optimized semiconductor circuit topology. Designed to meet the demands of both professional and semi-professional environments, it delivers top-tier performance in music studios, post-production, and broadcasting, while remaining accessible to discerning home studios.
For Whom and What Uses?
Ideal for singing, voice-over, announcements, and dialogue, it also excels on guitars, keyboards, percussion, winds, and strings. Its cardioid directivity ensures excellent source isolation. A side-address microphone, its active side is identified by the model number and directivity pictogram, facilitating setup both in booths and control rooms.
Technical Specifications
Transduction and Directivity
- Type: large diaphragm condenser studio microphone.
- Directivity: cardioid, side-address pickup.
- Frequency response: smooth with a slight presence boost between 7 and 11 kHz.
- Off-axis rejection: high to limit unwanted sounds from rear and sides.
- Sensitivity to RF interference: very low.
Electronics and Performance
- Next-generation semiconductor impedance converter.
- Extremely low self-noise.
- High maximum SPL and wide dynamic range.
- Capsule and electronics mounted on internal suspension to attenuate mechanical shocks.
Power Supply and Connectivity
- Power: 48 V phantom power compliant with DIN 45596 and IEC 268-15 standards.
- Output: standard 3-pin XLR.
Construction and Finishes
- Housing: compact and robust metal.
- Finishes: satin nickel (reference 211150) or dark bronze (reference 211151).
- Wooden case included (dimensions 180 x 106 x 78 mm).

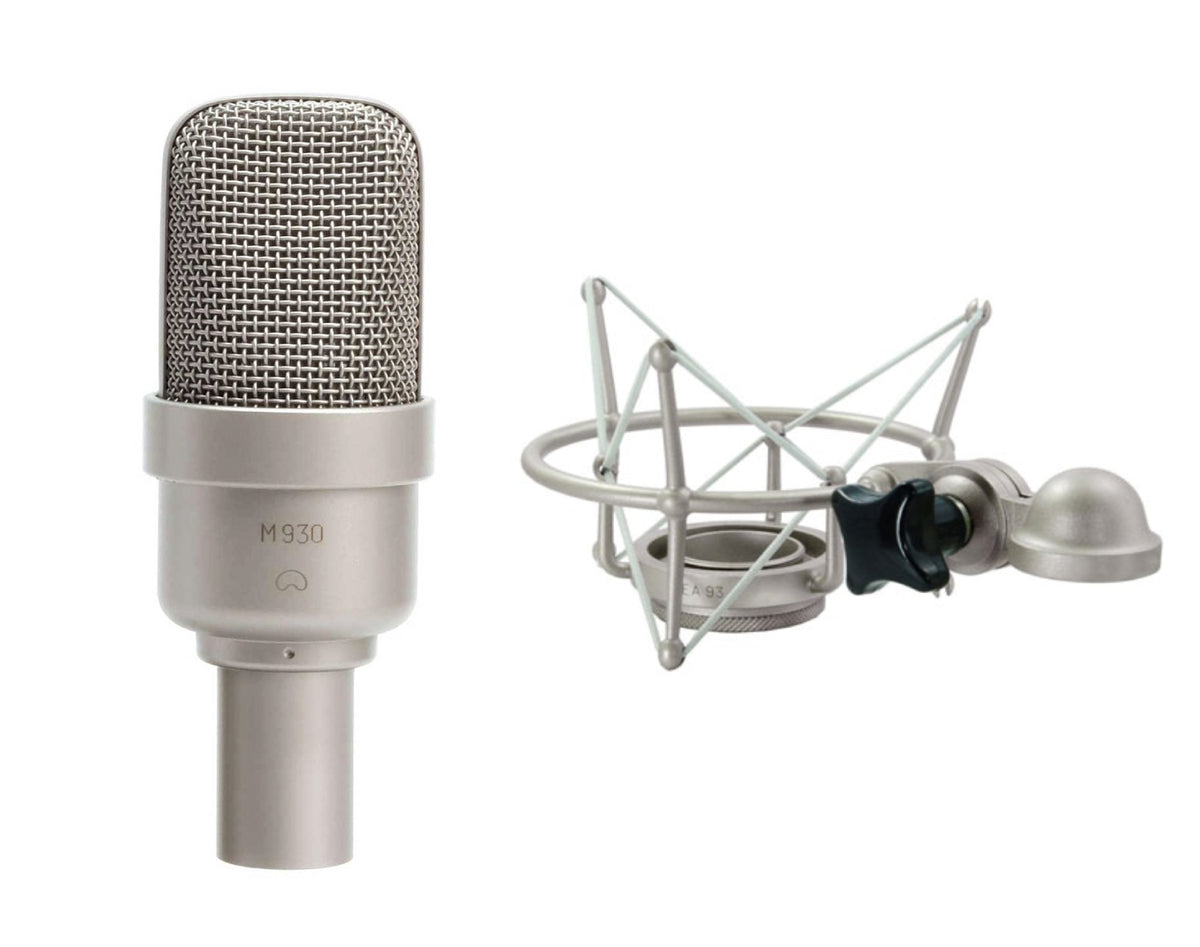

Pack Contents
- M 930 Microphone.

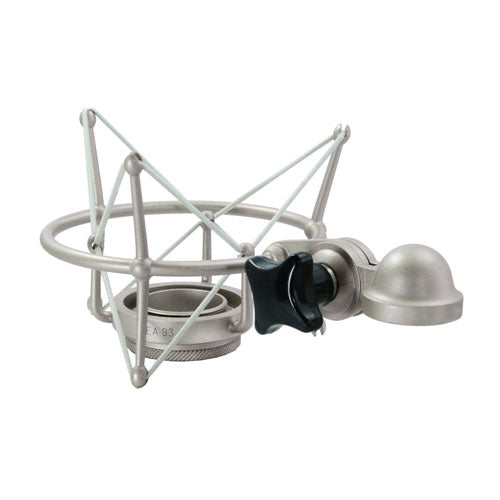

- EA 93 Elastic Suspension.
- A 93 Adapter.
- Protective wooden case.
Compatible Accessories (Optional)
- MH 93.1 microphone stand mount.
- EH 93 elastic suspension for enhanced isolation in sensitive situations.
Technical specifications
| Frequency response | 20 Hz - 20 kHz | Capsule | Large Diaphragm |
| Category | studio microphone | Connection | XLR |
| Directivity | cardioid | Color | Grey |
Questions frequently asked
Is the Microtech Gefell M930 Full suitable for singing and voice-over?
Its large diaphragm capsule offers a frequency response from 20 Hz to 20 kHz, with a natural presence between 7 and 11 kHz. This range enhances the intelligibility of sung vocals, dialogue, and announcements. The cardioid polar pattern helps isolate the source in a booth.
What power supply is required for the M930 Full?
A 48 V phantom power supply compliant with DIN 45596 and IEC 268-15 standards is required. Connection is made via a 3-pin XLR output.
Is the shock mount supplied with this microphone?

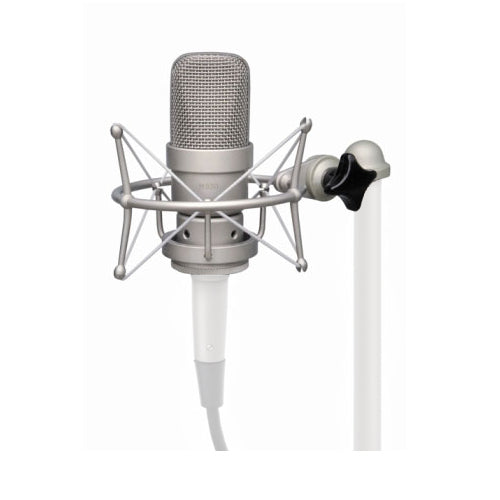

The package includes the EA 93 shock mount as well as the A 93 adapter for stand mounting.
What polar pattern and off-axis rejection does this microphone offer?
The cardioid polar pattern limits pickup of sounds from the sides and rear. A high off-axis rejection is specified to reduce unwanted sounds. The capsule and electronics are mounted on an internal suspension to minimize handling noise.
What finishes are available for the M930 Full?
Two finishes are listed: satin nickel under reference 211150 and dark bronze under reference 211151. The housing is made of compact and robust metal.
