Midas DL16

Name: DL16
Brand: Midas
SKU: 216975
Price: 743.00 EUR
Availability: InStock

743,00 €VAT incl.

0,90 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 216975

EAN : 4033653070300

This item is covered for 3 years

Information

Essential Information About the Midas DL16 Stage Rack
• 16 symmetrical MIDAS input preamplifiers for precise and musical source capture
• 8 symmetrical XLR outputs for reliable distribution of monitors and mix
• Dual AES50 at 48 kHz for bidirectional audio transport, redundancy, or daisy chaining
• Built-in ULTRANET and ADAT (TOSLINK) bridges for personal monitors and digital devices

DL16

743,00 €VAT incl.

0,90 € Ecotax included

Reference price

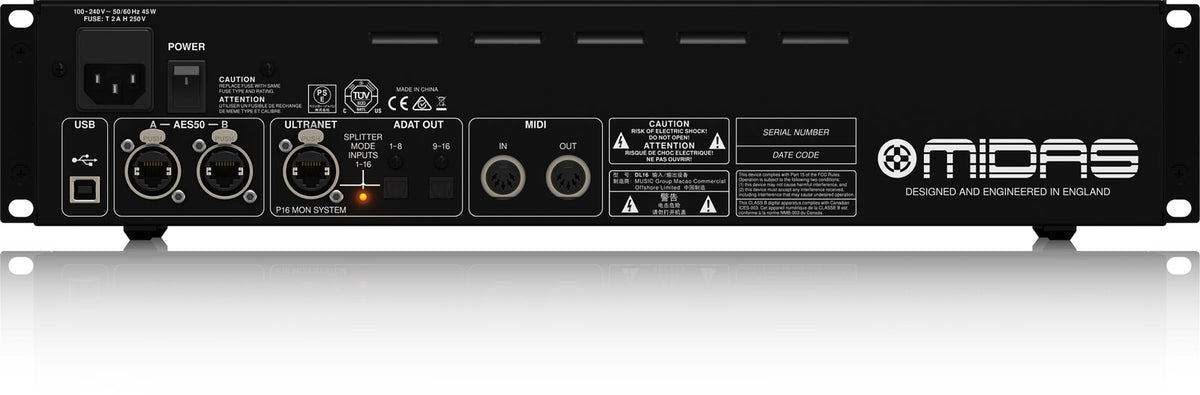

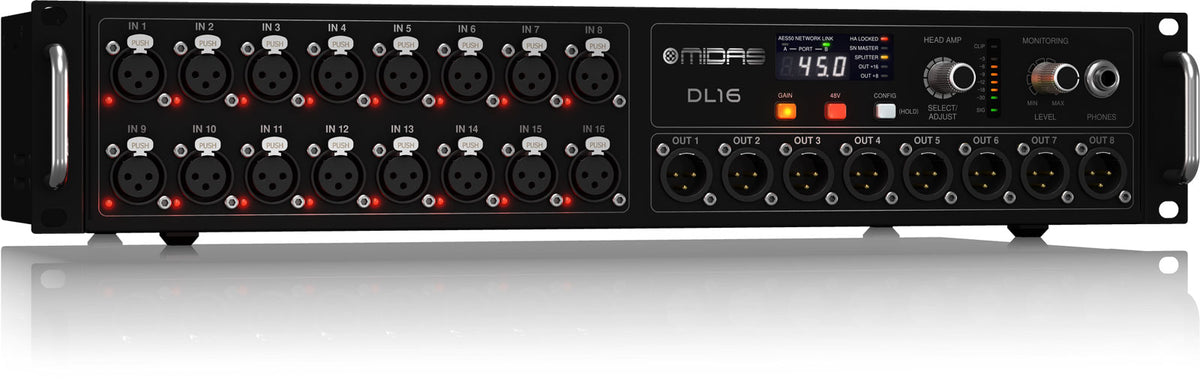

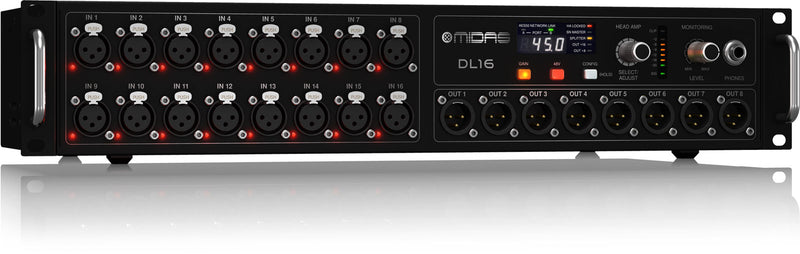

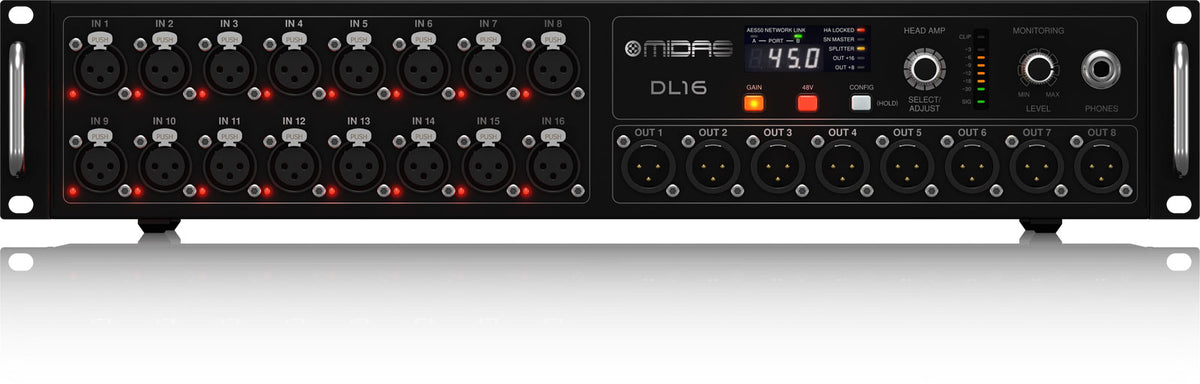

DL16, the Compact and Robust AES50 Stagebox

The DL16 condenses MIDAS expertise into a 2U chassis that is easy to integrate both on tour and in fixed installations. Designed for modular setups, this stage rack relies on AES50 to bring preamps closer to the stage, reduce analog cable lengths, and ensure reliable signal distribution.

Who Is It For and What Are Its Uses?

Ideal for live sound engineers, contractors, and venues, the DL16 is aimed at configurations requiring clean and stable remote control of mic inputs and outputs for monitors. Its extensive connectivity simplifies both multitrack stages and versatile fixed installations.

Technical specifications

Type	Digital
Number of faders	0

Rackable	Yes
Headphone output	Yes

Questions frequently asked

How many channels can the Midas DL16 transport via AES50?

Both AES50 ports provide bidirectional audio transport for up to 48 channels at 48 kHz. This connection allows the preamps to be positioned close to the stage.

Can two stageboxes be used in cascade?

The two AES50 ports allow chaining of two units in series depending on the configuration. Redundancy can also be implemented to secure signal distribution during a show.

How can signals be monitored directly on stage?

A front-panel headphone output allows listening to each input or output channel. This control facilitates line checks and signal diagnostics. Gain adjustment can thus be verified locally.

What connections are available for personal monitors and recording?

The ULTRANET connection powers personal monitors. Two optical ADAT outputs in TOSLINK format transmit 16 channels to a recorder, converter, or compatible matrix.
