A Temple Audio Module Designed for Modular Templeboard Pedalboards
With its range of modules, Temple Audio enables a neater and more practical wiring setup directly on the sides of the pedalboard. The MIDI Micro Module 7-PIN fits this logic: adding a dedicated, accessible, and sturdy connector without unnecessary tinkering, while keeping a configuration easy to evolve throughout gigs and pedal changes.Who Is It For and What Is Its Use On Stage or in the Studio?
This module is aimed at guitarists and bassists who control MIDI-compatible pedals, a looper/switcher, or a controller, and who want a better-placed MIDI input/output on their board. The result: fewer cables crossing the pedalboard, simpler connection before playing, and a cleaner setup both on tour and in rehearsal.A 7-Pin DIN Connector Dedicated to MIDI, Easy to Integrate

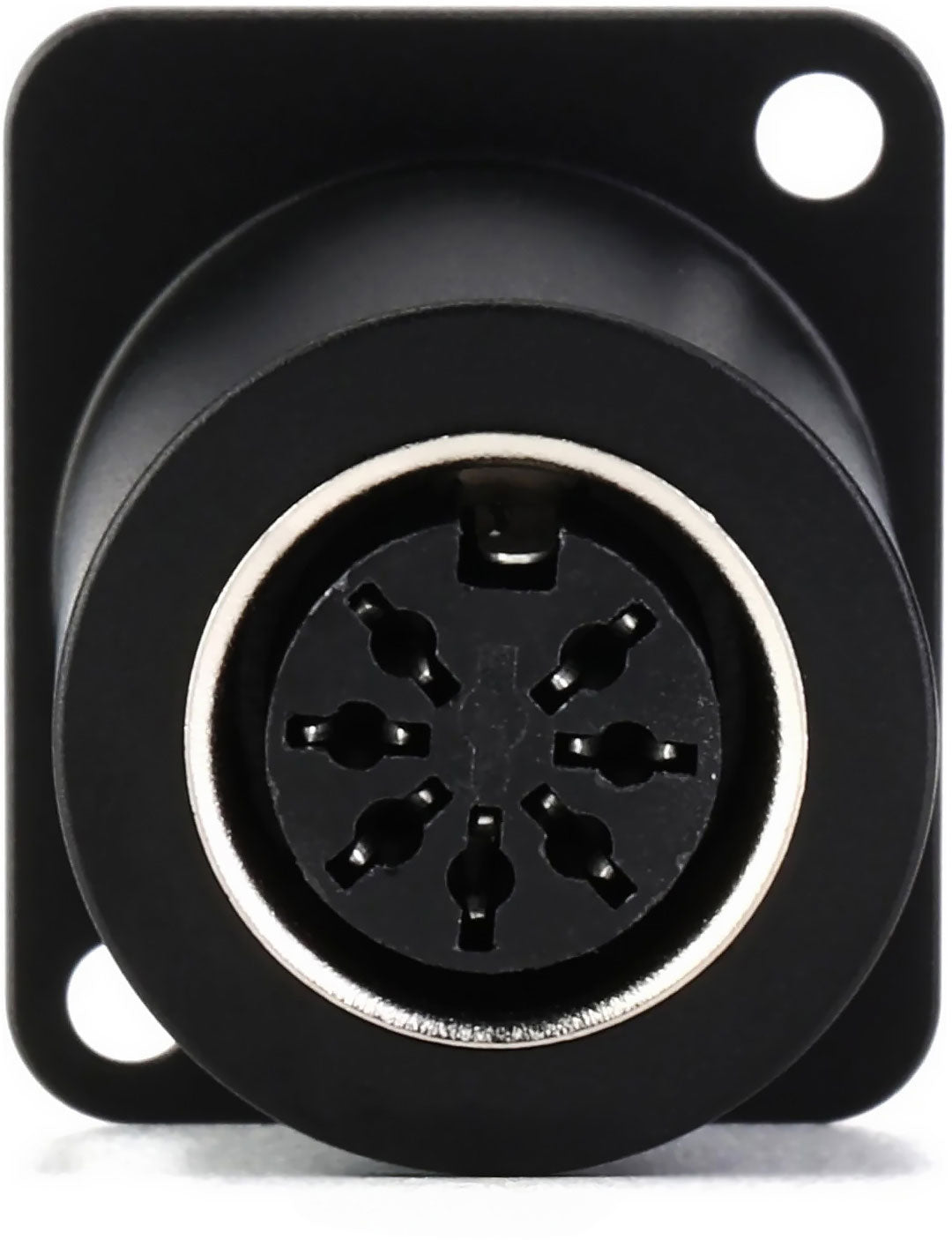

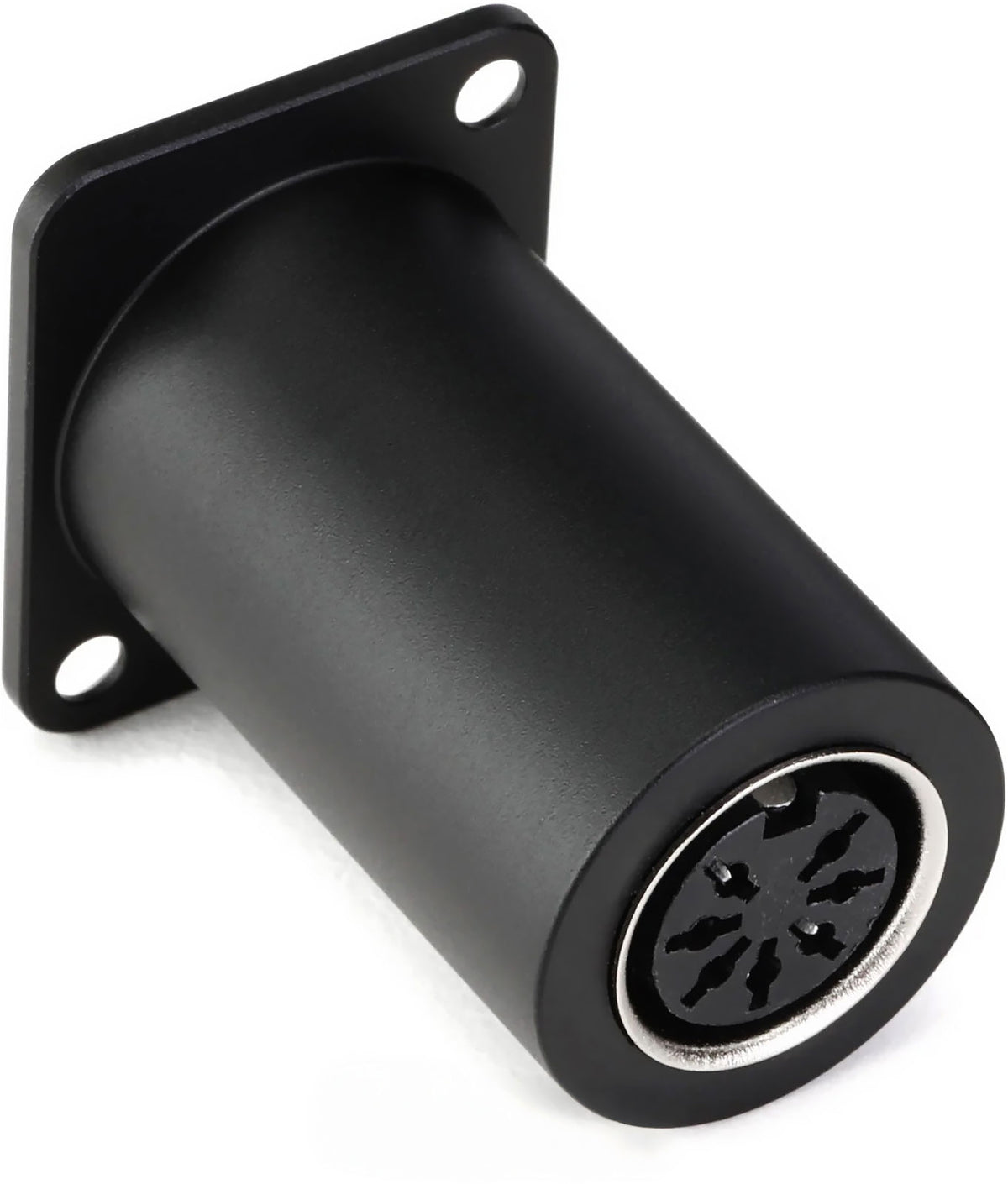

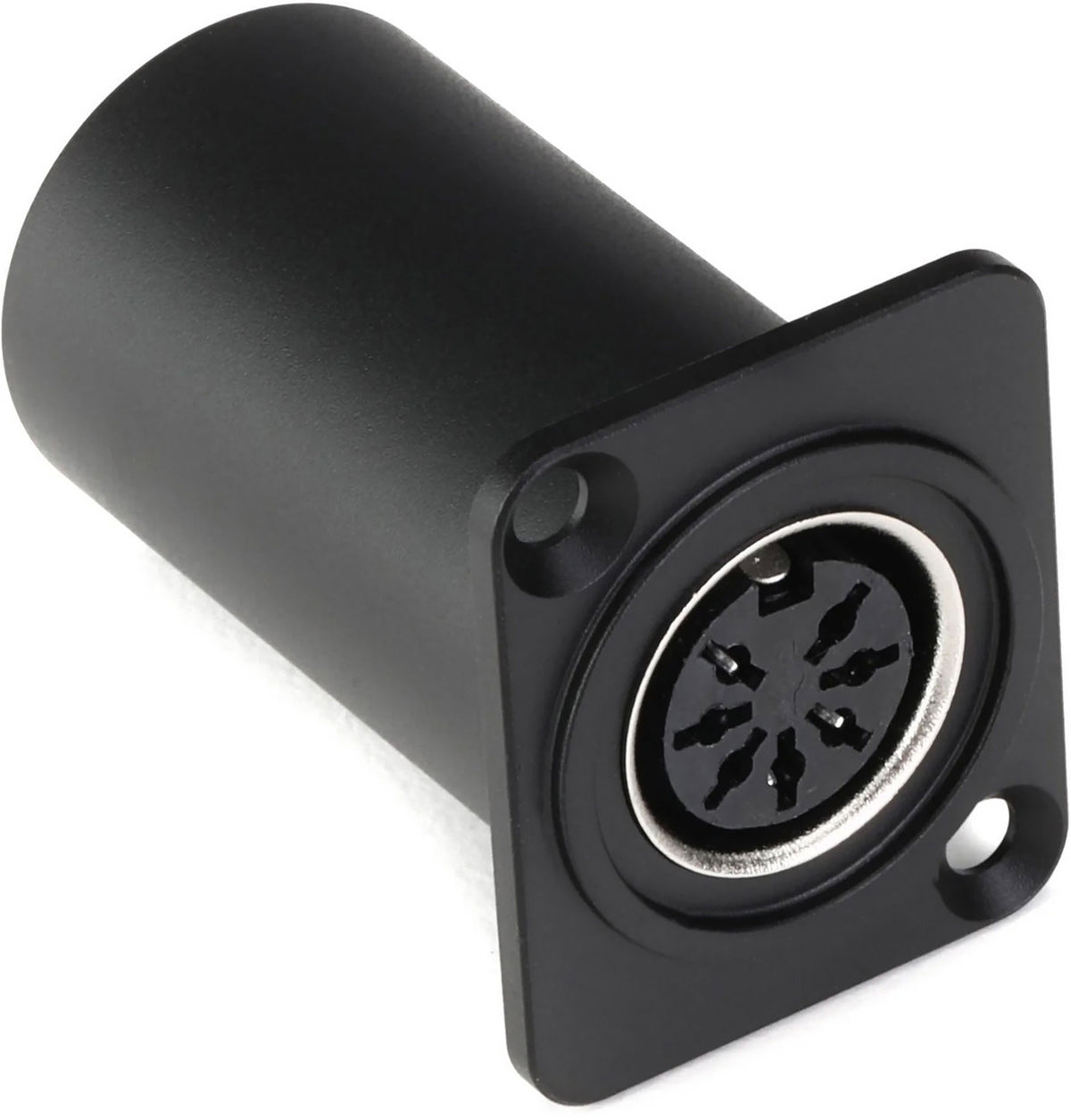

The module uses a 7-pin DIN connector and mounts into the micro or mini side slots of Templeboards. Installation is designed to be quick, requiring basic tools, while remaining robust enough for regular use.Technical specifications
| Use | Pedalboard |
| Type | 7-pin DIN connector |
| Compatibility | micro or mini side slots of Templeboards |
| Mounting | requires a Mini or Micro Module Punched Plate (sold separately) |
| Installation | quick fastening with a standard screwdriver |
Questions frequently asked
Is the MIDI Micro Module 7-PIN compatible with all Templeboards?
Compatibility is intended for the Micro or Mini side slots of Templeboard pedalboards. Installation requires a separate Mini or Micro Module Punched Plate.
What MIDI connection does this Temple Audio module use?
The connection uses a 7-pin DIN connector dedicated to MIDI.
How to install this MIDI module on a Templeboard?
Installation is done using a standard screwdriver. A Mini or Micro format Punched Plate must first be provided to ensure mounting. The attachment is designed for quick installation on compatible side slots.
Can this module be used with a MIDI controller or a switcher?
This 7-pin DIN format suits setting up a MIDI connection for compatible pedals, a looper, a switcher, or a controller. The connector is located on the side of the Templeboard pedalboard.
Why choose the Prod MIDI Micro Module 7-PIN for a pedalboard?
This model allows integrating a dedicated MIDI input or output in a Micro or Mini side slot. MIDI cabling can thus be organized without routing cables across the pedalboard.
