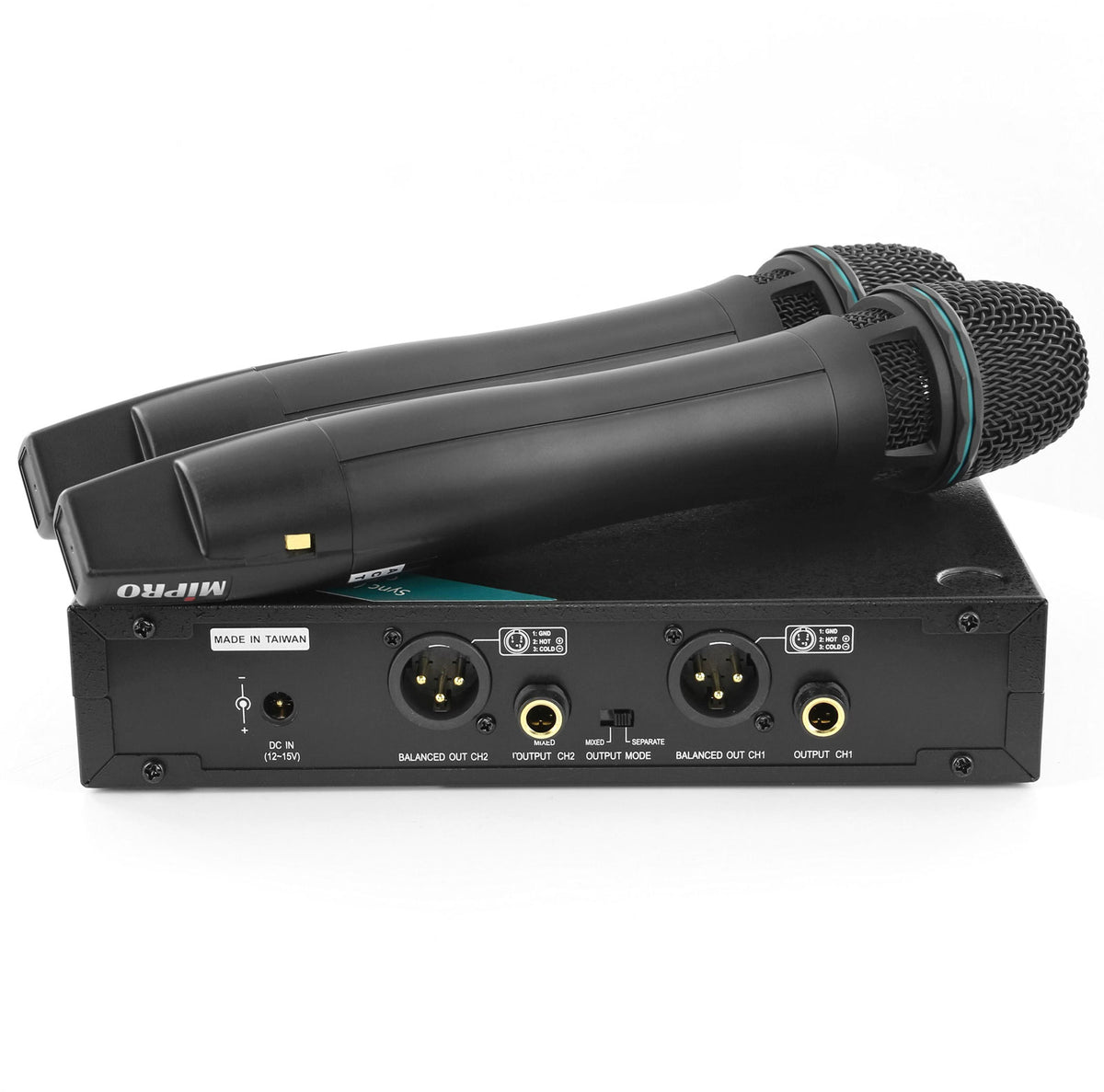

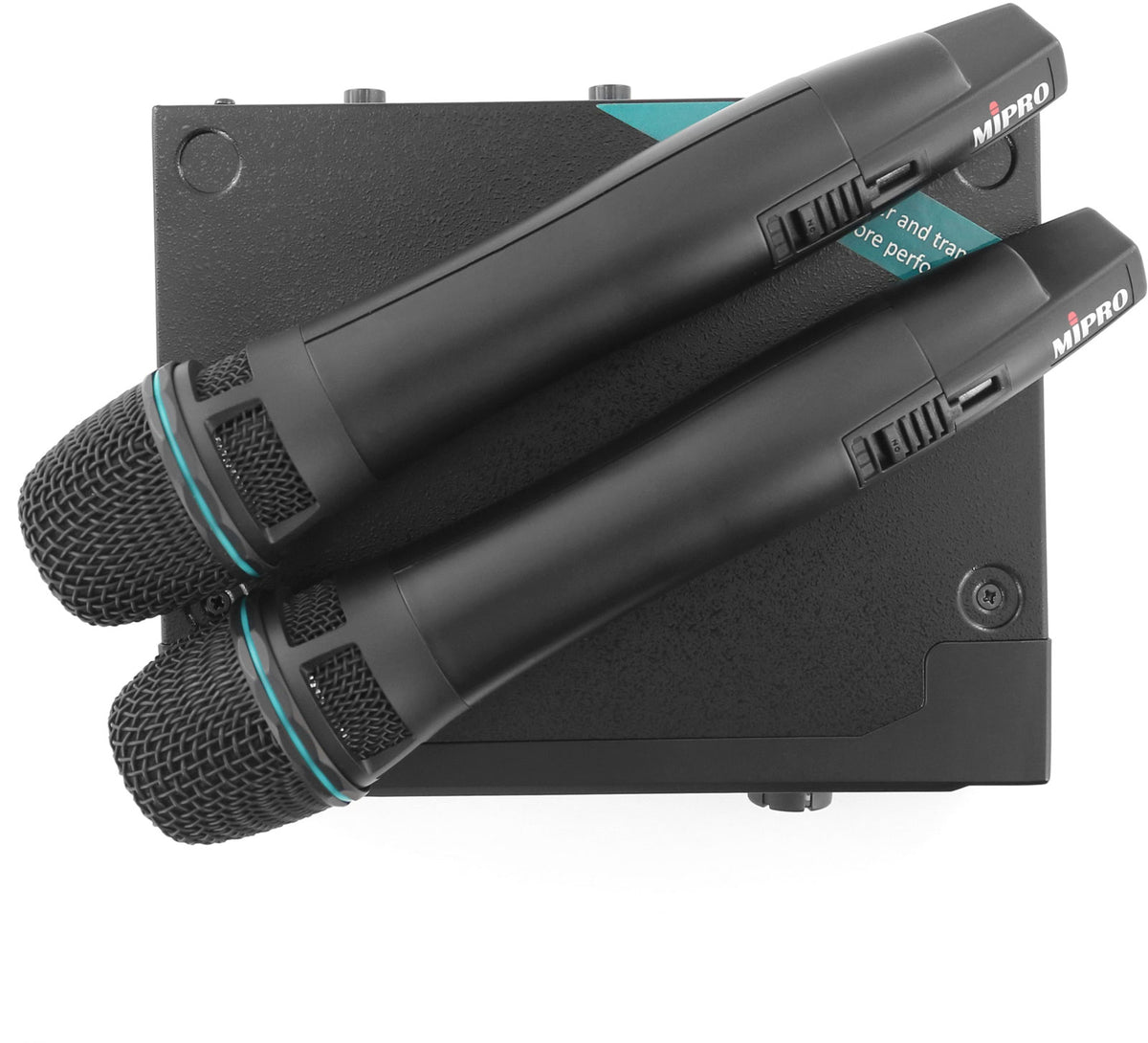

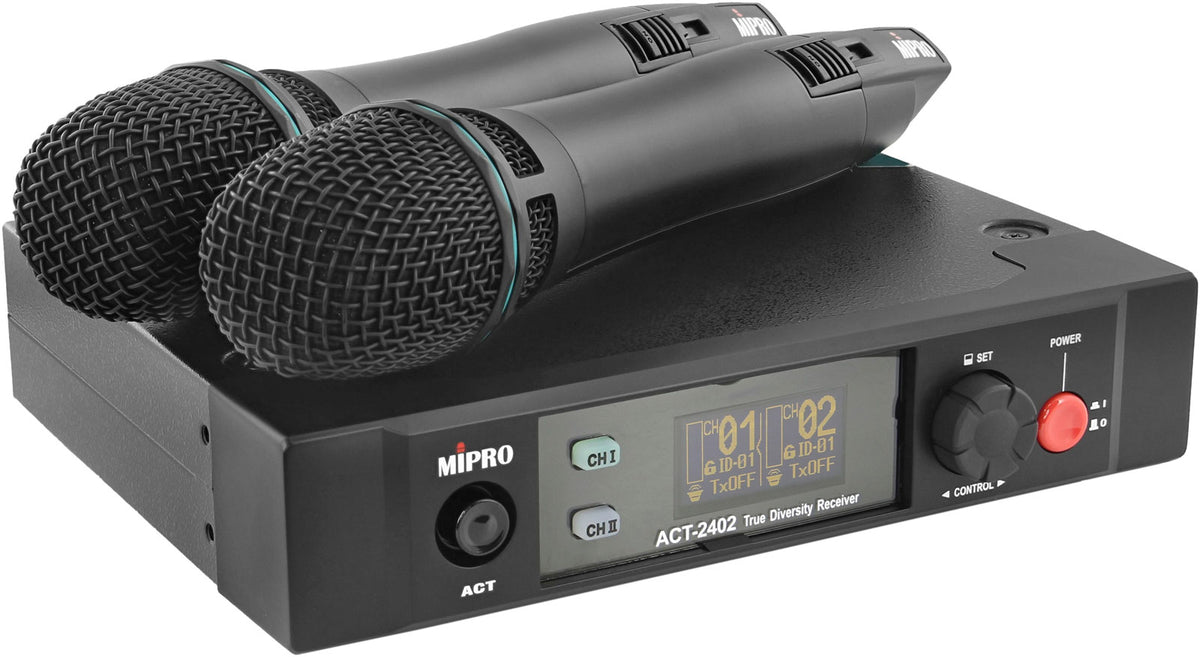

Mipro ACT 2402 + 2 x ACT 24HC

A 2.4 GHz System Designed for Simplicity in Multi-Mic Configurations

The Mipro ACT-2402 adopts a "plug and play" approach to 2.4 GHz wireless systems, especially convenient when you want to avoid managing UHF bands and get straight to the point. With its 2-channel receiver and 12 preset frequencies, it meets the common needs of performances involving two handheld microphones: vocal duos, hosting, speeches, rehearsals, and small mobile setups. Its standard 19-inch 1/2U rack format facilitates integration into flight cases or racks, while remaining discreet on a mixing desk.

Who Is It For and What Are Its Uses?

This pack is particularly suited for singers and hosts seeking wireless freedom with immediate usability, as well as for multi-purpose halls, associations, local authorities, conferences, and events requiring two simultaneous microphones. The ACT24HC handheld microphones, equipped with a dynamic capsule, are well suited for vocals in real conditions (stage, close to the audience, noisy environments), with a stated frequency response of 20 Hz to 20 kHz.

Key Features: Radio Stability, Quick Start-Up, and Complete Connectivity

ACT-2402 Receiver: Clear Control and Rack Integration

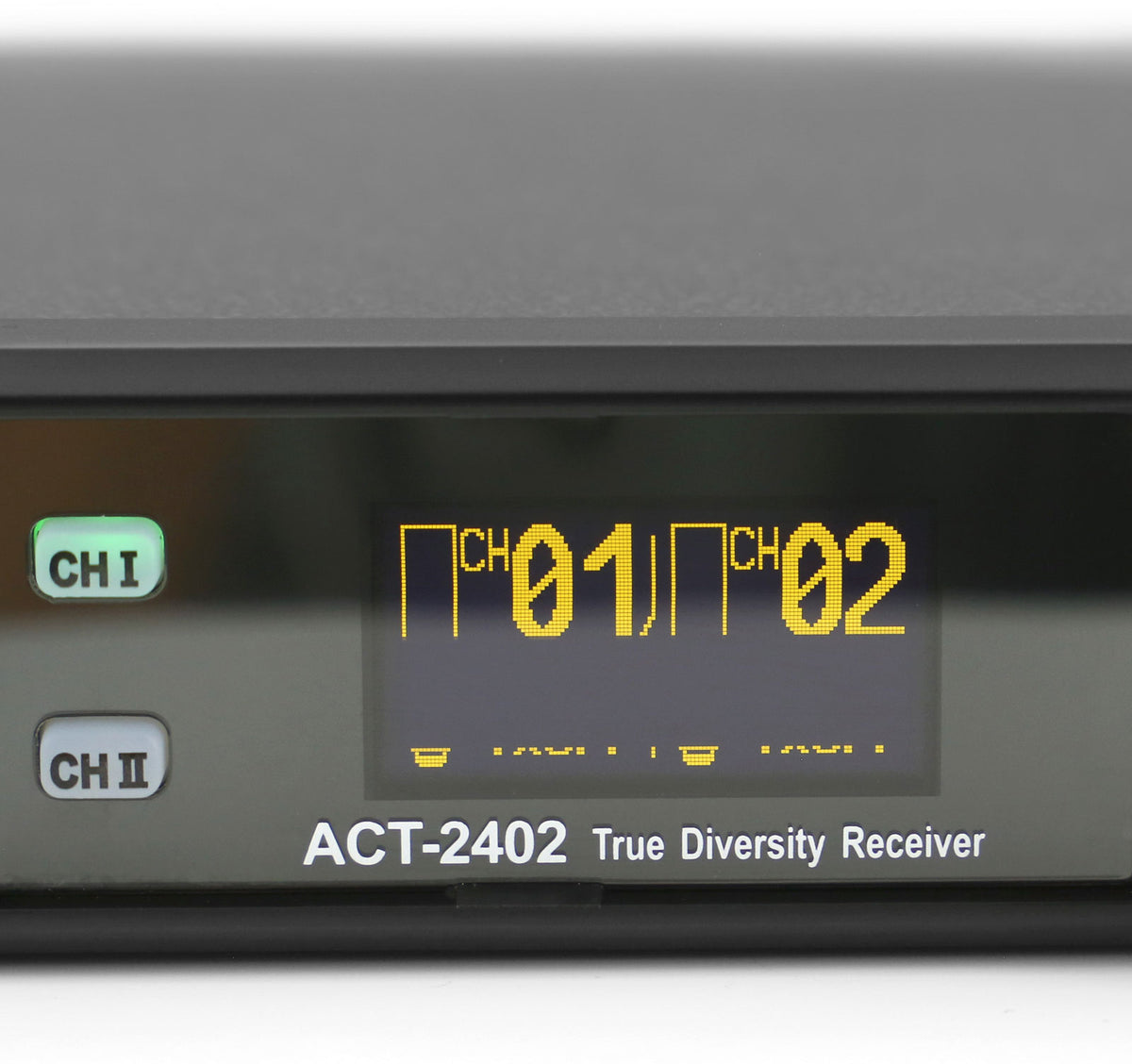

The ACT-2402 receiver offers immediate readability thanks to its graphical OLED display. The digital dual tuner Diversity reception helps secure the radio link, while ACT synchronization simplifies pairing with microphones: a real time saver during stage changes or quick setups. The antenna is hidden in the front panel, convenient for a clean and compact installation.

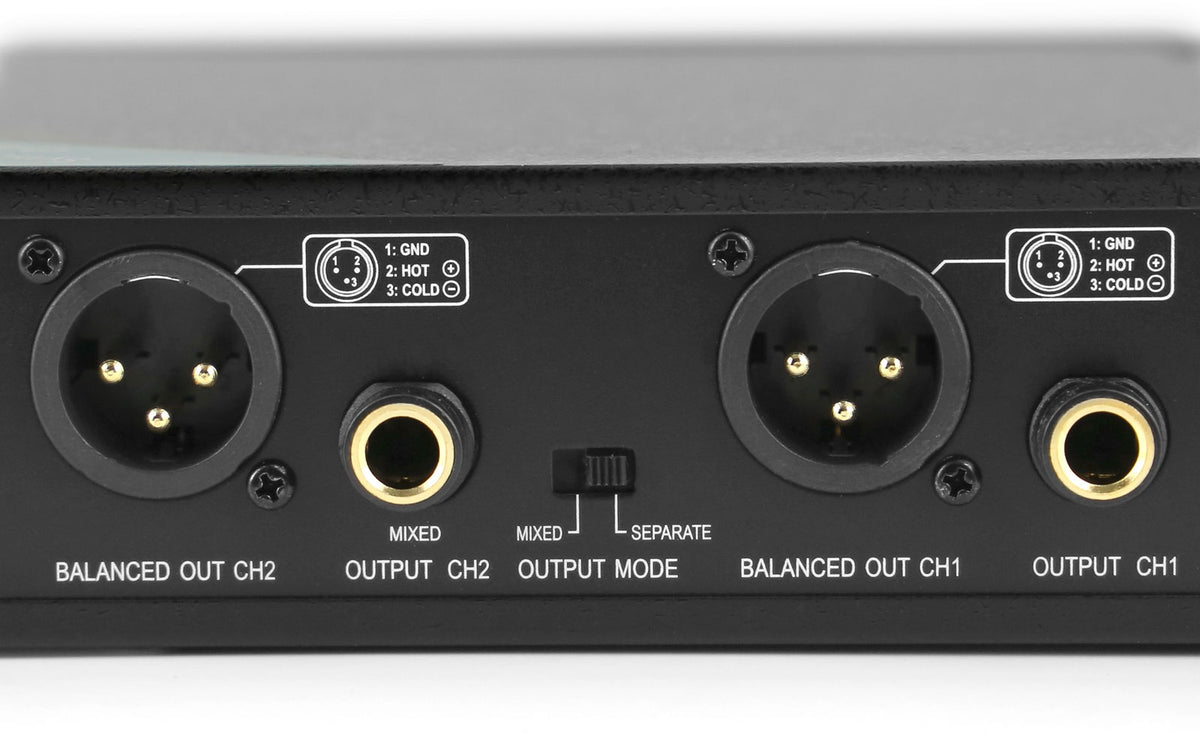

For connection to a mixing console or sound system, the receiver provides 2 XLR outputs as well as 6.35mm Jack outputs, with output level adjustment (from 10 to +20 dB) to adapt the signal to your audio chain. Performance-wise, it features a signal-to-noise ratio greater than 115 dB, distortion (at 1 kHz) of 0.1%, and a sensitivity of 95 dBm.

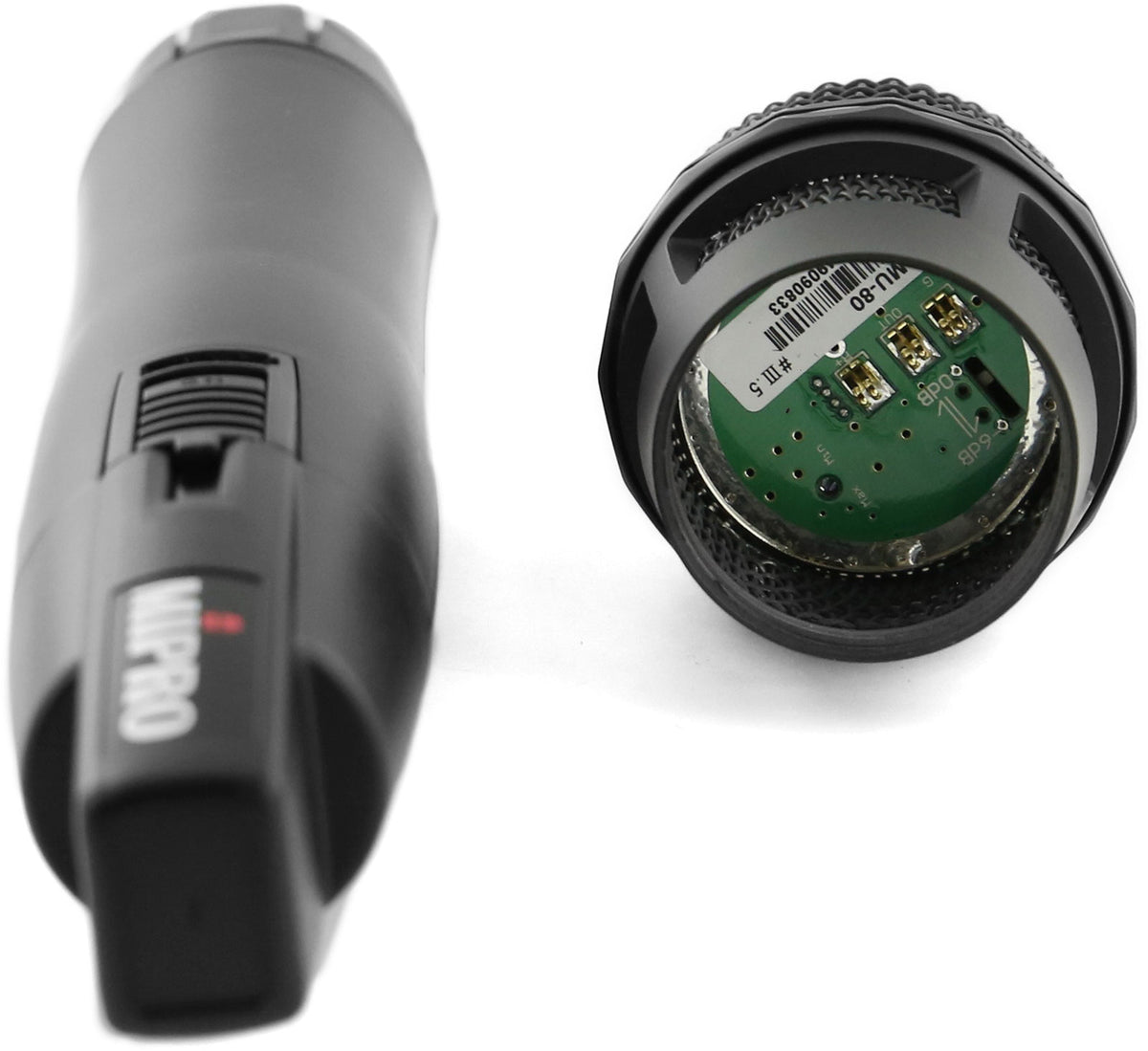

ACT24HC Handheld Microphones: Dynamic Capsule and Power Management

The two ACT24HC handheld microphones are designed for comfortable and clear use in the field: battery level indicator to anticipate replacements, and powered by MB5 Lithium batteries. The selectable output power (2 mW or 10 mW ) allows adjustment of the radio link behavior depending on the context. ACT synchronization is also included to maintain a simple and consistent configuration between transmitters and receiver.

For charging, an MP8 or MP80 charger is available as an option, giving you the freedom to choose the solution best suited to your inventory and usage pace.

Technical specifications

Category

Complete system

Capsule

dynamic

Wireless handheld microphone system including	Mipro ACT-2402 receiver + 2 Mipro ACT24HC handheld microphones	Antenna	hidden in front panel
Carrier frequencies	2.400 to 2.4835 GHz	Inputs / outputs	2x XLR + 6.35mm Jack
Preset frequencies	12	Power supply	power adapter included
Latency	4 ms	Format	standard 19-inch 1/2U rack
Synchronization	ACT	Dimensions	210 x 180 x 44 mm
Reception mode	digital dual tuner Diversity	Weight	750 g
Signal-to-noise ratio	greater than 115 dB	Type	wireless handheld microphone
THD at 1 kHz	0.1%	Selectable output power	2 mW / 10 mW
Sensitivity	95 dBm	Frequency response	20 Hz to 20 kHz
Output level adjustment	10 to +20 dB	Indicator	battery level LED
Display	graphical OLED
