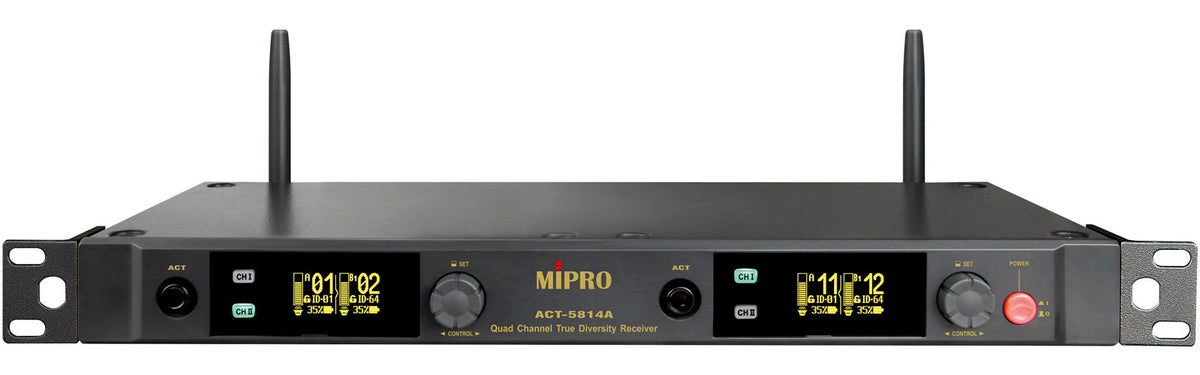

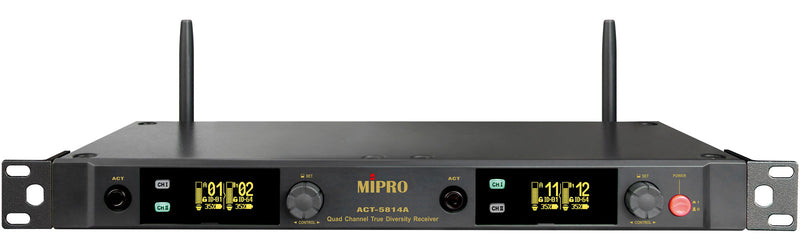

Mipro ACT-5814A
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Mipro
https://www.mipro.com.tw
mipro@mipro.com.tw
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
ACT 58: a multi-channel solution designed for stage and rack integration
The Mipro ACT5814 is part of the ACT 58 ecosystem, an approach focused on performance and ease of use: multiple channels in a 1U chassis, clear on-screen management, and quick setup thanks to ACT synchronization. Its positioning as a 4-channel receiver makes it particularly relevant for stages (vocals, instruments, presentations), places of worship, conferences, and fixed installations requiring a clean and centralized rack configuration.
Who is it for and what are the uses?
This receiver is designed for users who need to multiply wireless links while maintaining a reliable and easy-to-manage installation: stage managers, service providers, musicians, sound technicians, multipurpose rooms, and integrators. In a 19-inch 1U rack format, it naturally fits into a flight case or technical rack, with separate outputs per channel for direct connection to a console or a sound system.
Key features: stability, rapid deployment, and audio control
Digital Diversity dual tuner reception
The digital Diversity dual tuner reception mode aims to enhance signal stability in real conditions, especially when the radio environment is crowded or when there is significant movement on stage. Result: a more reliable link with better resistance to dropouts and reception variations.
ACT synchronization: faster configuration
ACT synchronization facilitates pairing between the receiver and compatible transmitters: a major advantage when quickly deploying multiple channels, restoring a configuration after transport, or standardizing a fleet of wireless systems.
Level management and separate outputs
The ACT5814 offers audio output adjustment to adapt the level to downstream equipment (console, stagebox, recorder). With its 4 balanced XLR and 4 unbalanced 6.35mm Jack outputs, you have flexible connectivity to meet the demands of live performance as well as installations.
OLED display for immediate reading
The graphical OLED display provides clear reading of essential information, useful for channel monitoring and daily operation, even within a rack.
Technical specifications
| Category | receiver | ||
| Model | Mipro ACT5814 | Audio output adjustment | 0 dB (standard), from -10 dB to +20 dB |
| Type | 4-channel receiver | Outputs | 4 balanced XLR |
| Frequency band | 5725 to 5850 MHz | Display | graphical OLED |
| Preset frequencies | 24 | Format | 19-inch 1U rack |
| Latency | less than 1.7 ms | Power supply | included power adapter |
| Reception mode | digital Diversity dual tuner | Dimensions | 420 x 180 x 44 mm |
| Synchronization | ACT | Weight | 1.5 kg |
| Frequency response | 18 Hz to 23 kHz | Compatible with | ACT 58H |
Questions frequently asked
Is the Mipro ACT-5814A compatible with the ACT 58H transmitter?
The announced compatibility concerns the Mipro ACT 58H transmitter. ACT synchronization allows pairing with compatible transmitters.
How many wireless microphones can be used simultaneously?
This receiver supports 4 simultaneous channels in a 1U 19-inch rack format.
What audio outputs are available on this Mipro receiver?
Four balanced XLR outputs are provided to connect the channels separately to a mixer or stage box. The description also mentions 4 unbalanced 6.35 mm jack outputs. The output level is adjustable from 0 dB to +20 dB, with a standard setting at 0 dB.
What is the latency of the ACT 58 system?
The advertised latency is less than 1.7 ms, with a frequency response from 18 Hz to 23 kHz.
Is the ACT-5814A suitable for rack installation?
Its 1U chassis measures 420 x 180 x 44 mm and fits into a 19-inch rack. The OLED graphic display makes monitoring the 4 channels from the front panel easy.
