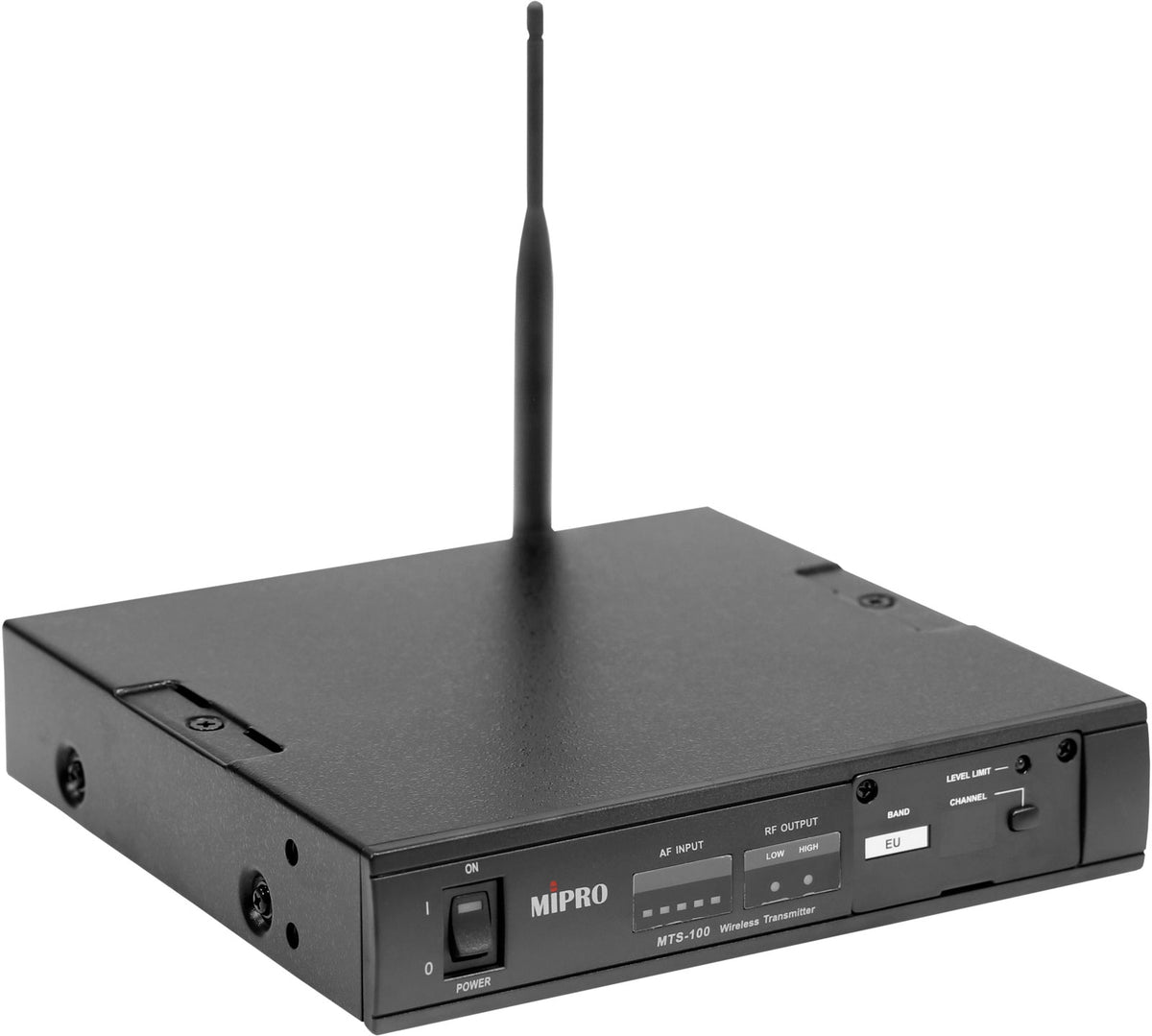

Mipro MTS-100

A Rack Link Dedicated to the MTG-100 Series

The Mipro MTS-100 is a UHF transmitter module designed to integrate into stage or installation environments, with a 19-inch rack 1/2U format that prioritizes compactness without sacrificing ergonomics. Its logic of preprogrammed channels and compatibility with certain receivers in the range make it a solution designed for fast, coherent, and easy-to-maintain setups, especially when you want to centralize the transmitter in a rack rather than multiply floor units.

Who Is the MTS-100 For, and In What Uses Does It Make a Difference?

This module is aimed at musicians, stage managers, service providers, and installers who need a reliable UHF transmitter with clean cabling and simple controls. It is particularly suitable for situations where a microphone or line signal must be sent wirelessly from a fixed source (mixing desk, instrument rack, audio peripherals), while maintaining a readable front panel and immediate access to key settings.

Thanks to the microphone/line selector and input level adjustment, the MTS-100 can integrate both in a microphone chain (with phantom power if needed) and in a line chain, for example for high-level sources, mixer outputs, or rack-mounted audio devices.

Key Features and Handling

Quick Adaptation to Sources: Microphone, Line, and Level Adjustment

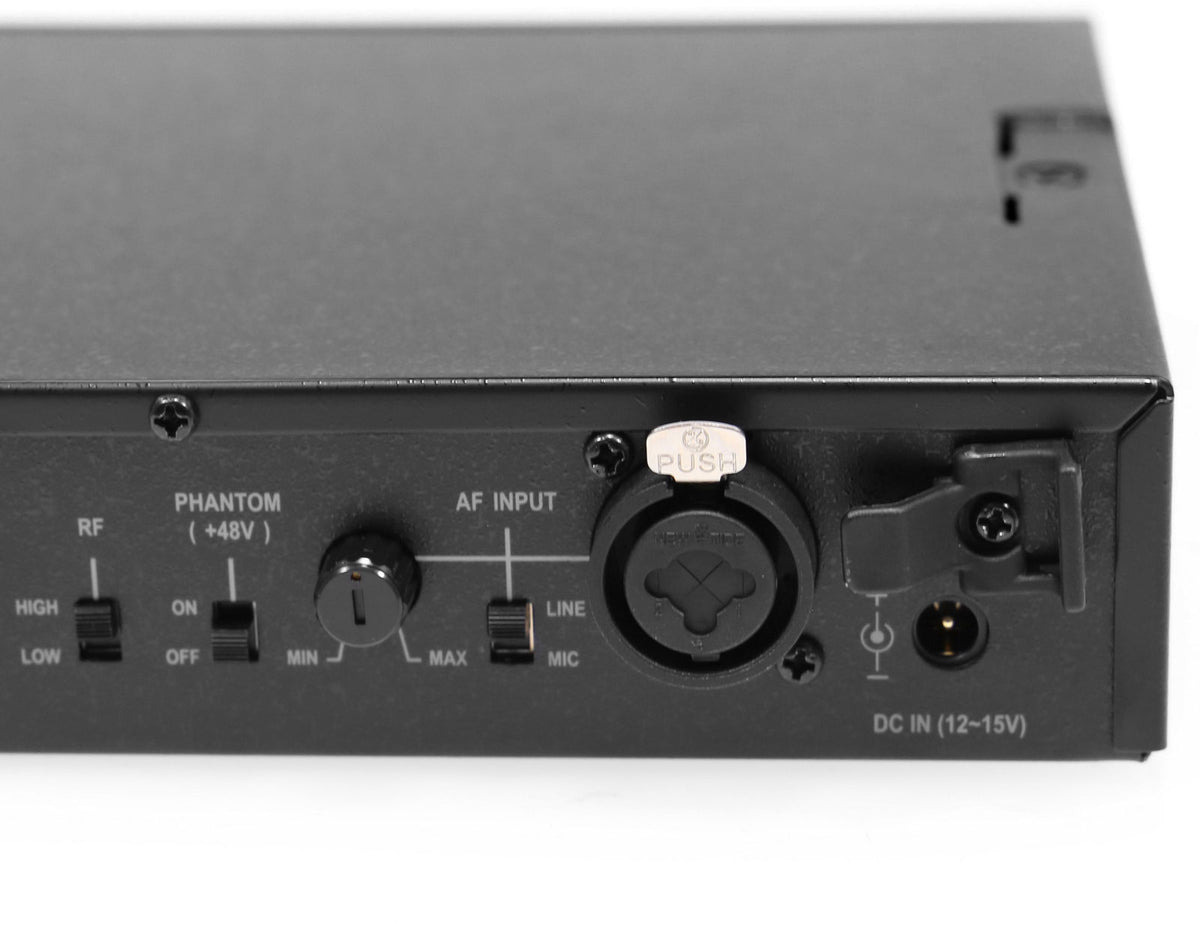

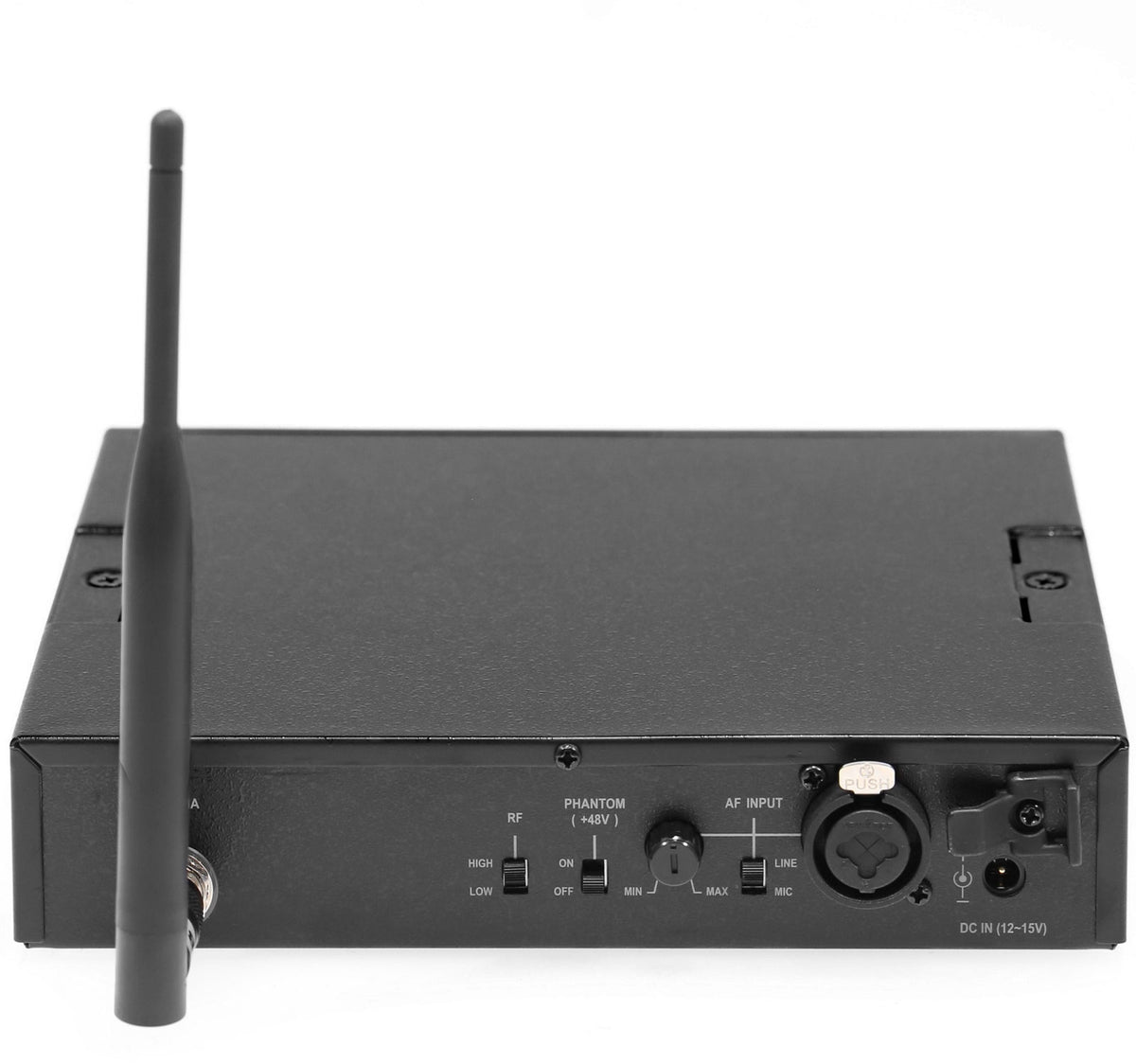

The MTS-100 relies on versatile input connectivity via a combo XLR / 6.35mm Jack, complemented by a microphone/line level switch. An adjustable VR control allows fine-tuning of the input level to optimize dynamics and avoid clipping, an essential point when switching between microphones, preamps, or line outputs of audio equipment.

Switchable 48 V Phantom Power

The switchable 48 V phantom power provides real flexibility when using a microphone that requires power, while keeping the option to turn it off for sources that do not need it. This simple management helps secure cabling and limit errors during stage changes.

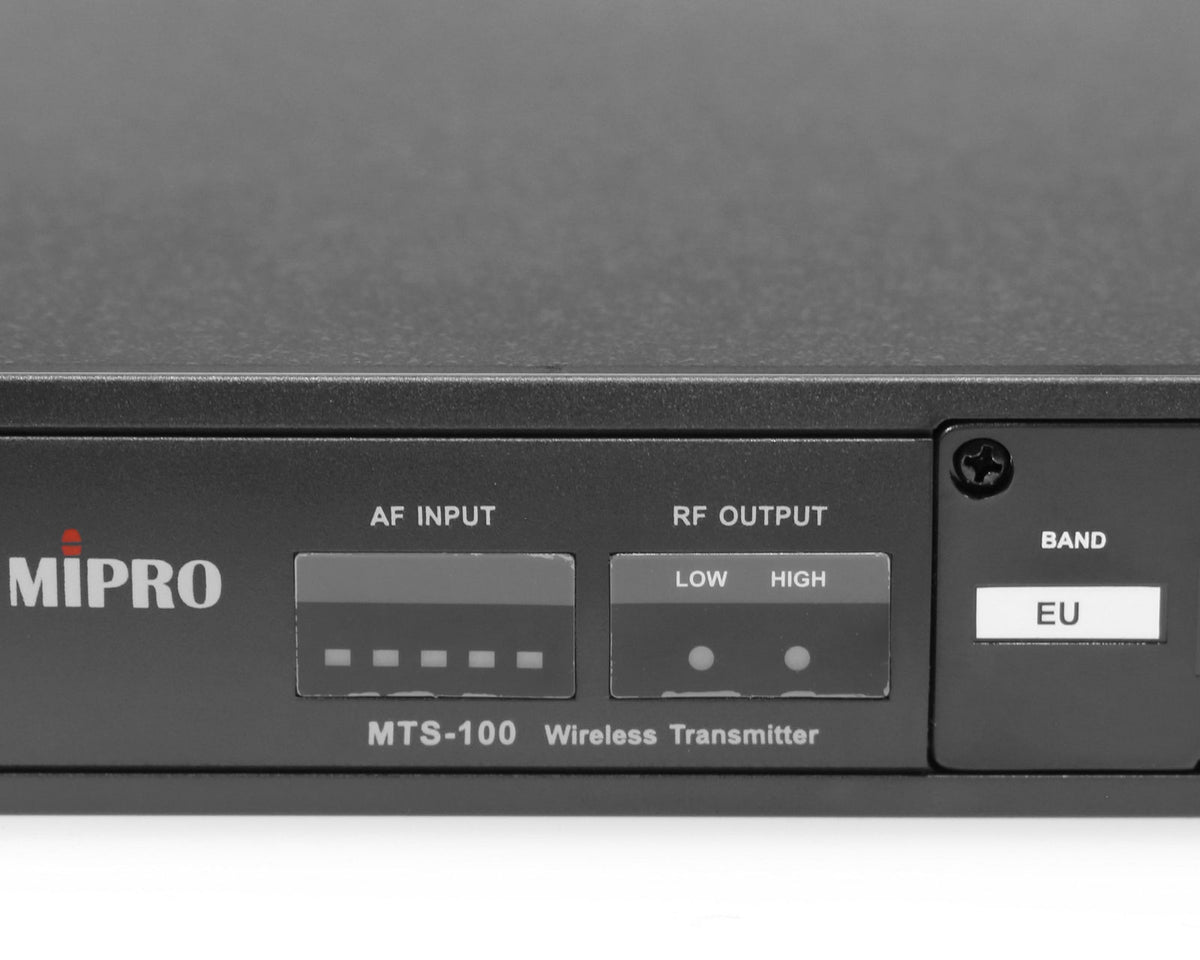

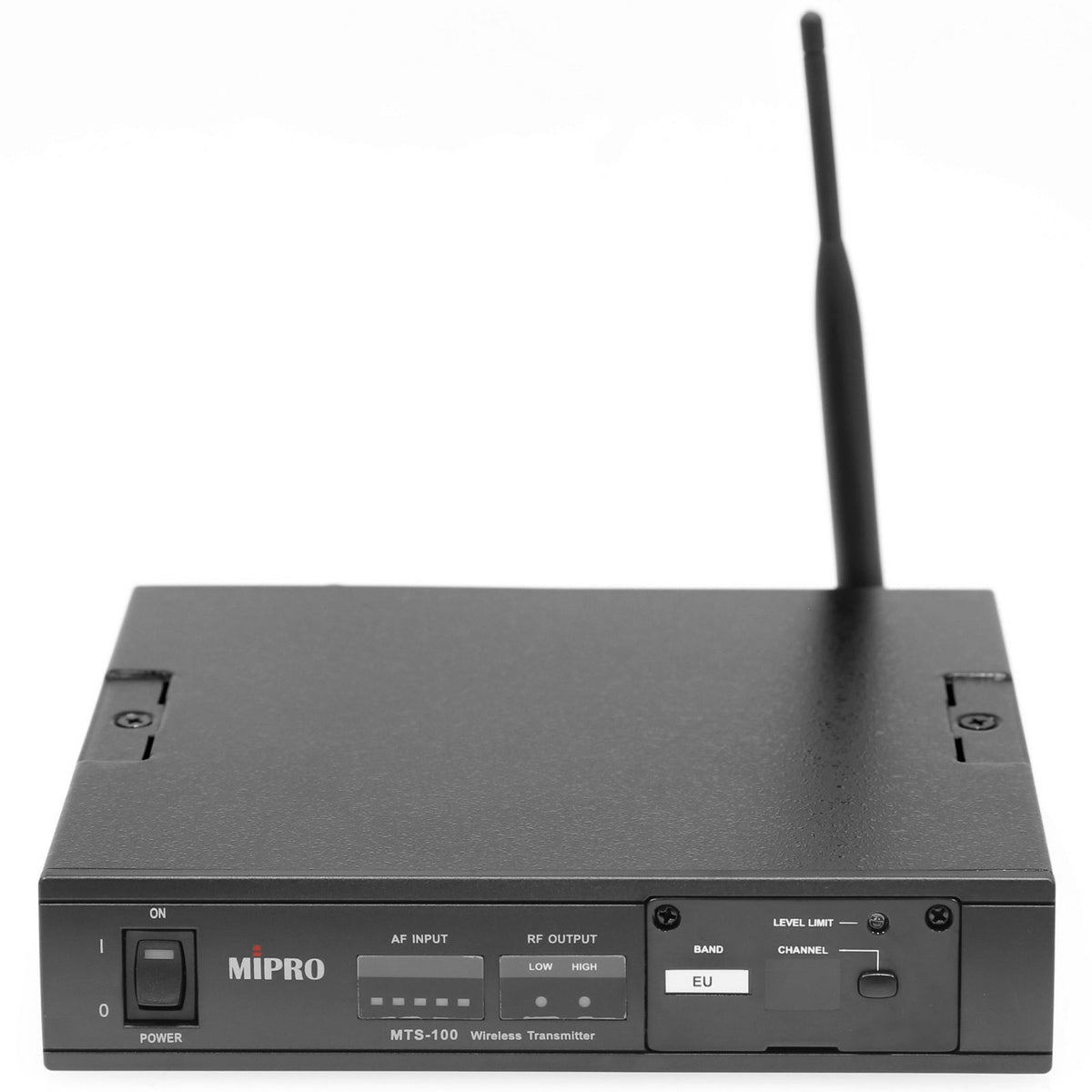

Preprogrammed Channels and LED Display

With 16 preprogrammed channels and an LED display, the module is designed for straightforward use: you quickly see the system status and work with a channel selection designed to speed up configuration. The UHF diversity operation aims to enhance reception stability in environments prone to signal variations.

Technical specifications

Category

transmitter

Frequency band

SRD – 863 à 865 MHz

Model	Mipro MTS-100	Input level switch	microphone / line
Type	UHF diversity transmitter module	Input level adjustment	adjustable VR
Format	19-inch rack 1/2U	Input connectors	combo XLR / 6.35mm Jack
Carrier frequencies	863 / 865 MHz	Phantom power	switchable 48 V
Bandwidth	2 MHz	Display	LED screen

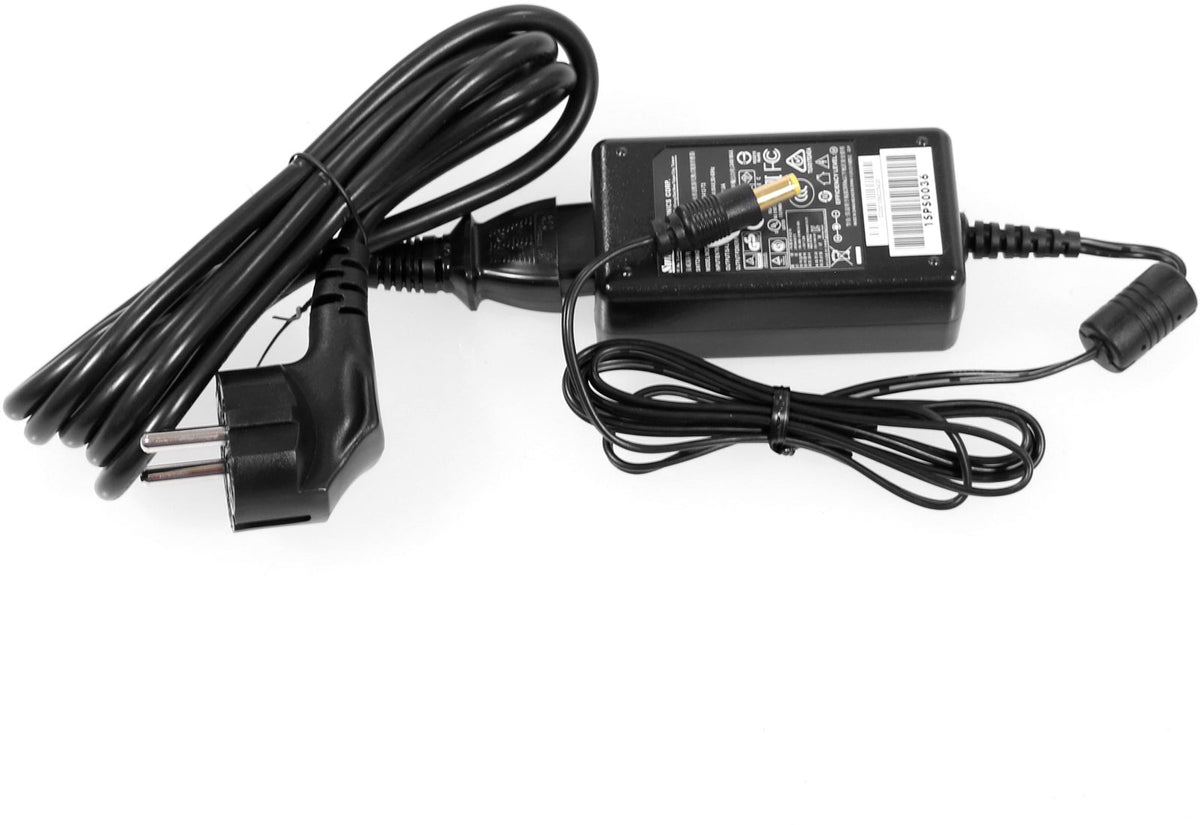

Channels	16 preprogrammed channels	Power supply	adapter included
Range	over 100 meters	Dimensions	210 x 44 x 206 mm
Frequency response	50 Hz to 10 kHz	Weight	1.1 kg
Maximum AF input level	less than 15 V RMS (Line In)	Compatible with	MTG-100R
